Sound Proofing / Insulation: Locations

Noise, Vibration and Harshness

Sound Deadeners and Insulators

NOTICE:
- Mastic is made of a combustible material and should be removed prior to carrying out welding procedures to the area. Heat zones from welding near mastic may cause the mastic material to burn.
- Corrosion protection must be restored to the area after the mastic material is applied. Corrosion protection products may be wax based and loss of adhesion may occur if applied prior to mastic installation.

The following serve as a reference to indicate mastic patch (butyl) locations. Additional insulators and sound deadeners are used beyond those indicated in the illustrations.

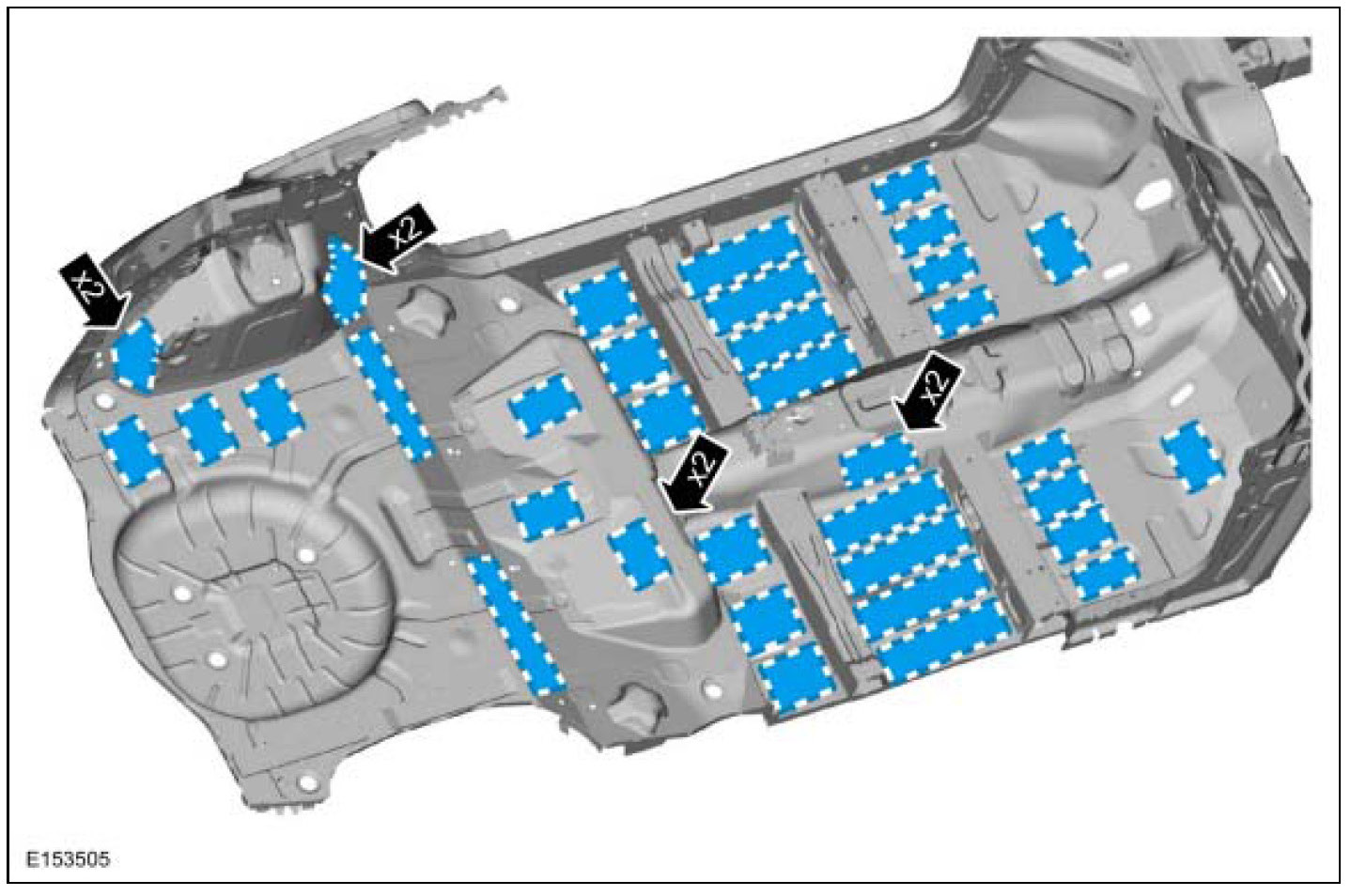

Floor Pan

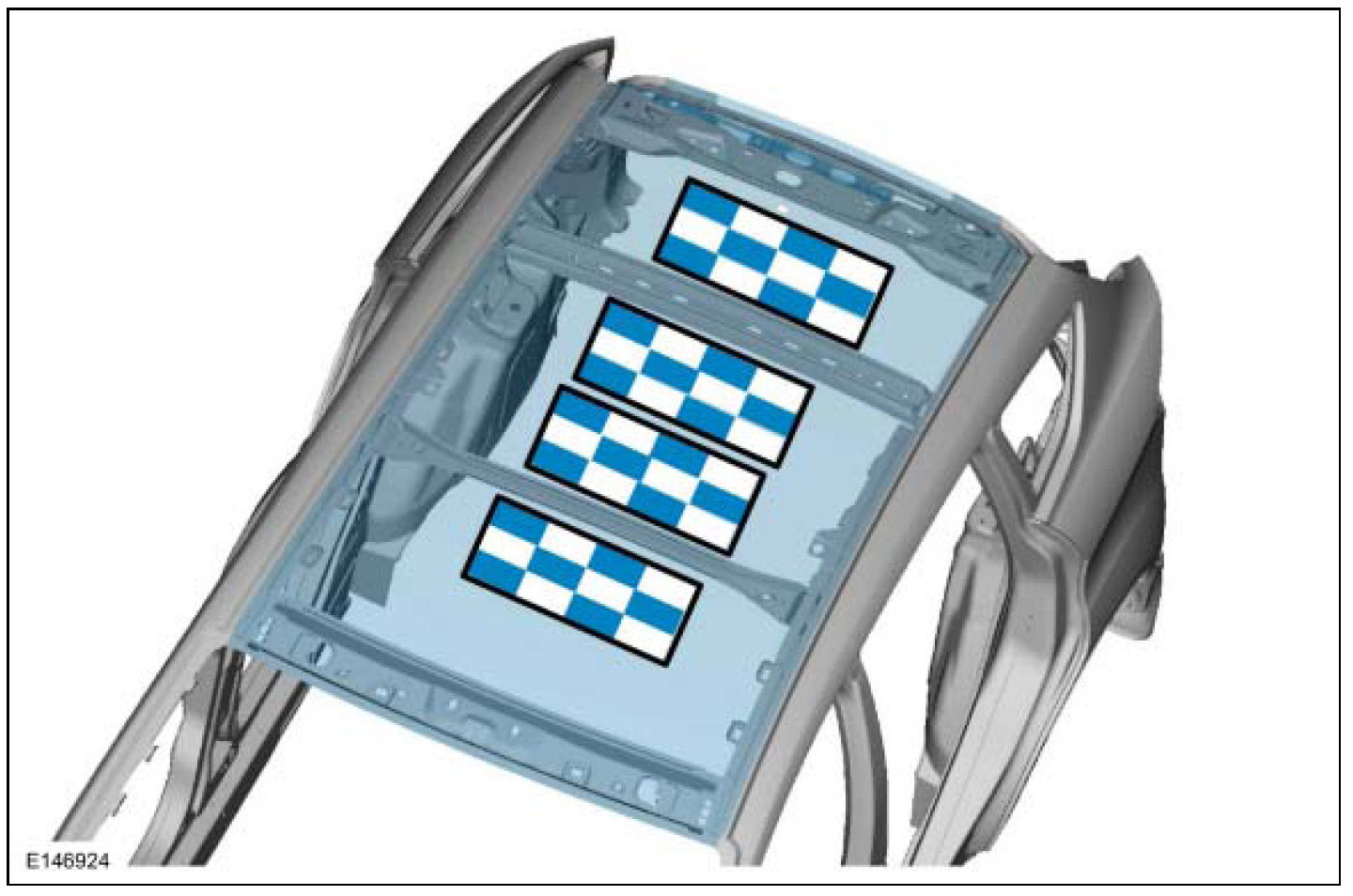

Roof Panel - Vehicles Without Glass Roof Panel

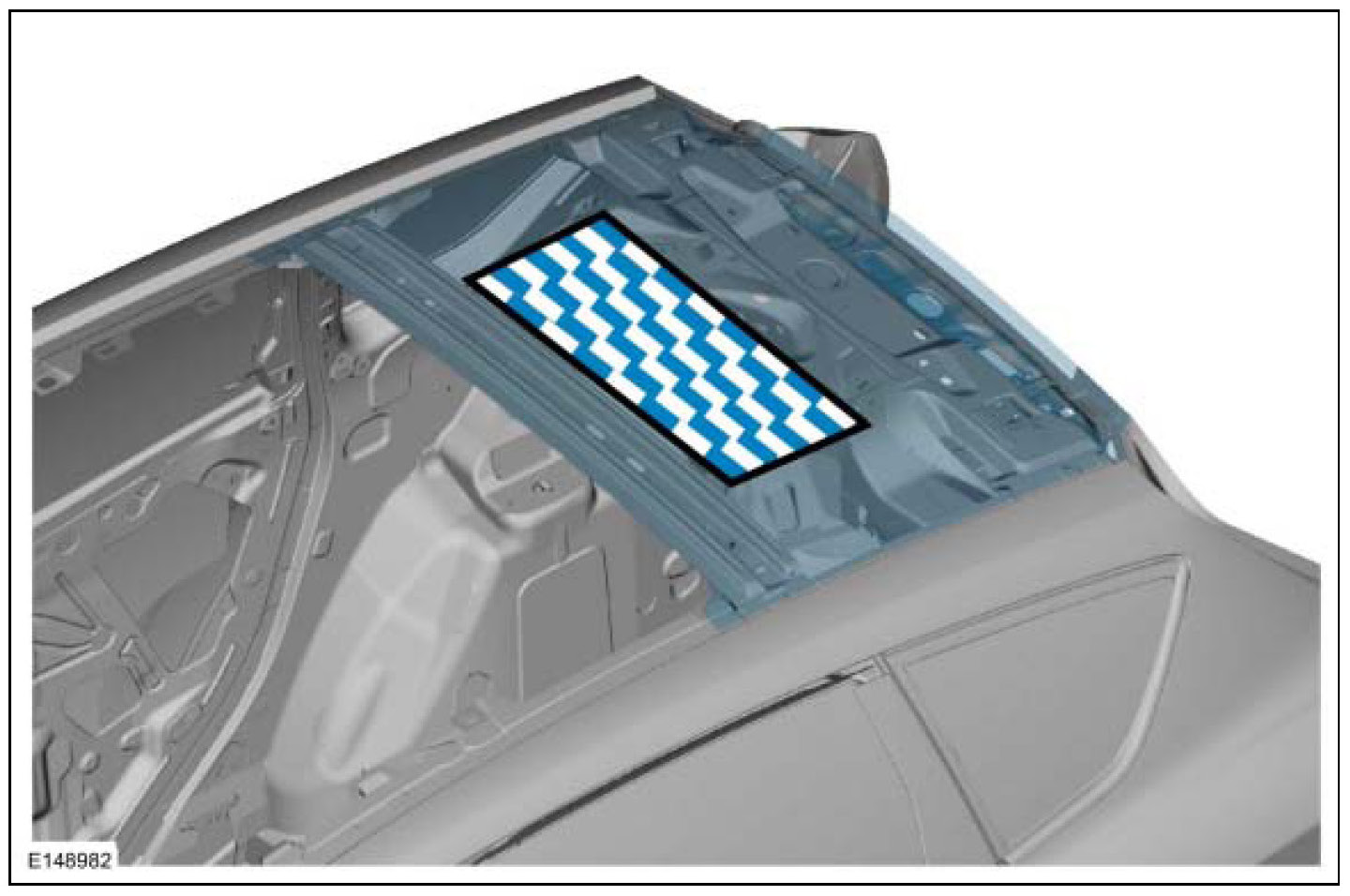

Roof Panel - Vehicles With Glass Roof Panel

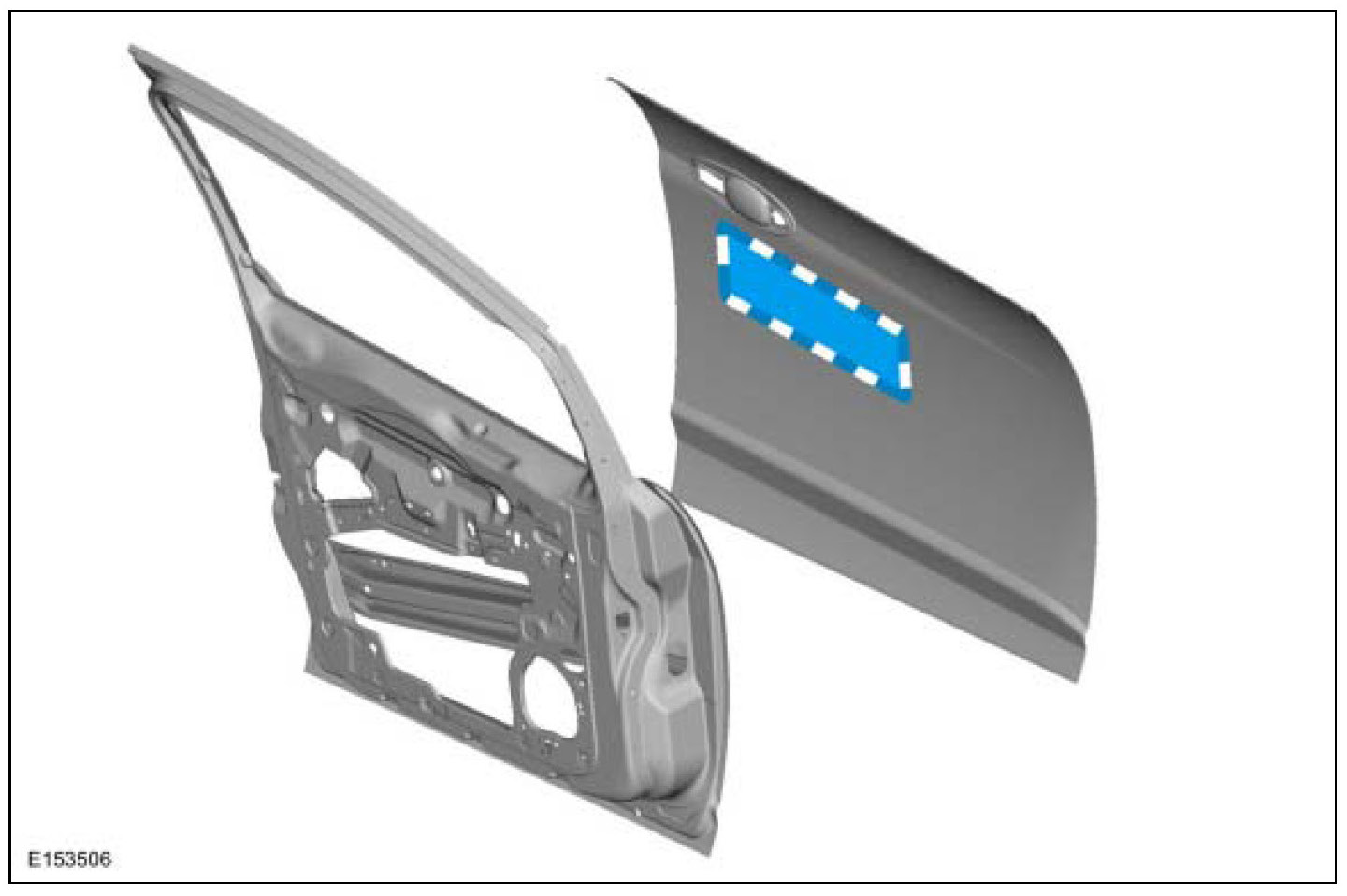

Front Door

NOTE: LH side shown, RH side similar.

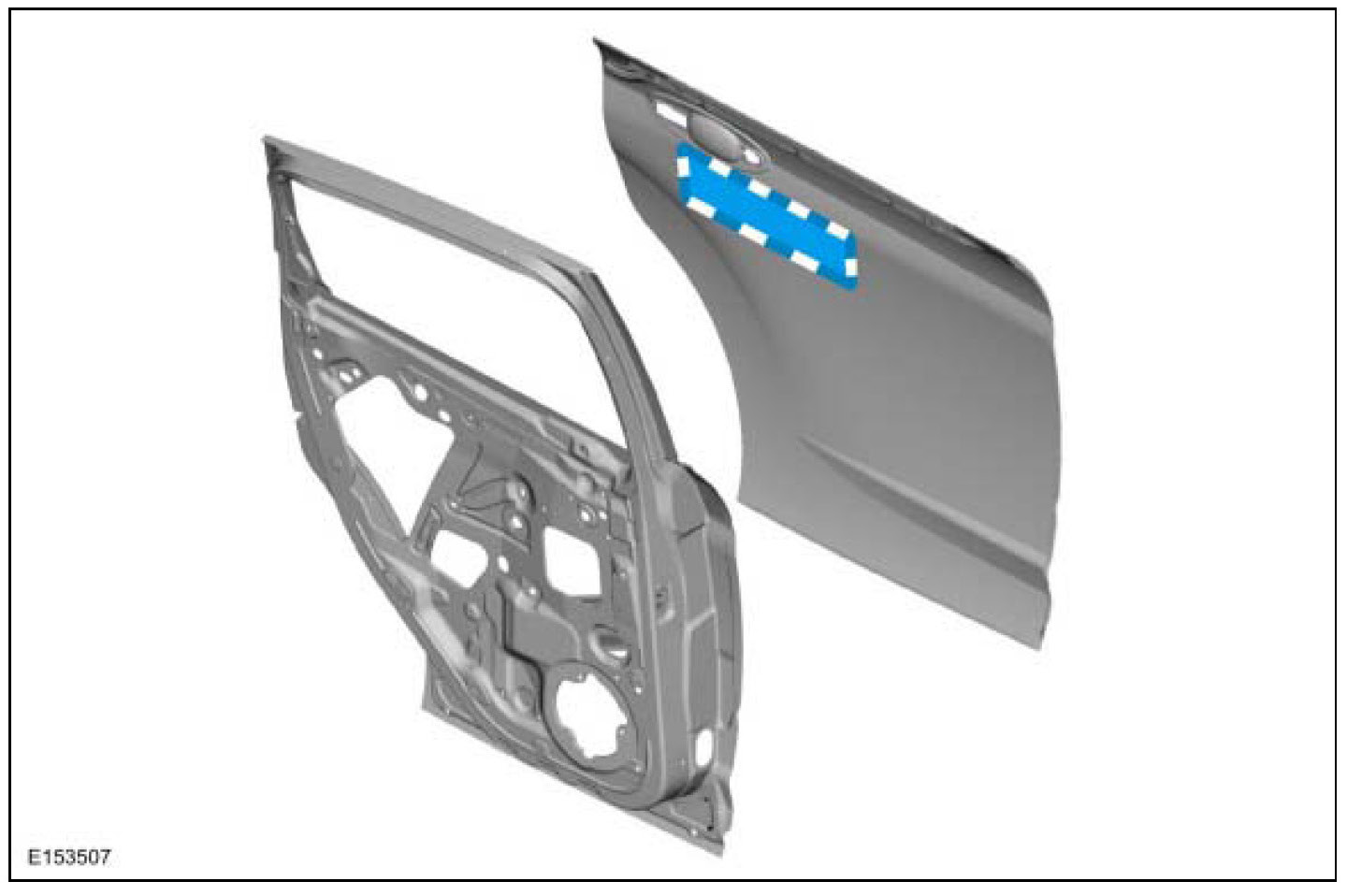

Rear Door

NOTE: LH side shown, RH side similar.
