Overhaul

Front Bumper Cover

DISASSEMBLY

NOTE: Disassembly procedure may contain assembly details.

1. WARNING: Before beginning any service procedure. Failure to follow this instruction may result in serious personal injury.

Refer to: Health and Safety Precautions. Health and Safety Precautions

2. Remove the front bumper cover.
Refer to: Front Bumper Cover. Removal and Replacement

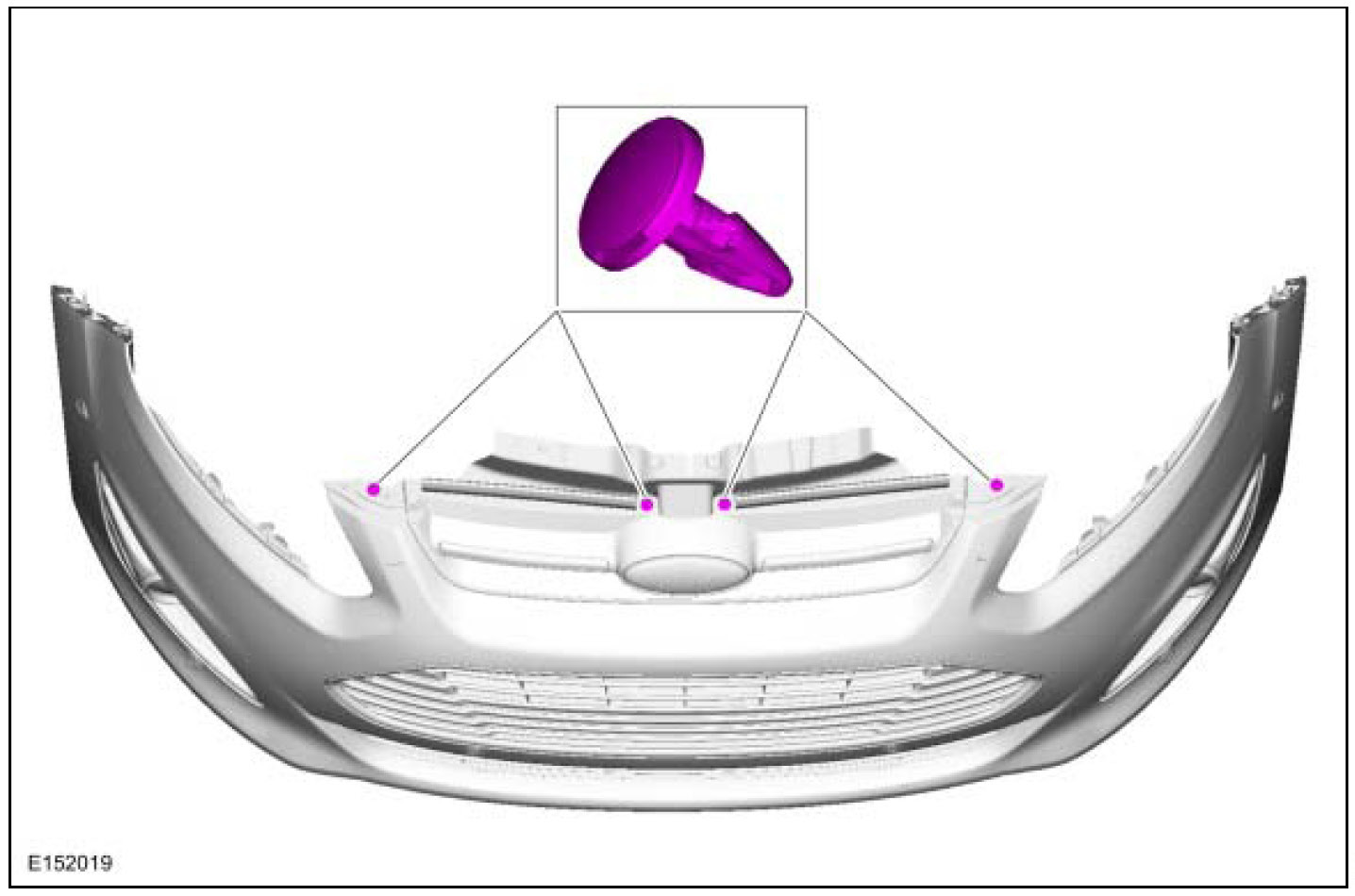

3.

Vehicles with parking aid

6. Remove the parking aid sensors.
Refer to: Front Inner Parking Aid Sensor.
Refer to: Front Outer Parking Aid Sensor.

7. Remove the front active park assist sensors.
Refer to: Front Active Park Assist Sensors.

All vehicles

8. Remove the front fog lamps.
Refer to: Front Fog Lamp.

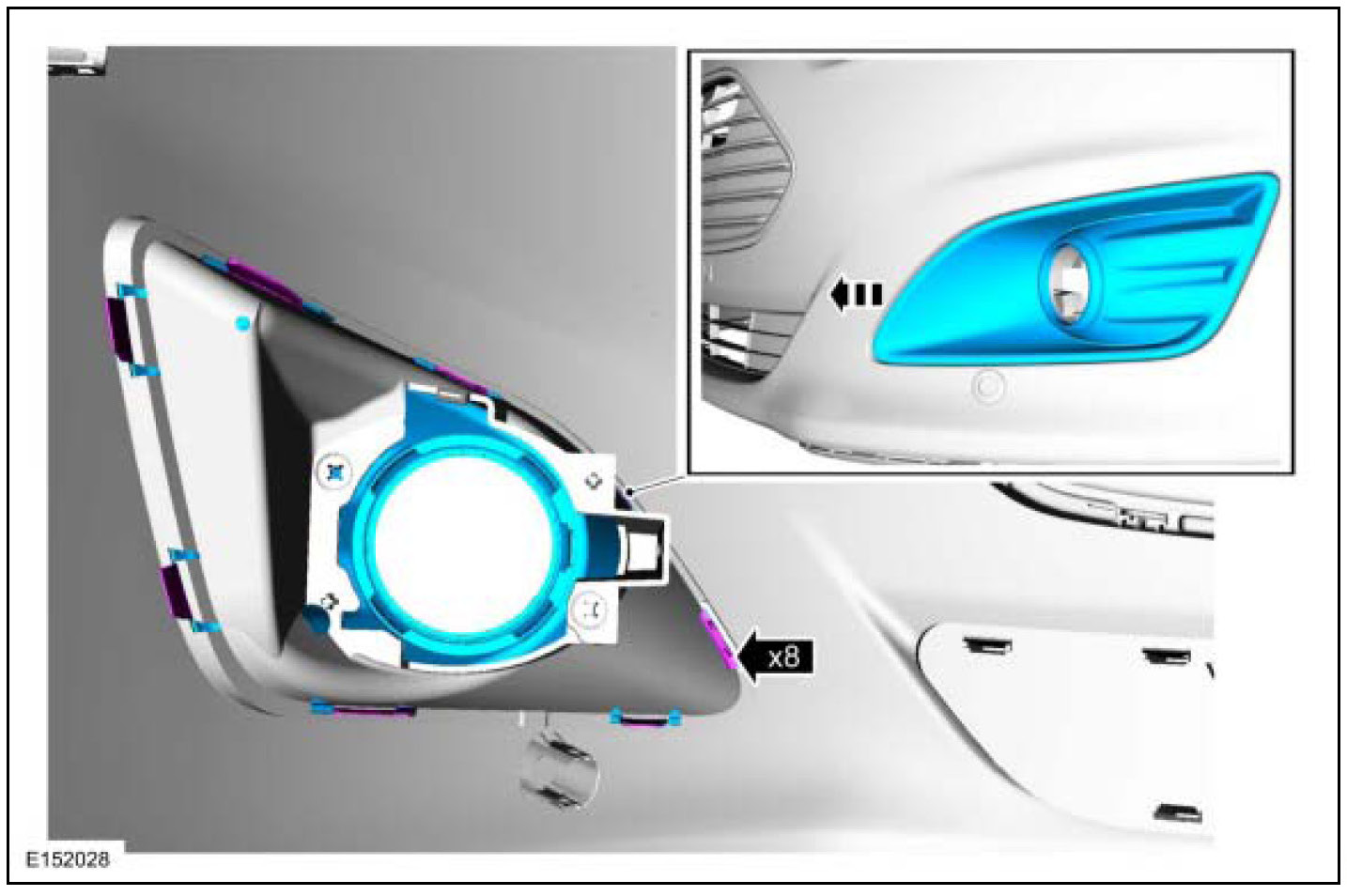

9. On each side.

10.

11.

12.

ASSEMBLY

1. To assemble, reverse the disassembly procedure.
