Driver Lower Airbag

Driver Lower Airbag

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. WARNING: Before beginning any service procedure. Failure to follow this instruction may result in serious personal injury.

Refer to: Health and Safety Precautions. Health and Safety Precautions

2. If a SRS fault is present, continue to step 3. Otherwise, turn the ignition off, wait at least one minute and continue to Step 4.
3. Depower the SRS.
Refer to: Supplemental Restraint System (SRS) Depowering and Repowering. Service and Repair

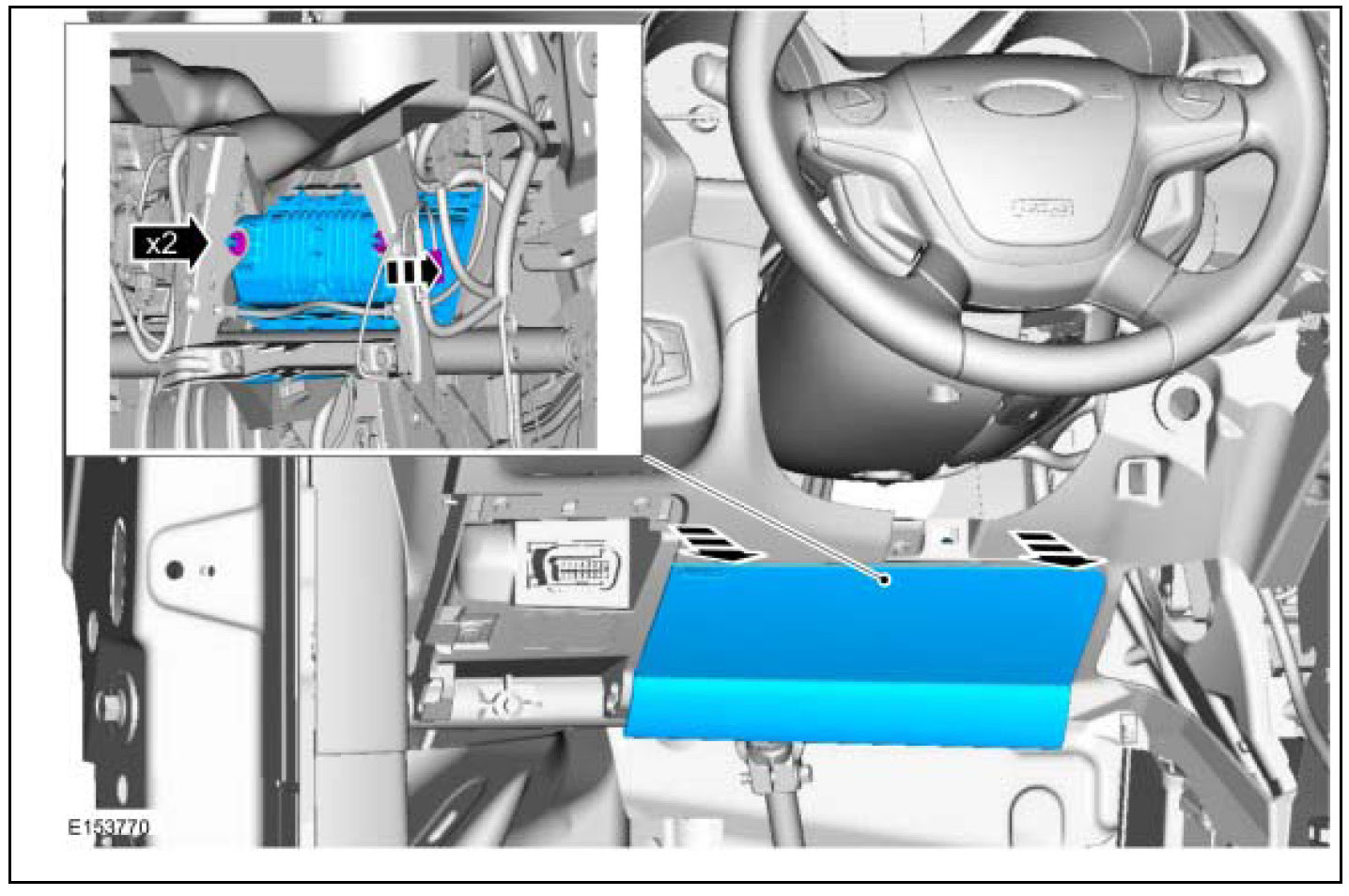

4. Torque: 9 Nm







Installation

1. To install, reverse the removal procedure.
2. If the SRS was depowered, repower the SRS.
Refer to: Supplemental Restraint System (SRS) Depowering and Repowering. Service and Repair
