Radiator: Service and Repair

Radiator

Special Tool(s) / General Equipment

Knife

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. WARNING: Before beginning any service procedure. Failure to follow this instruction may result in serious personal injury.

Refer to: Engine Cooling System Health and Safety Precautions. Engine Cooling System Health and Safety Precautions

2. Refer to: Cooling System Draining, Filling and Bleeding. Service and Repair
3. Refer to: Cooling Fan Motor and Shroud.
4. Refer to: Active Grille Shutter.

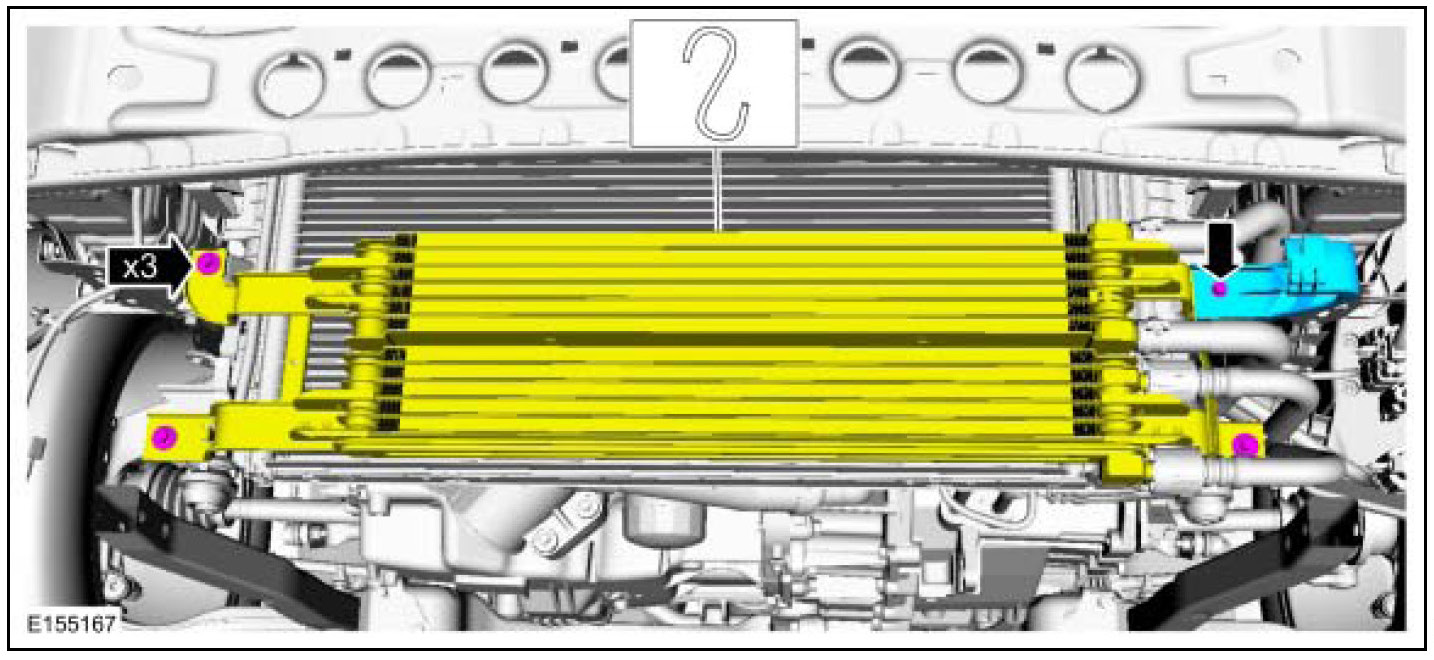

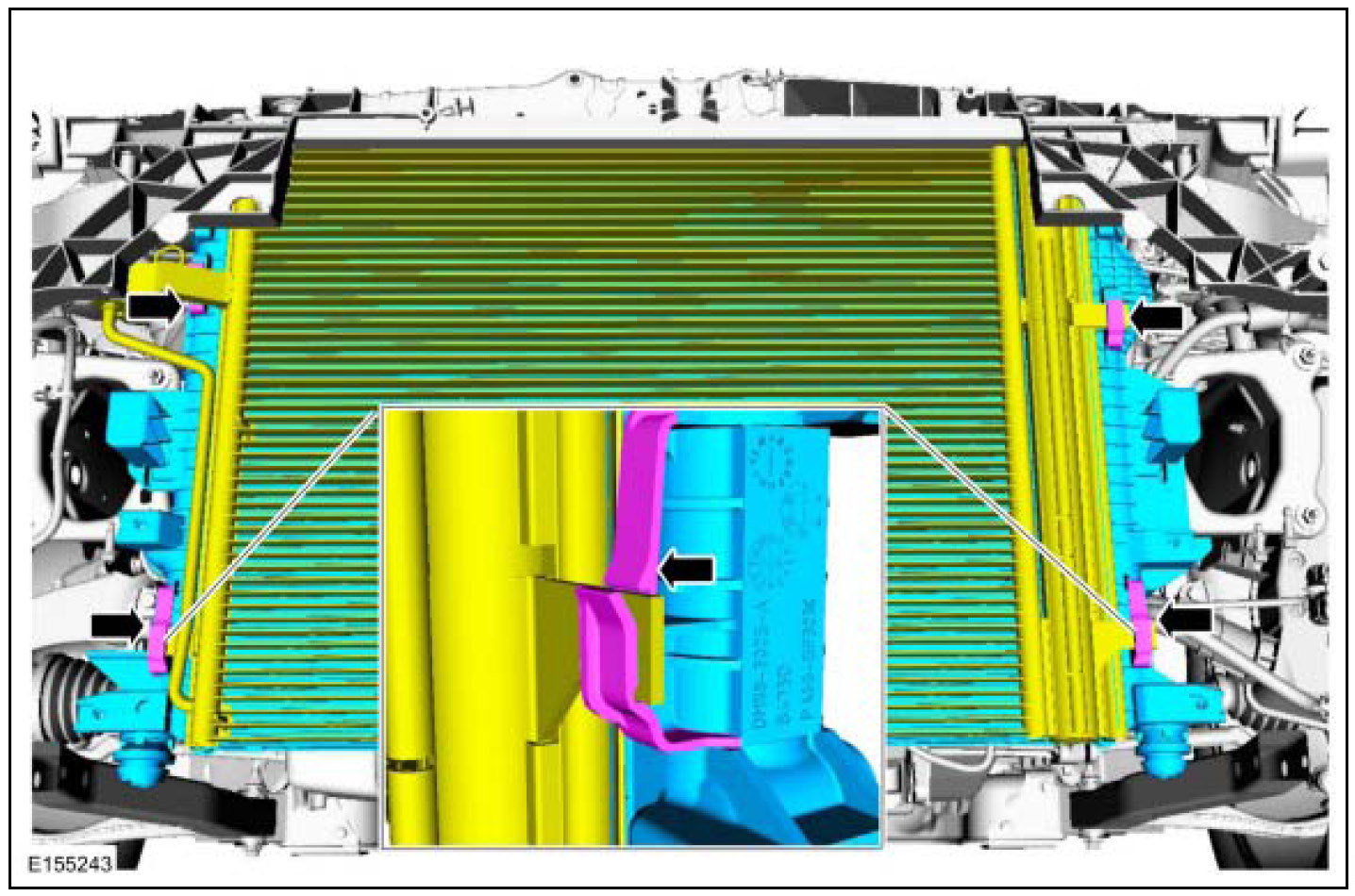

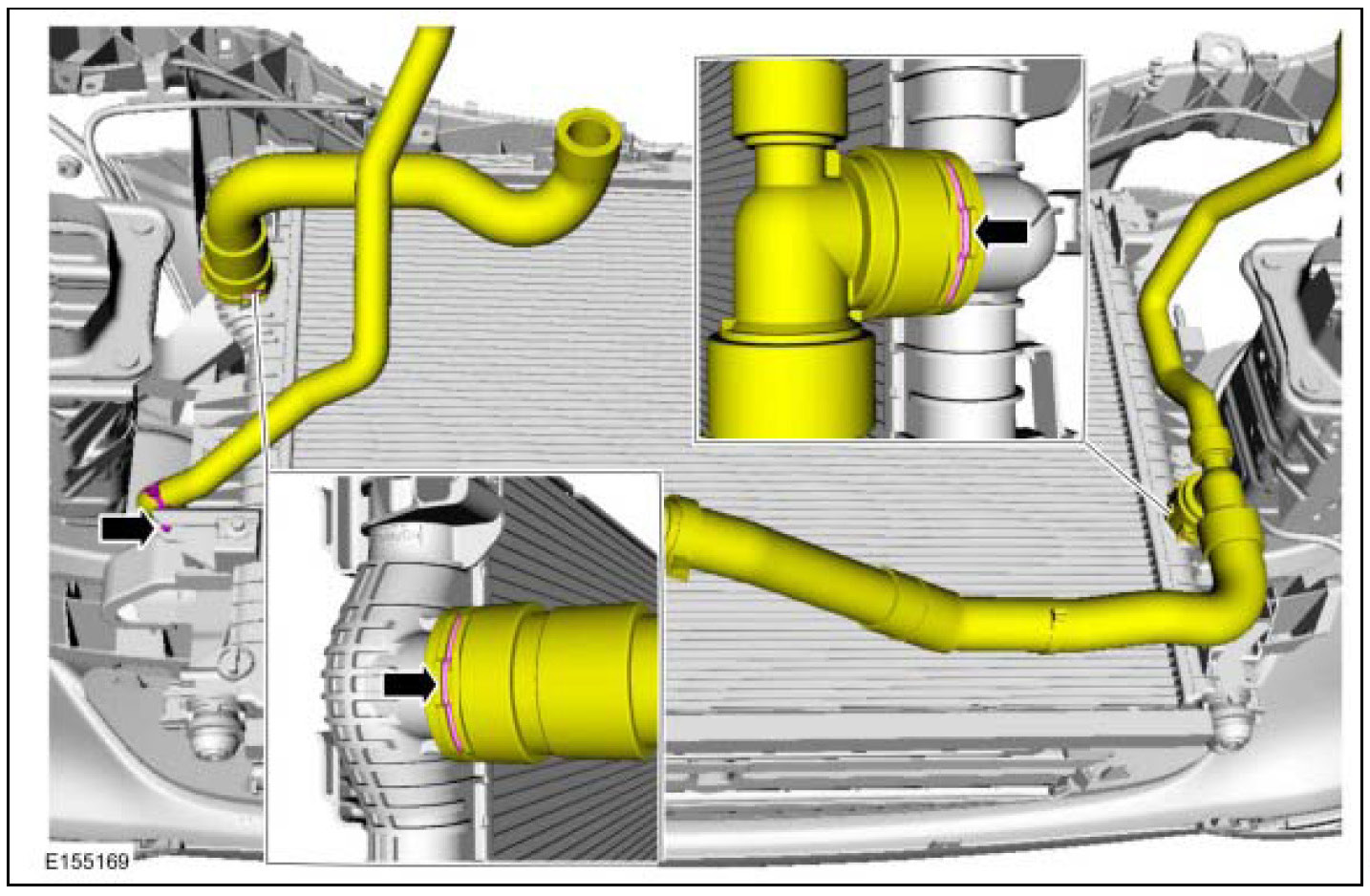

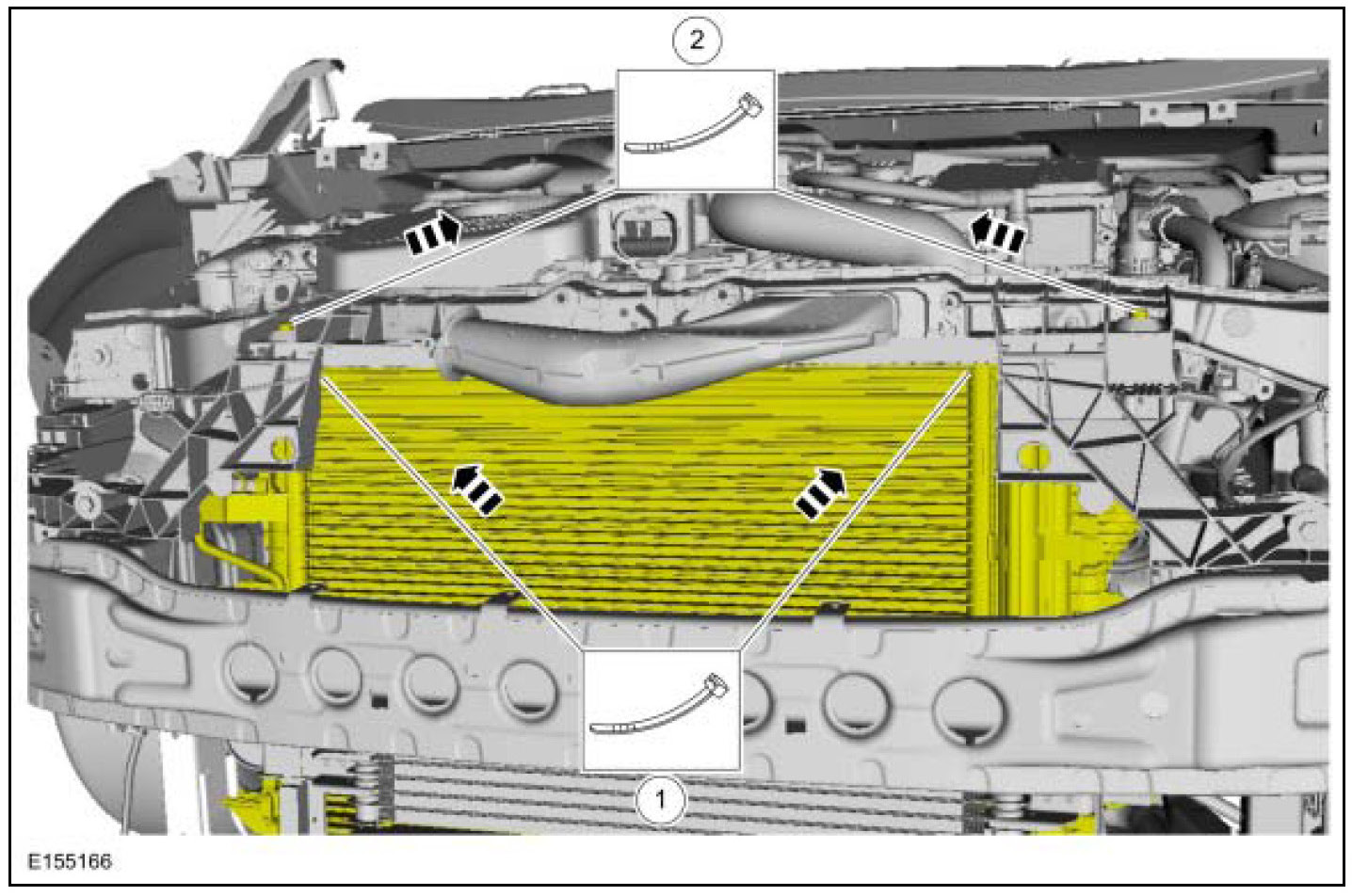

5.
- Install the General Equipment:
- Remove the General Equipment:

6. Relocate and support the component.
Torque: 6 Nm

7. General Equipment: Knife

Installation

1. To install, reverse the removal procedure.
