Removal and Replacement

Radiator

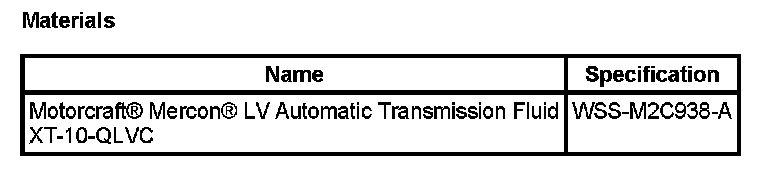

Materials







Removal

NOTE: Removal steps in this procedure may contain installation details.

1. WARNING: Before beginning any service procedure. Failure to follow this instruction may result in serious personal injury.

Refer to: Engine Cooling System Health and Safety Precautions. Engine Cooling System Health and Safety Precautions

2. Refer to: Cooling System Draining, Filling and Bleeding. Procedures
3. Refer to: Active Grille Shutter.
4.







5. NOTE:
- Be prepared to capture escaping fluid.

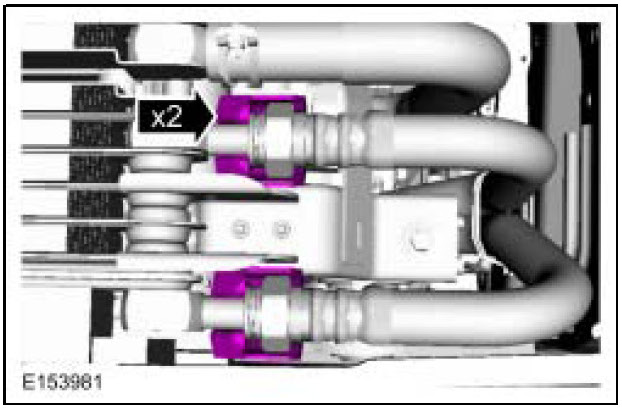

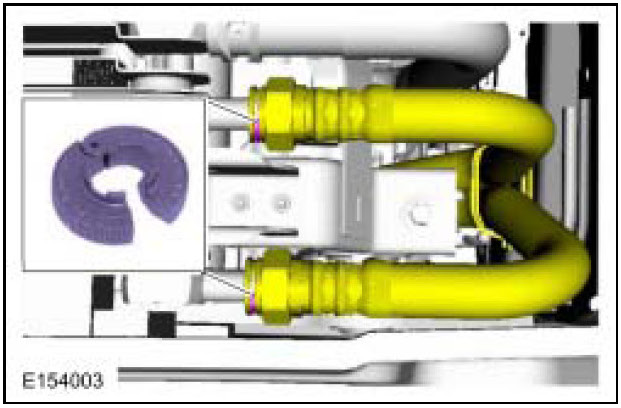

- Using a Jiffy-tite quick disconnect tool, close the tool around the tube, press the tool into the fitting and rotate until the tool is fully seated into the fitting.

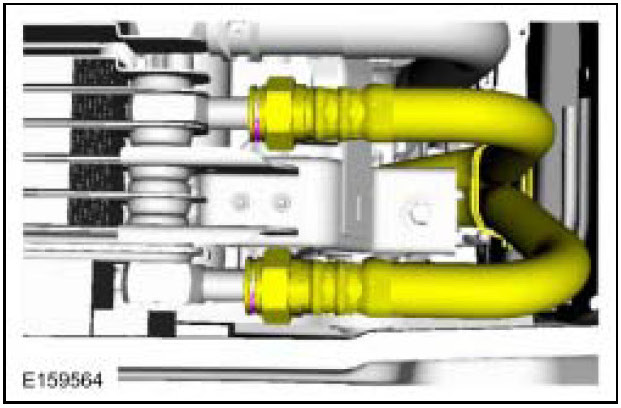

- Follow the unique instructions or graphic for this step in installation.

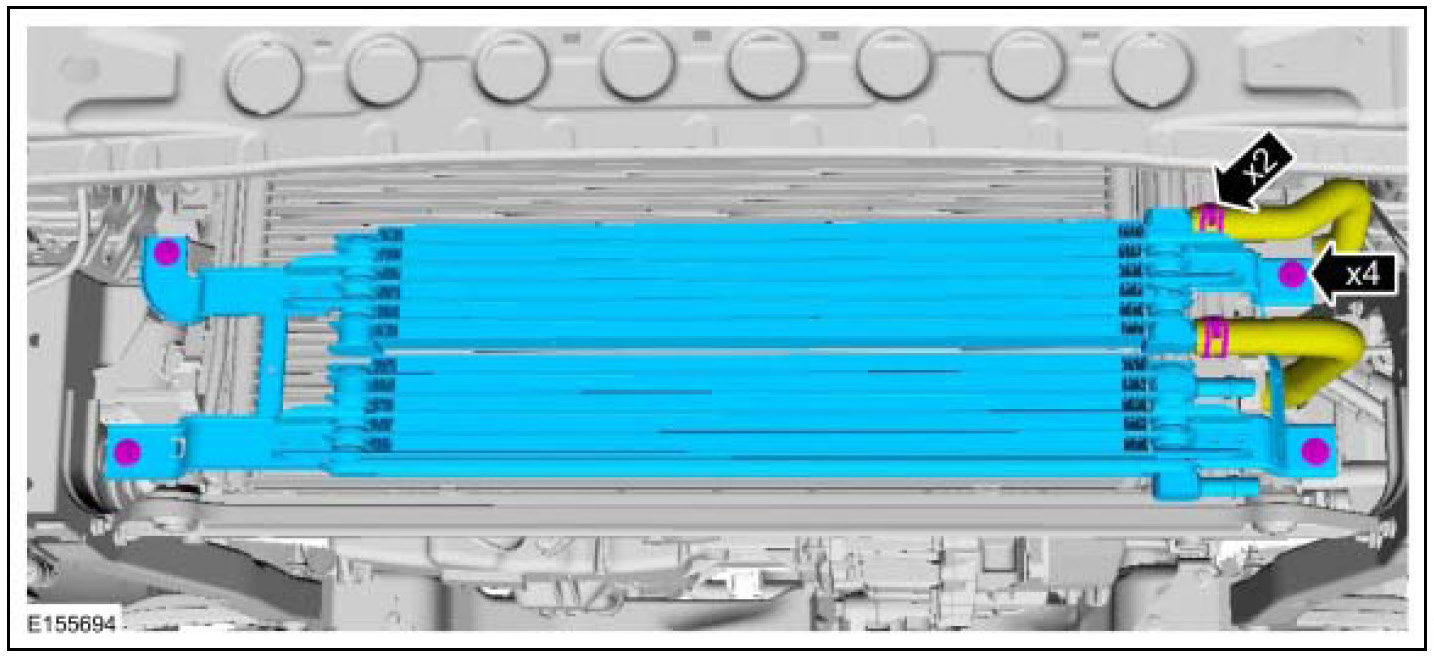

6. NOTE: Be prepared to capture escaping fluid.

Torque: 6 Nm







Installation

1. To install, reverse the removal procedure.

2. NOTE: To ensure the transmission fluid cooler tubes are secure, push, pull then push the transmission cooler tubes on the transmission fluid cooler.







3. Check and top off the transmission fluid.
Material: Motorcraft(R) Mercon(R) LV Automatic Transmission Fluid / XT-10-QLVC (WSS-M2C938-A)
