Overhaul

Rear Bumper Cover

DISASSEMBLY

NOTE: Disassembly procedure may contain assembly details.

1. WARNING: Before beginning any service procedure. Failure to follow this instruction may result in serious personal injury.

Refer to: Health and Safety Precautions. Health and Safety Precautions

2. Remove the rear bumper cover.
Refer to: Rear Bumper Cover. Removal and Replacement

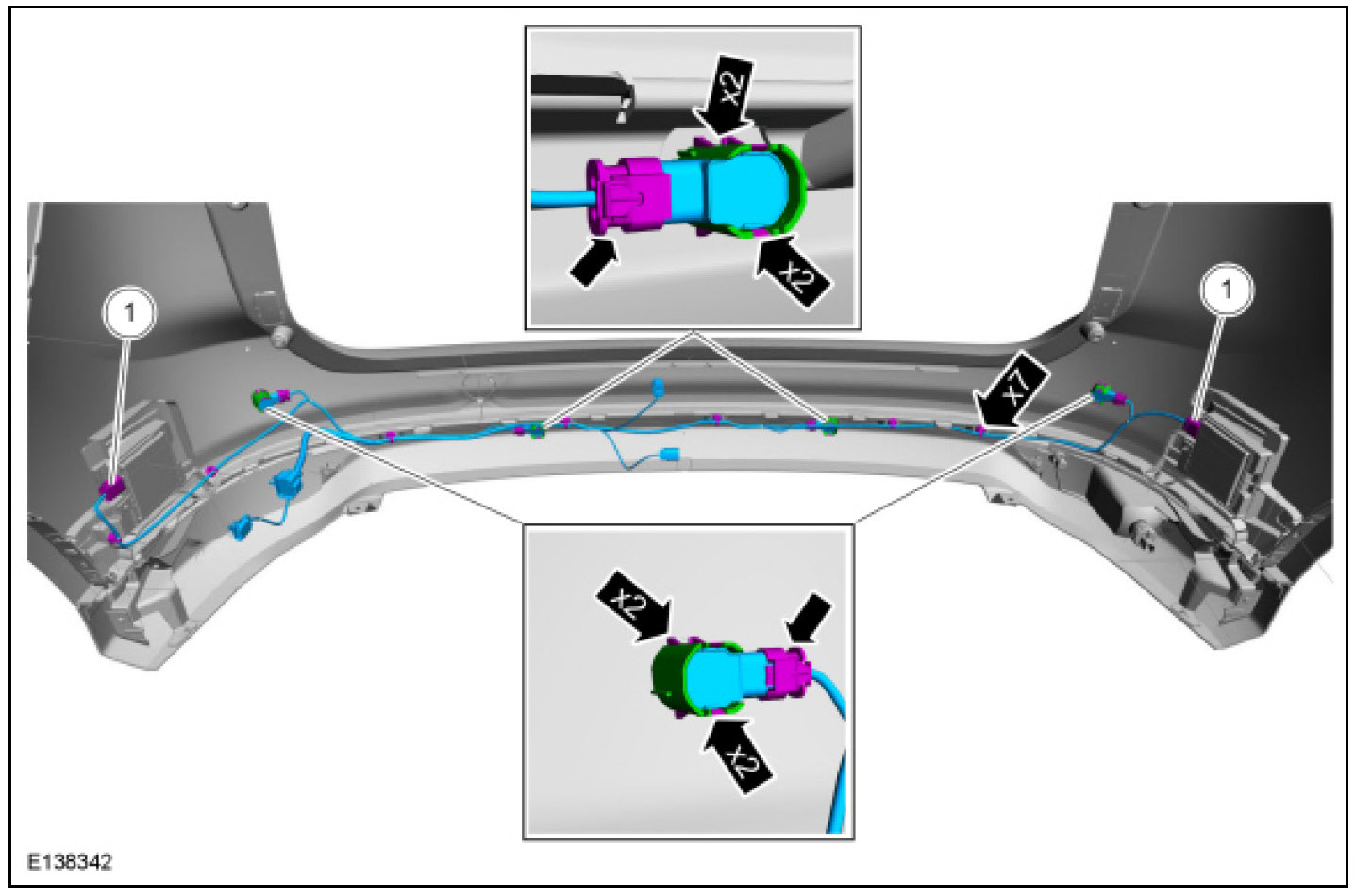

Vehicles with parking aid

3.

1. If equipped.







All vehicles

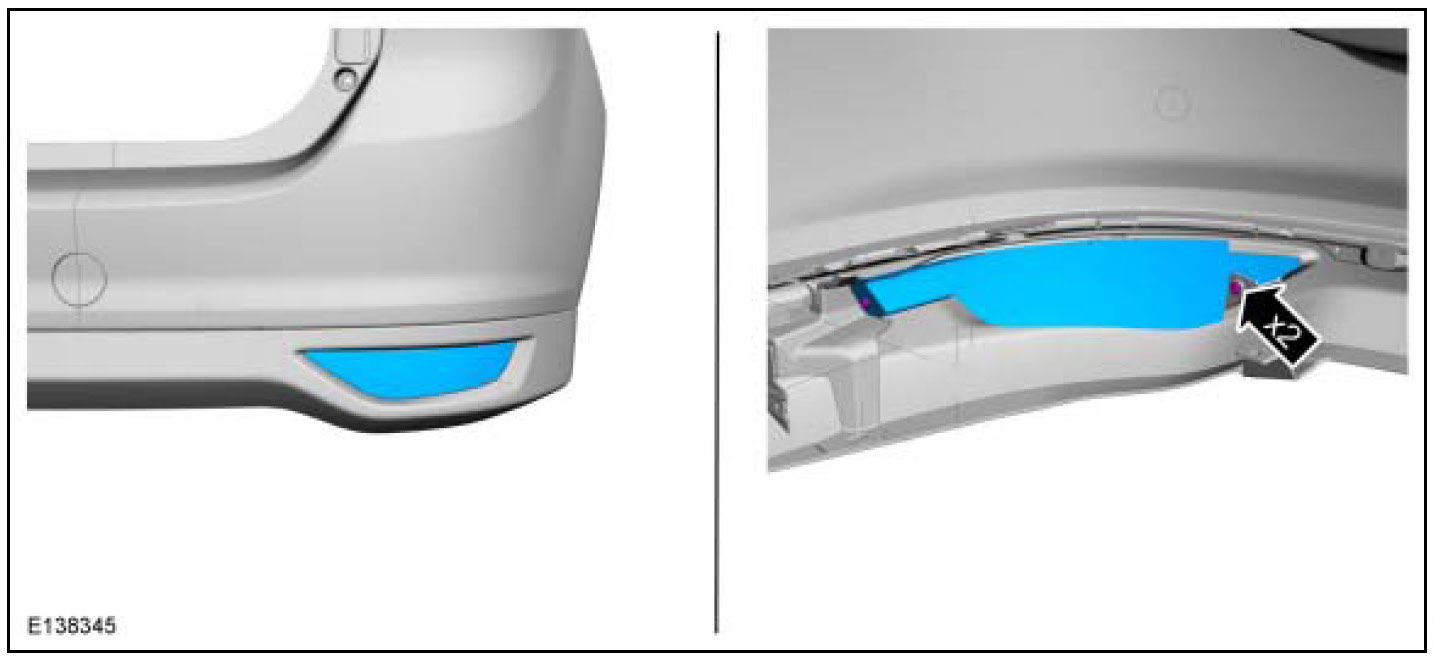

4. On both sides.

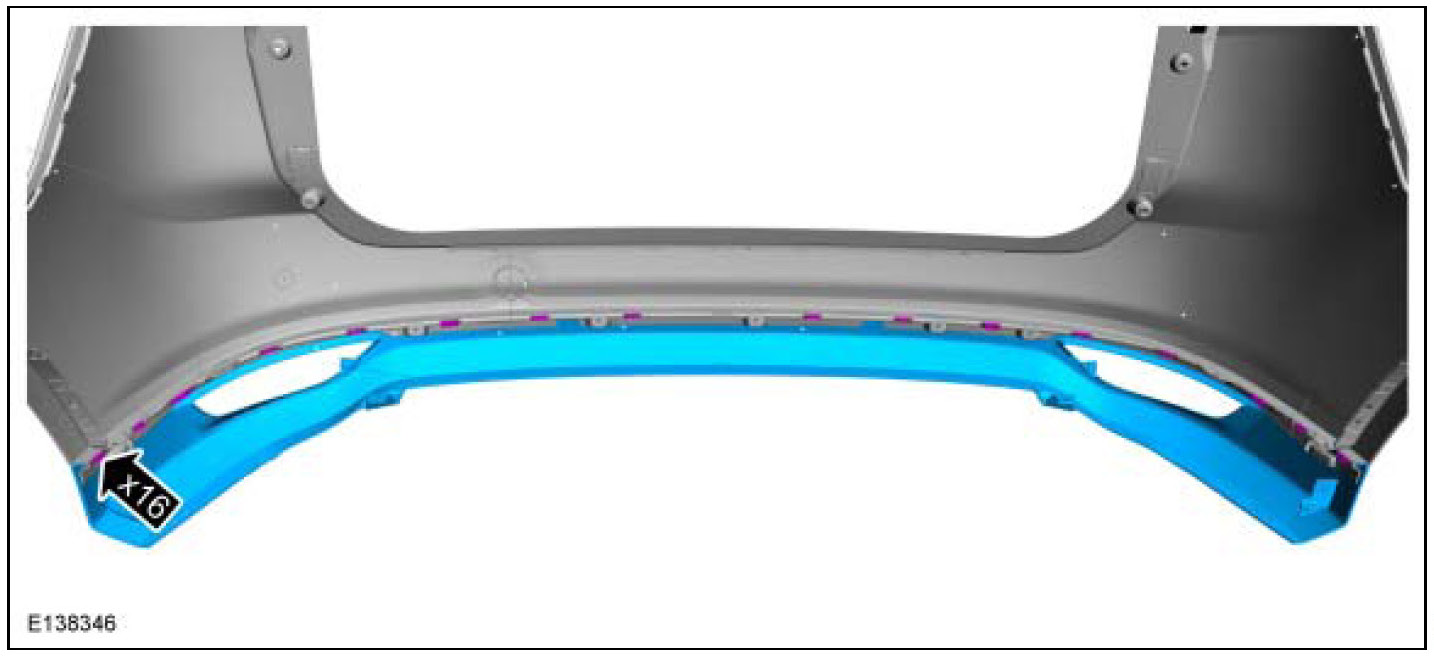

5.

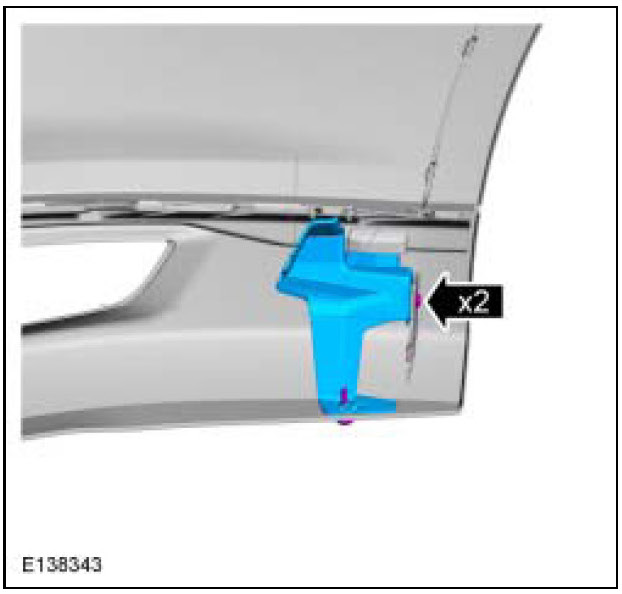

6.







ASSEMBLY

1. To assemble, reverse the disassembly procedure.
