Front Bumper Reinforcement: Service and Repair

Front Bumper

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. WARNING: Before beginning any service procedure. Failure to follow this instruction may result in serious personal injury.

Refer to: Health and Safety Precautions. Health and Safety Precautions

2. Remove the front bumper cover.
Refer to: Front Bumper Cover. Removal and Replacement

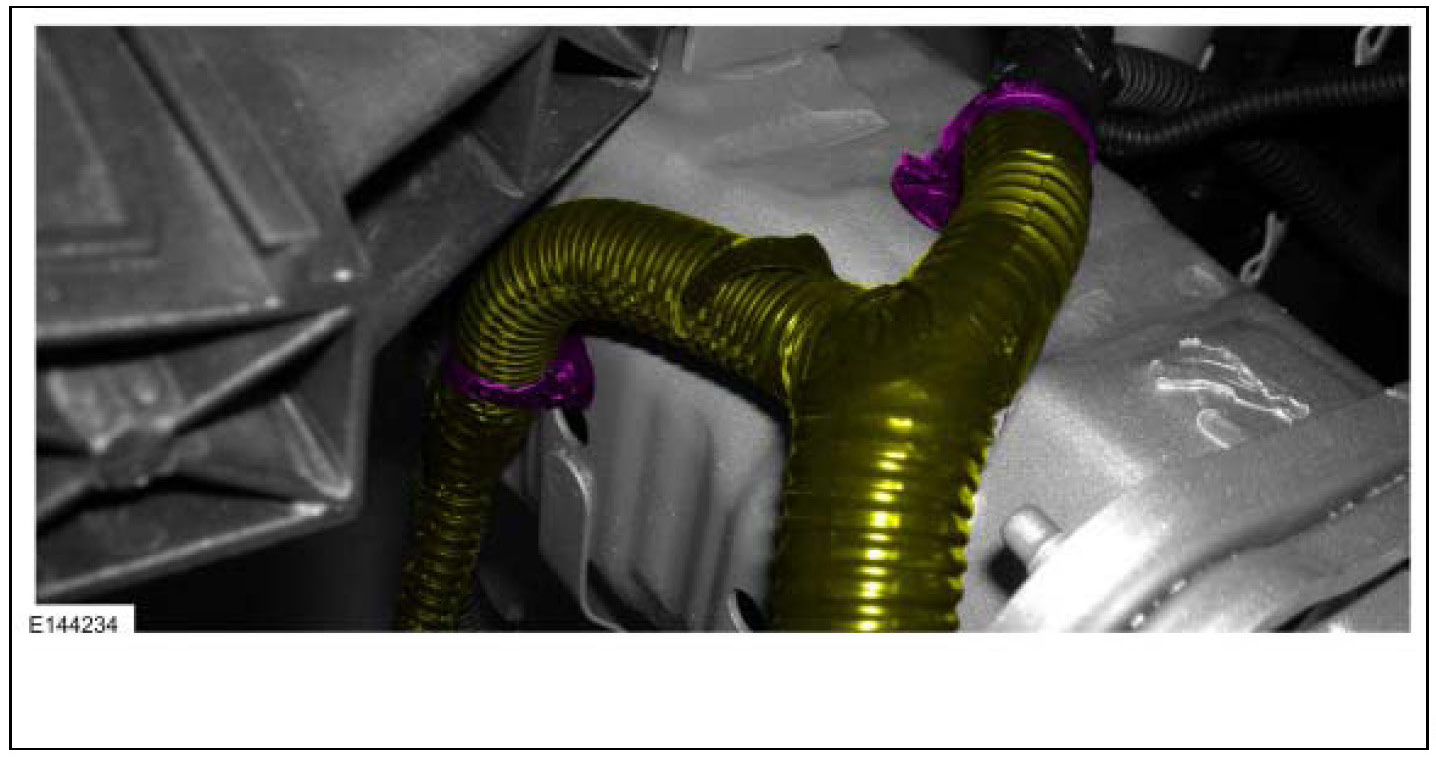

3.

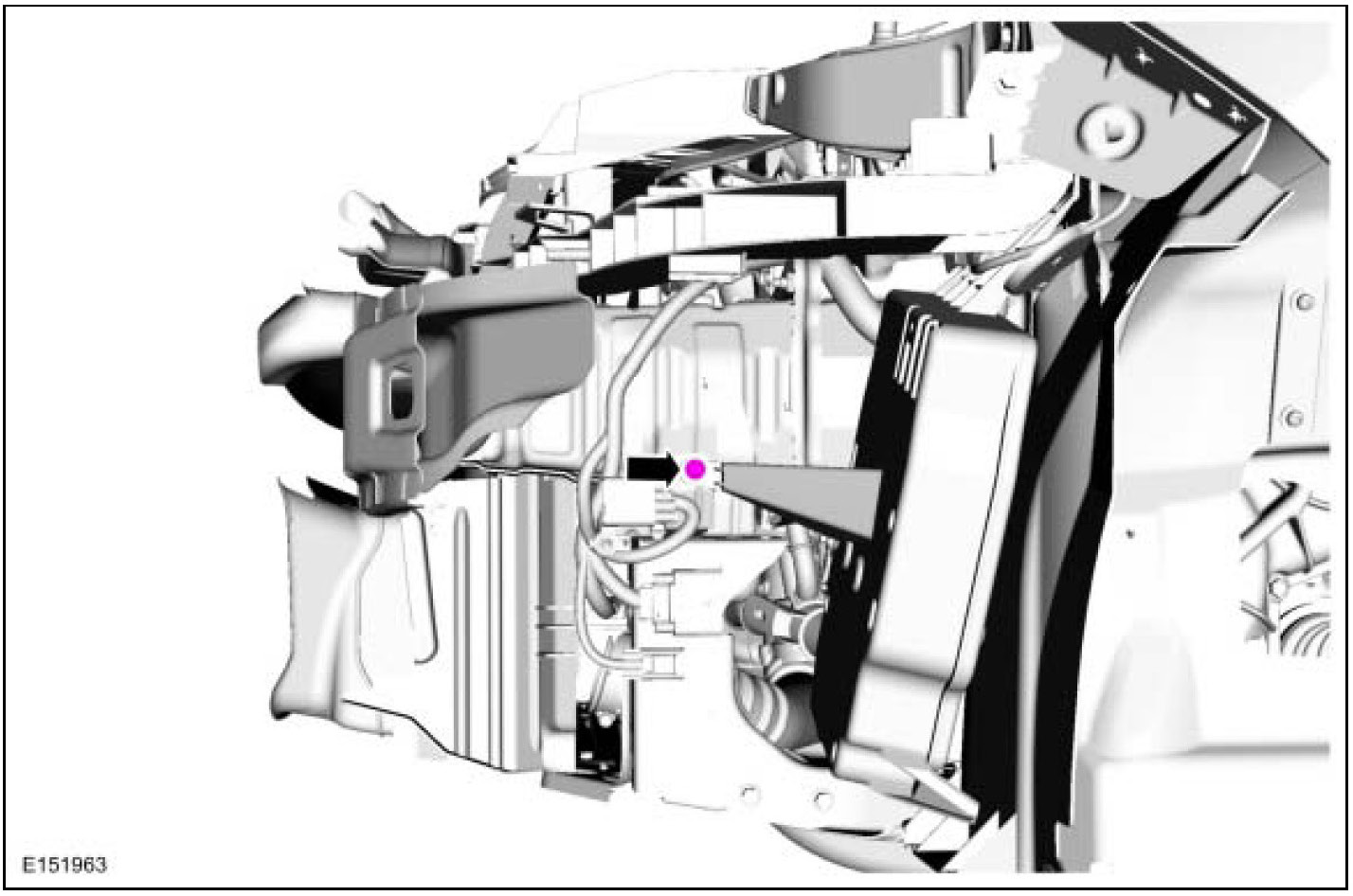

4.

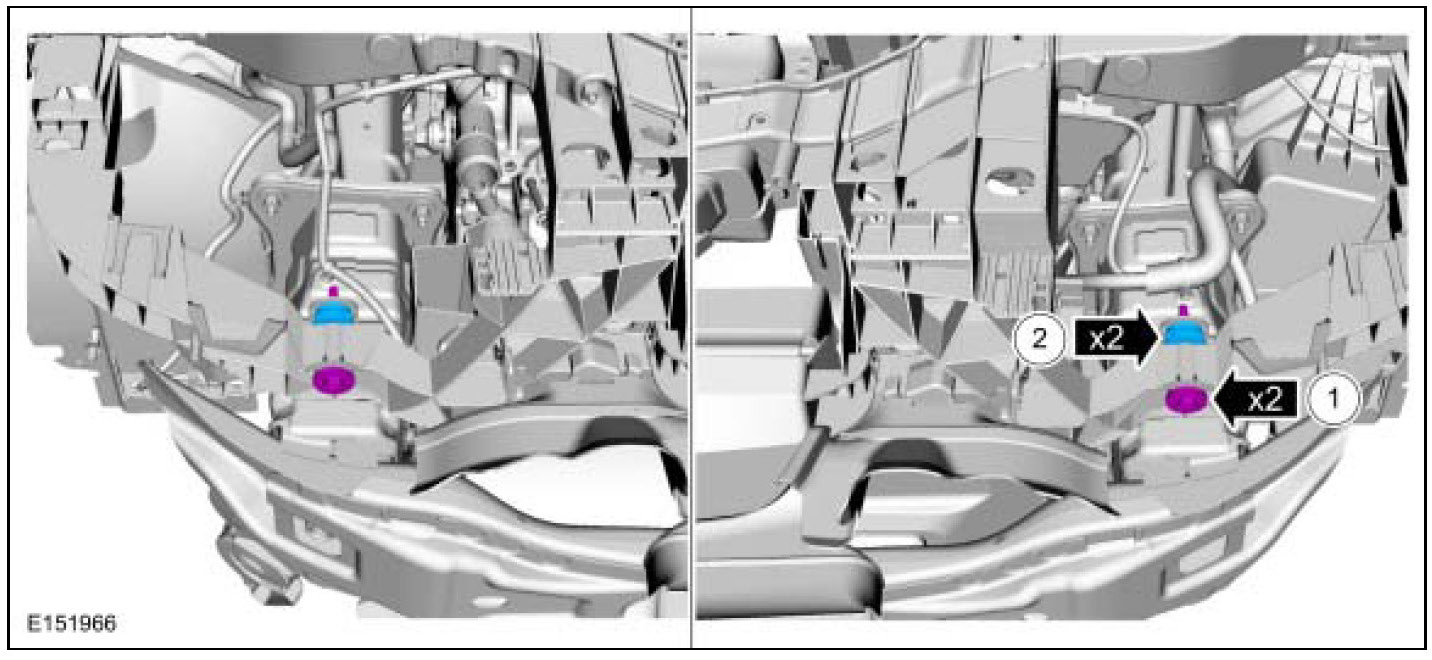

5. Torque: 25 Nm

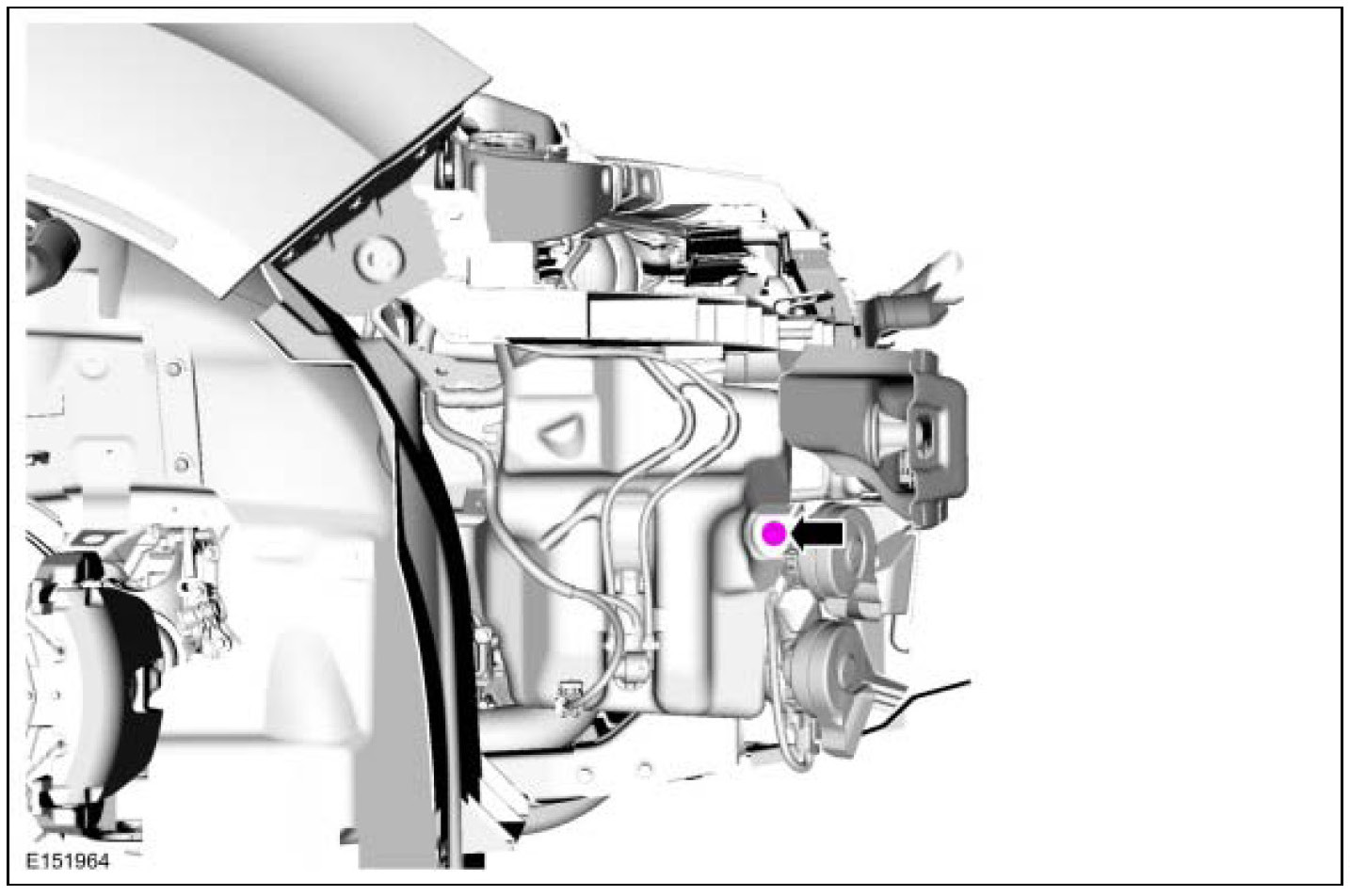

6. On each side.

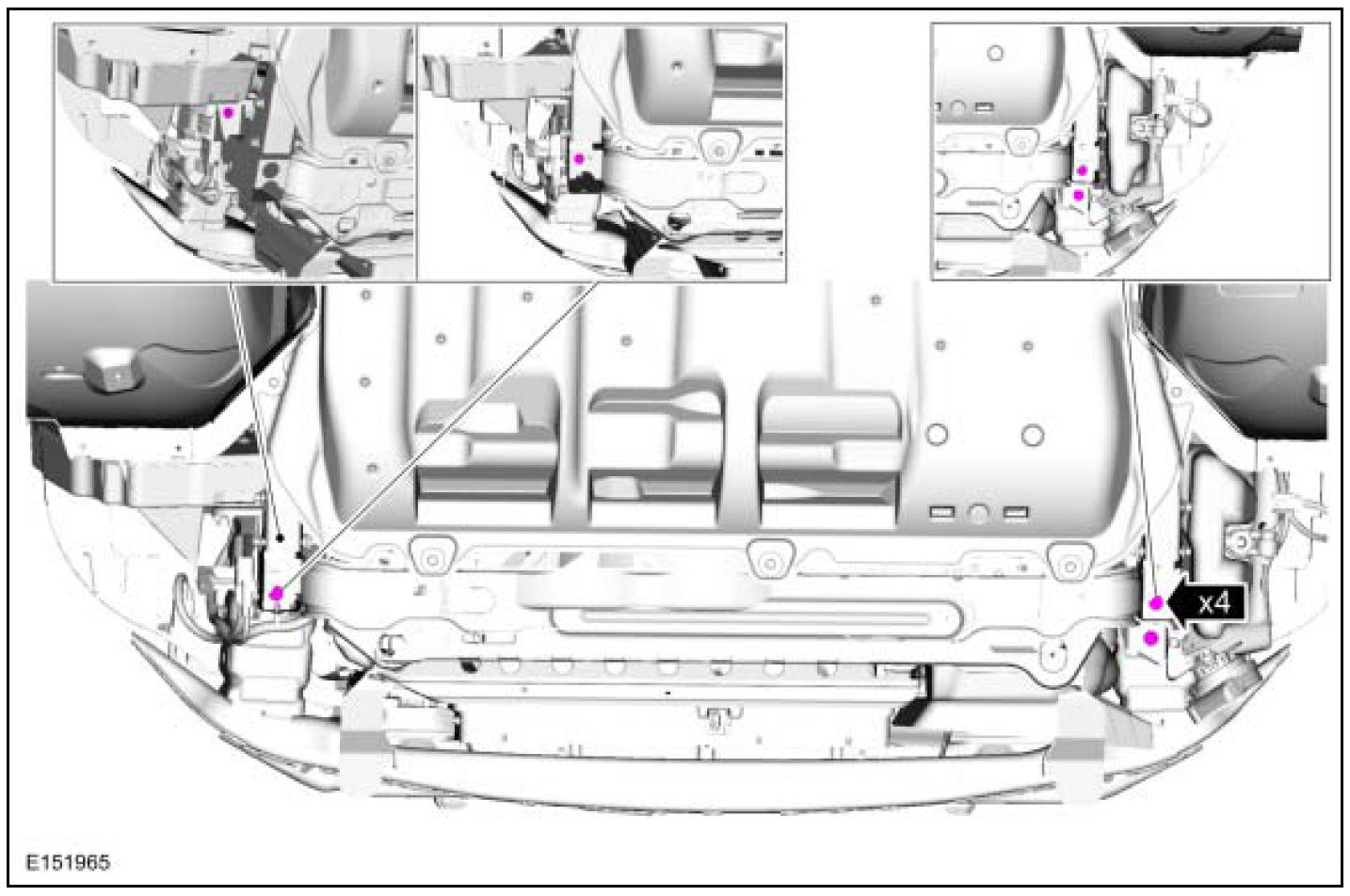

7. Torque: 23 Nm

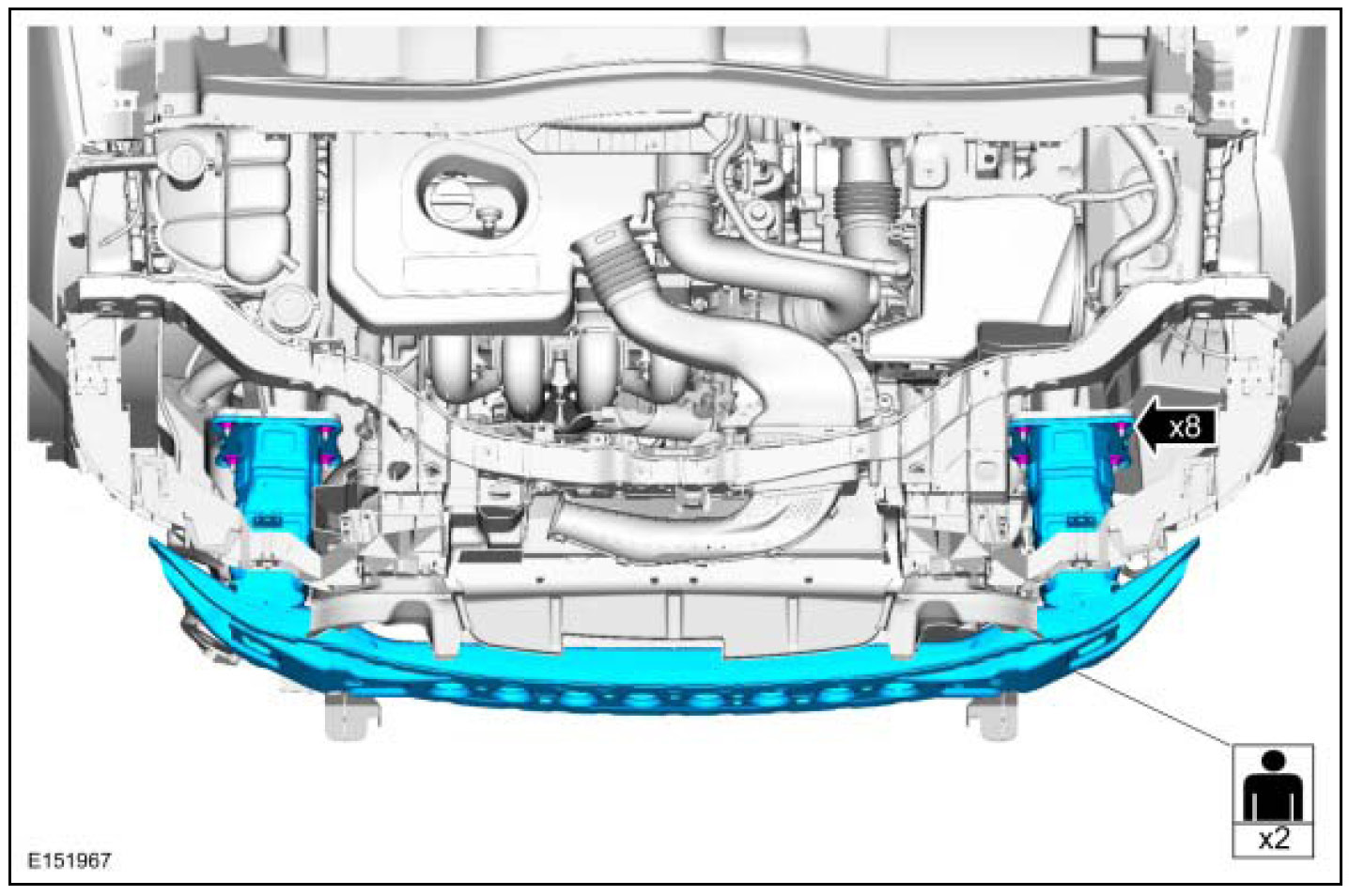

8. Torque: 25 Nm







Installation

1. To install, reverse the removal procedure.
