Transaxle Support Insulator - Anti-Roll

Transaxle Support Insulator - Anti-Roll, 3.5L GTDI

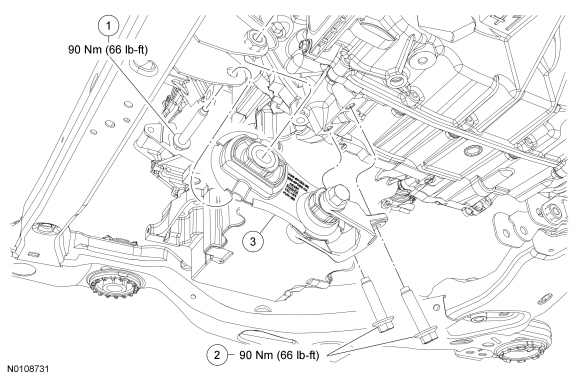

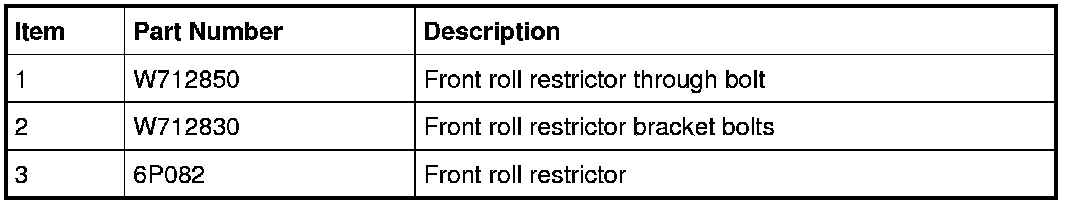

Front Roll Restrictor

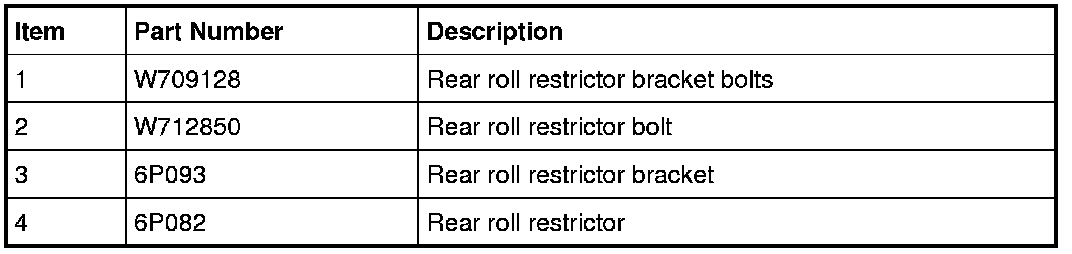

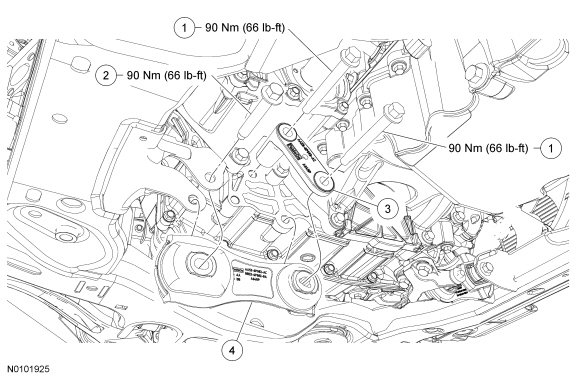

Rear Roll Restrictor









Removal

Front and rear roll restrictors

1. With the vehicle in NEUTRAL, position it on a hoist.

2. Remove the 4 retainers and the underbody shield.





Front roll restrictor

3. Remove the front roll restrictor through bolt and remove the 2 front roll restrictor bracket bolts and remove the front roll restrictor.





Rear roll restrictor

4. Remove the 2 roll restrictor bracket bolts and the through bolt and remove the rear roll restrictor.





Installation

Front and rear roll restrictors

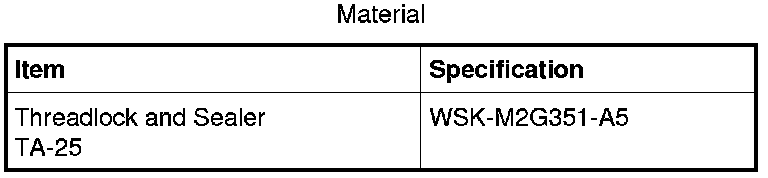

1. Clean the roll restrictor bolts using a wire brush and apply new threadlock to the threads.

Rear roll restrictor

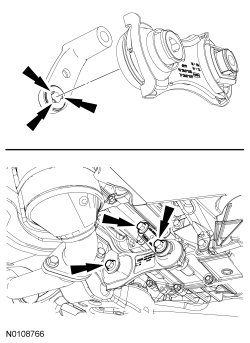

2. NOTE: The bracket has keyed tabs to orient the roll restrictor.
Position the rear roll restrictor bracket and the rear roll restrictor in place, align the keyed tabs and install the bolts.

- Tighten to 90 Nm (66 lb-ft).






Front roll restrictor

3. Position the front roll restrictor in place and install the 3 bolts.
- Tighten to 90 Nm (66 lb-ft).






Front and rear roll restrictors

4. Install the underbody shield and the 4 retainers.
