Automatic Transmission - 6F50/6F55
>>
Diagnostic Routines
>>
Torque Converter Operation Concerns 250/350 - 252/352
>>
251/351, Always Applied/Stalls Vehicle
251/351, Always Applied/Stalls Vehicle
Diagnostic Routines

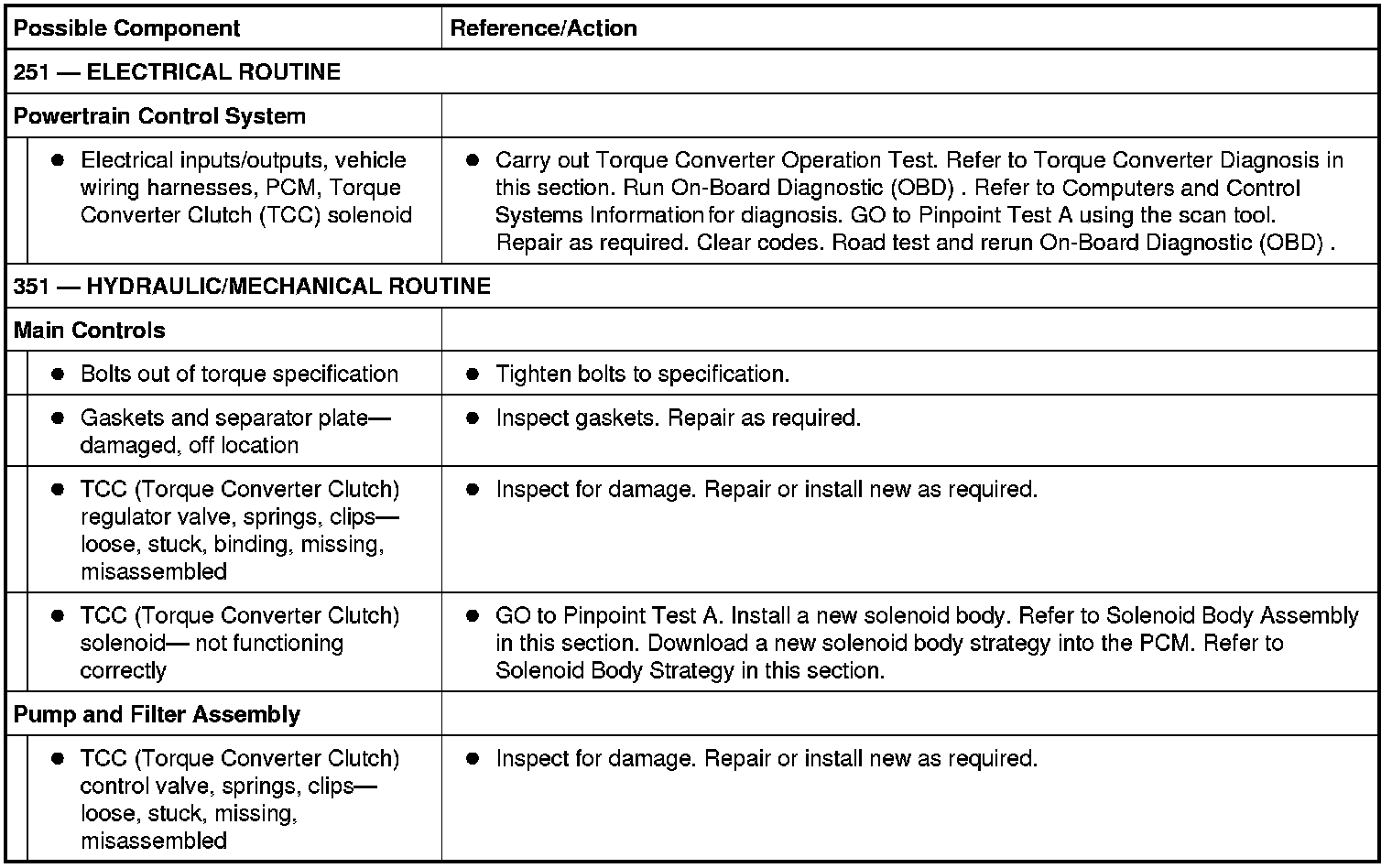

Torque Converter Operation Concern: Always Applied/Stalls Vehicle
