Home >> Ford >> 2012 >> Taurus AWD V6-3.5L Turbo >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Scan Tool Testing and Procedures

Scan Tool Testing and Procedures

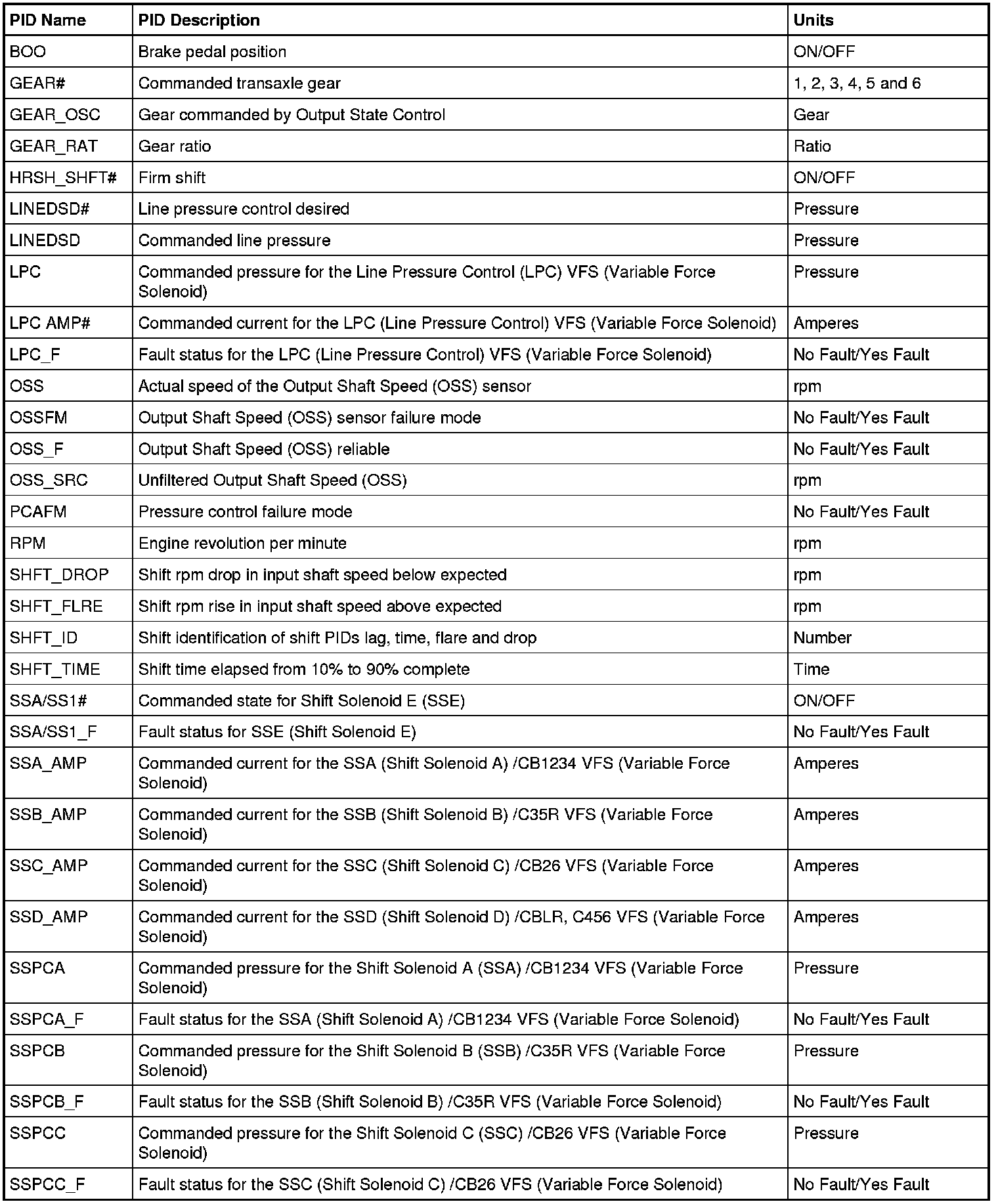

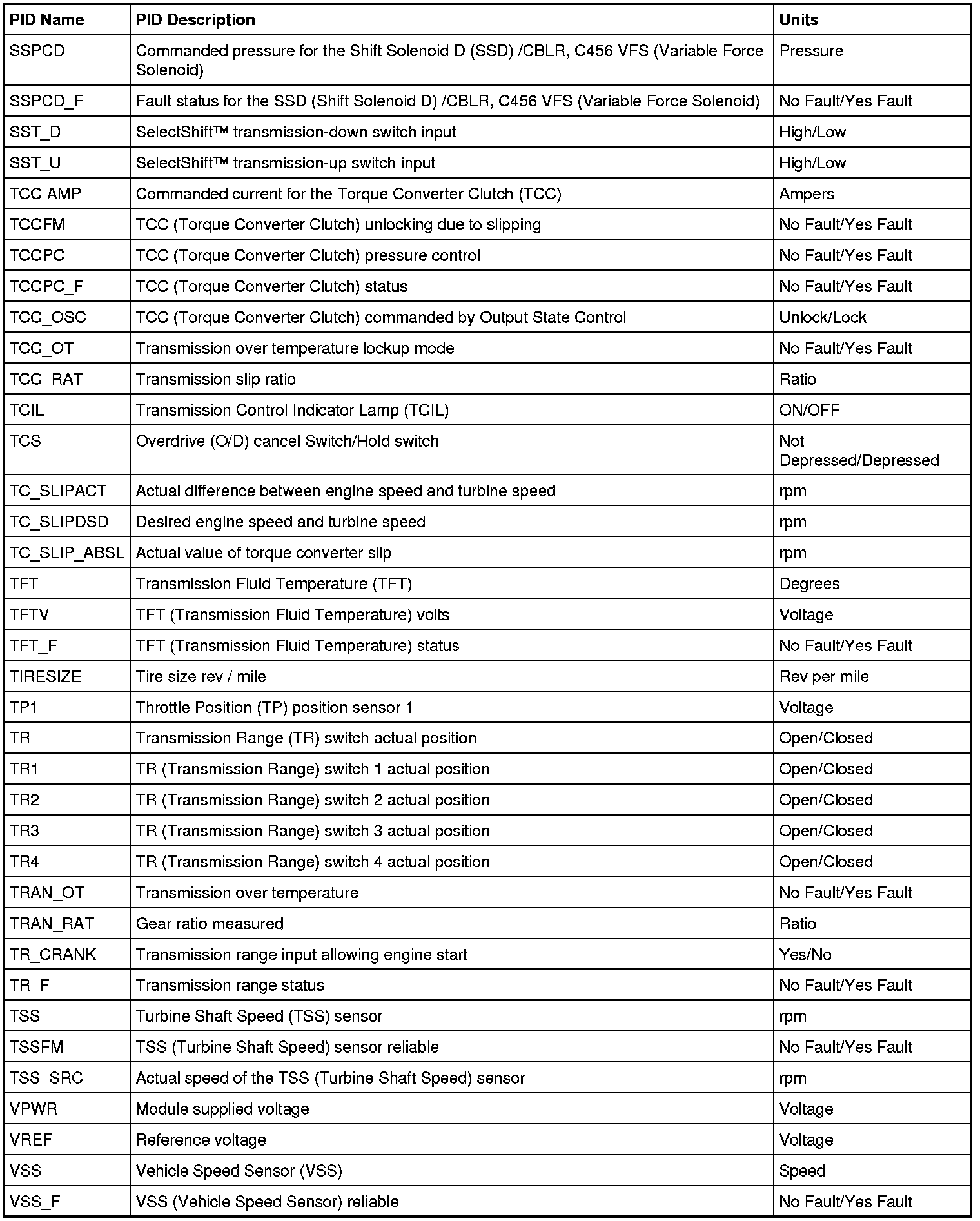

Diagnostic Parameters Identification (PID) Chart
