Shift Interlock: Service and Repair

Brake Shift Interlock Override

NOTE: If it is necessary to use the override procedure to move the selector lever out of the PARK position, it is possible that a fuse has blown and the brake lights are not operational. Before driving the vehicle, verify that the brake lights are working.
This vehicle is equipped with a brake shift interlock feature that prevents the selector lever from being moved out of PARK when the ignition is in the ON position unless the brake pedal is pressed.
If the selector lever cannot be moved out of the PARK position when the ignition is in the ON position and the brake pedal is pressed:

1. Apply the parking brake and remove the ignition key.

2. Open the storage tray lid.





3. Remove the cupholder.

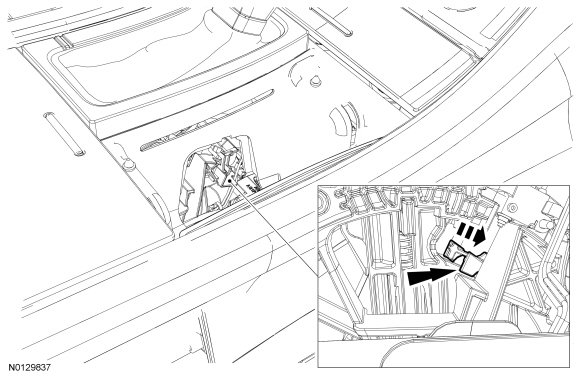

4. Using a suitable tool, remove the brake shift interlock actuator override access panel.





5. Push the brake shift interlock override mechanism on the selector lever forward, apply the brake, press the button on the selector lever and move the selector lever into NEUTRAL.





6. Start the vehicle.

7. For assembly, reverse the procedure.
