Major Components

Major Components

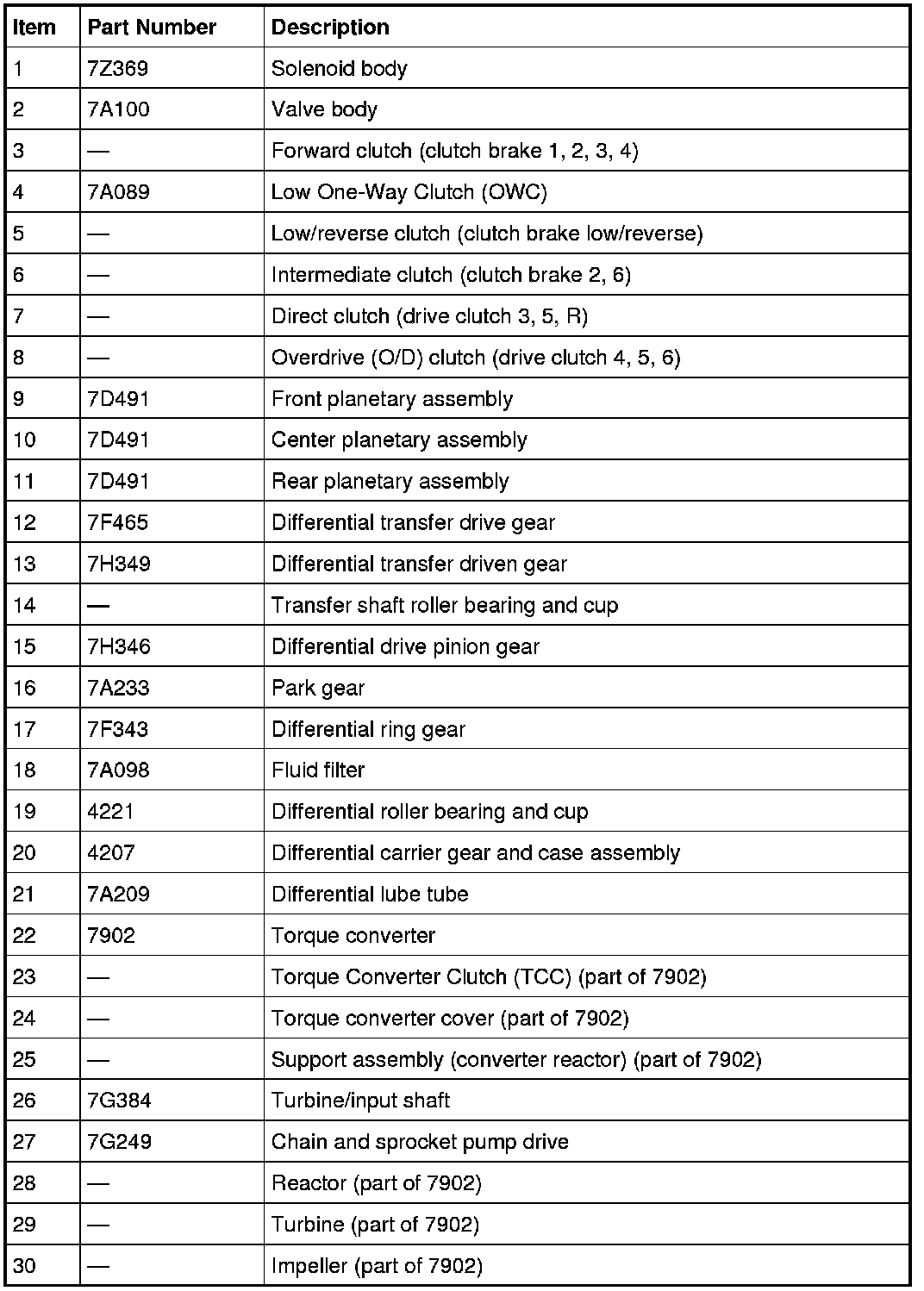

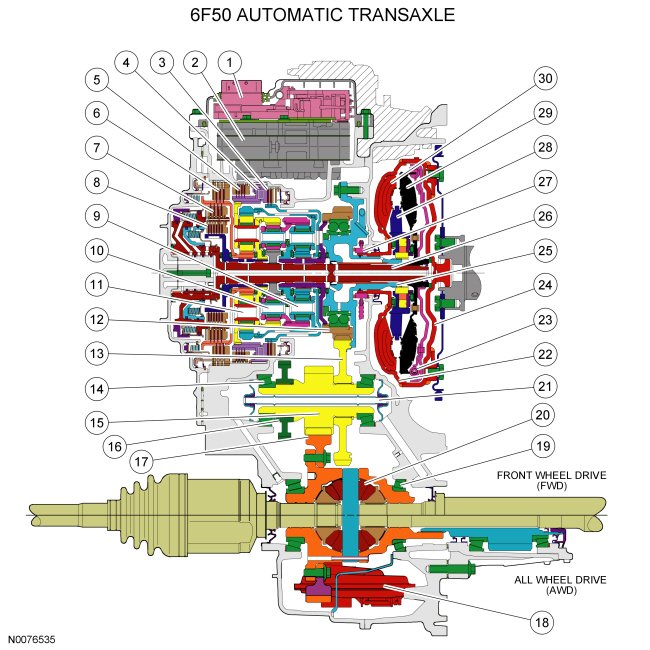

This transaxle has the following major components:

- Case with torque converter housing

- Two drive clutches:
- Direct clutch

- Overdrive clutch


- Four brake clutches:
- Forward clutch

- Low one-way clutch

- Low/reverse clutch

- Intermediate clutch


- Three planetary gearsets:
- Front

- Center

- Rear


- Final drive gearset:
- Transfer shaft drive gear

- Transfer shaft and gear assembly

- Differential ring gear


- Differential

- Pump and filter assembly

- Main control:
- Valve body assembly

- Solenoid body assembly
