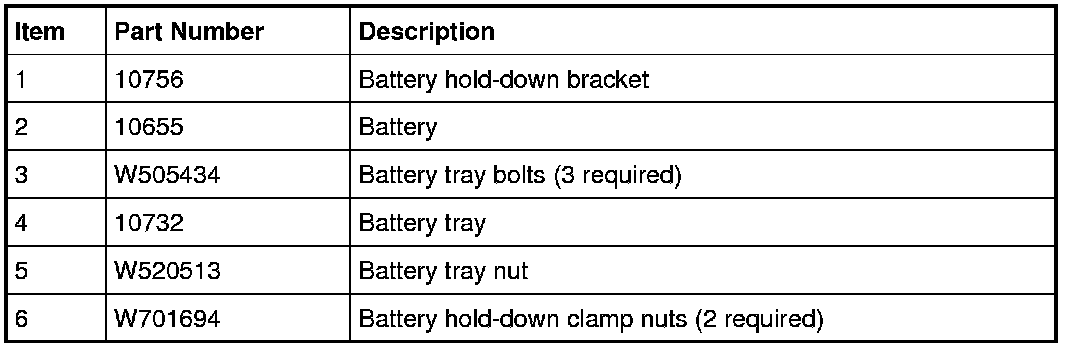

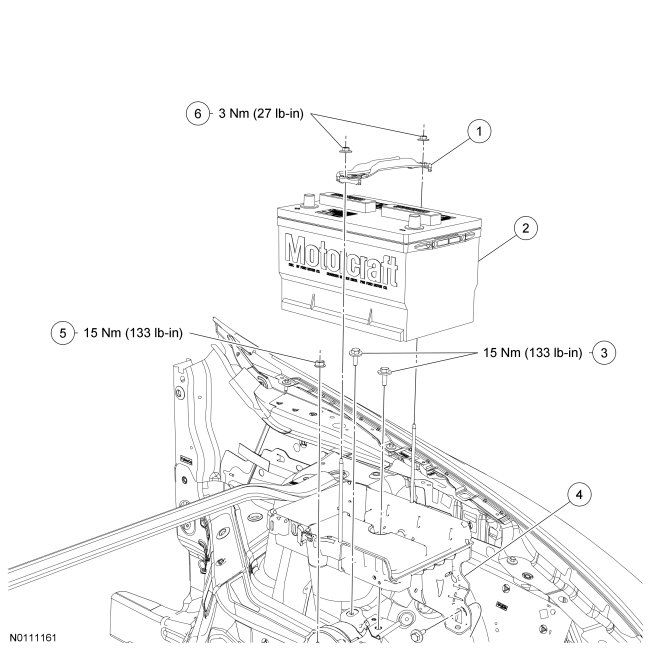

Battery and Battery Tray - Exploded View
Battery and Battery Tray - Exploded View
Battery and Battery Tray - Exploded View
