Home >> Ford >> 2012 >> Taurus AWD V6-3.5L Turbo >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Cooling System >> System Specifications

System Specifications




Specifications

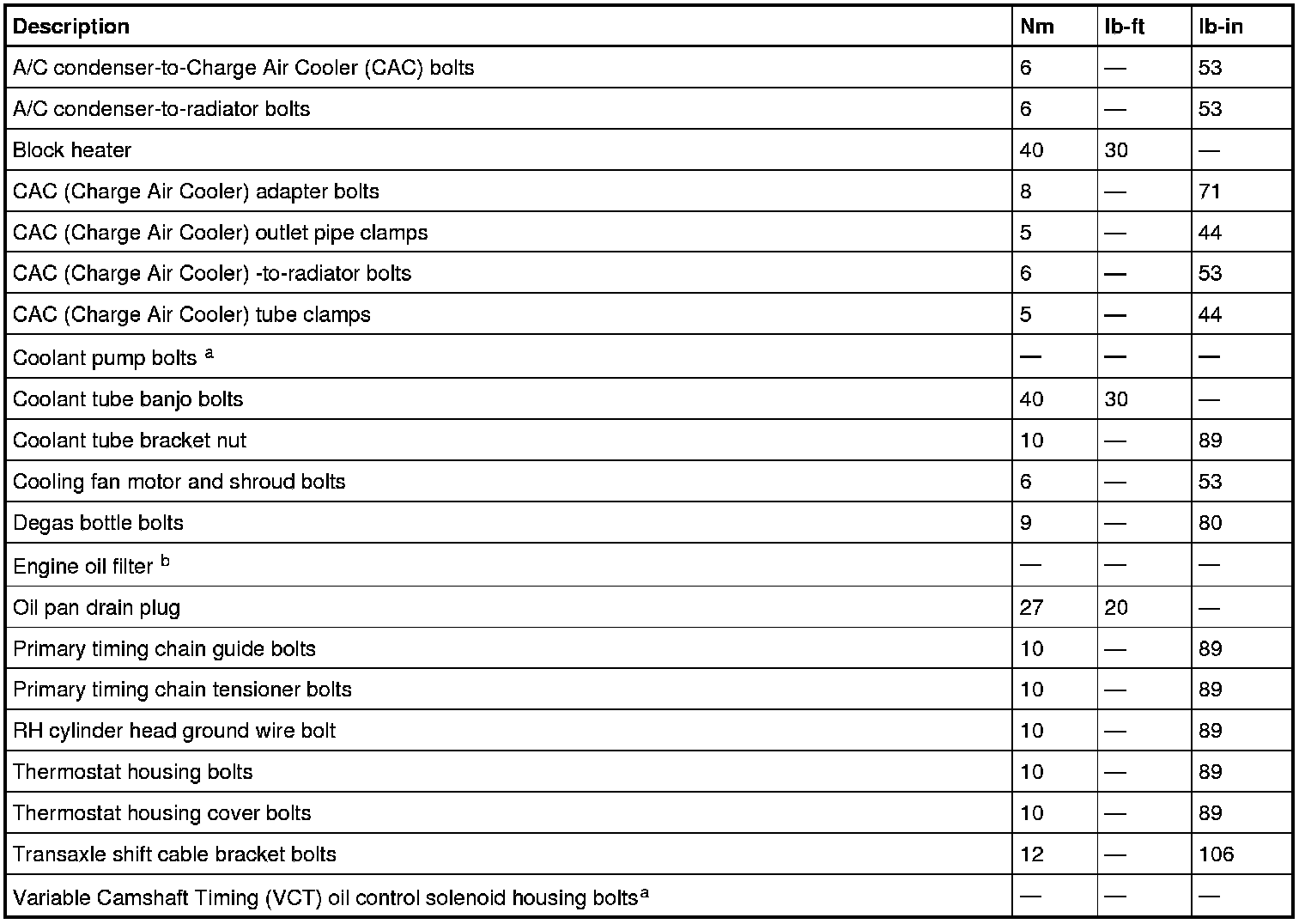

Torque Specifications





a Refer to the procedure.

b Tighten to 5 Nm (44 lb-in) plus an additional 180 degrees.
