Seat Position Sensor
>>
Diagrams
>>

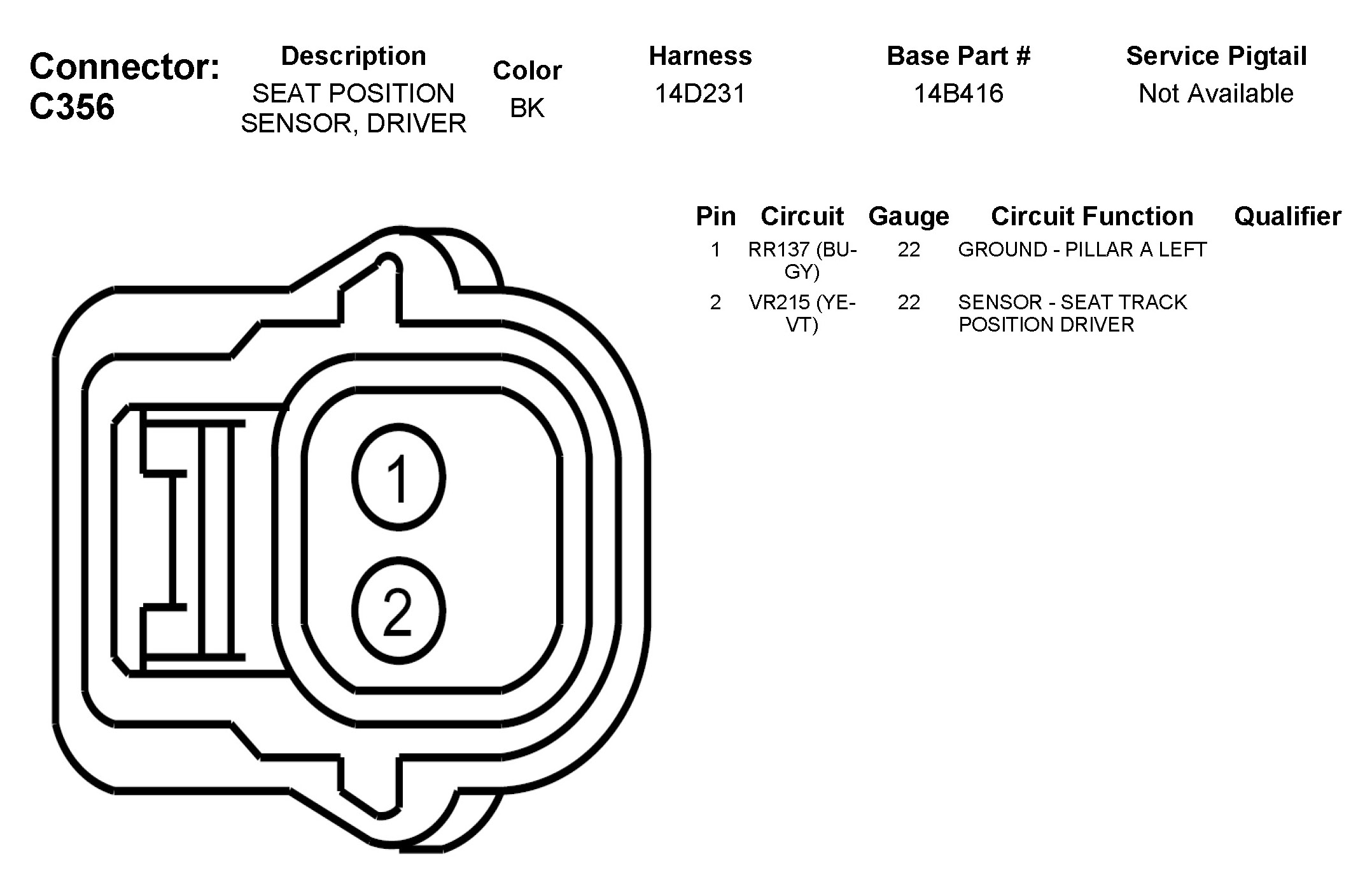

C356 Seat Position Sensor, Driver
C356 Seat Position Sensor, Driver
