Home >> Ford >> 2012 >> Taurus AWD V6-3.5L Turbo >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Body and Frame >> Trunk / Liftgate Switch >> Diagrams >> C2269 Luggage Compartment Lid Release Switch

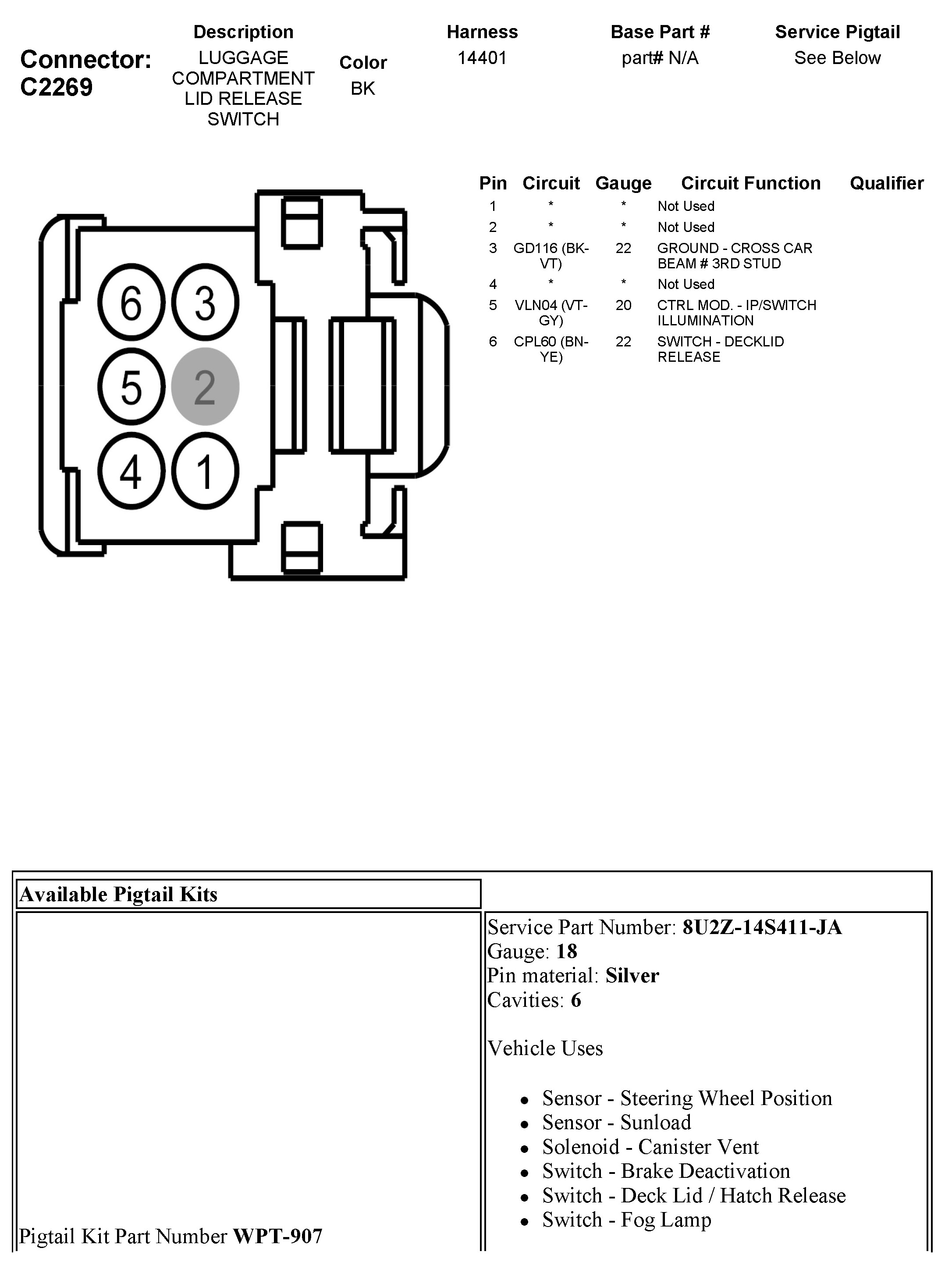

C2269 Luggage Compartment Lid Release Switch
