Fuel Pump Control Unit: Service and Repair

Fuel Pump Control Module









Removal and Installation

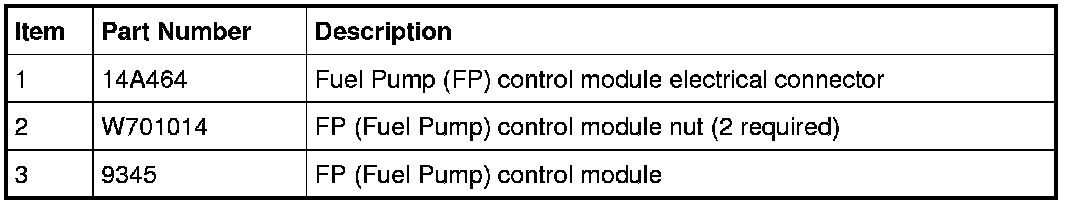

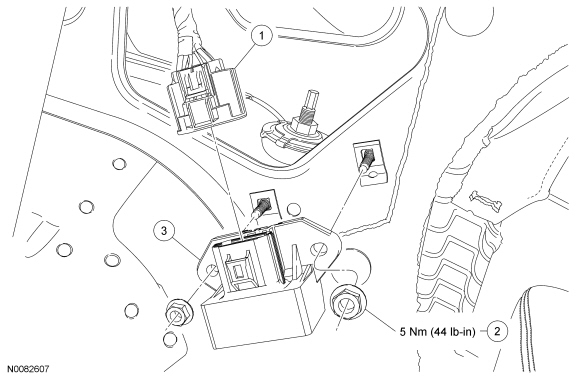

1. Remove the rear seat backrest.

2. Disconnect the Fuel Pump (FP) control module electrical connector.

3. NOTICE: Do not overtighten the fasteners or damage to the module will occur.

Remove the 2 FP (Fuel Pump) control module nuts.
- To install, tighten to 5 Nm (44 lb-in).


4. To install, reverse the removal procedure.
