Engine Ignition Components - Exploded View

Engine Ignition Components - Exploded View

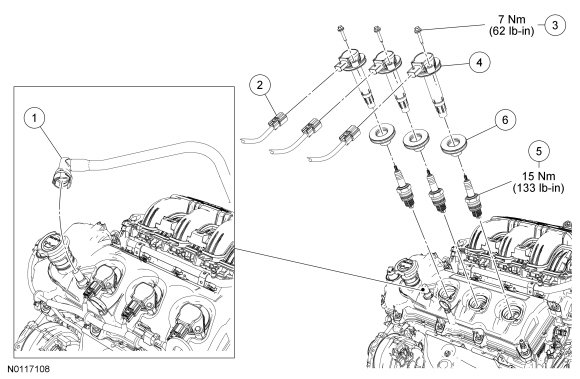

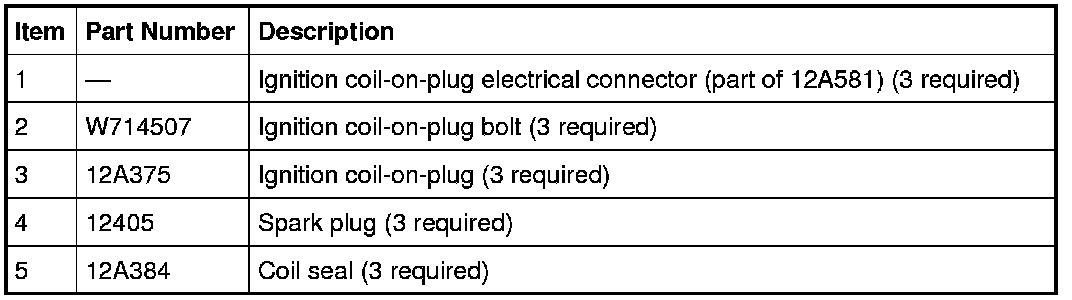

3.5L LH Side

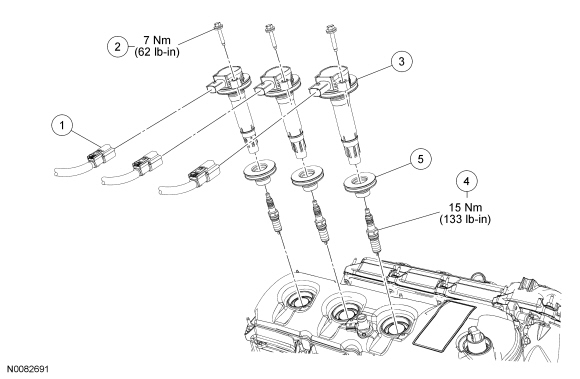

3.5L RH Side

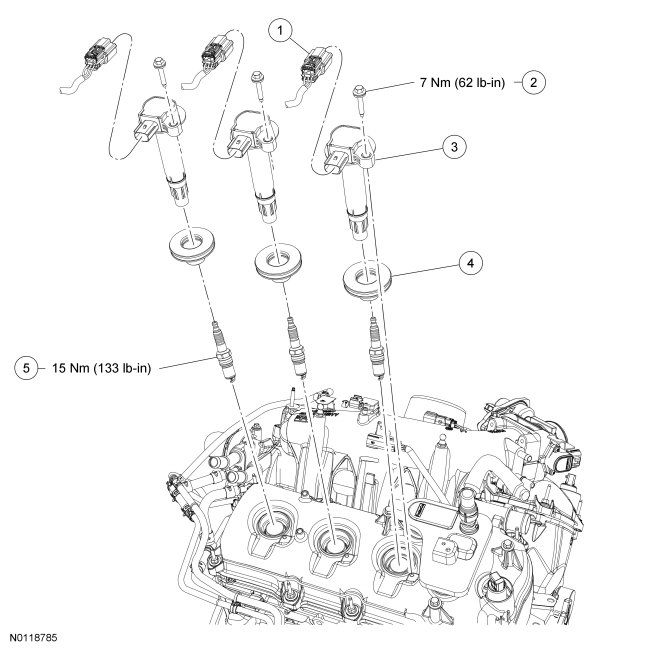

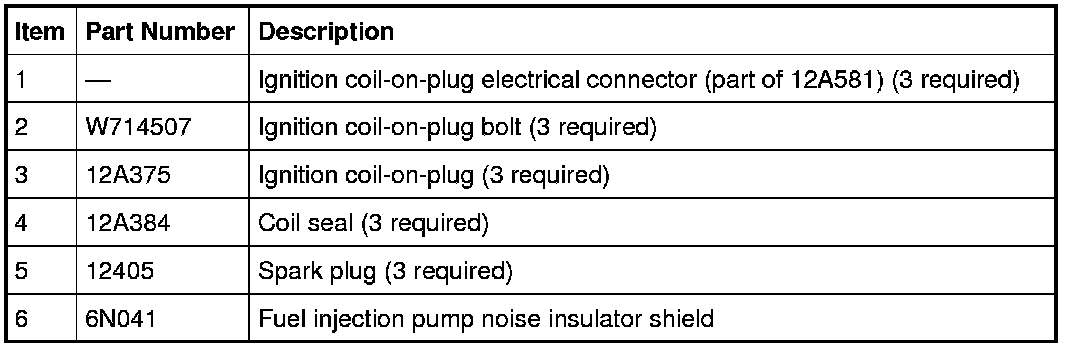

3.5L Gasoline Turbocharged Direct Injection (GTDI) LH Side

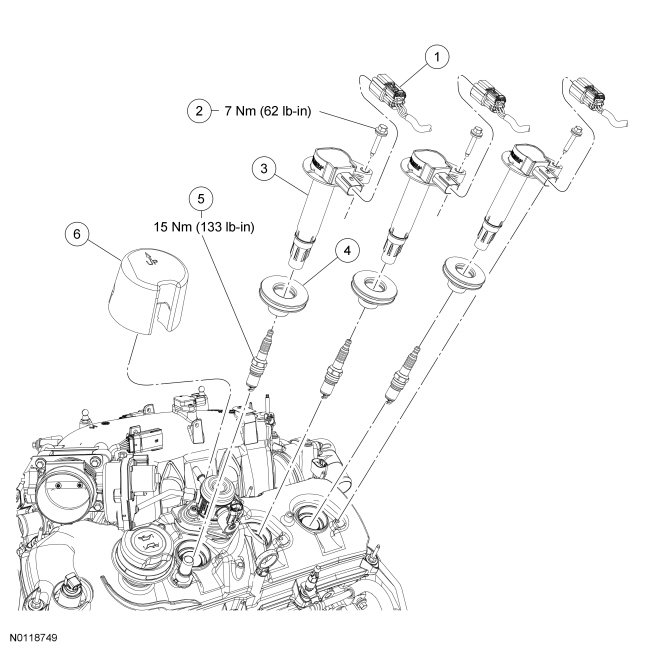

3.5L GTDI (Gasoline Turbocharged Direct Injection) RH Side










1. Refer to the procedures and/or exploded views for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
