Fuel Tank and Filler Pipe - Exploded View

Fuel Tank and Filler Pipe - Exploded View

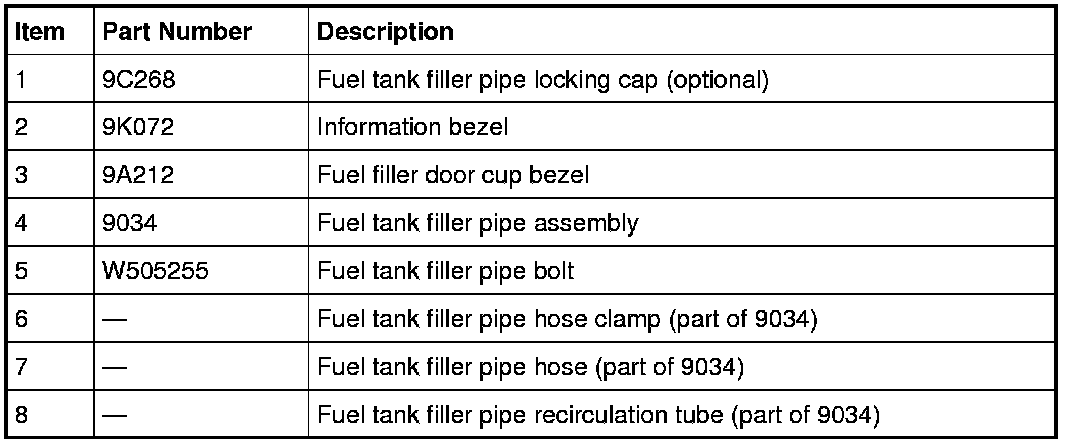

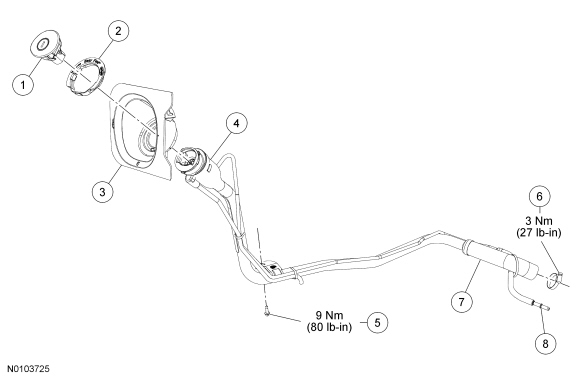

Fuel Tank Filler Pipe Assembly

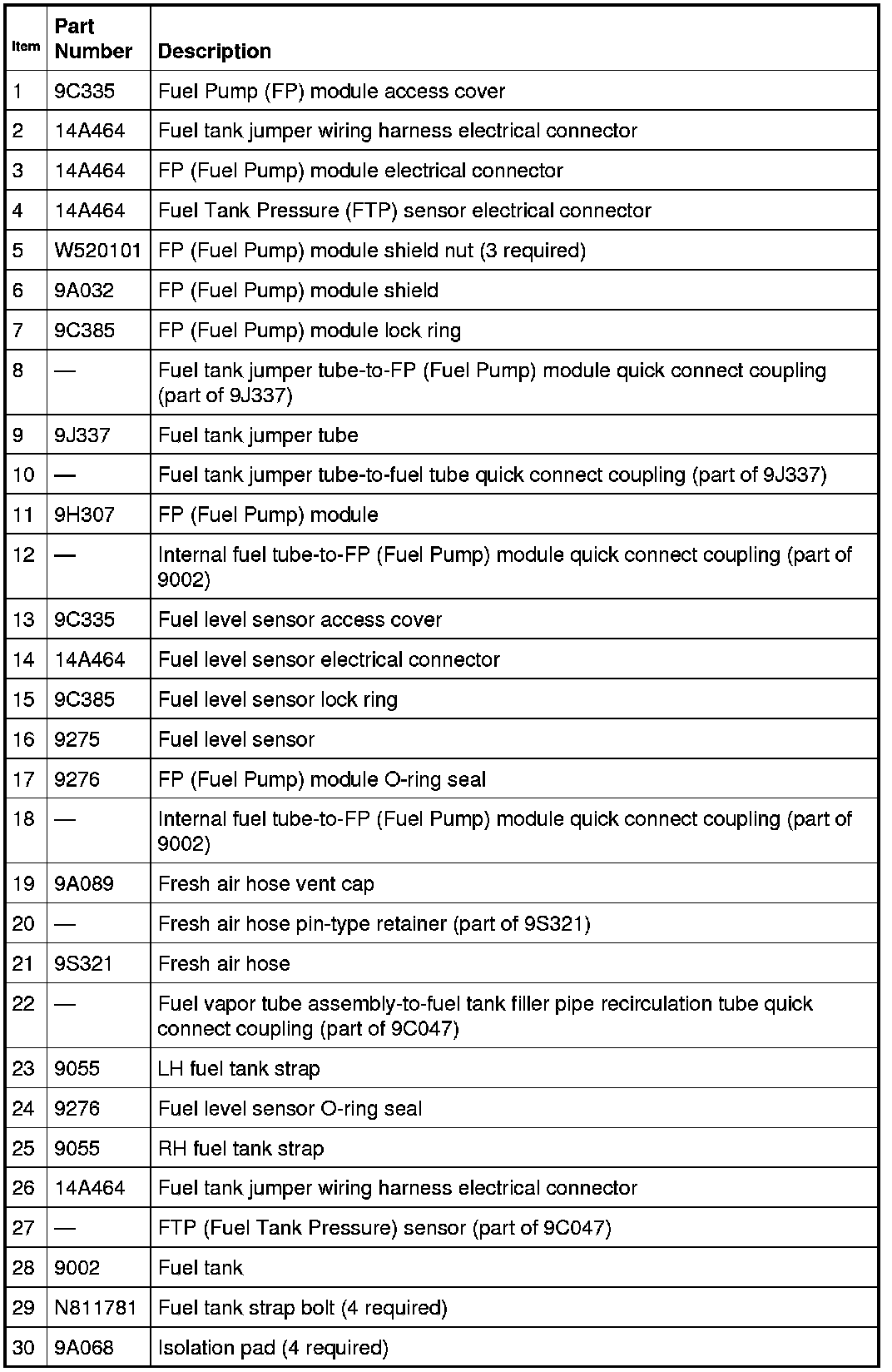

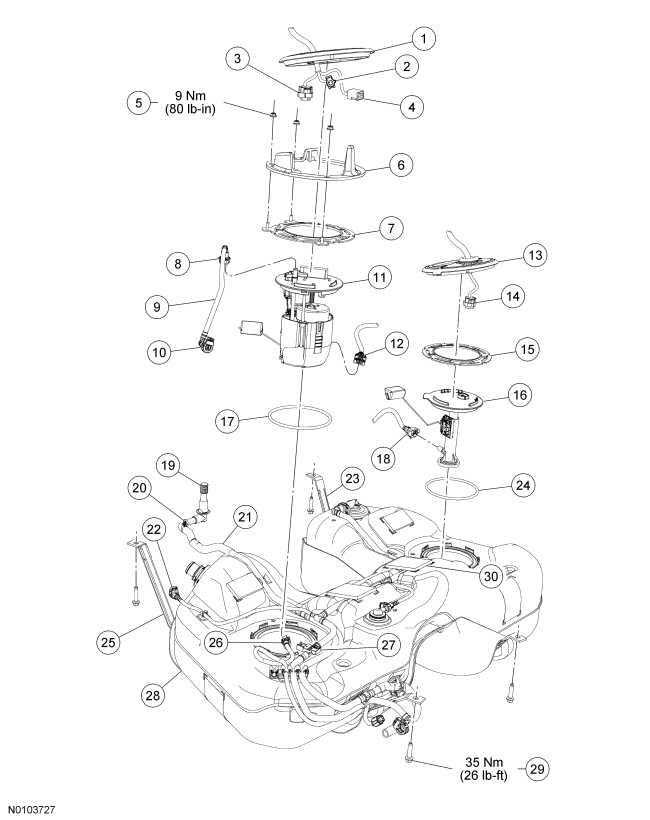

L-Shaped Fuel Tank

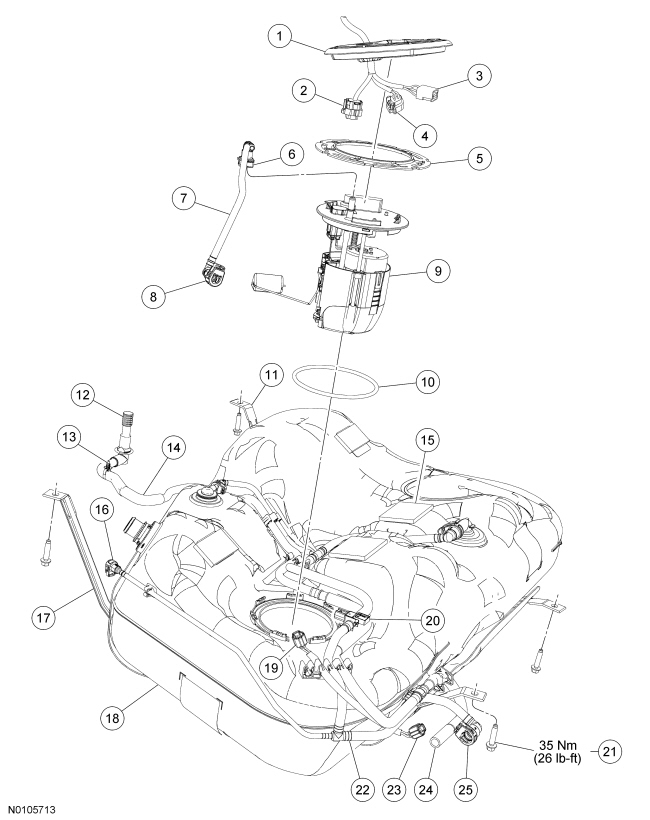

Saddle Type Fuel Tank
