Positive Crankcase Ventilation (PCV) Valve

Positive Crankcase Ventilation (PCV) Valve - 3.5L GTDI













Removal and Installation

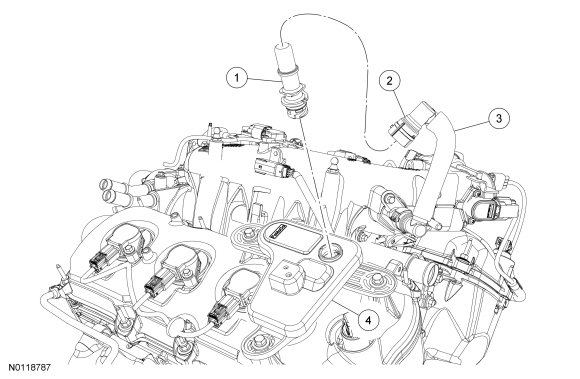

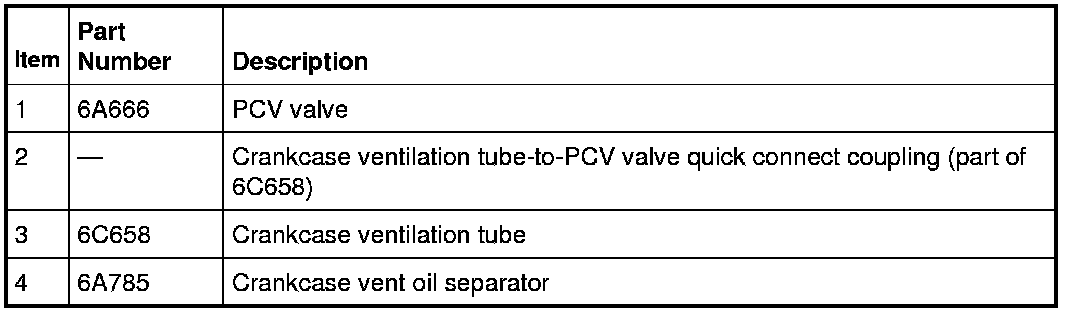

1. Disconnect the crankcase ventilation tube-to-PCV valve quick connect coupling.

2. NOTICE: A new PCV valve must be installed if removed from the valve cover. Damage will occur to the locking mechanism on the PCV valve.

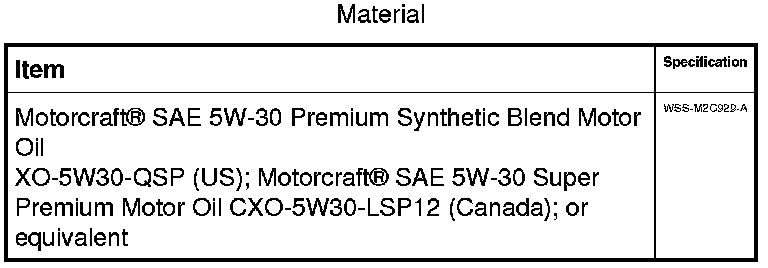

NOTE: To install, apply clean engine oil to the O-ring seal.
Rotate the PCV valve counterclockwise and remove from the crankcase vent oil separator.
- Discard the PCV valve.


3. To install, reverse the removal procedure.
- Install a new PCV valve.
