Canister Purge Control Valve: Service and Repair

Evaporative Emission Canister Purge Valve - 3.5L GTDI









Removal and Installation

WARNING: Do not smoke, carry lighted tobacco or have an open flame of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.

WARNING: Do not carry personal electronic devices such as cell phones, pagers or audio equipment of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.

WARNING: Always disconnect the battery ground cable at the battery when working on an evaporative emission (EVAP) system or fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.

1. Disconnect the battery ground cable.

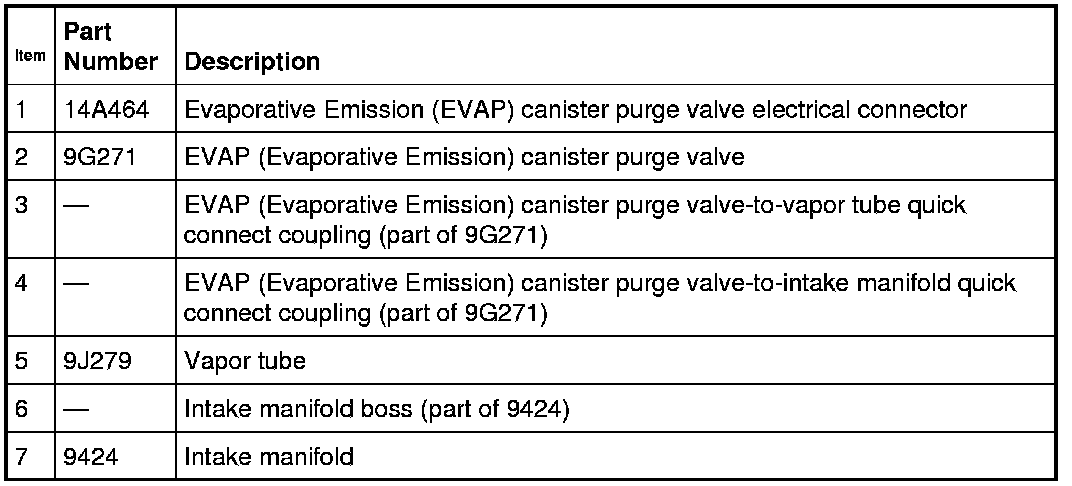

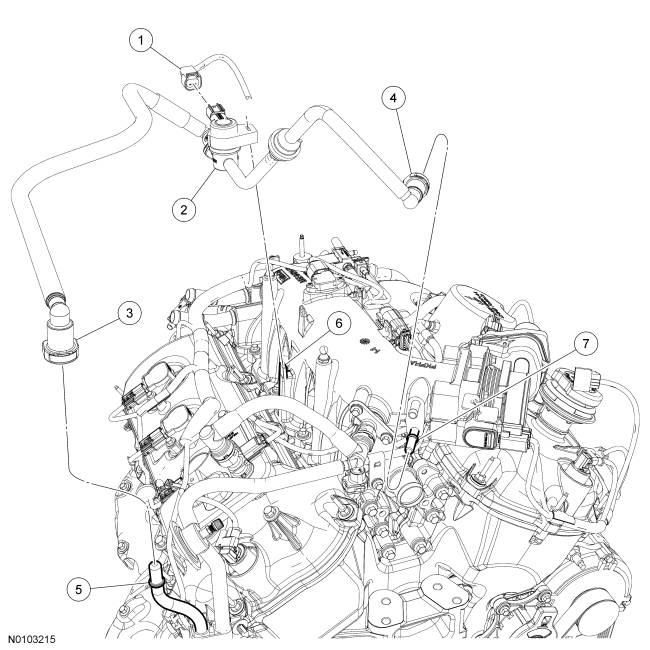

2. Disconnect the Evaporative Emission (EVAP) canister purge valve electrical connector.

3. Disconnect the EVAP (Evaporative Emission) canister purge valve-to-vapor tube quick connect coupling.

4. Disconnect the EVAP (Evaporative Emission) canister purge valve-to-intake manifold quick connect coupling.

5. Release the eyelet from the intake manifold boss and remove the EVAP (Evaporative Emission) canister purge valve.

6. To install, reverse the removal procedure.
- Carry out the Evaporative Emission System Leak Test. For additional information, refer to Evaporative Emission System Leak Test Testing and Inspection.
