Test JF: Integrated Ignition Coil on Plug Coils A Through J Failure



Integrated Ignition Coil On Plug Coils A Through J Failure

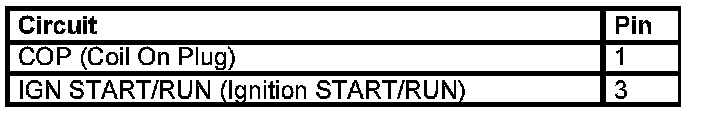

Coil On Plug (COP) Connector





Harness Side

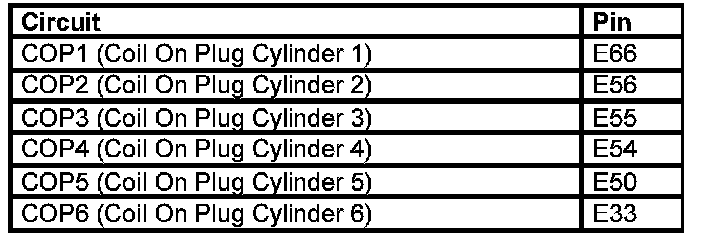

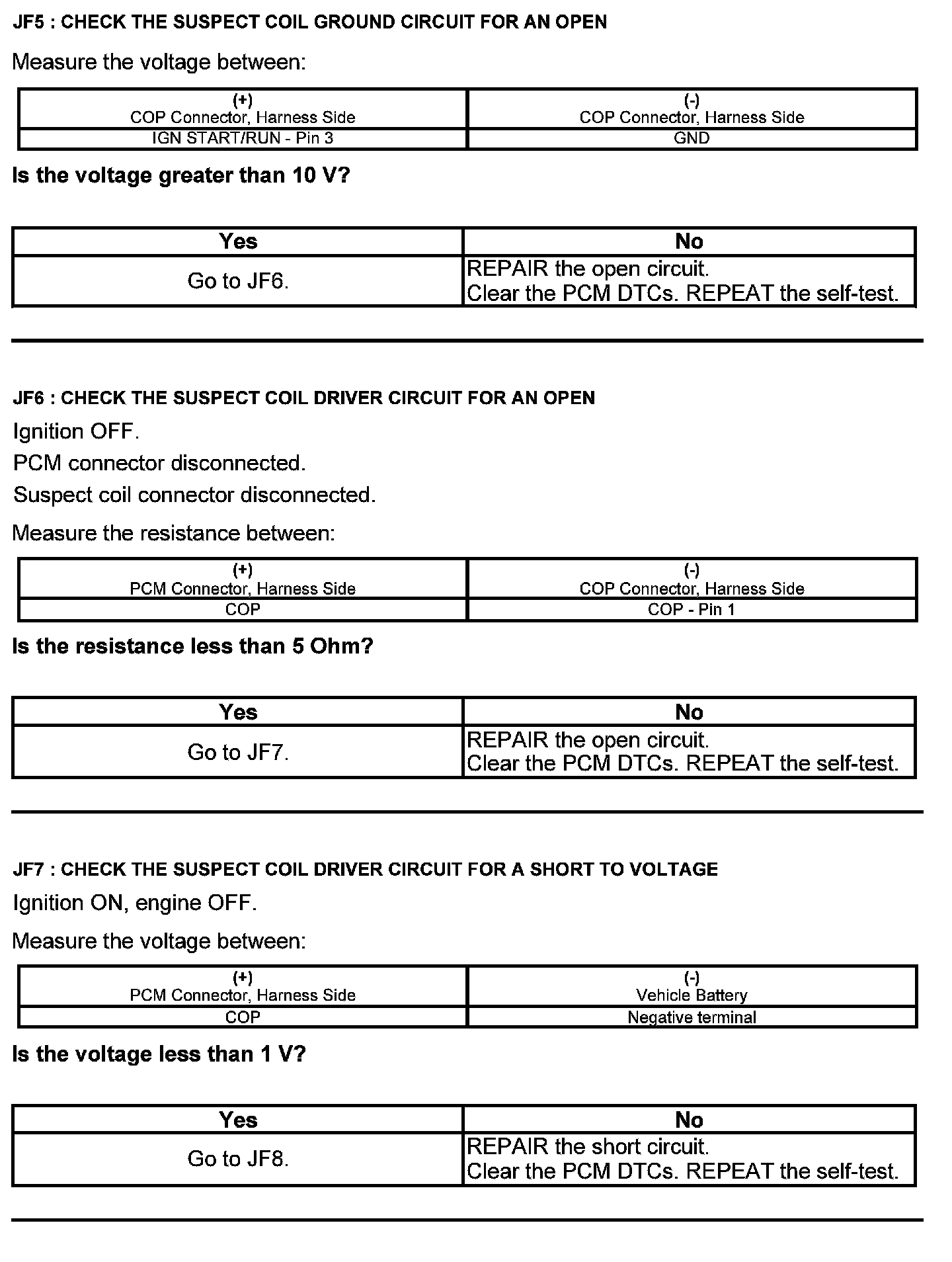

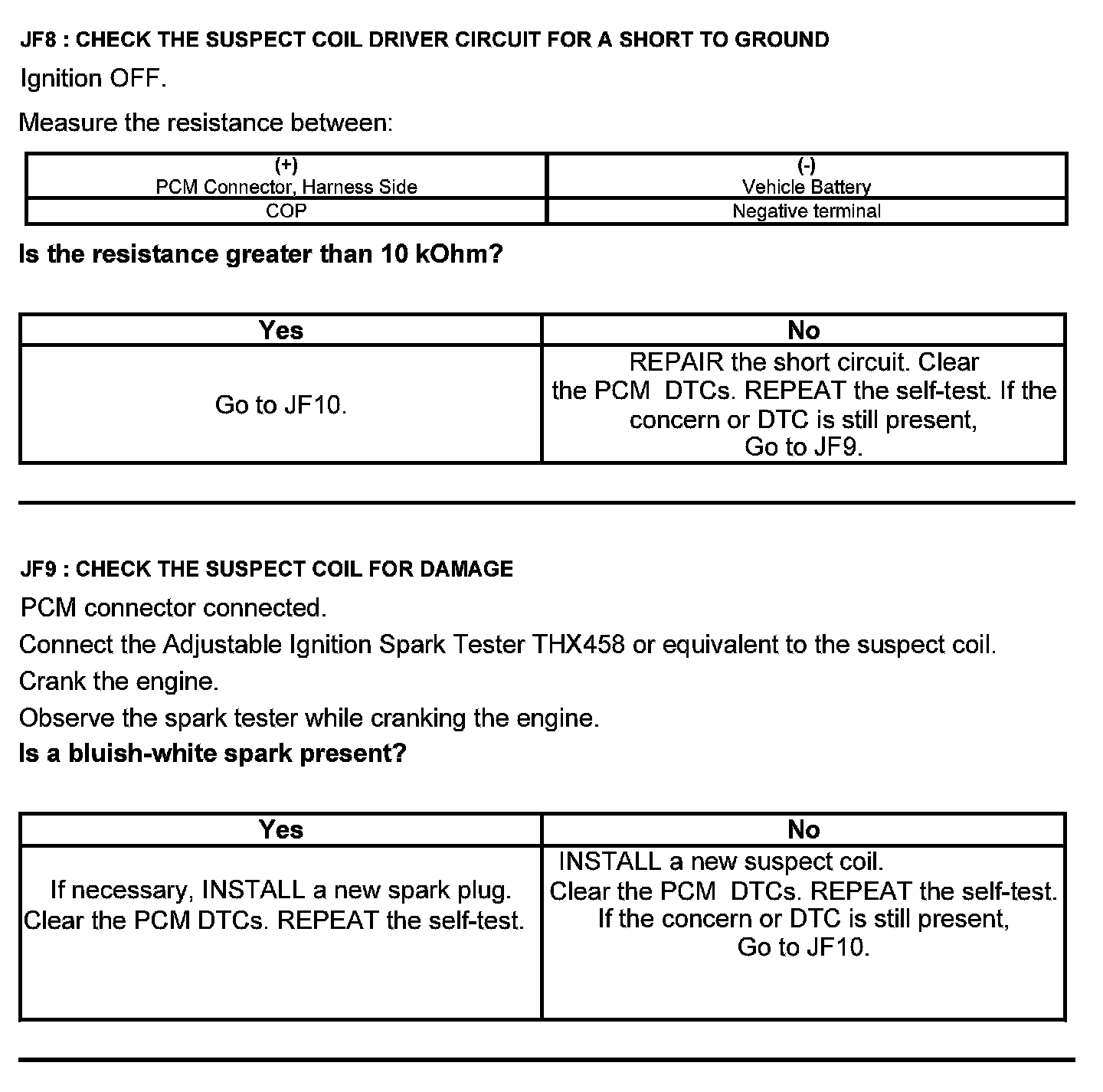

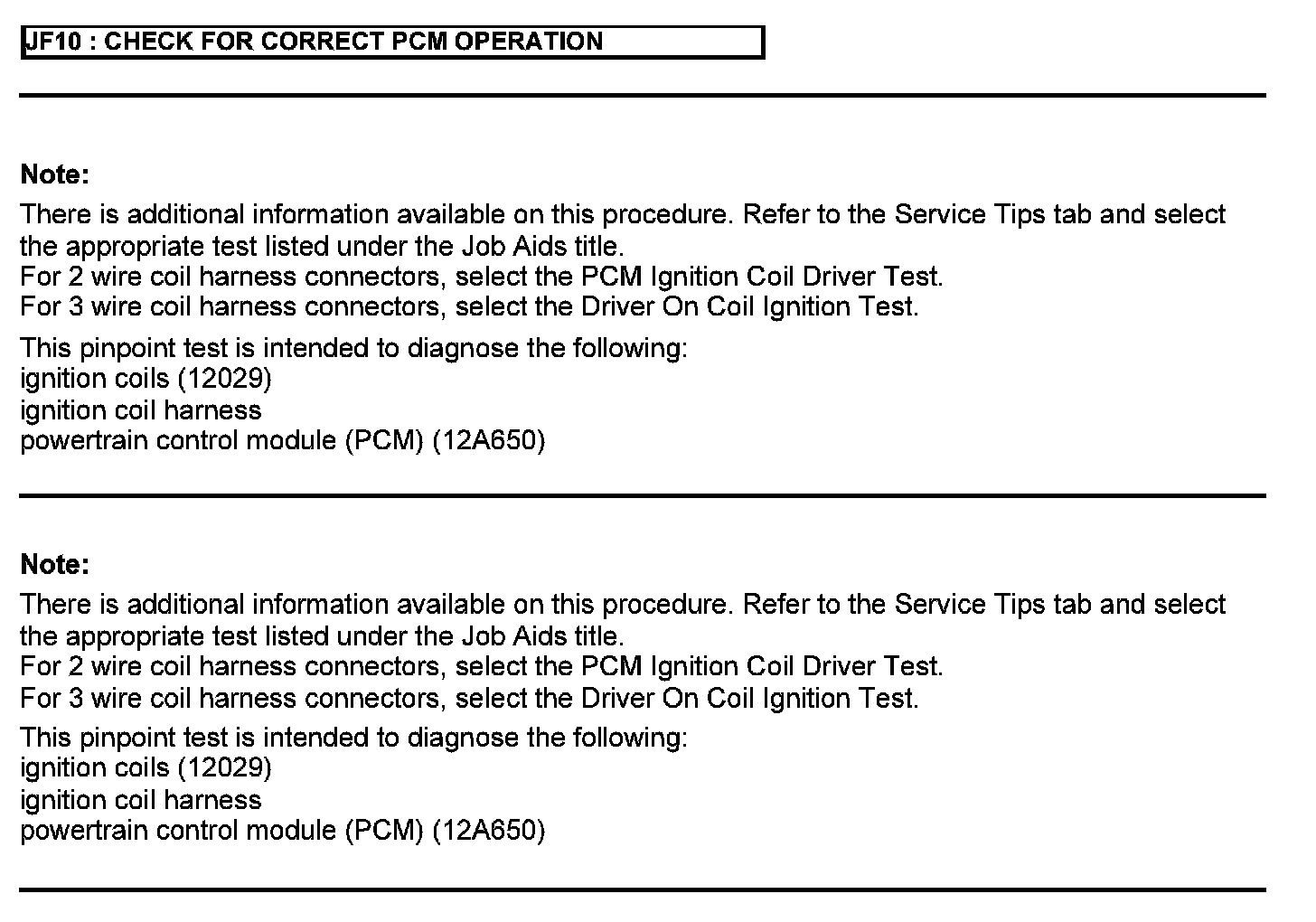

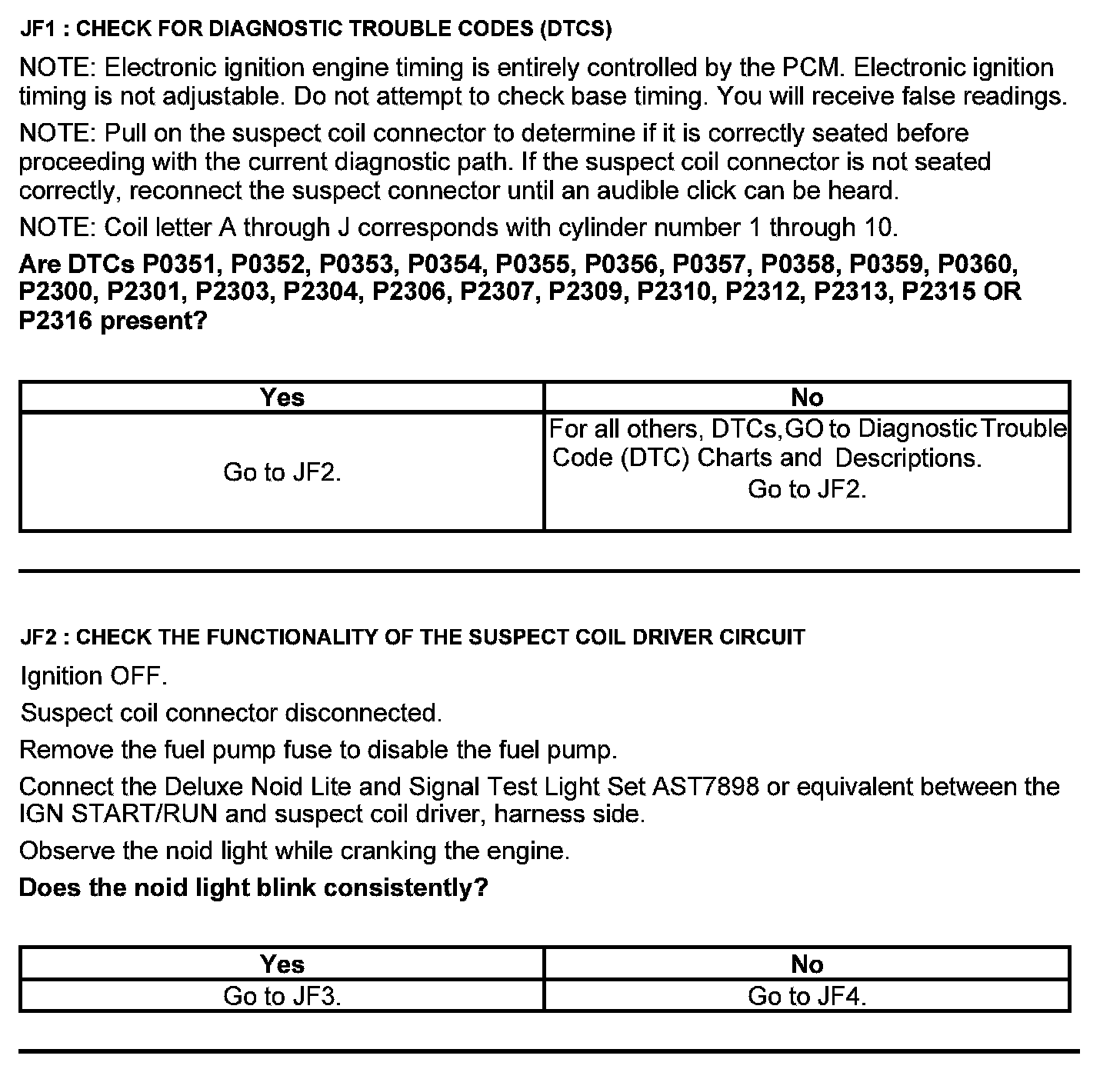

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.





Harness Side
