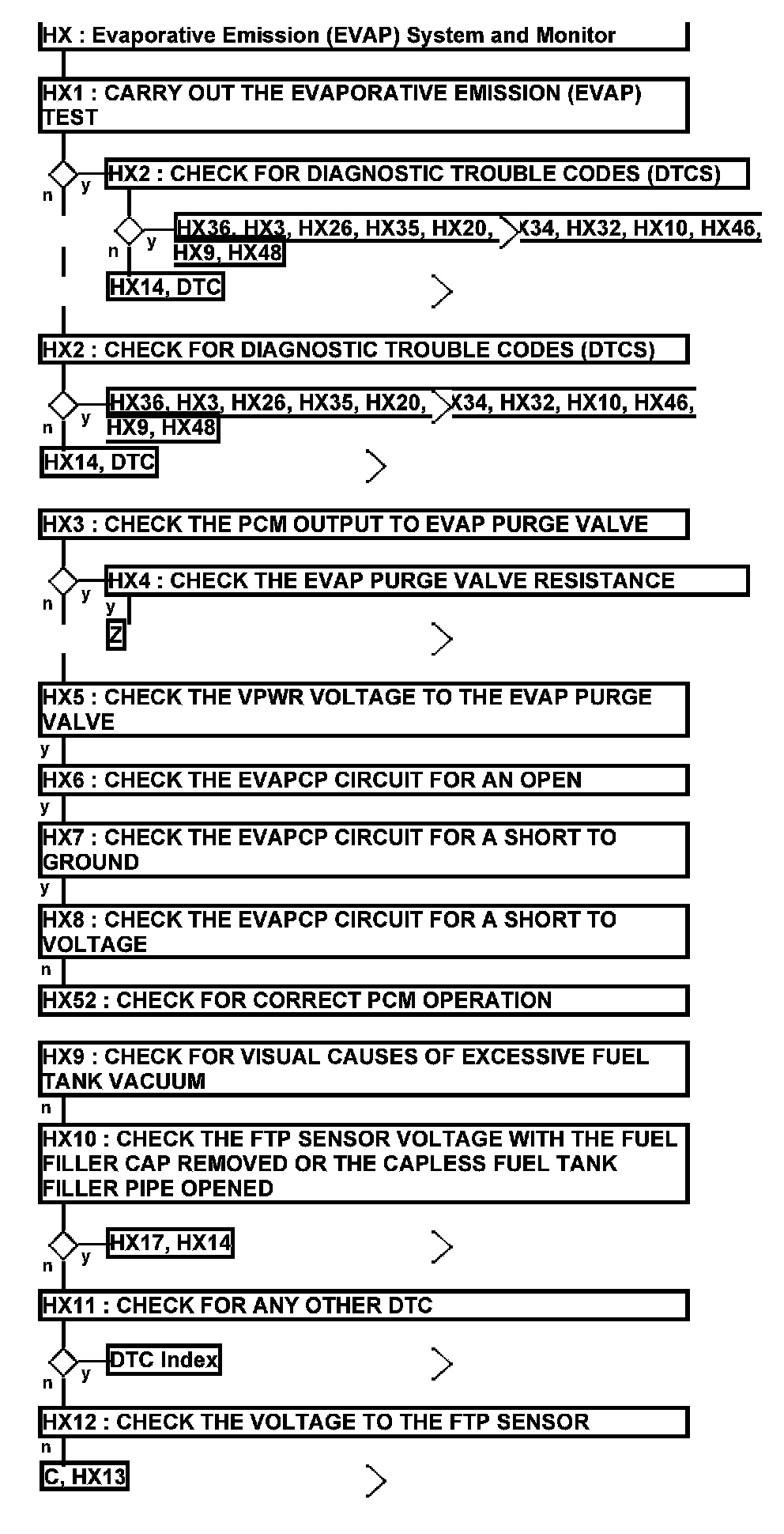

Test HX: Evaporative Emission (EVAP) System and Monitor

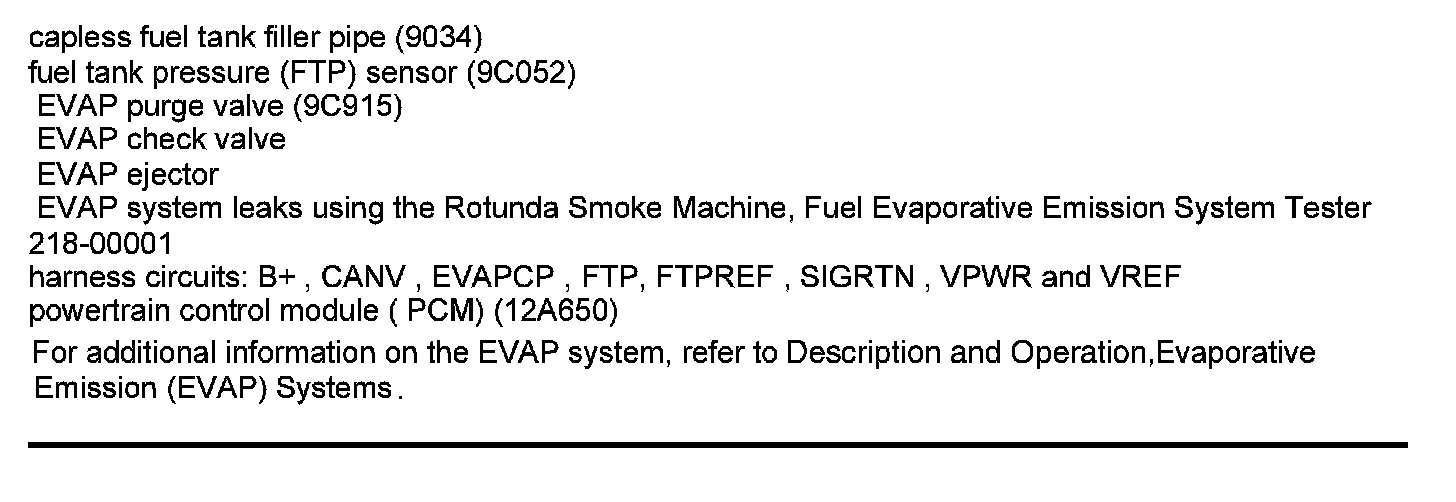

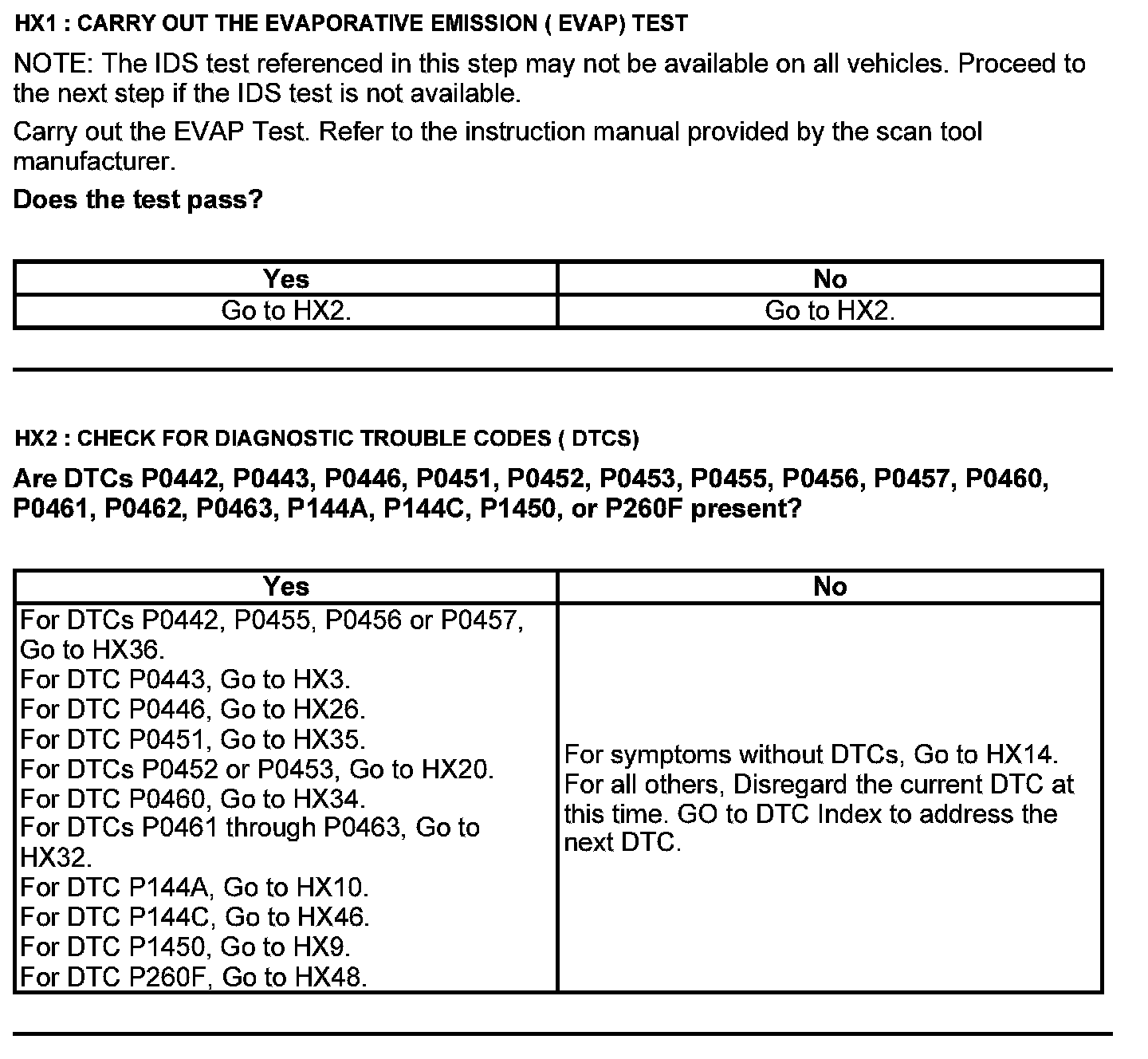

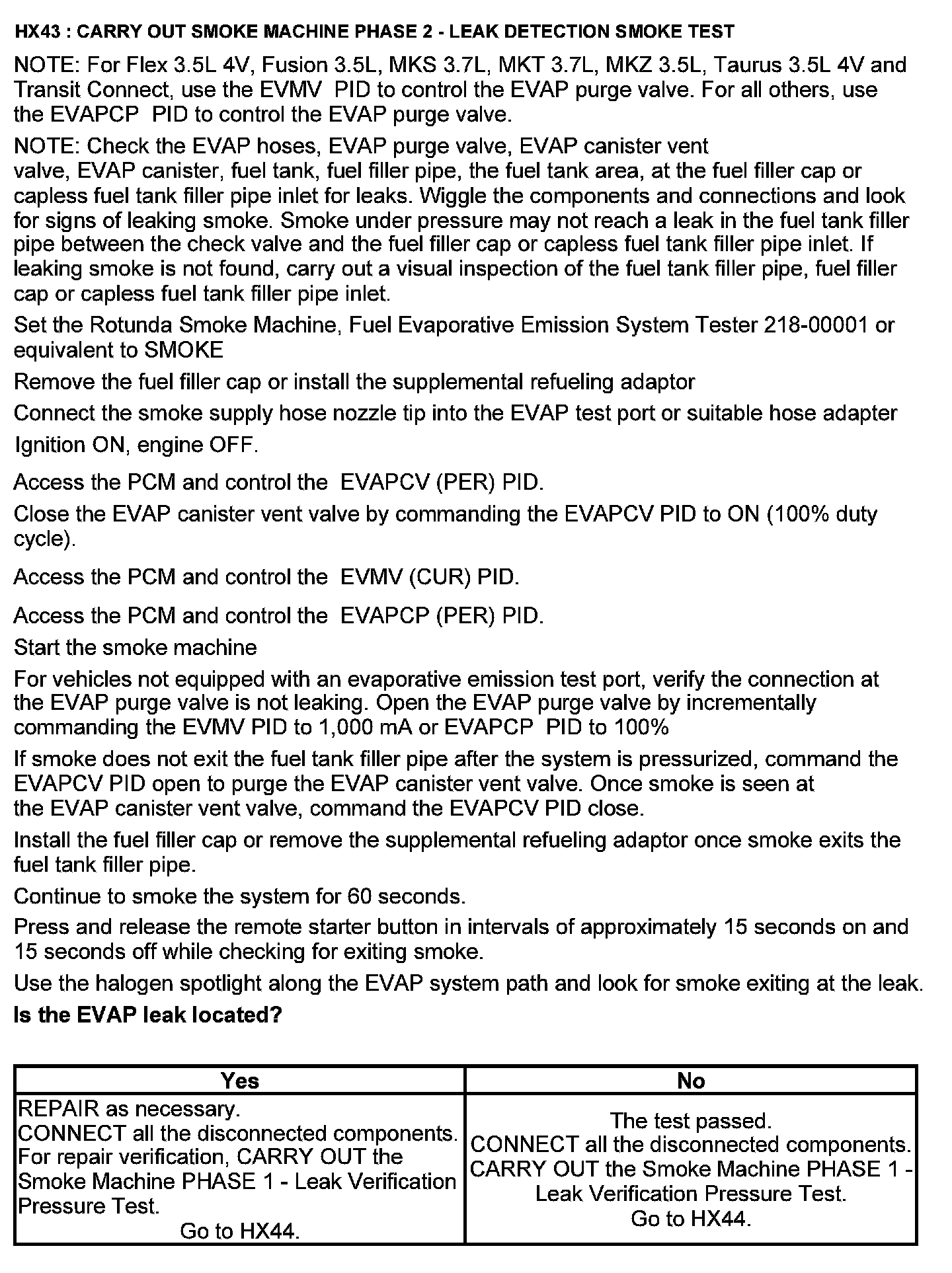

Evaporative Emission (EVAP) System and Monitor

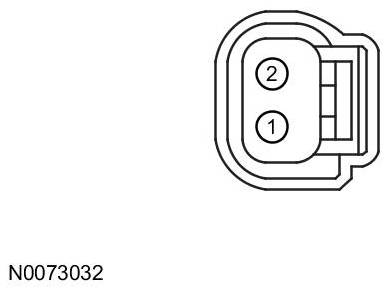

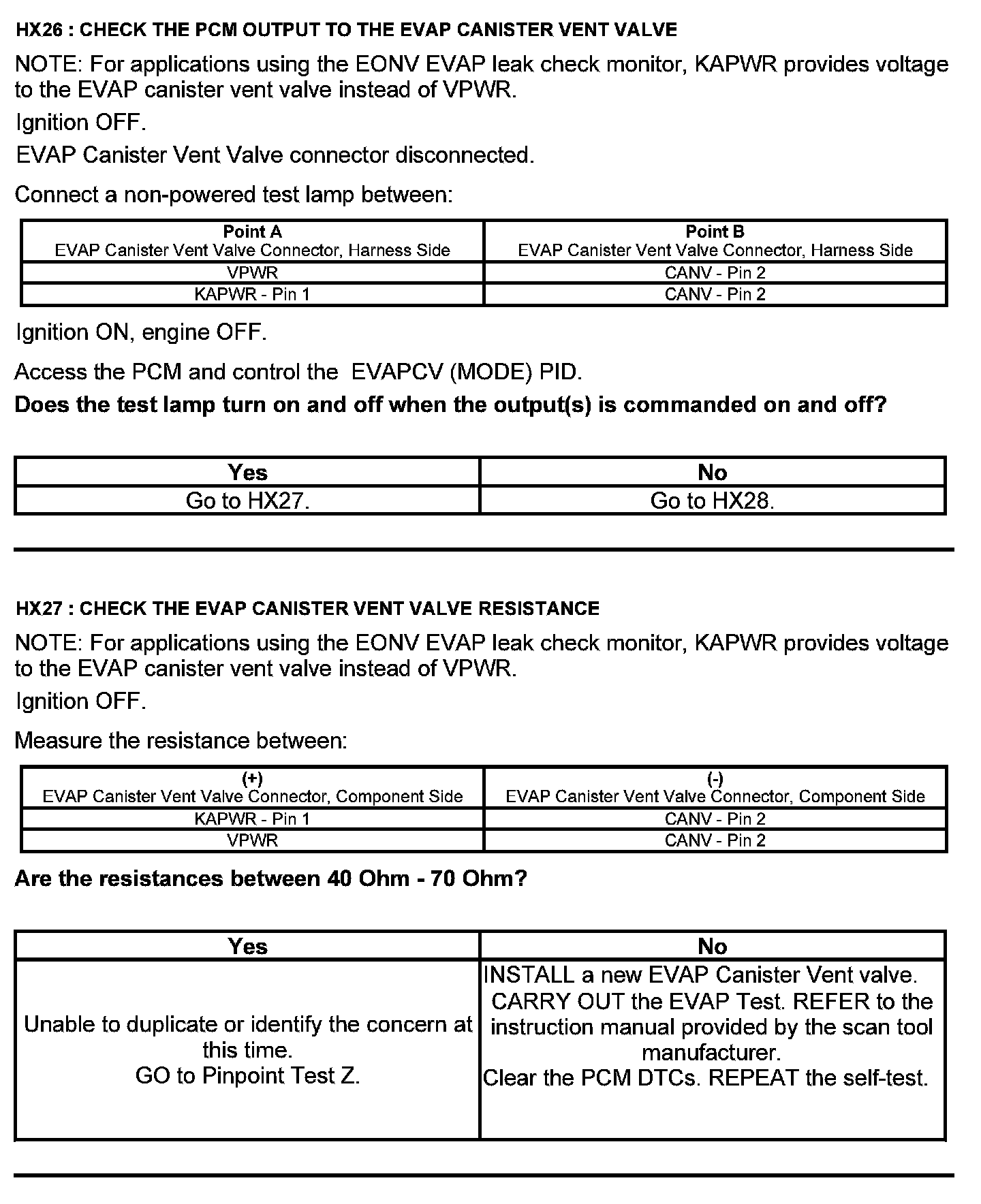

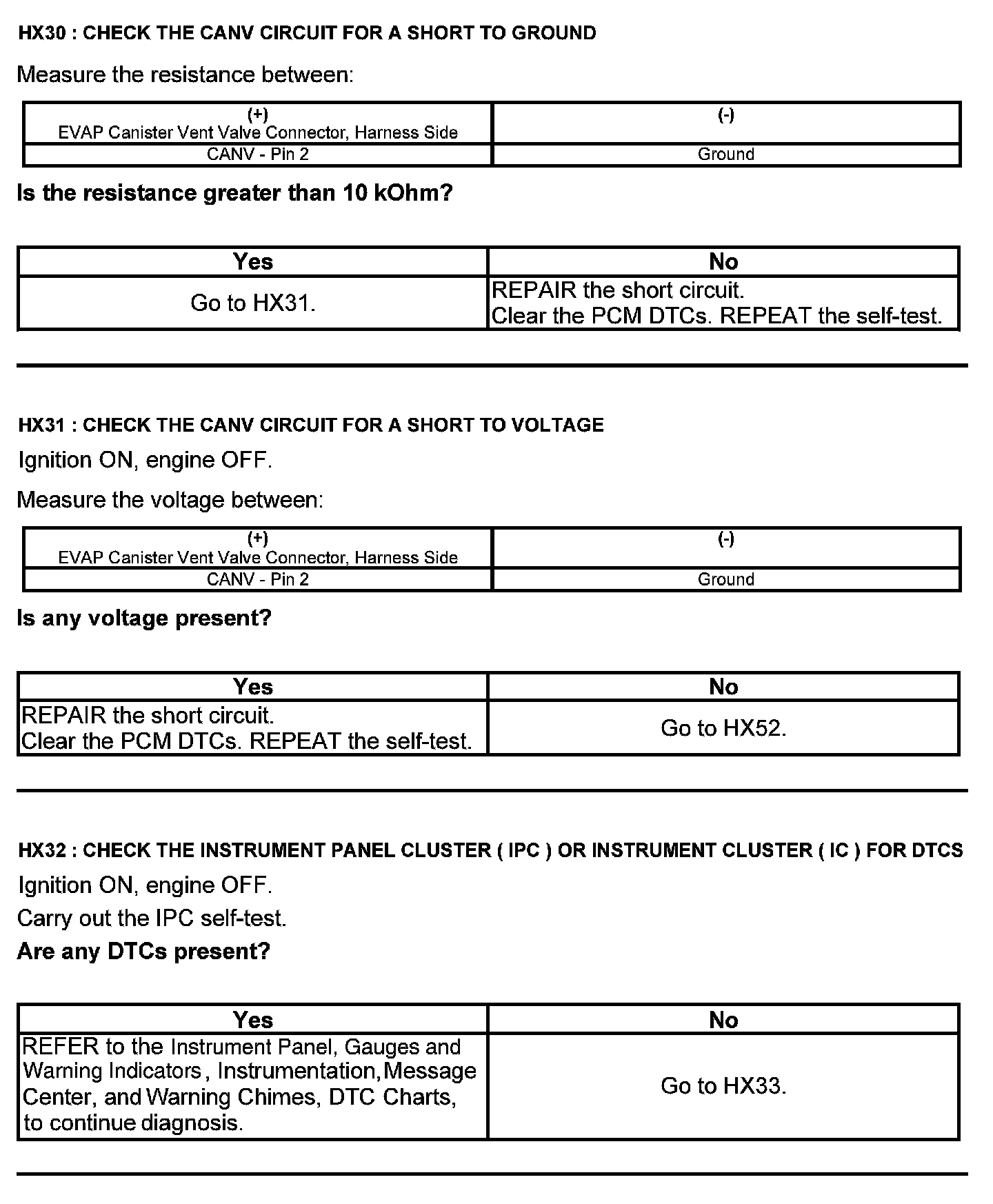

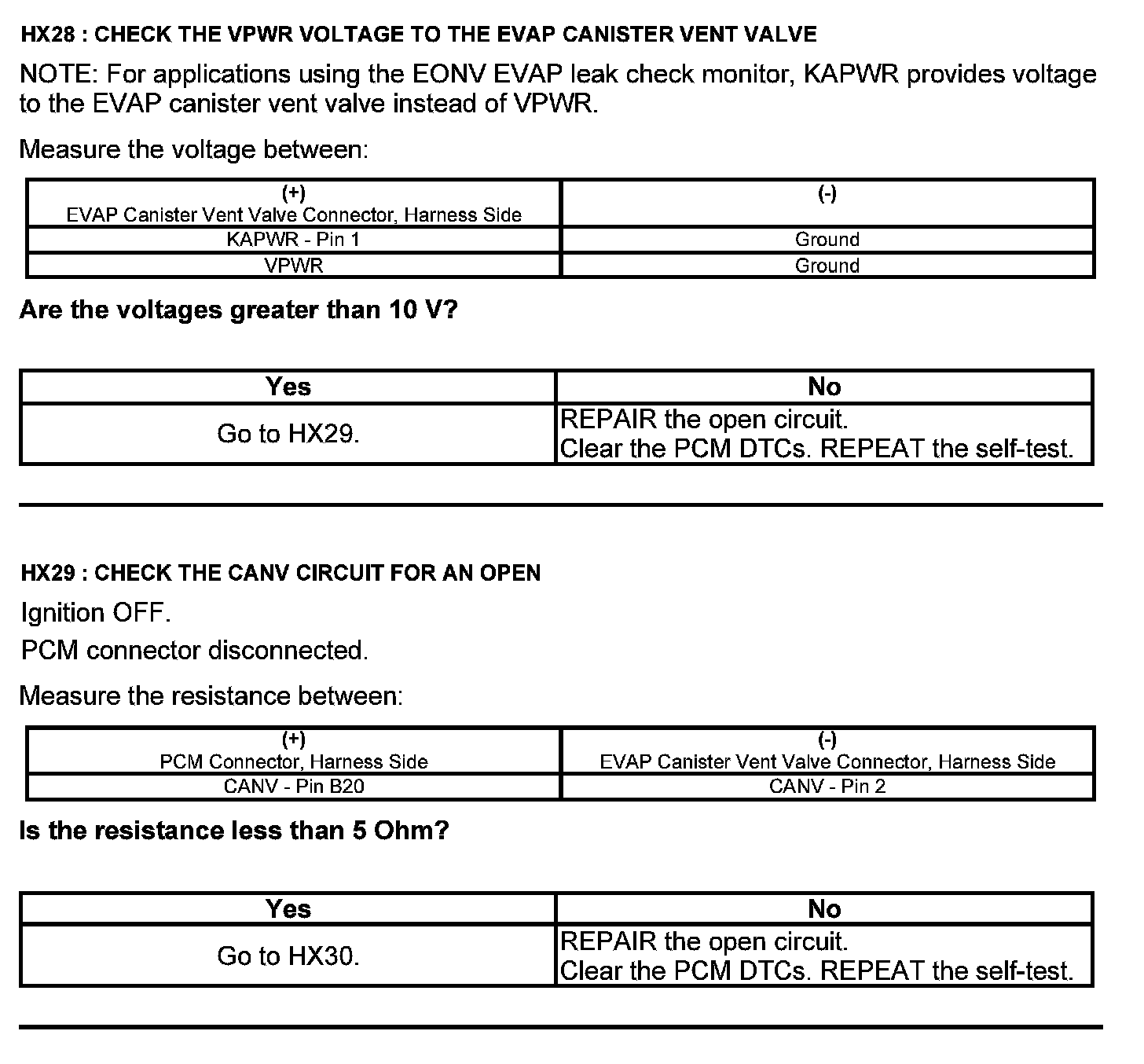

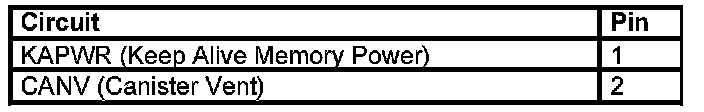

EVAP Canister Vent Valve Connector - For applications using the engine off natural vacuum (EONV) EVAP leak check monitor, KAPWR provides voltage to the EVAP canister vent valve instead of VPWR.
Harness Side

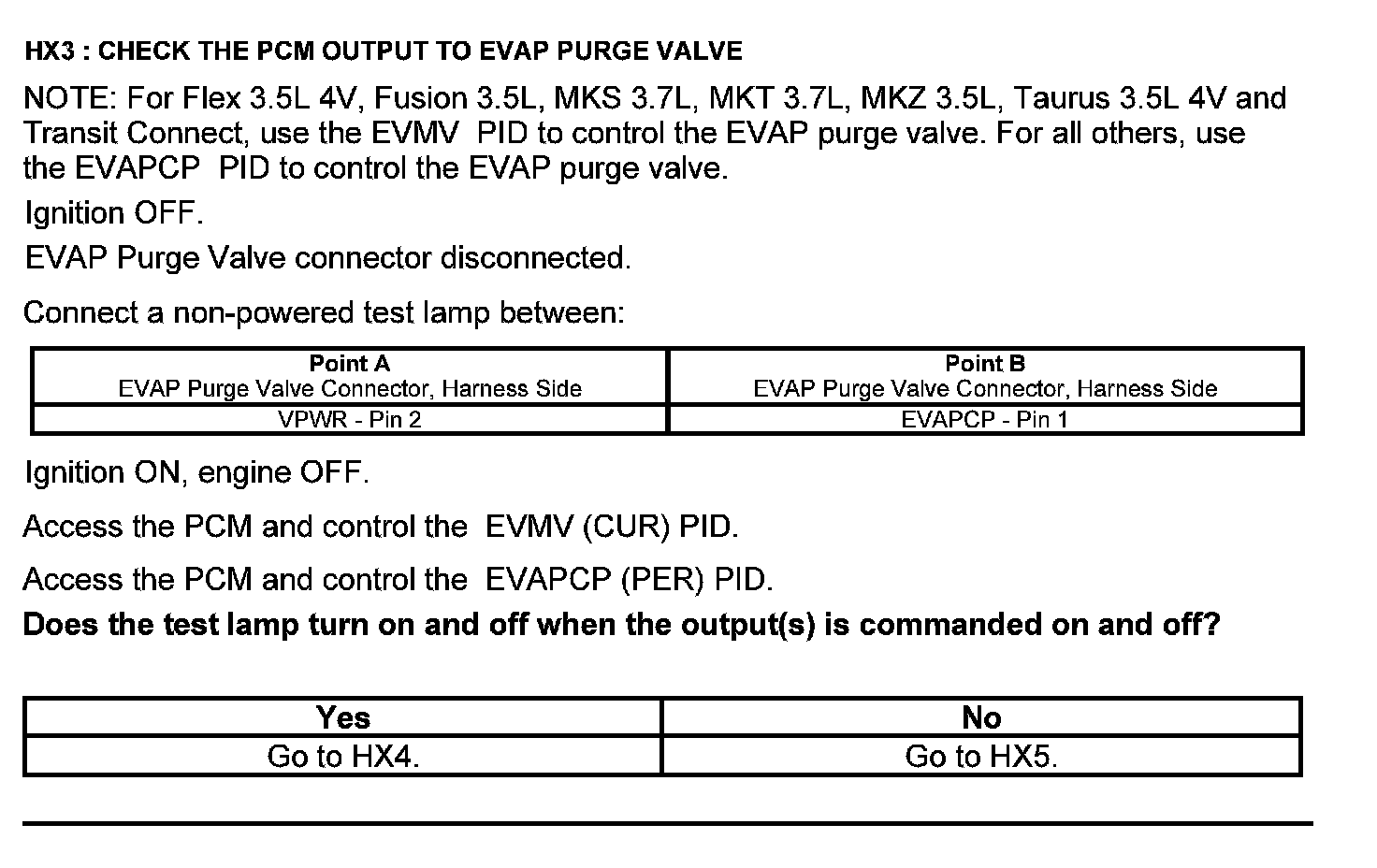

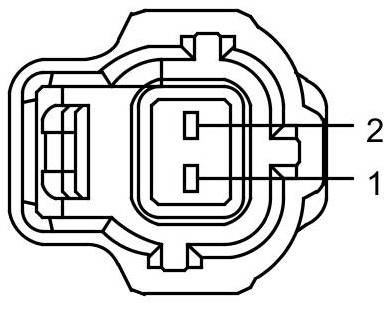

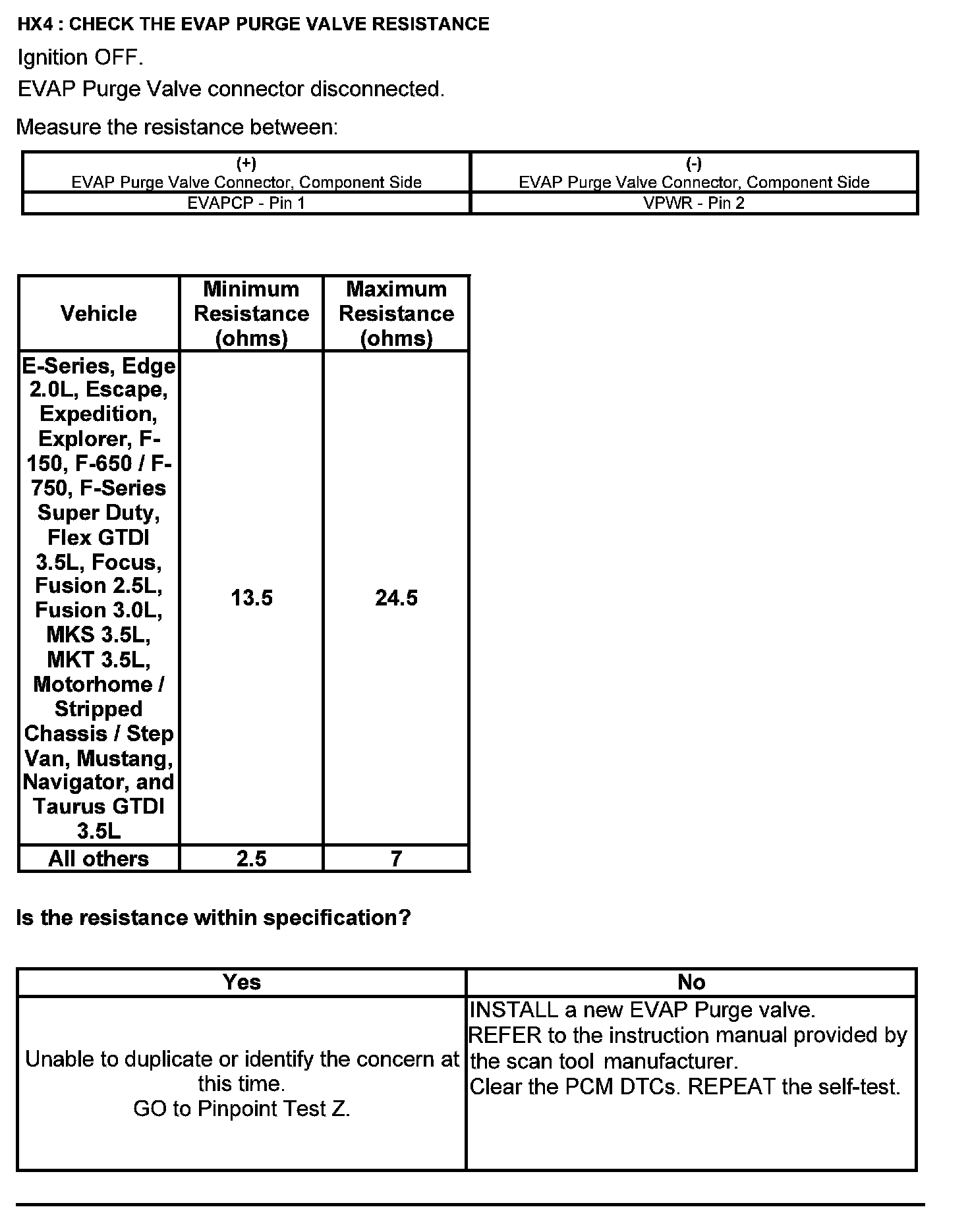

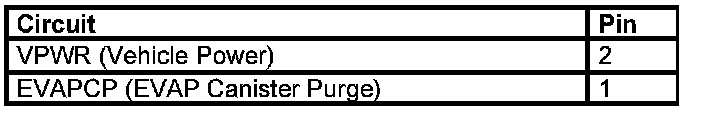

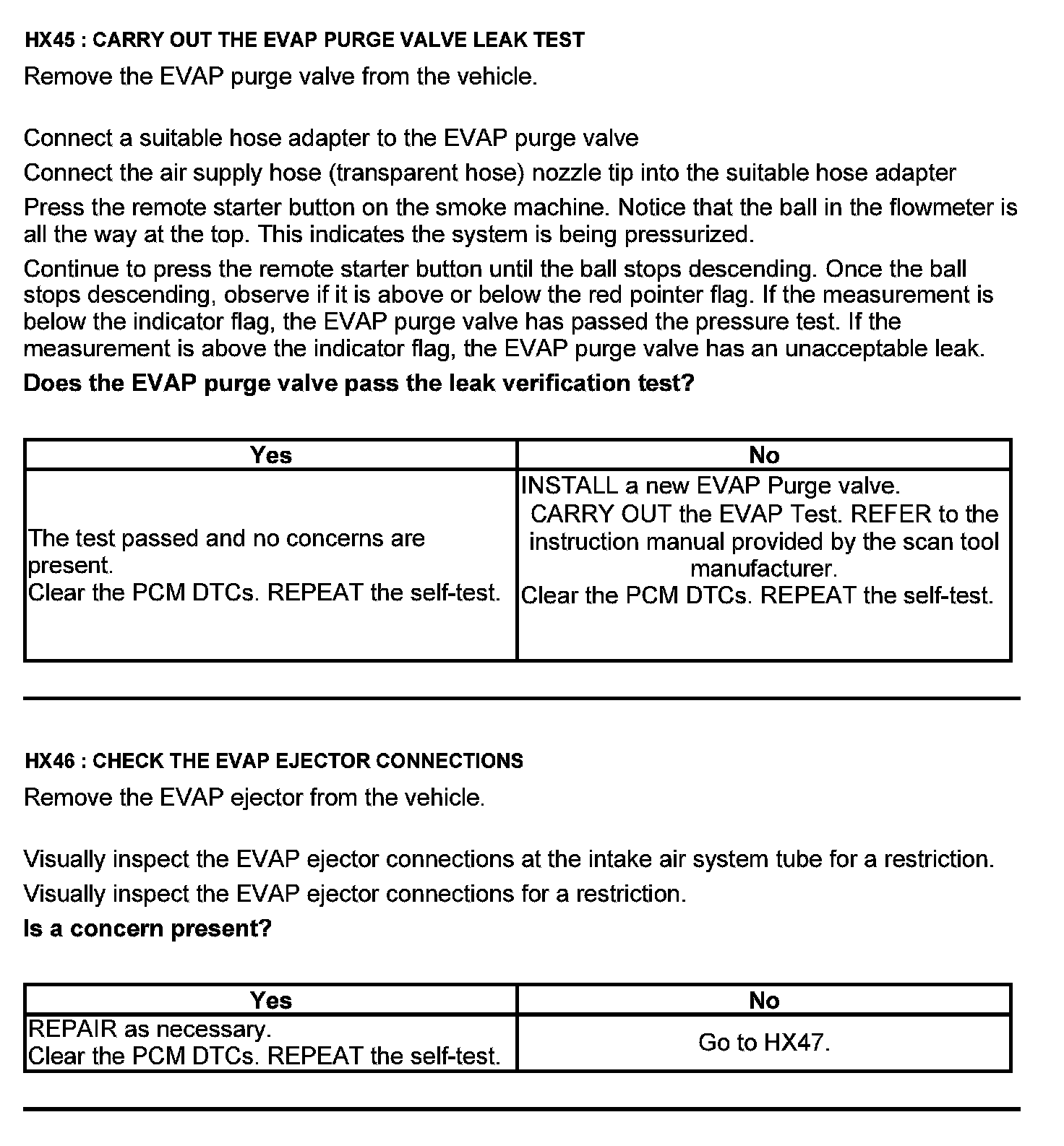

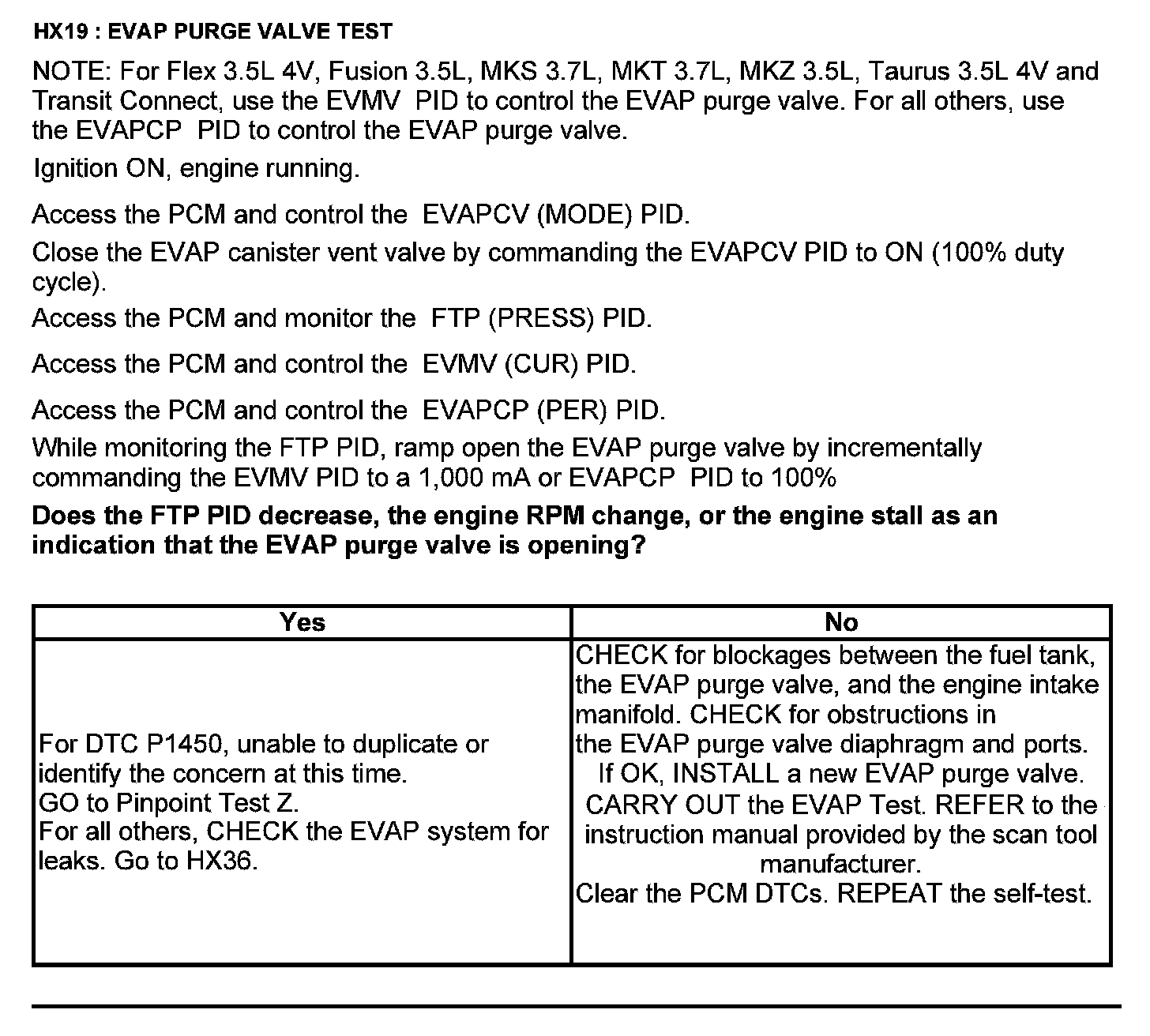

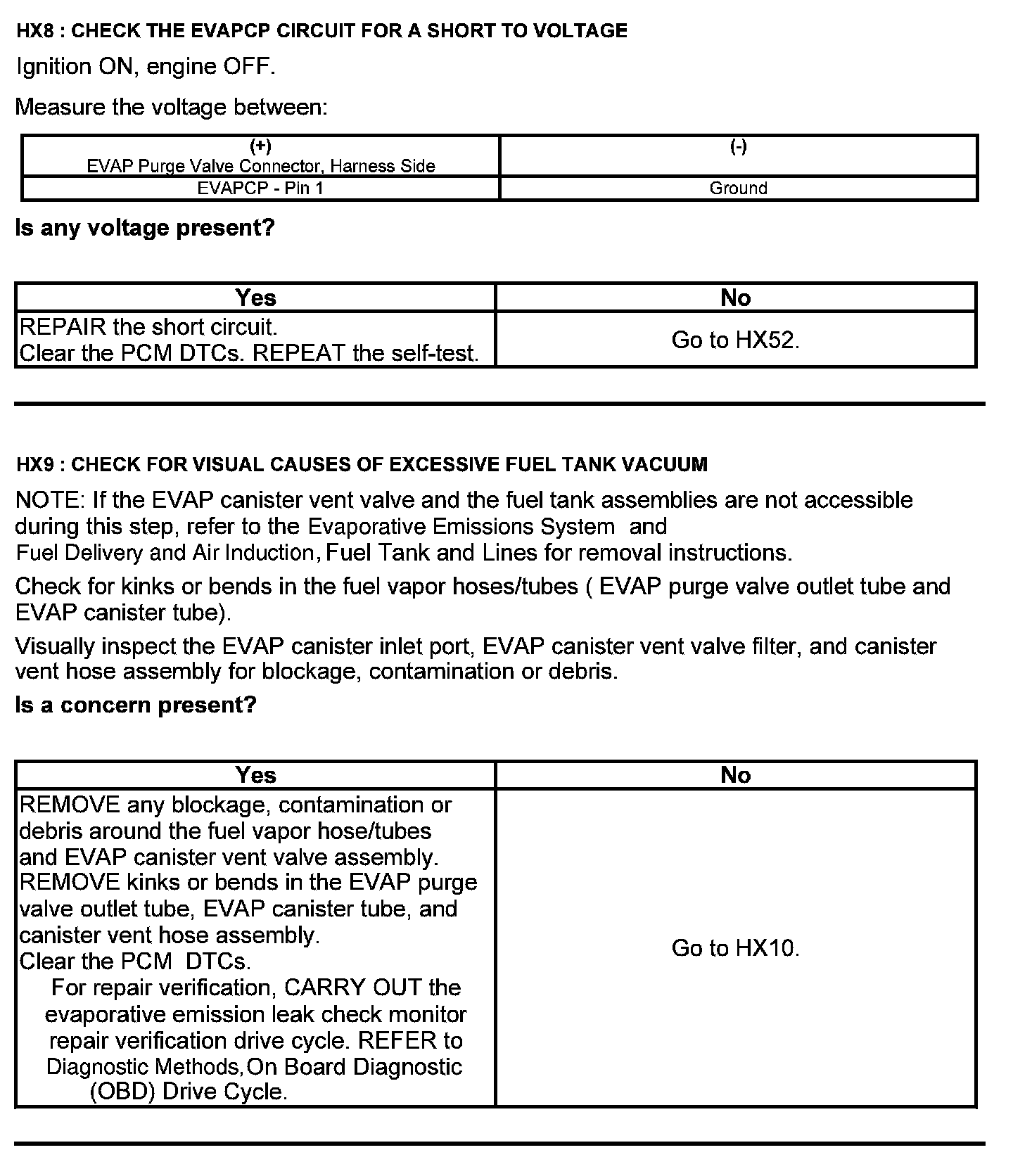

EVAP Purge Valve Connector
Harness Side

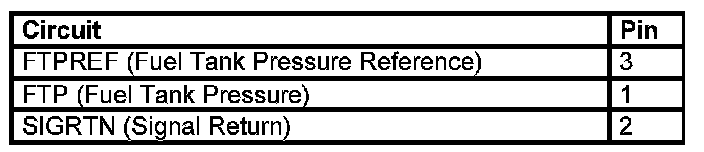

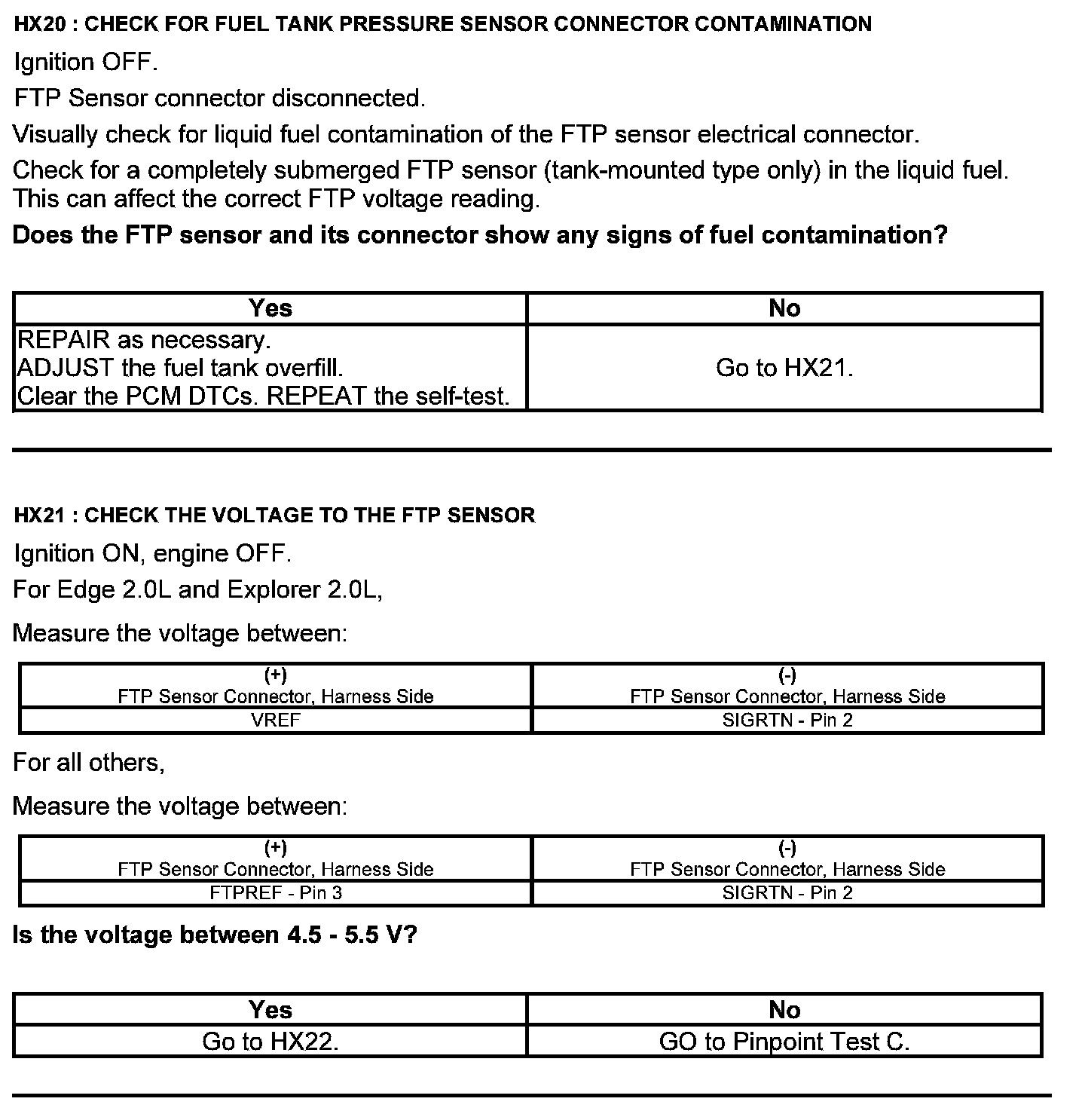

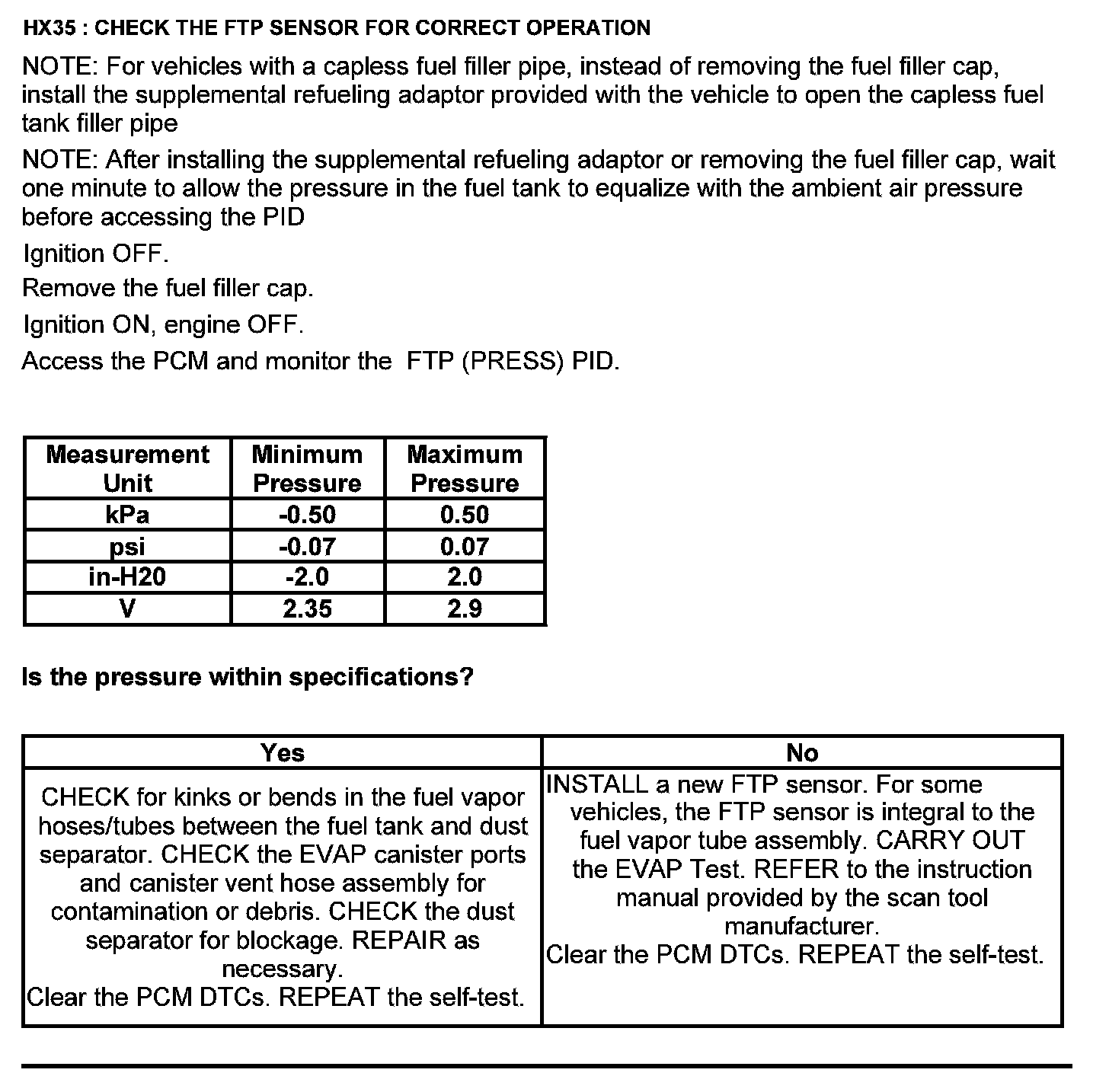

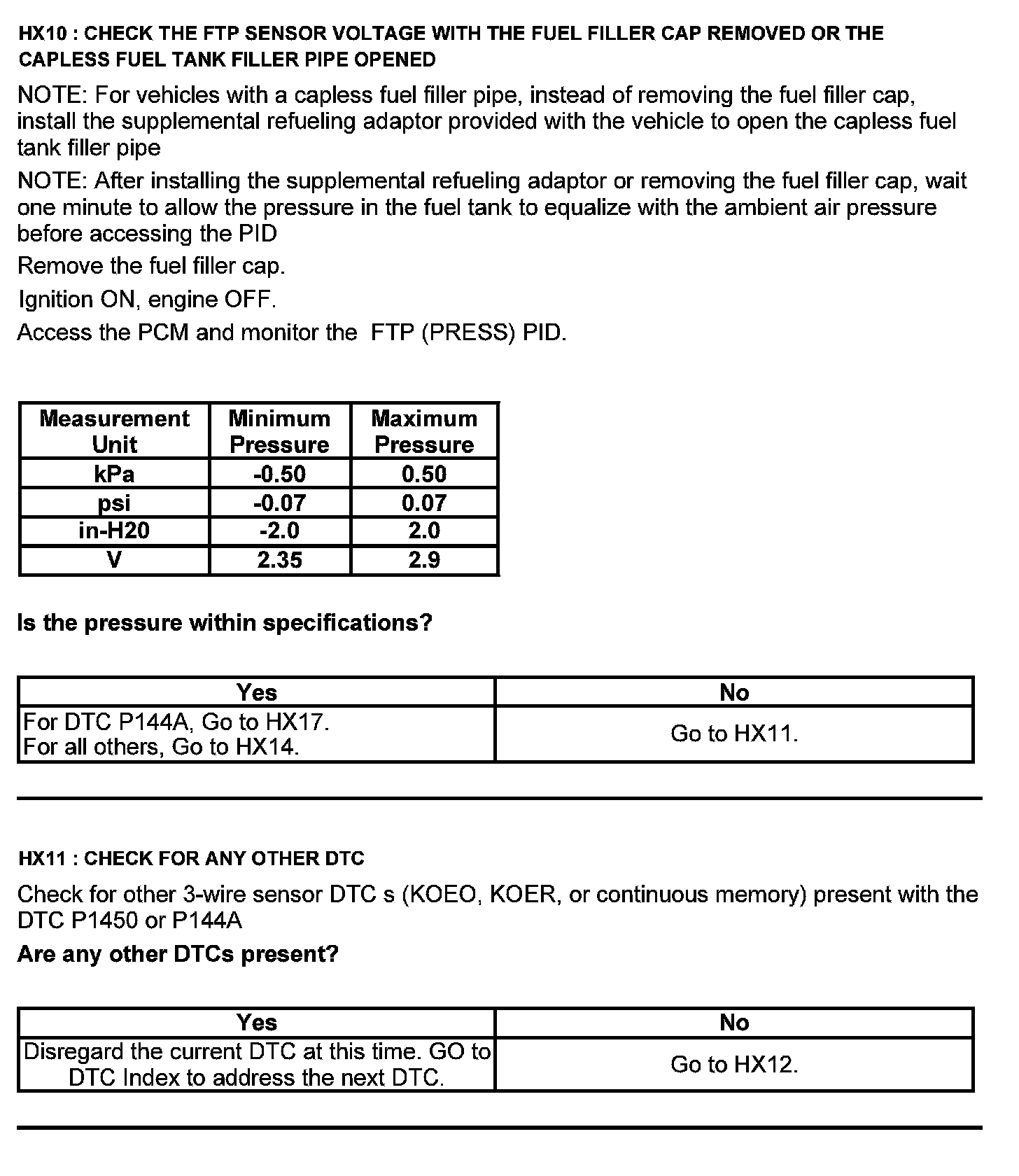

Fuel Tank Pressure (FTP) Sensor Connector
Harness Side

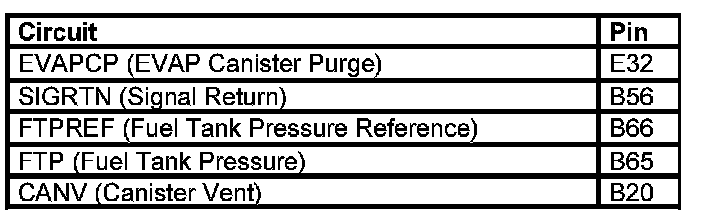

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.
Harness Side
