Home >> Ford >> 2012 >> Taurus AWD V6-3.5L Turbo >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> Test HC: Fuel Delivery System >> Vehicles That Start

Vehicles That Start

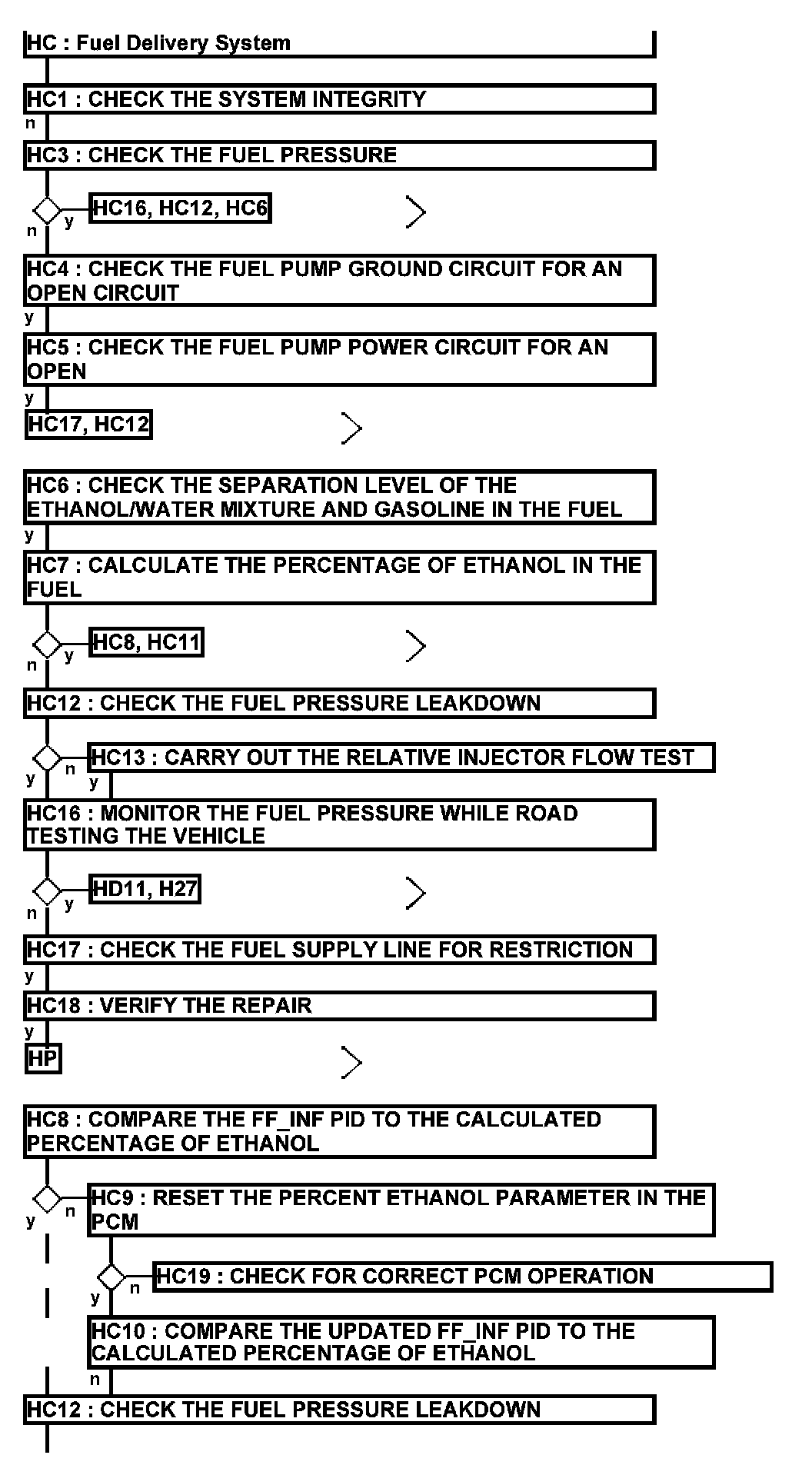

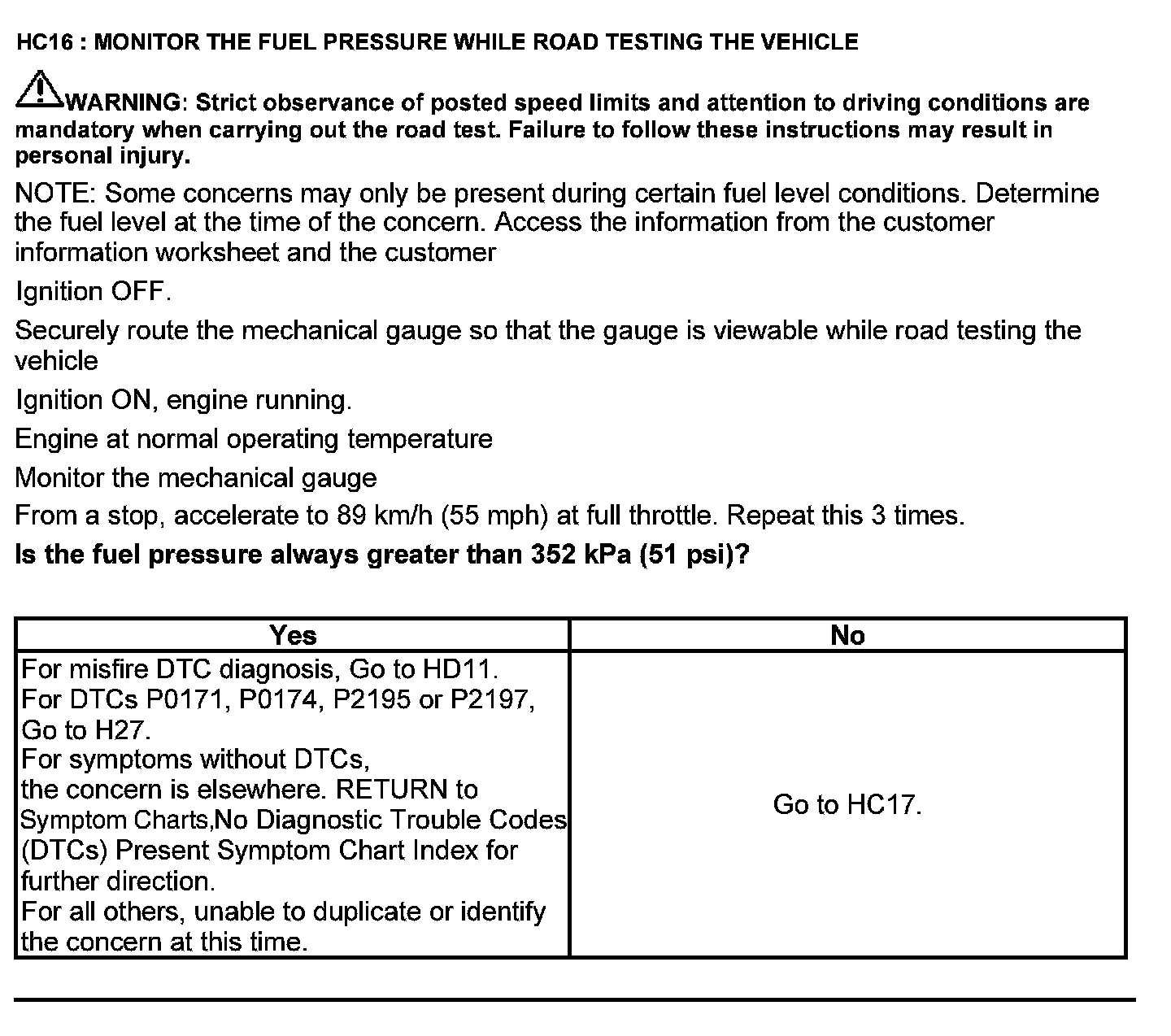

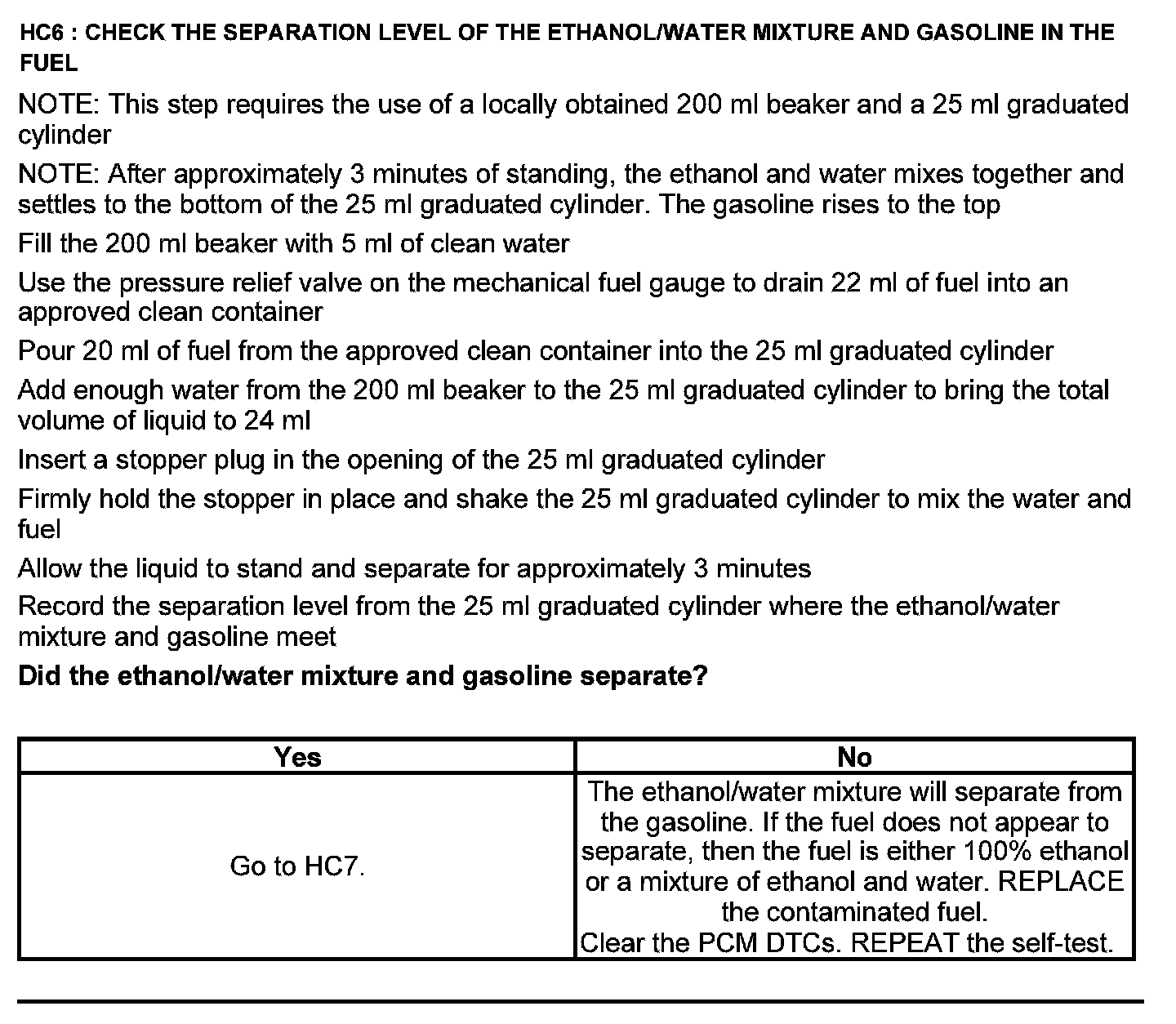

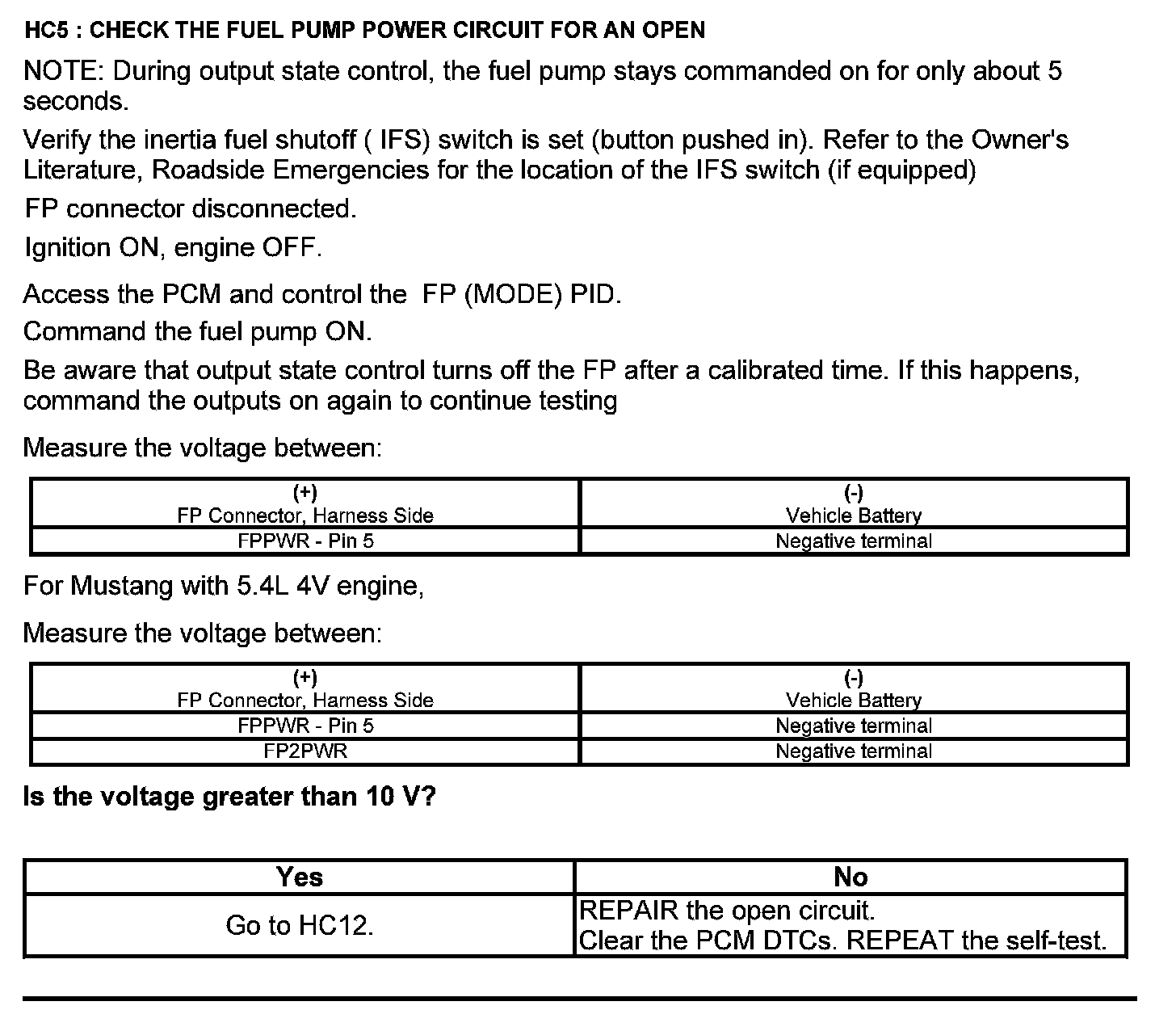

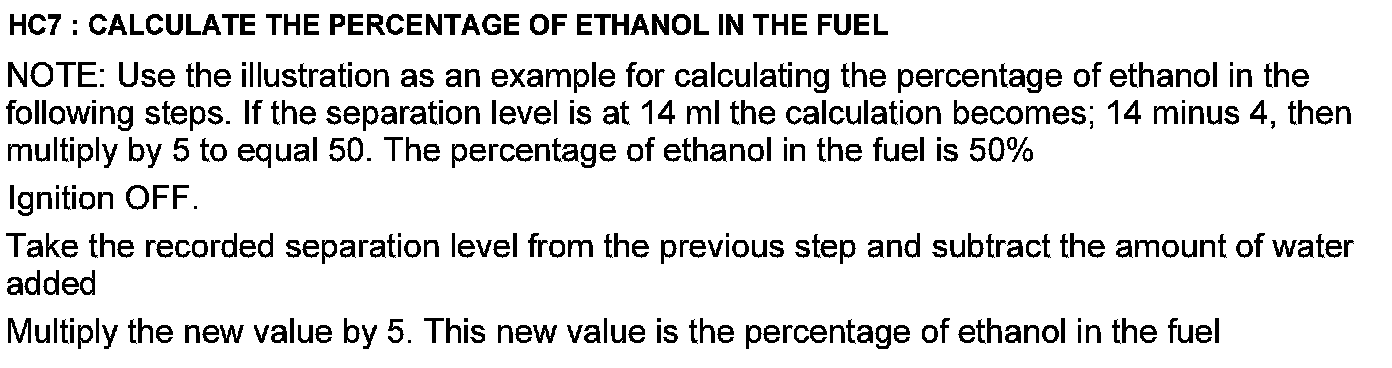

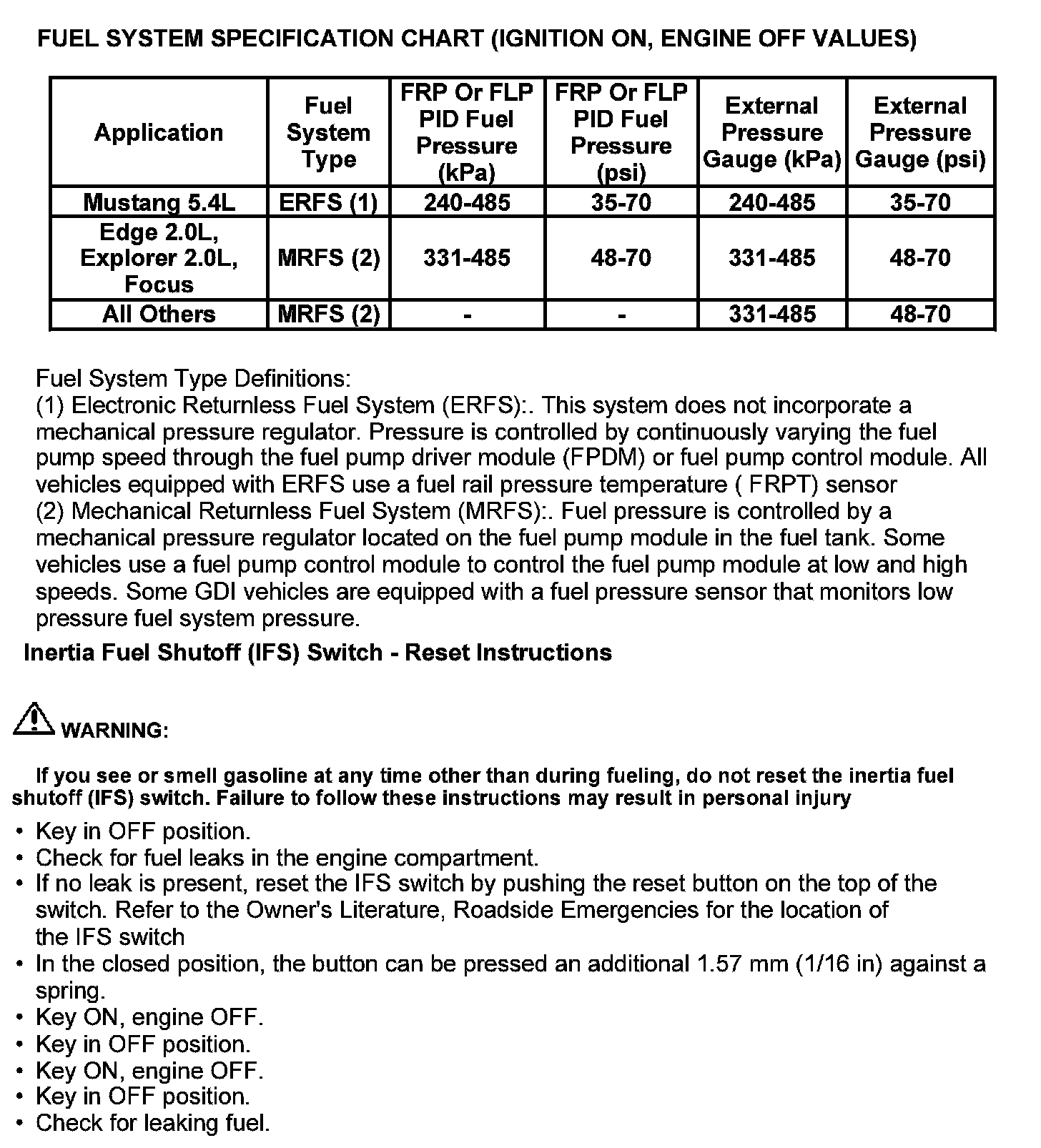

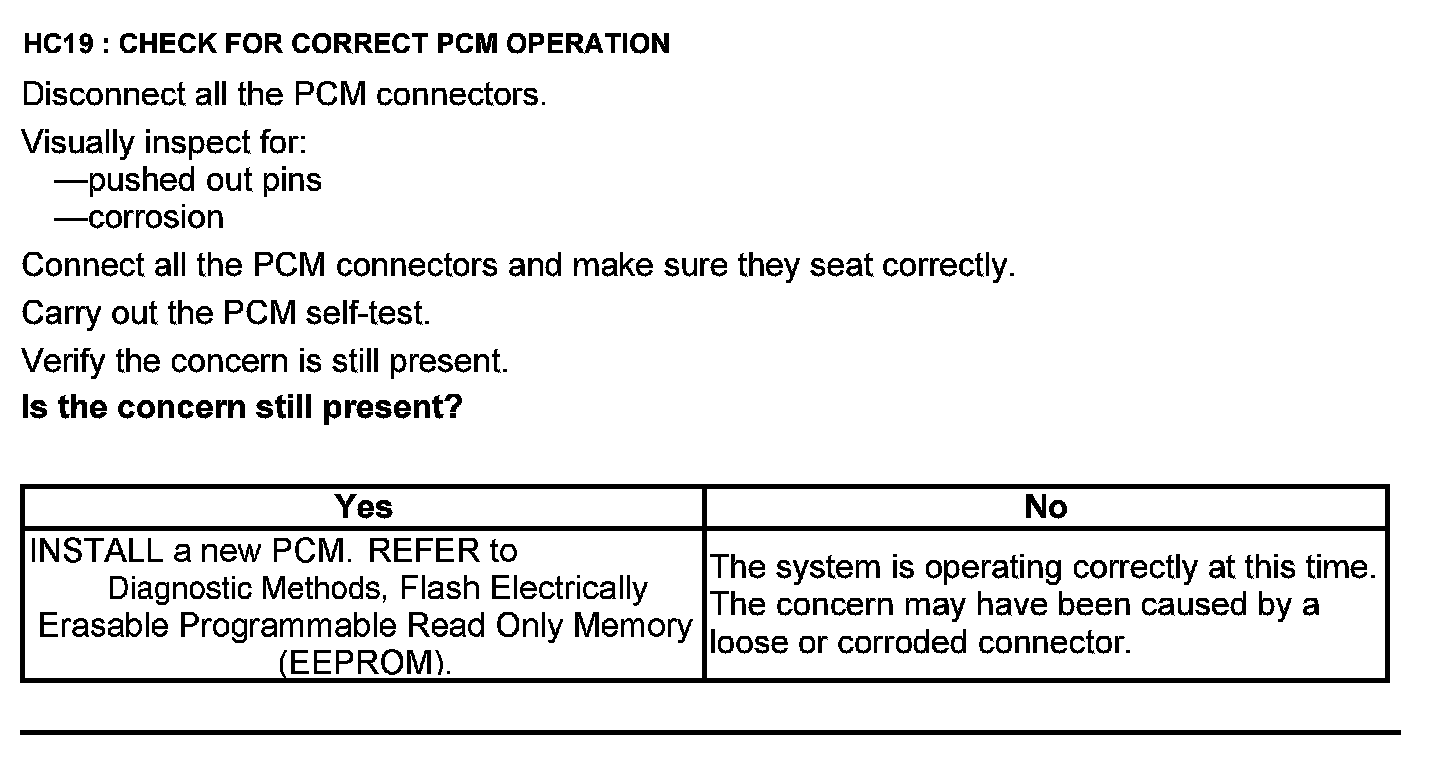

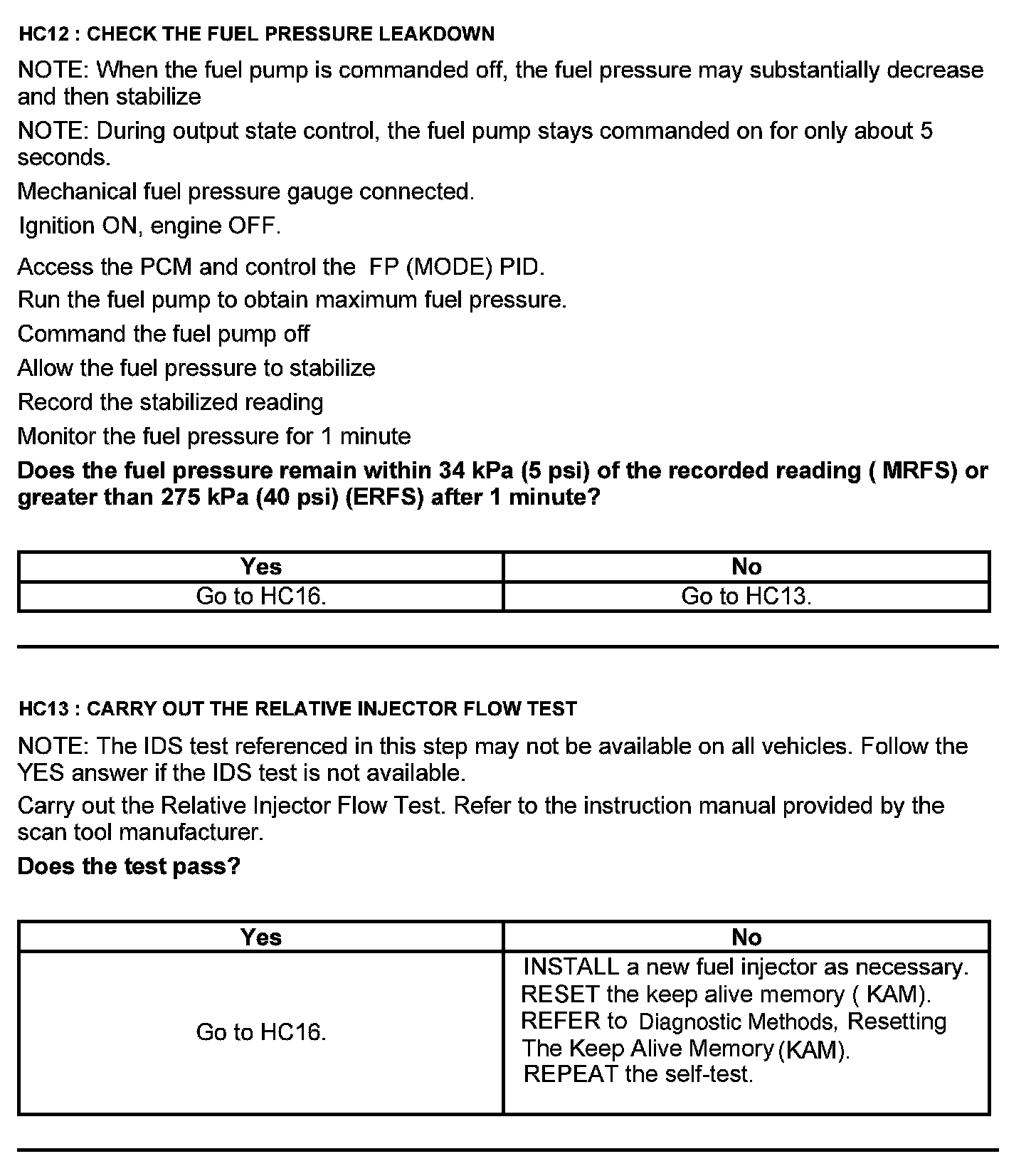

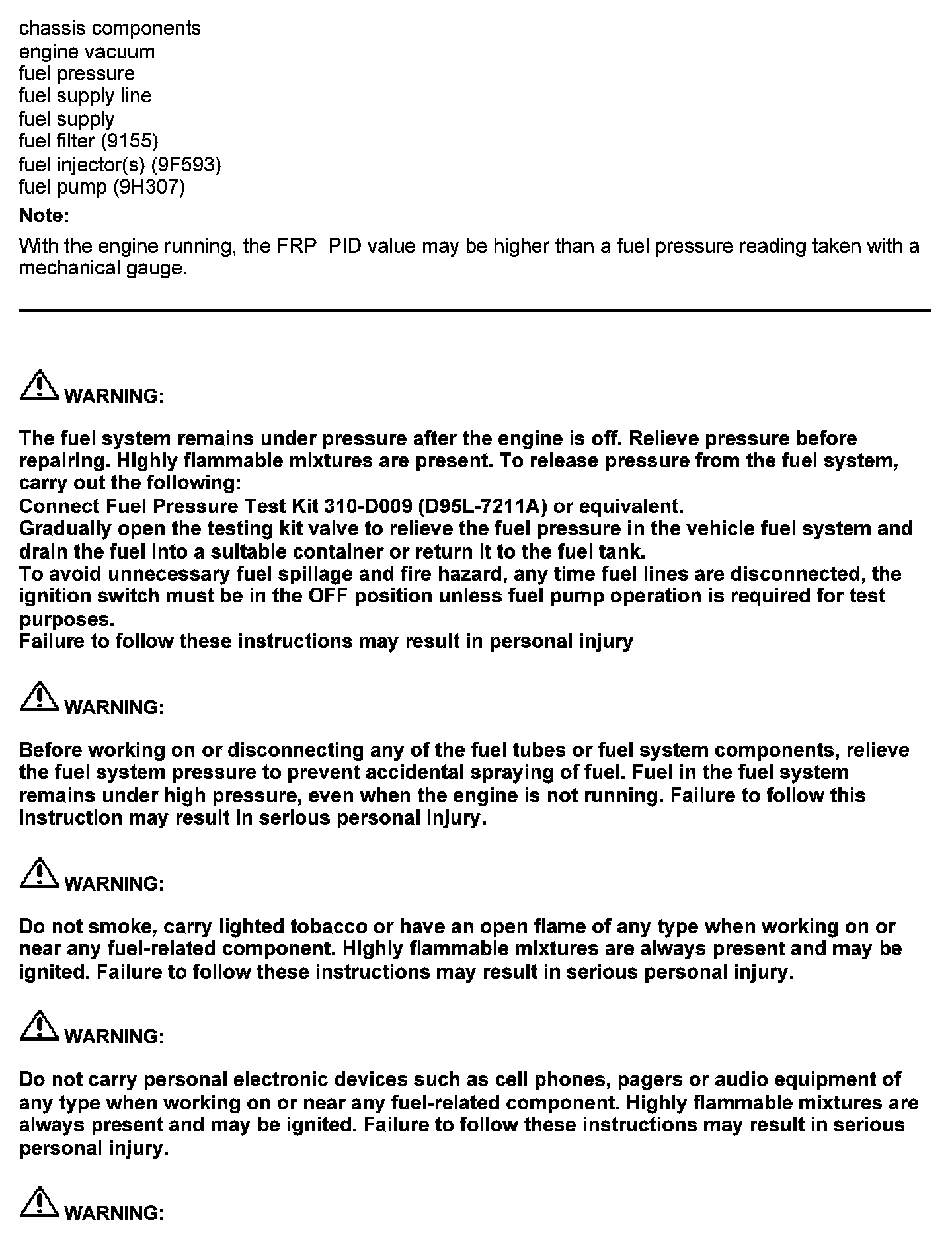

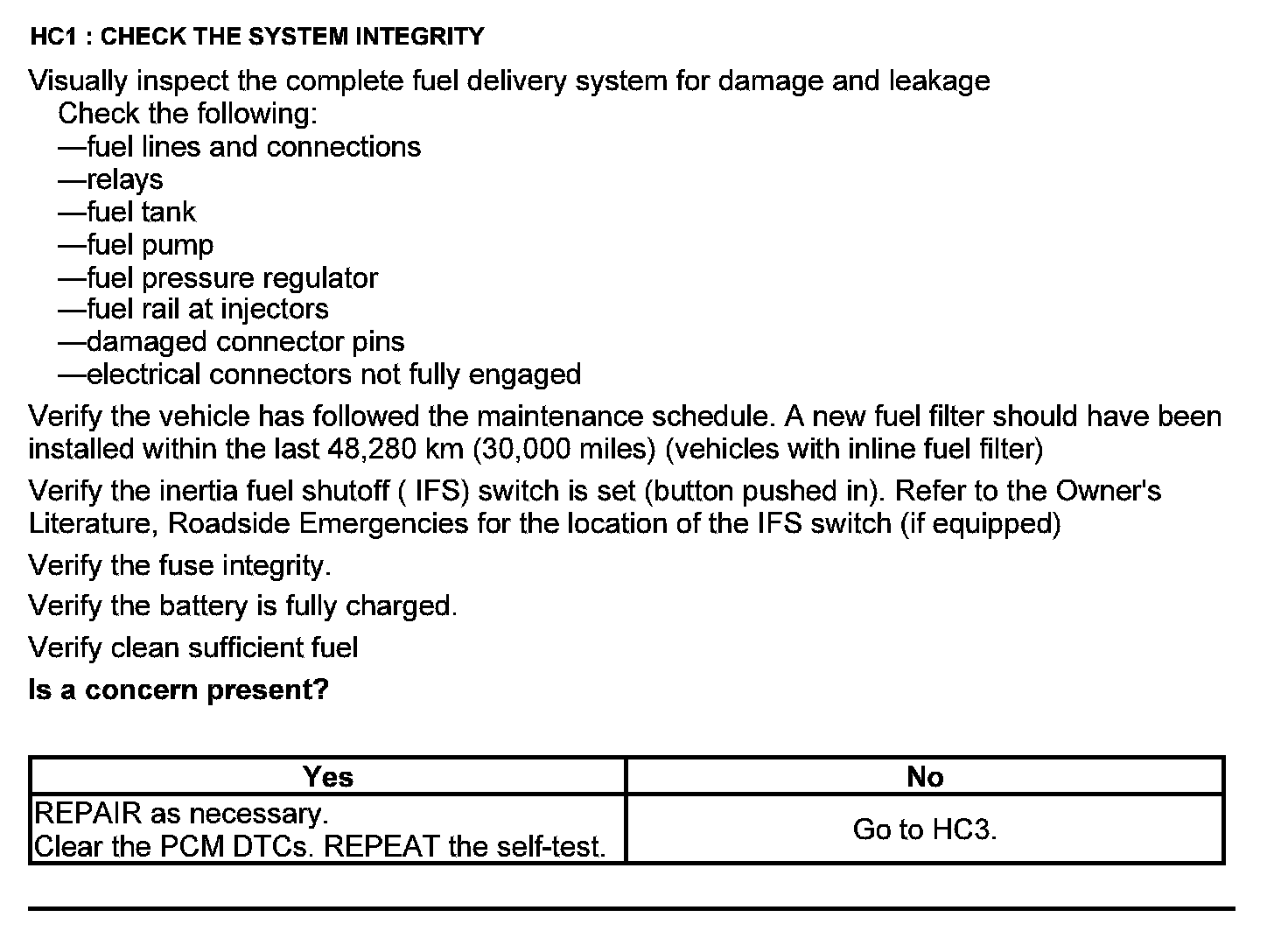

Fuel Delivery System - Vehicles that start.

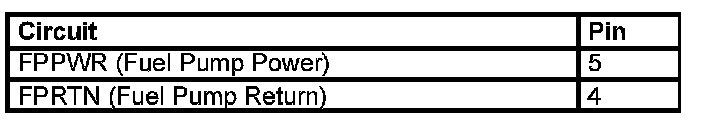

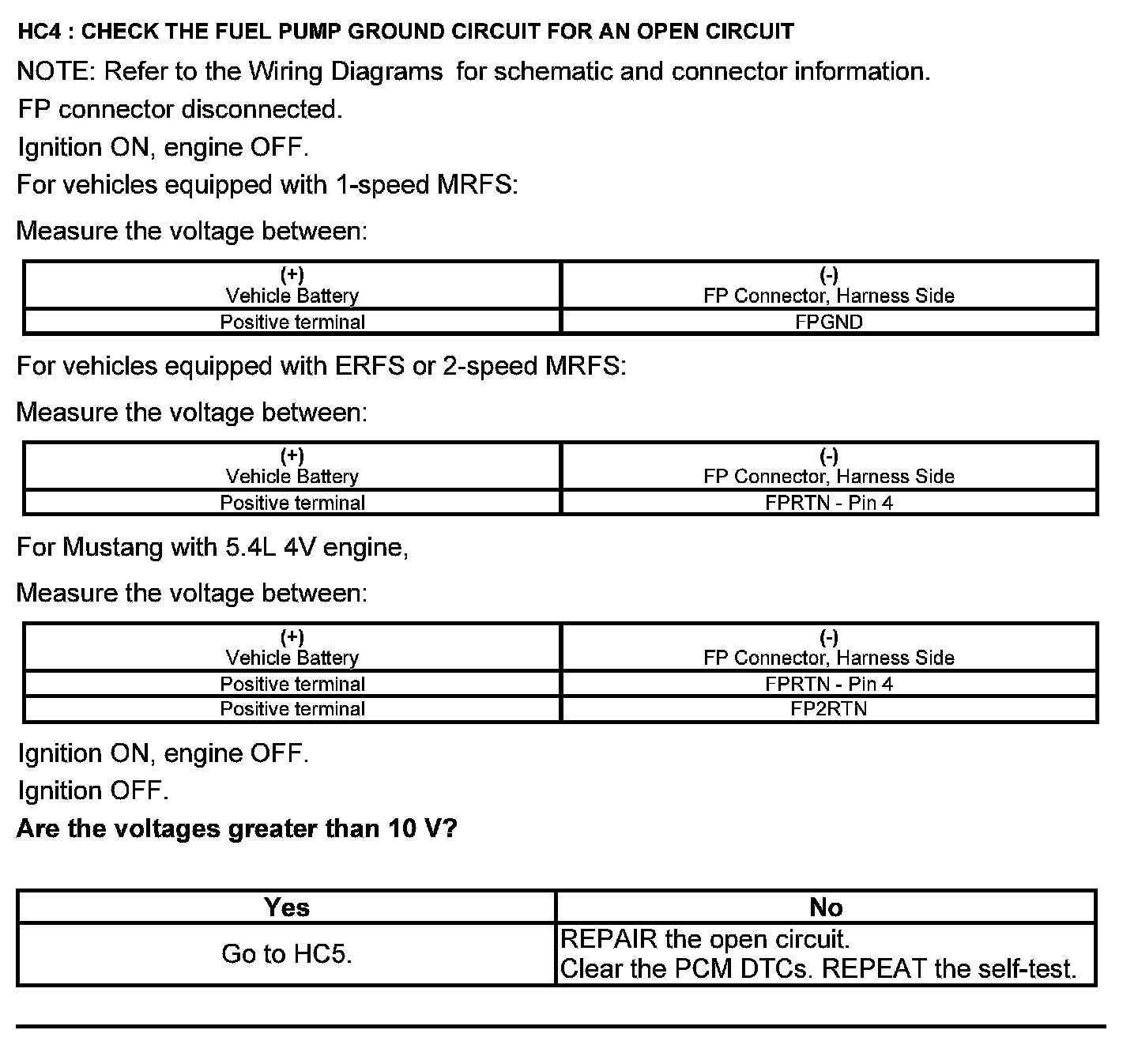

Fuel Pump (FP) Connector





Harness Side
