Vehicles That Don't Start

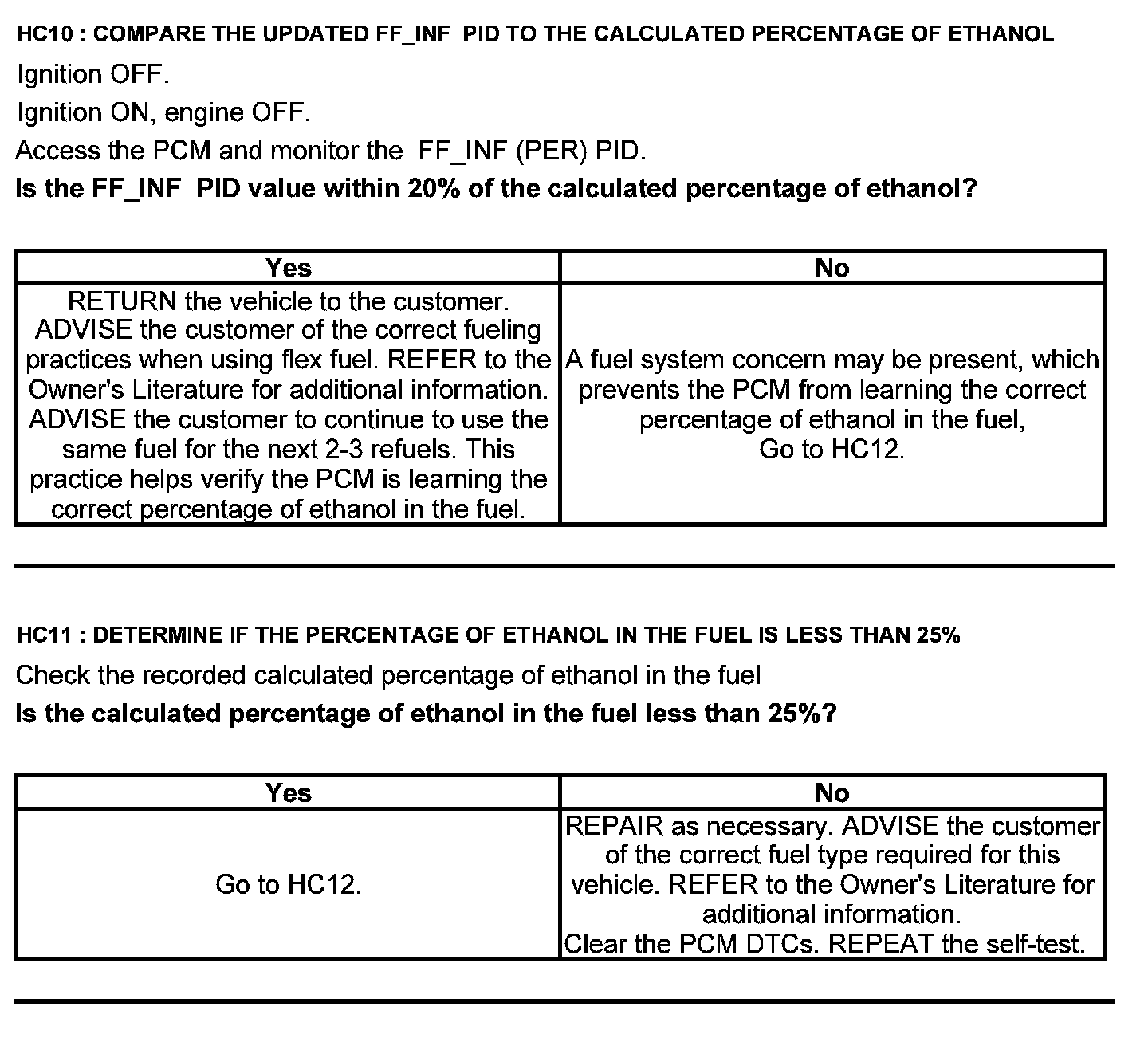

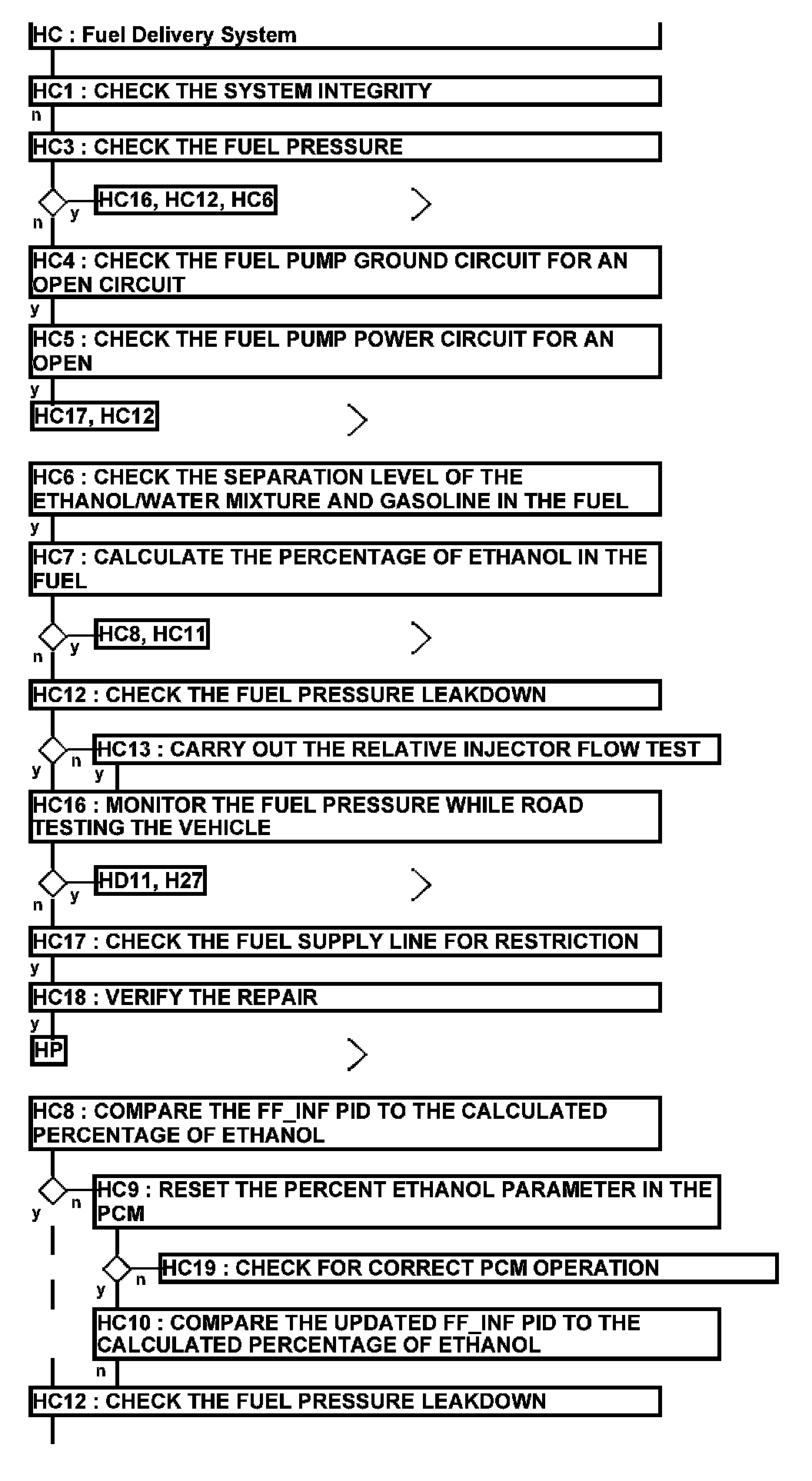

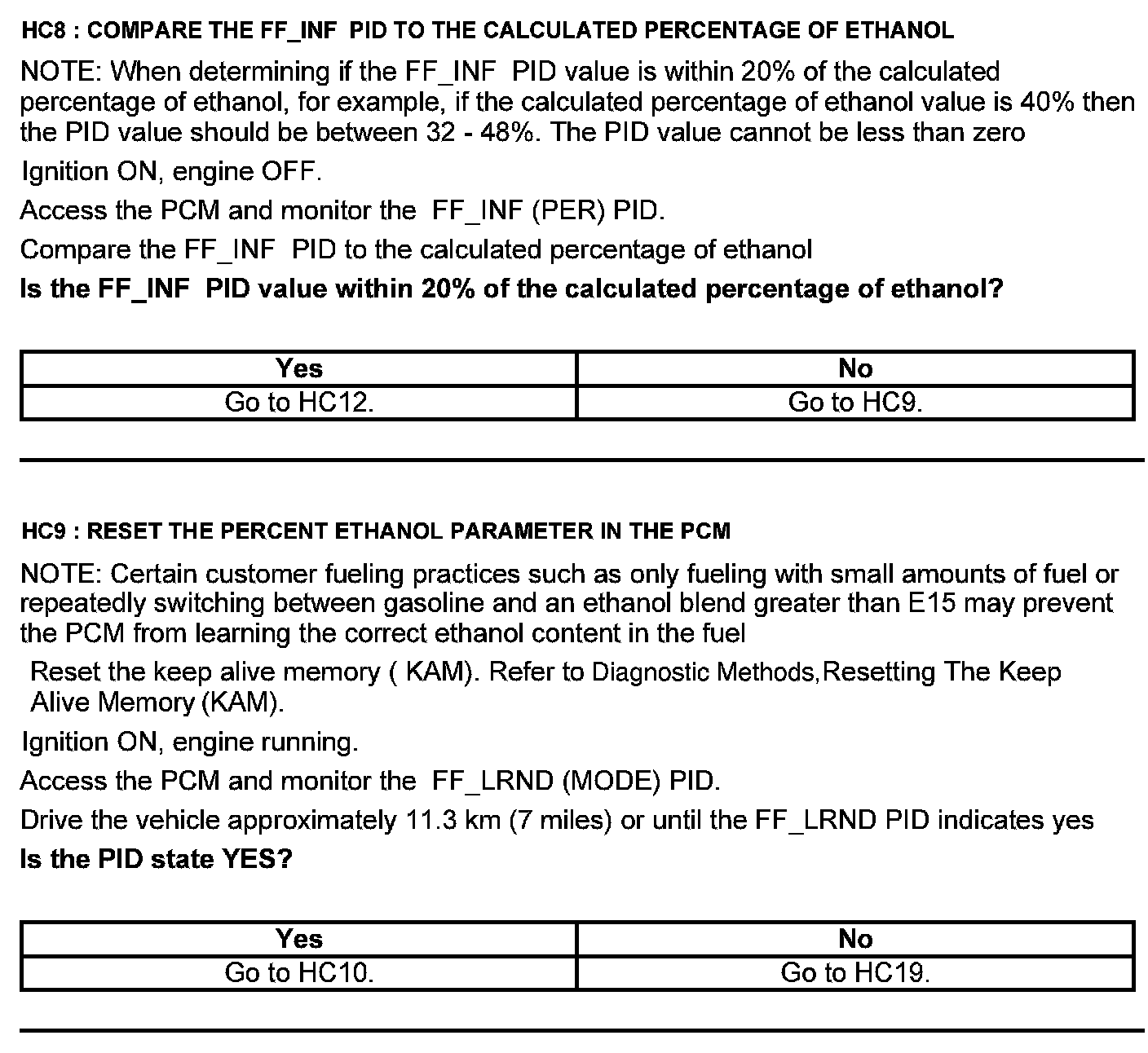

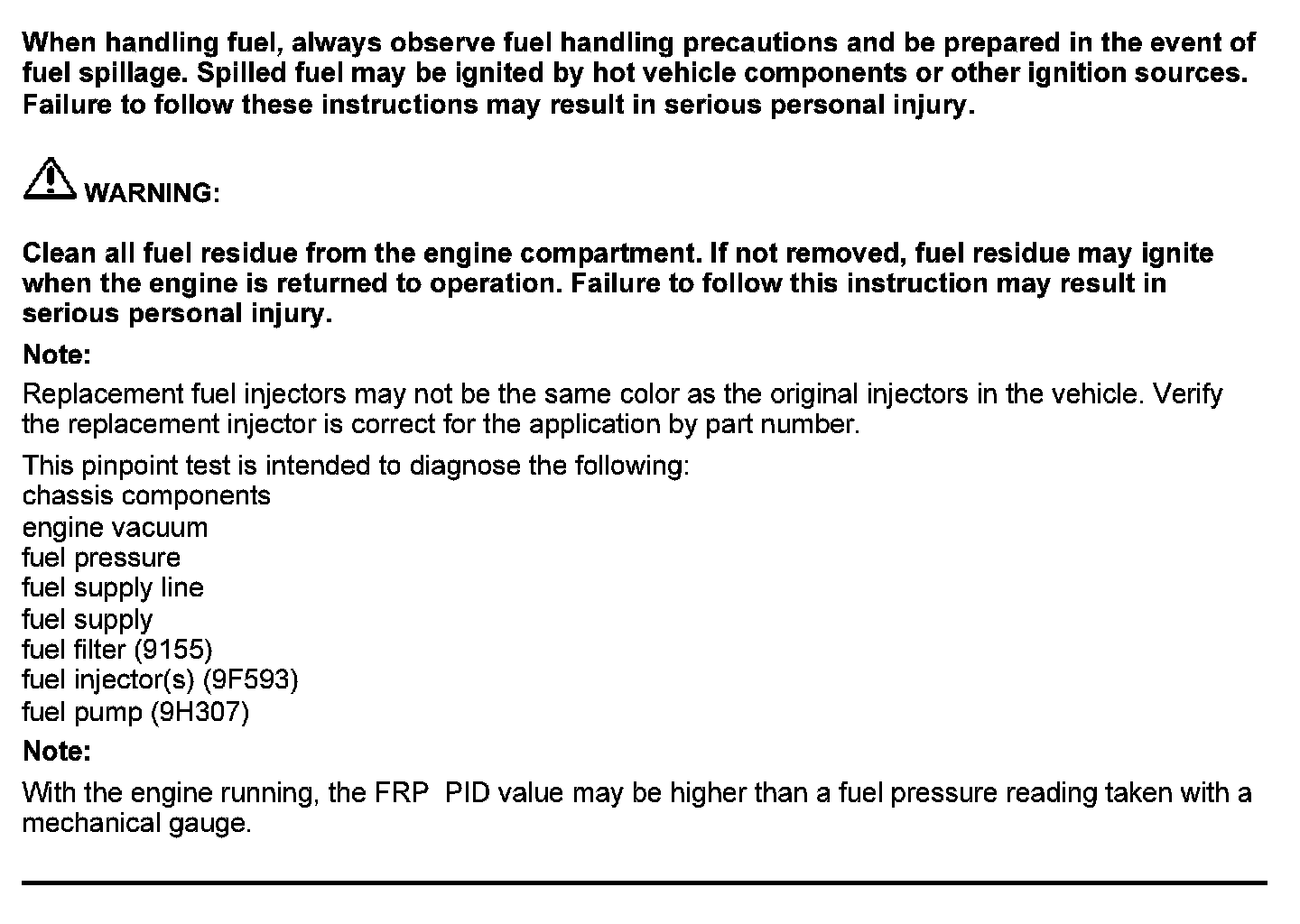

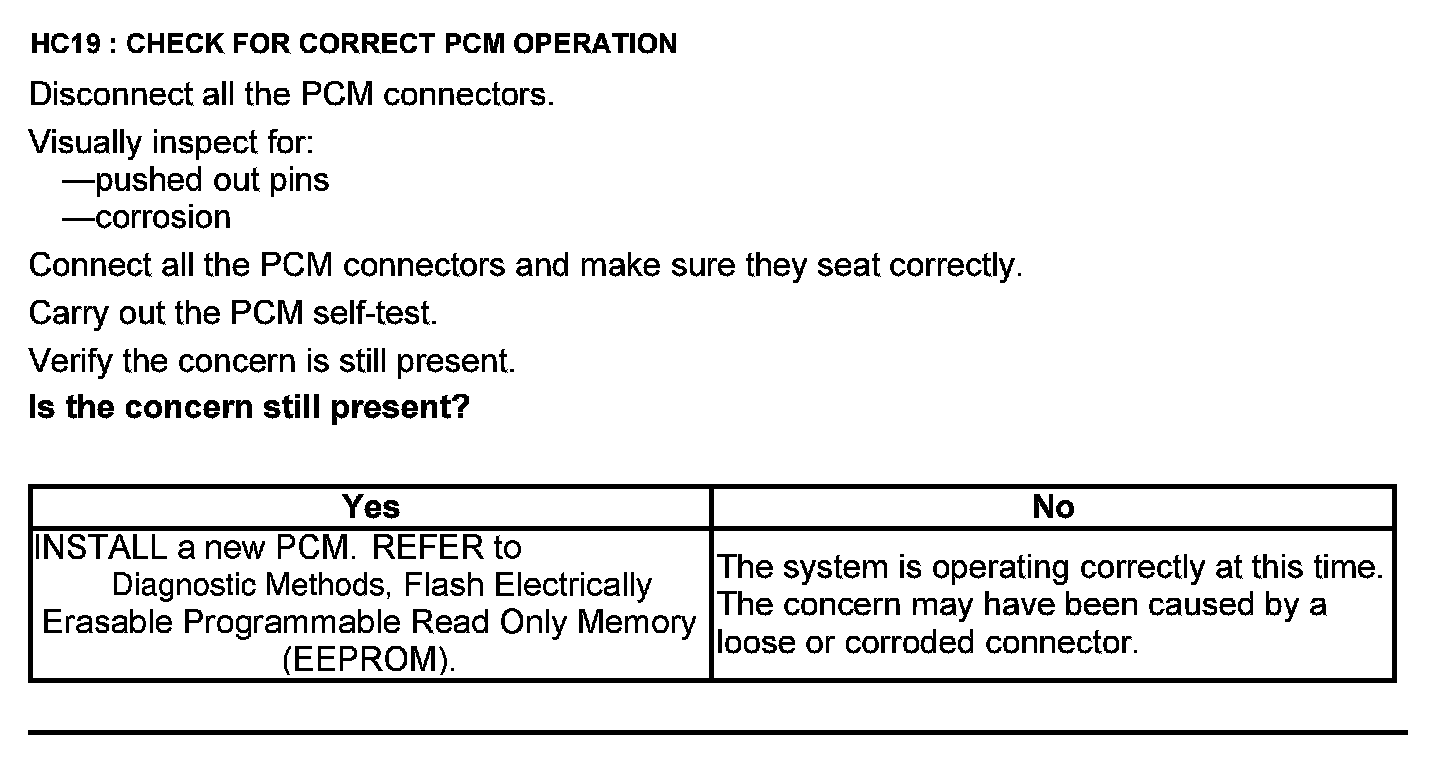

Fuel Delivery System - Vehicles that don't start.

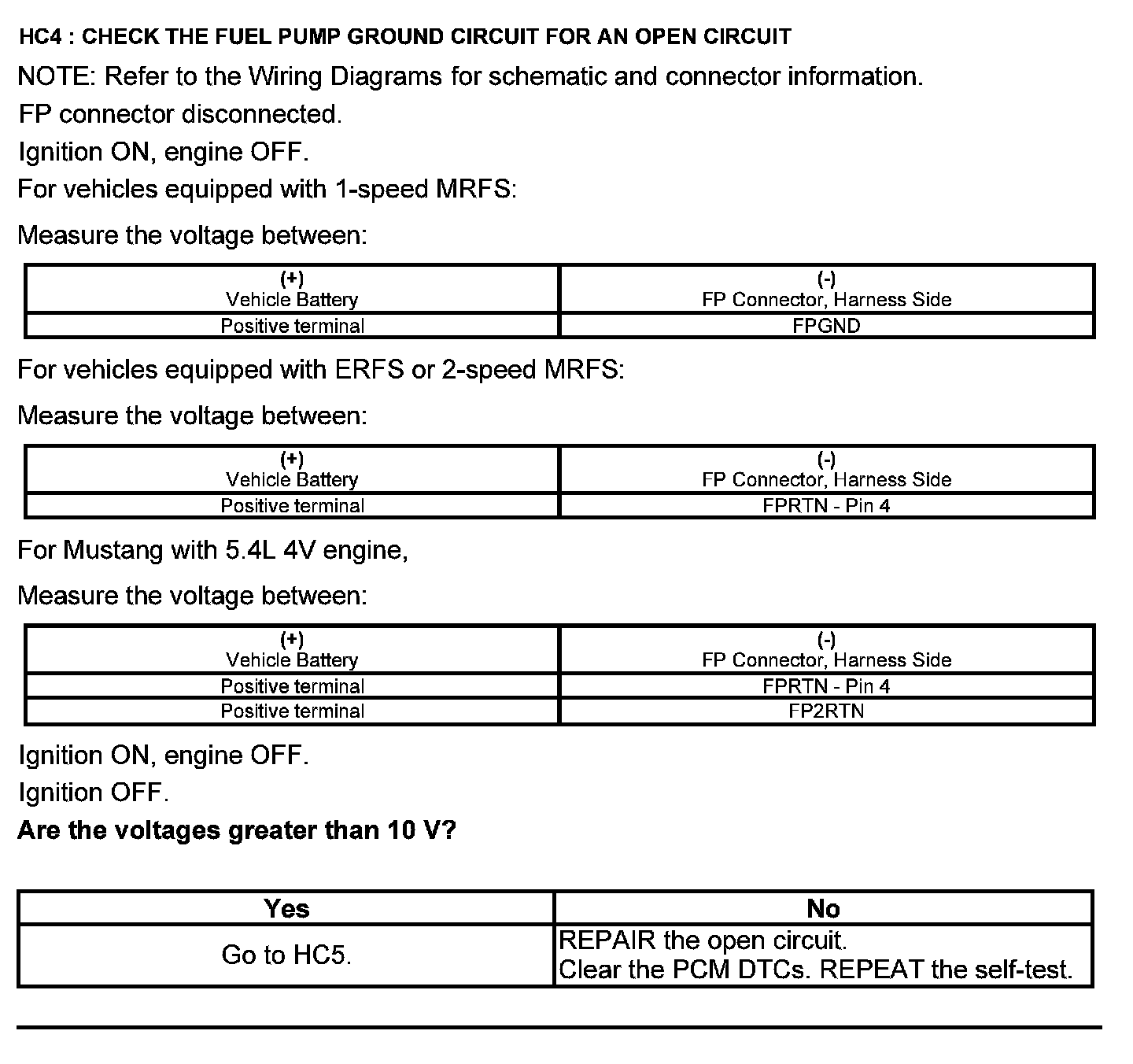

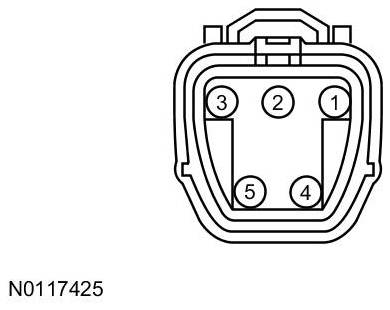

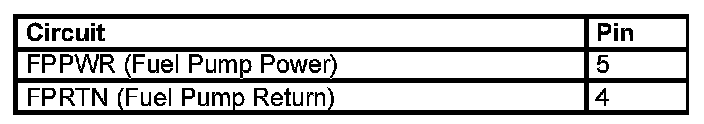

Fuel Pump (FP) Connector





Harness Side
