Home >> Ford >> 2012 >> Taurus AWD V6-3.5L Turbo >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> Test A: No Start

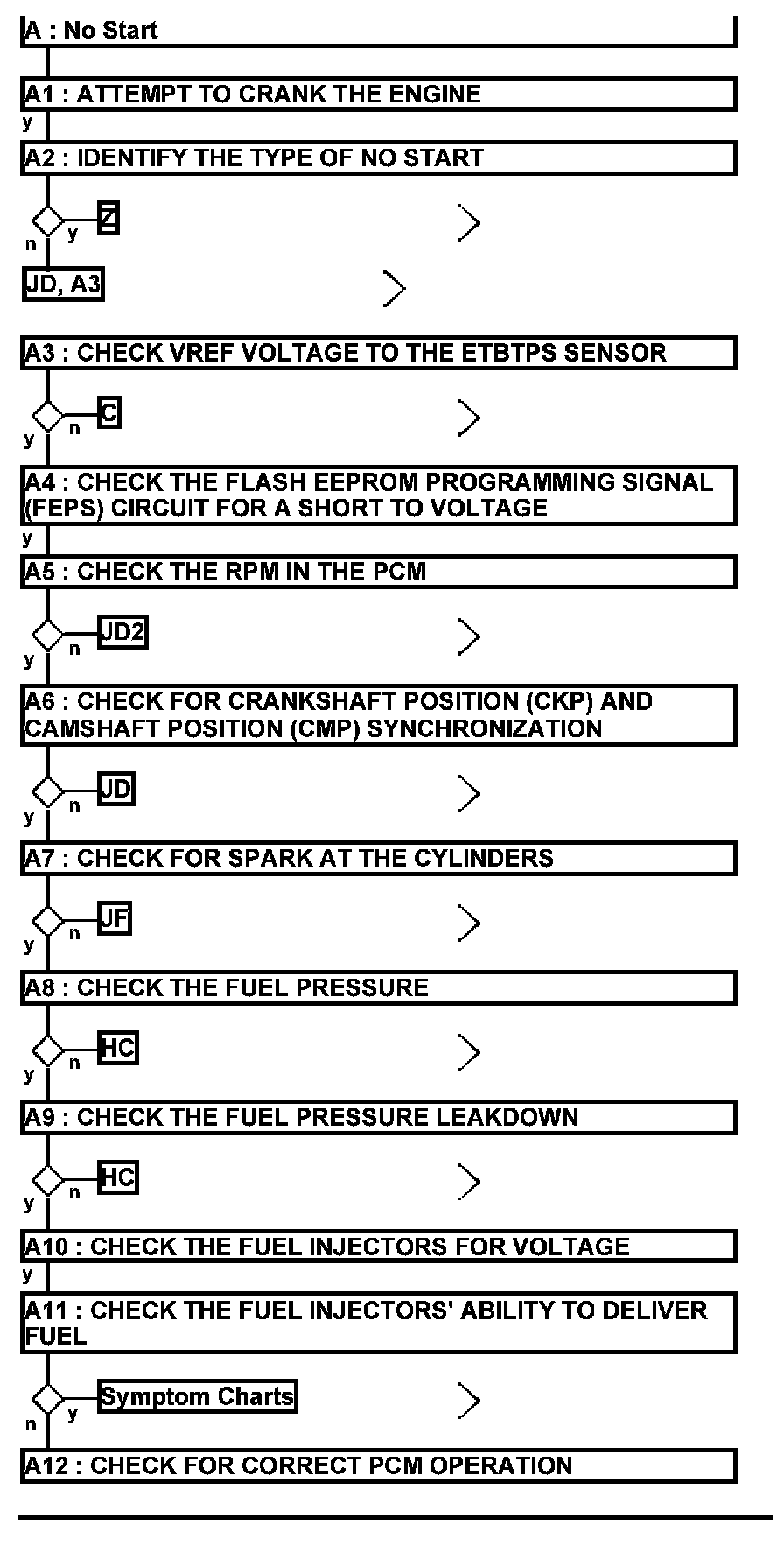

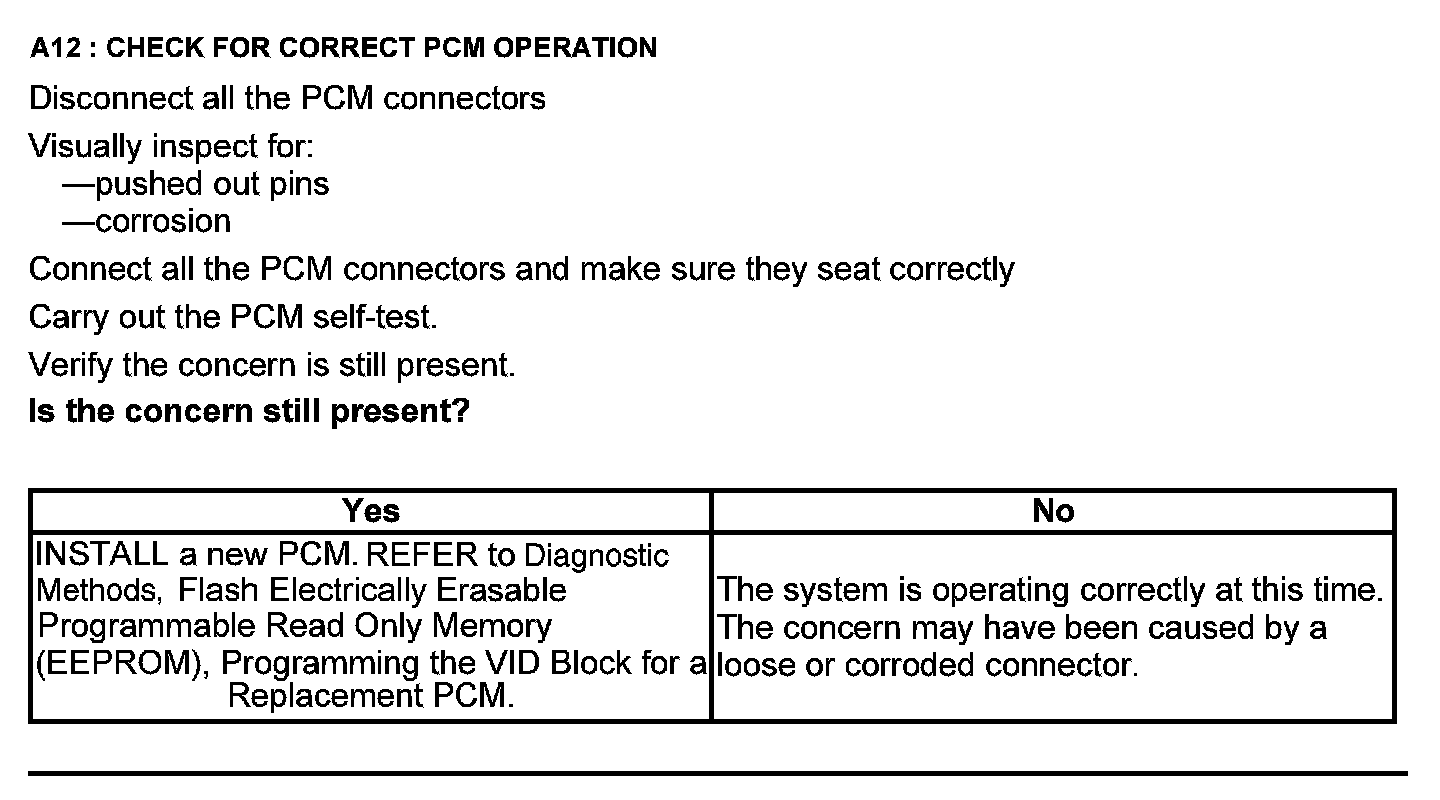

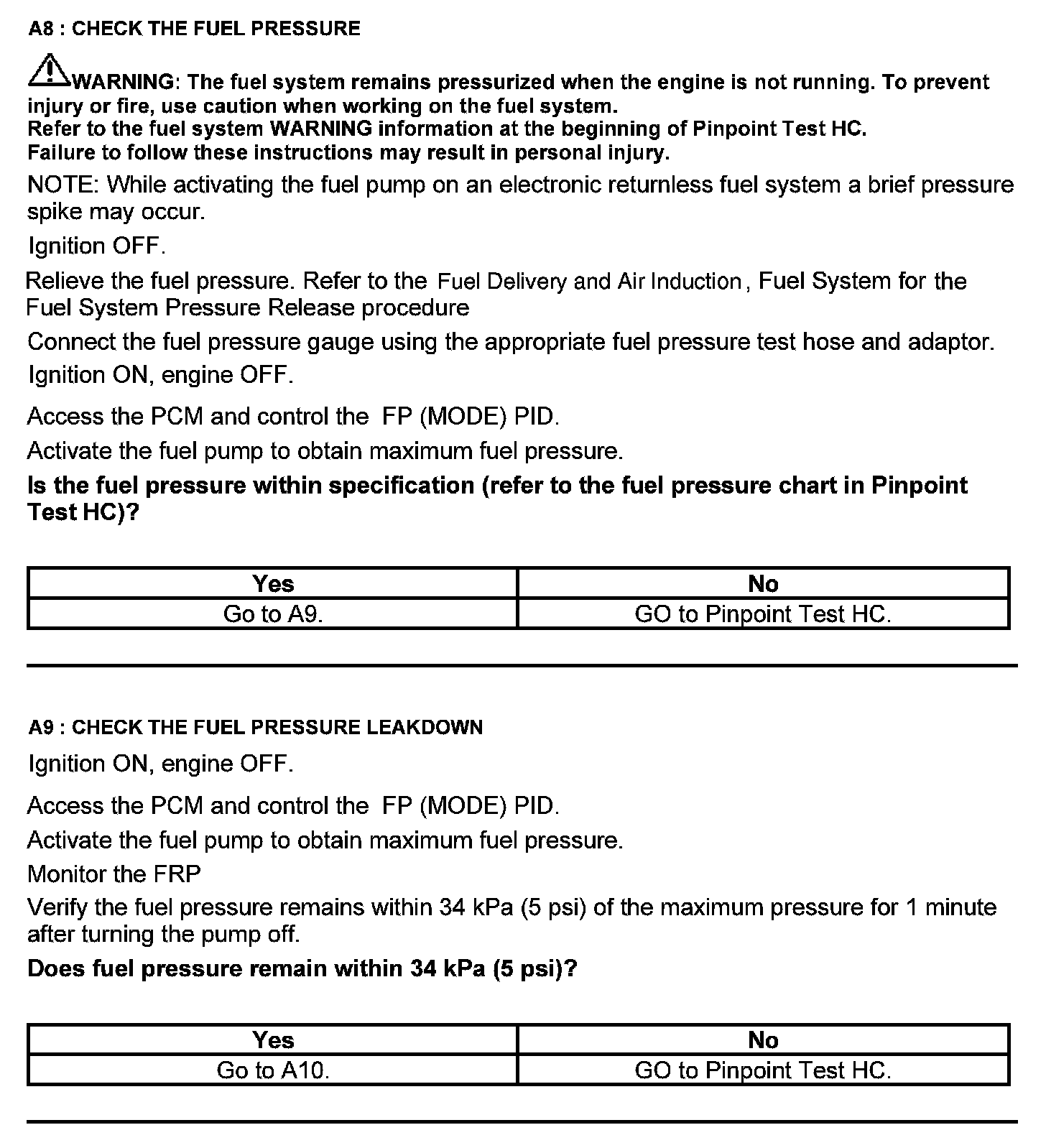

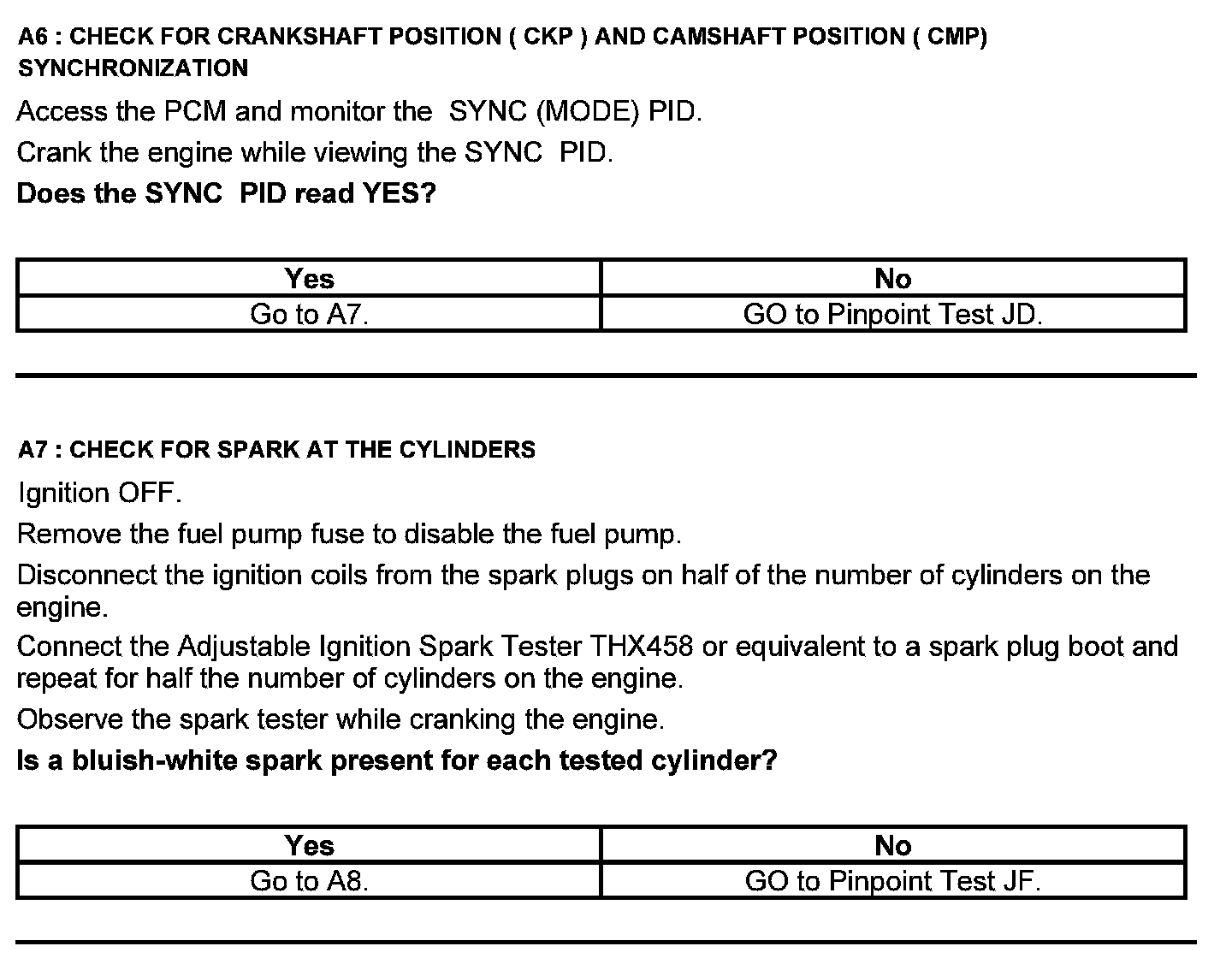

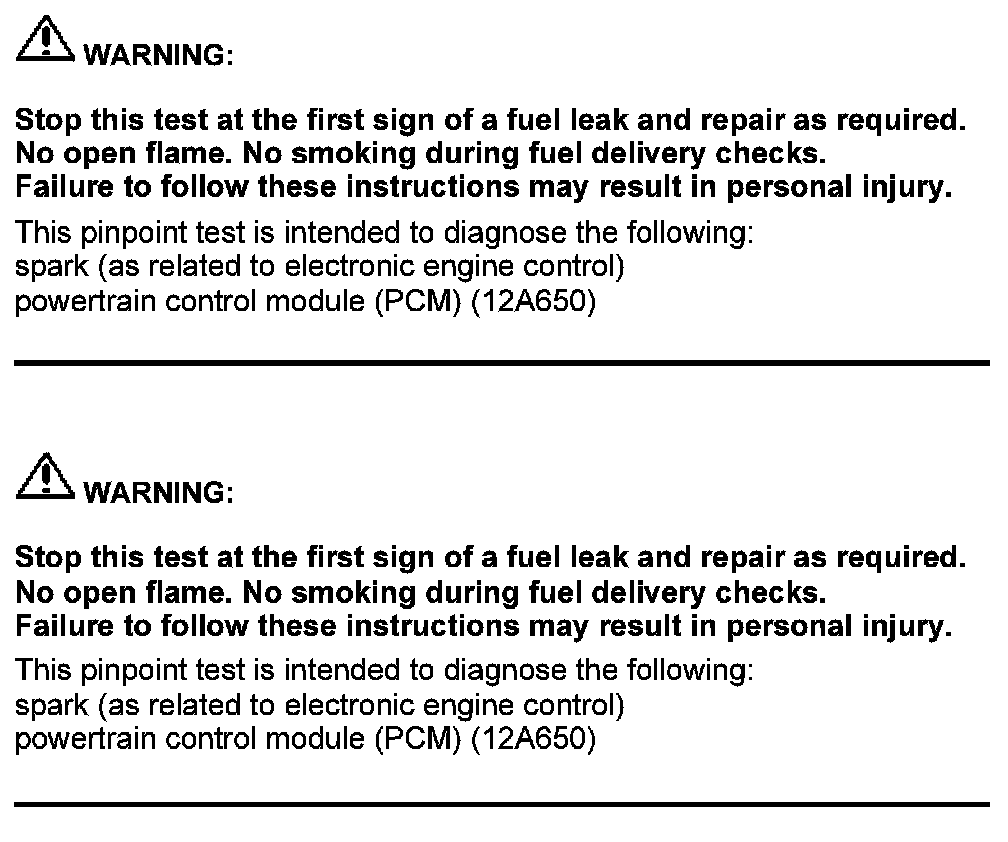

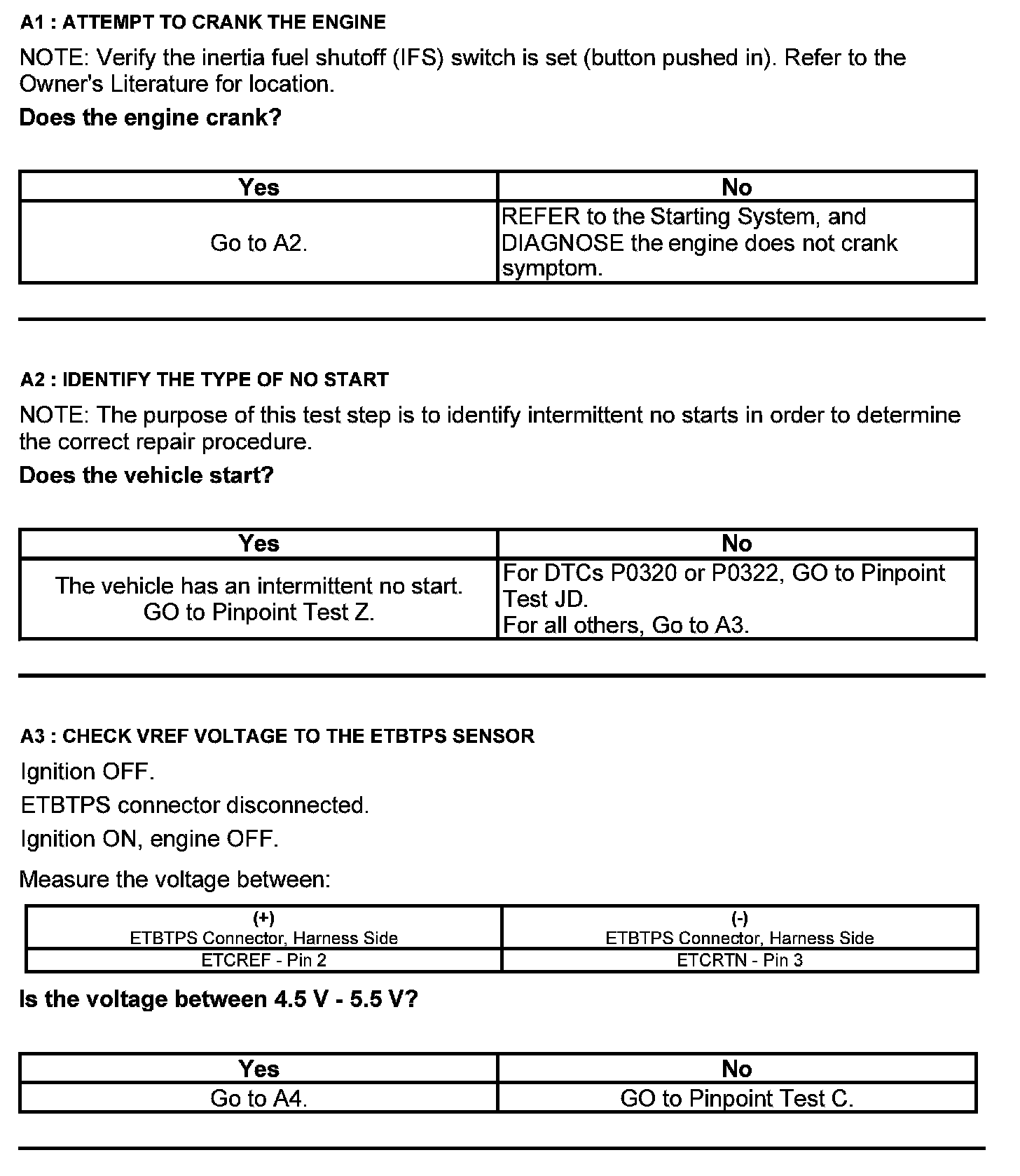

Test A: No Start



No Start

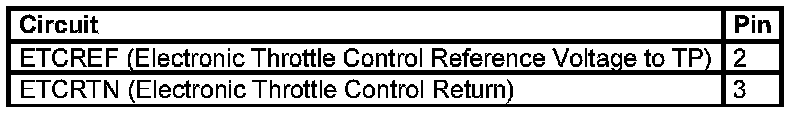

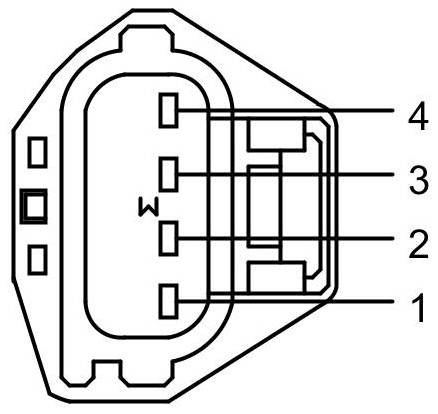

Electronic Throttle Body Throttle Position Sensor (ETBTPS) Connector





Harness Side

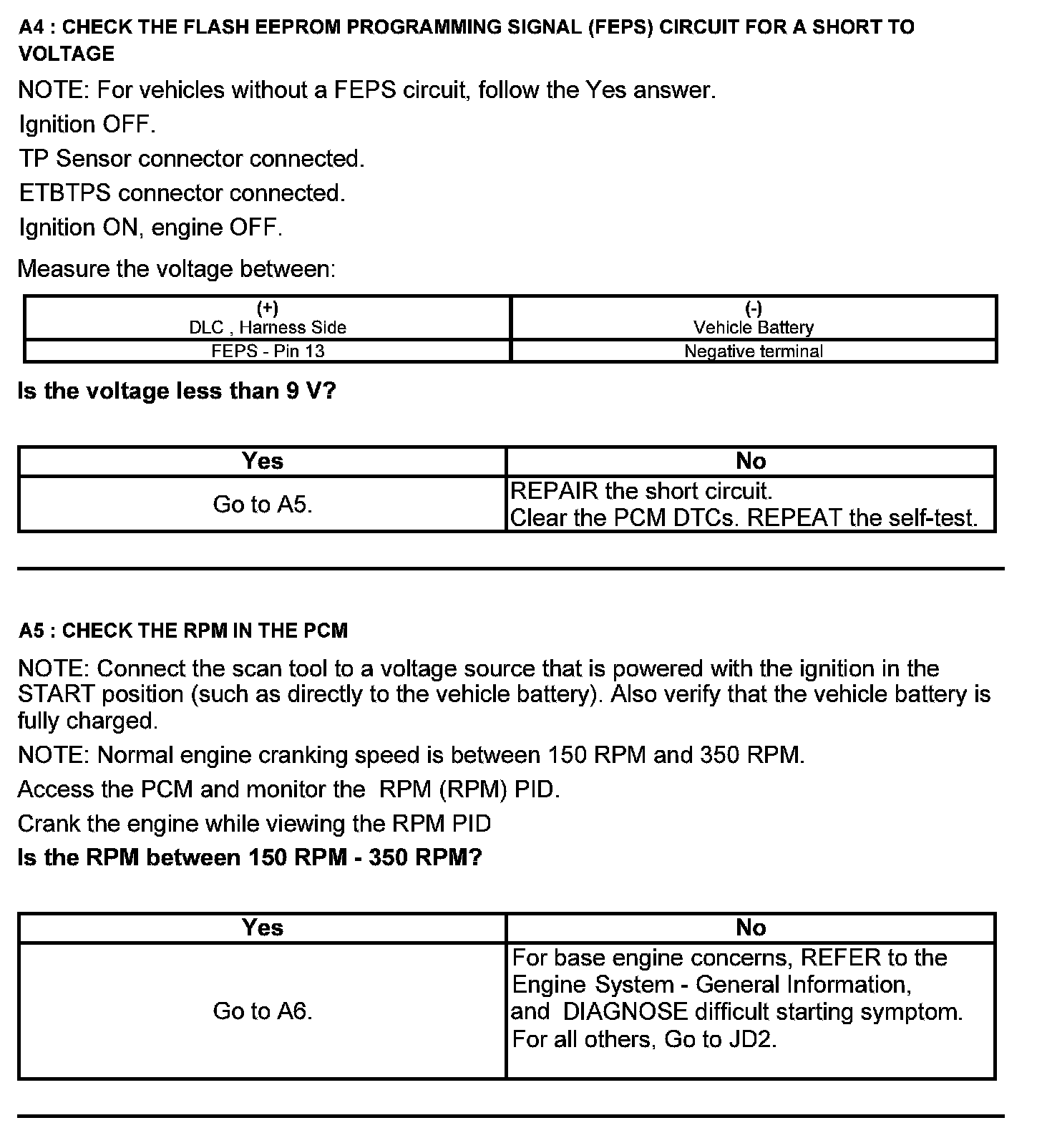

Data Link Connector (DLC)





Harness Side
