Side Lamp/Front Turn Signal Lamp Bulb

Side Lamp/Front Turn Signal Lamp Bulb

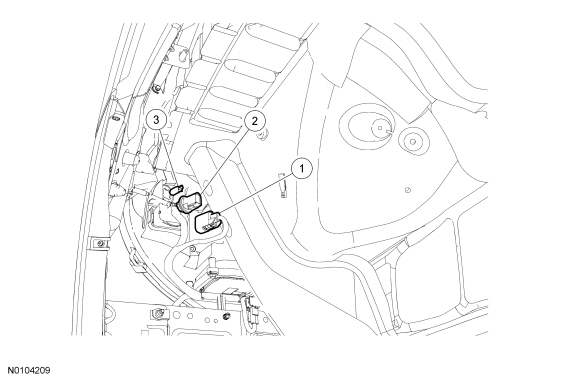

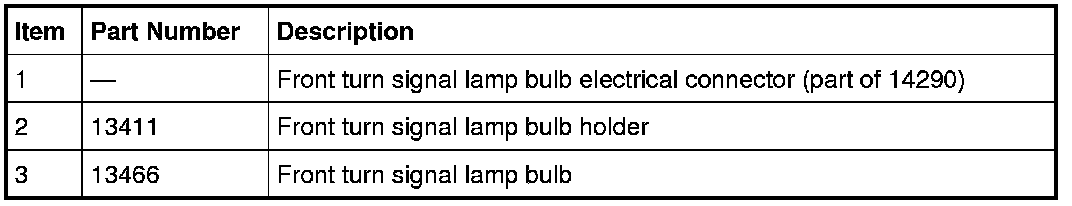

Front Turn Signal Lamp

NOTE: The headlamp is shown removed for clarity.

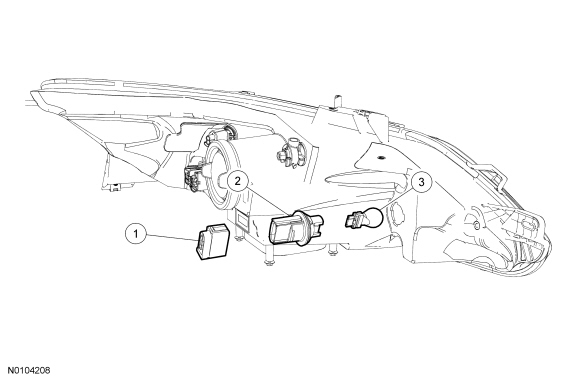

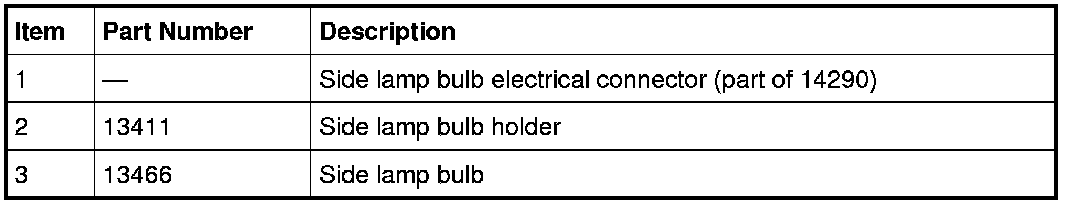

Front Side Marker Lamp









Removal and Installation

Front park/turn lamp

1. For the LH front park/turn lamp, squeeze the tabs and remove the hood switch.
- Disconnect the electrical connector.


Side marker lamp

2. Remove the 3 screws and position the fender splash shield aside.





Any lamp

3. Rotate the bulb holder approximately one-eighth turn counterclockwise and remove it from the headlamp assembly.
- Disconnect the electrical connector.

- If necessary, remove the bulb from the holder.


4. To install, reverse the removal procedure.
