Reversing Lamp

Reversing Lamp

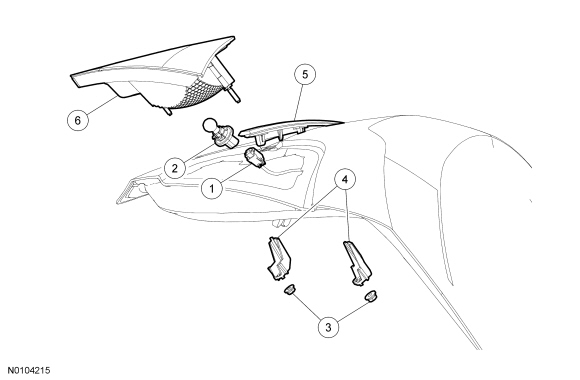

Removal and Installation

1. Remove the 2 push-pins and position the luggage compartment lid trim panel aside.

2. NOTE: Make sure to take note where each reversing lamp bracket mounts to on the reversing lamp. They are not interchangeable.
Remove the 2 nuts and the reversing lamp brackets.


3. Separate the luggage compartment trim panel moulding and remove the reversing lamp.

4. NOTE: Make sure the outboard lip of the reversing lamp is correctly installed over the luggage compartment lid. This provides the necessary holding force for the reversing lamp brackets to retain the reversing lamp to the luggage compartment lid.
To install, reverse the removal procedure.
