Air Conditioning (A/C) Evaporator Discharge Air Temperature Sensor

Air Conditioning (A/C) Evaporator Discharge Air Temperature Sensor









Removal and Installation

NOTE: The A/C evaporator discharge air temperature sensor can be accessed from below the LH side of the instrument panel to the right of the accelerator pedal.

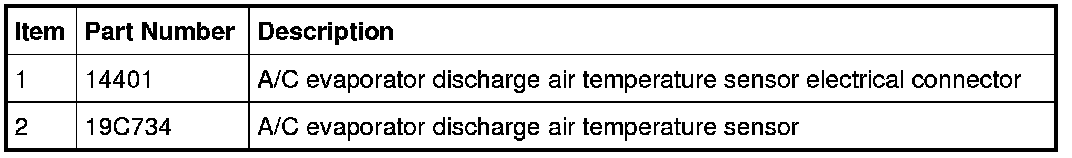

1. Disconnect the A/C evaporator discharge air temperature sensor electrical connector.

2. Gently pry the A/C evaporator discharge air temperature sensor away from the housing to disengage the clips and remove the A/C evaporator discharge air temperature sensor.

3. To install, reverse the removal procedure.
