Crankshaft Rear Seal

Crankshaft Rear Seal









Removal

1. Remove the flexplate. For additional information, refer to Flexplate Flexplate.

2. Remove the crankshaft sensor ring.

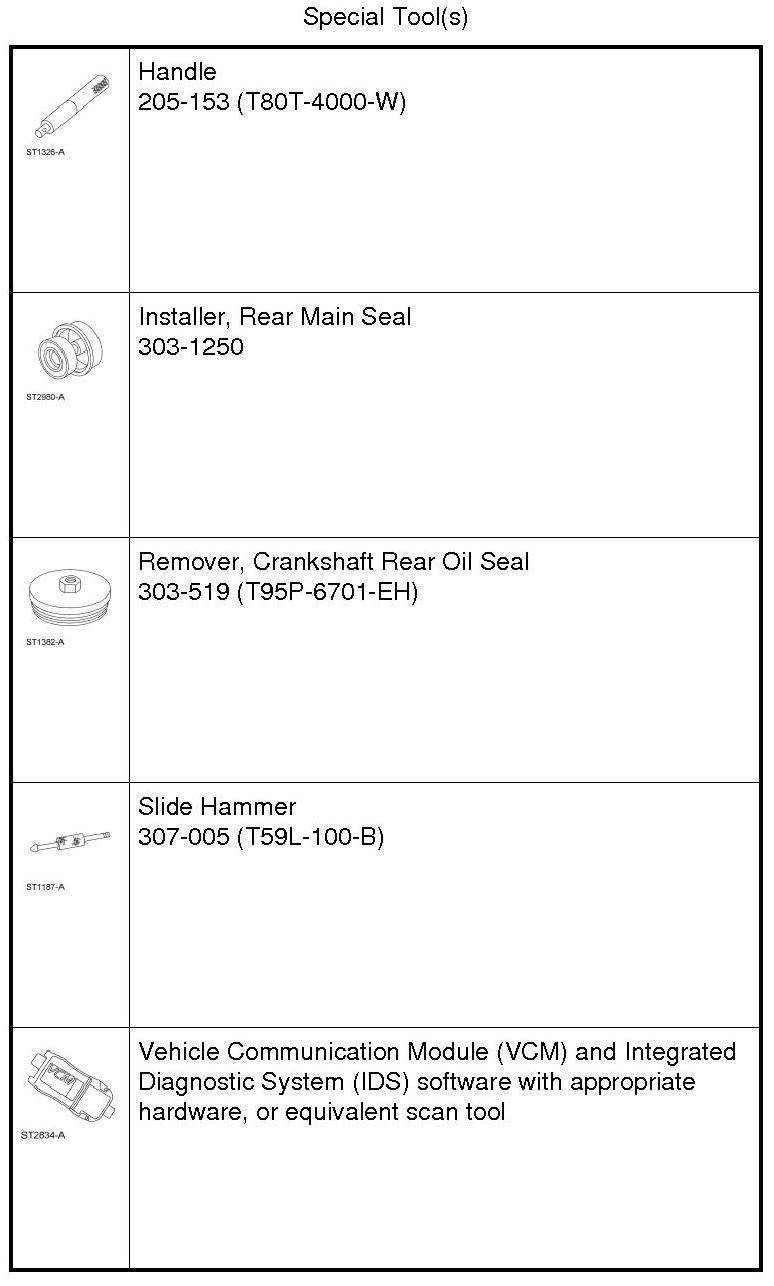

3. Using the Crankshaft Rear Oil Seal Remover and Slide Hammer, remove and discard the crankshaft rear seal.

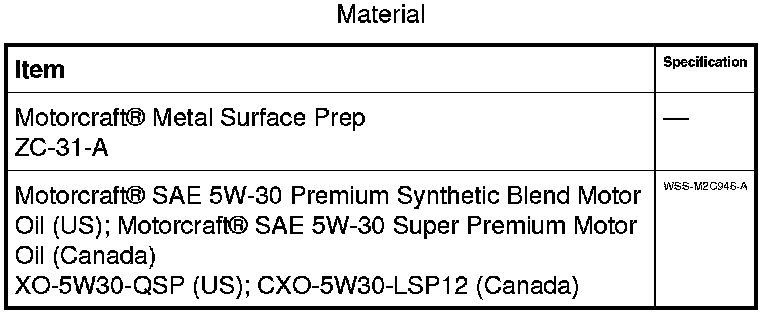

- Clean all sealing surfaces with metal surface prep.






Installation

1. NOTE: Lubricate the seal lips and bore with clean engine oil prior to installation.
Position the Rear Main Seal Installer onto the end of the crankshaft and slide a new crankshaft rear seal onto the tool.






2. Using the Rear Main Seal Installer and Handle, install the new crankshaft rear seal.





3. Install the crankshaft sensor ring.

4. Install the flexplate. For additional information, refer to Flexplate Flexplate.

5. Using the scan tool, perform the Misfire Monitor Neutral Profile Correction procedure, following the on-screen instructions.
