Thermostat Housing: Service and Repair

Thermostat Housing





3.5L Engine










3.5L Gasoline Turbocharged Direct Injection (GTDI) Engine









Removal and Installation

All engines

1. Drain the cooling system. For additional information, refer to Cooling System Draining, Filling and Bleeding Service and Repair.

2. Remove the Air Cleaner (ACL) outlet pipe.

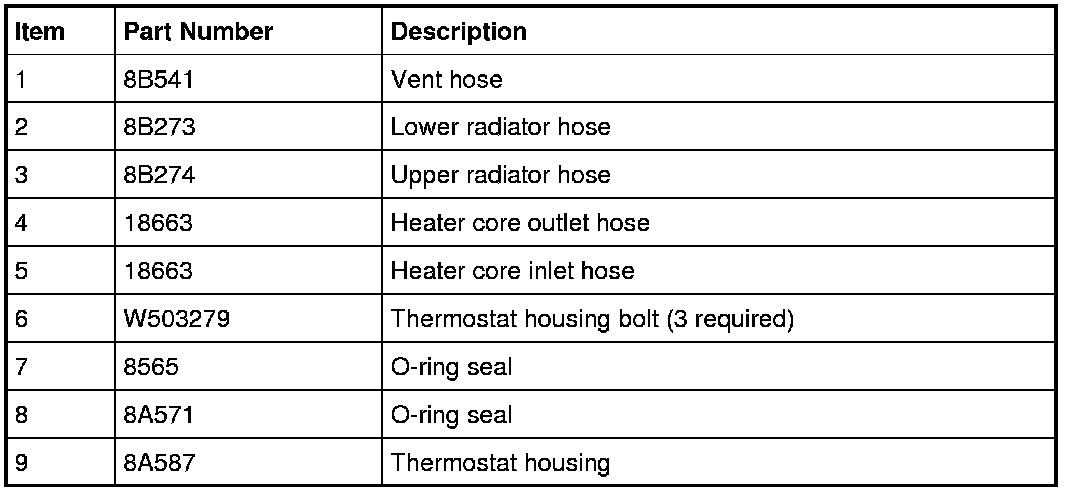

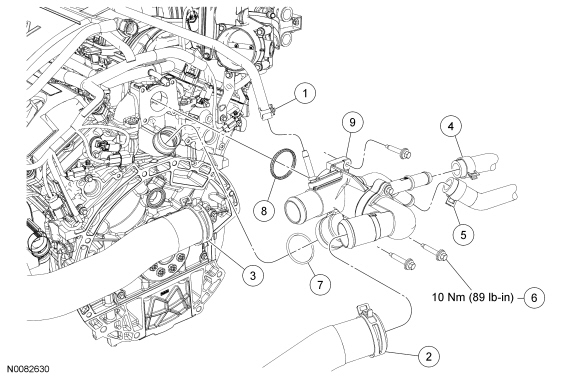

3.5L engine

3. Disconnect the 5 coolant hoses from the thermostat housing and position them aside.

4. Remove the 3 thermostat housing bolts.
- To install, tighten to 10 Nm (89 lb-in).


5. NOTE: Do not pull the other end of the coolant tube out of the engine block when separating the thermostat housing.
Separate the thermostat housing from the coolant tube and remove the thermostat housing.

- Remove and discard the O-ring seals.

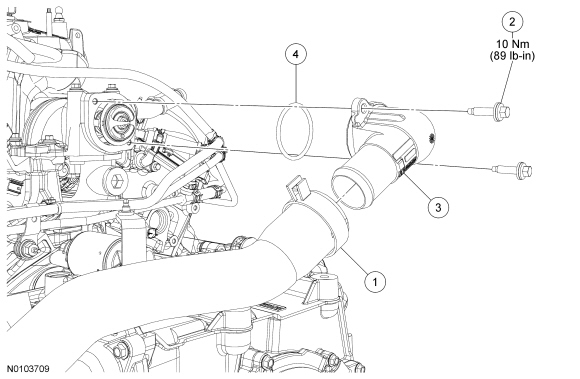

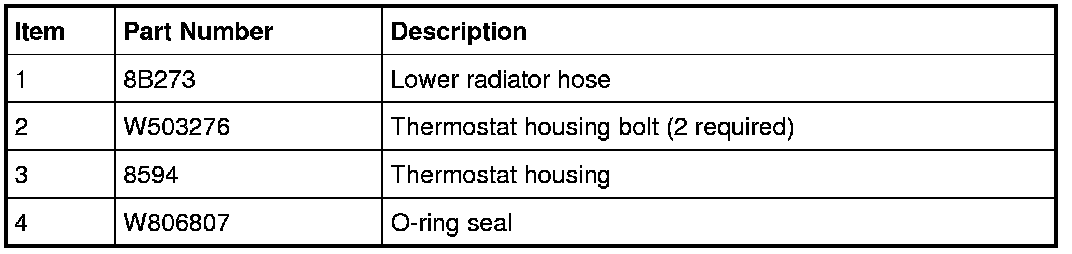

3.5L Gasoline Turbocharged Direct Injection (GTDI) engine

6. Disconnect the lower radiator hose from the thermostat housing.

7. Remove the 2 bolts and the thermostat housing.
- Clean the bolts and apply Thread Sealant with PTFE before installing the bolts.

- To install, tighten to 10 Nm (89 lb-in).


8. Remove the O-ring seal.
- Clean and inspect the O-ring seal. Install a new seal if necessary.


All engines

9. To install, reverse the removal procedure.

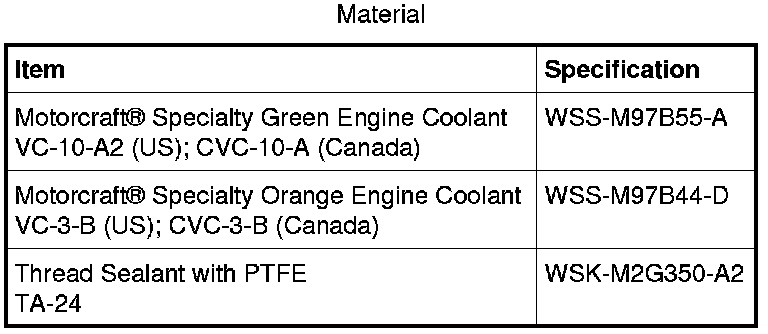

- NOTICE: Use Motorcraft(R) Specialty Green Engine Coolant or Motorcraft(R) Specialty Orange Engine Coolant. Use the same type of coolant that was originally used to fill the cooling system. Do not mix coolant types. Mixing coolant types degrades the coolant corrosion protection and may damage the engine or cooling system.

NOTICE: Motorcraft(R) Specialty Green Engine Coolant is very sensitive to light. Do NOT allow this product to be exposed to ANY LIGHT for more than a day or two. Extended light exposure causes this product to degrade.

Lubricate the new O-ring seal with clean engine coolant.

10. Fill and bleed the cooling system. For additional information, refer to Cooling System Draining, Filling and Bleeding Service and Repair.
