Symptom Related Diagnostic Procedures
Symptom Charts

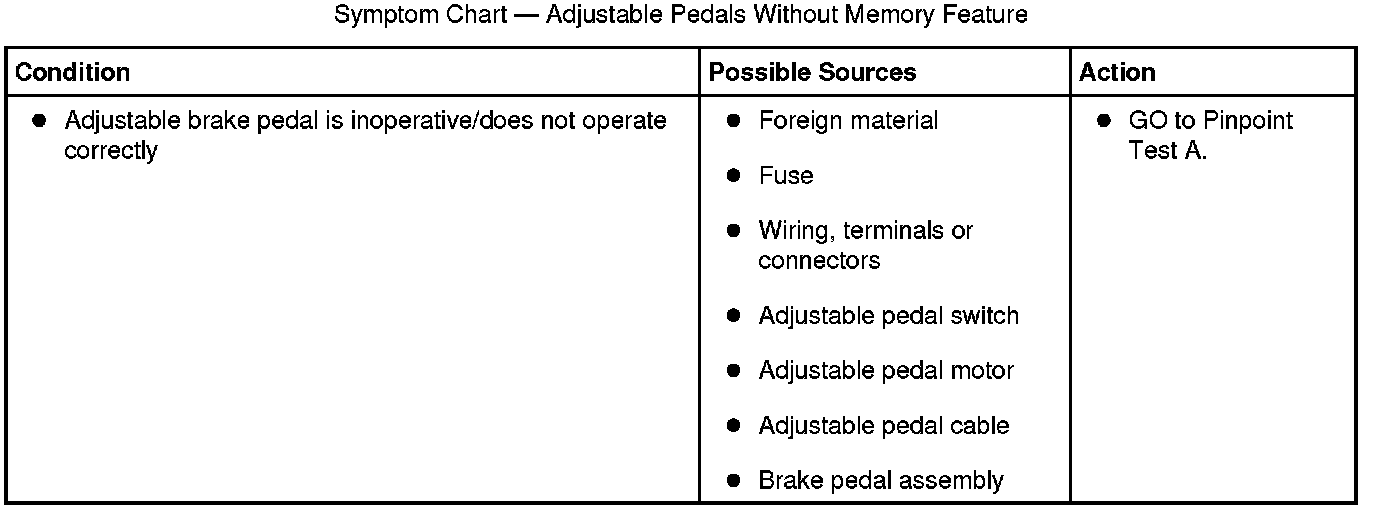

Symptom Chart - Adjustable Pedals Without Memory Feature

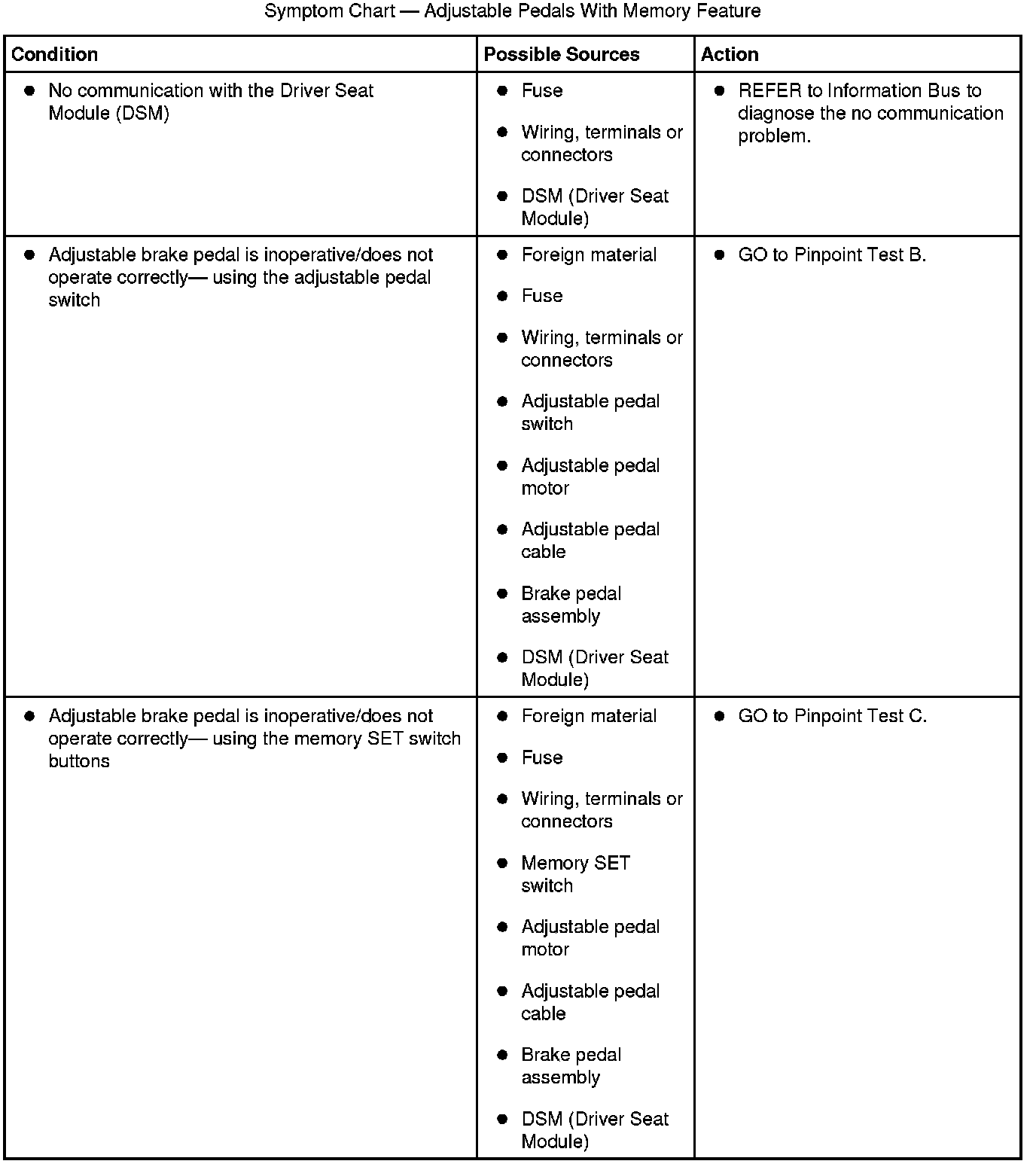

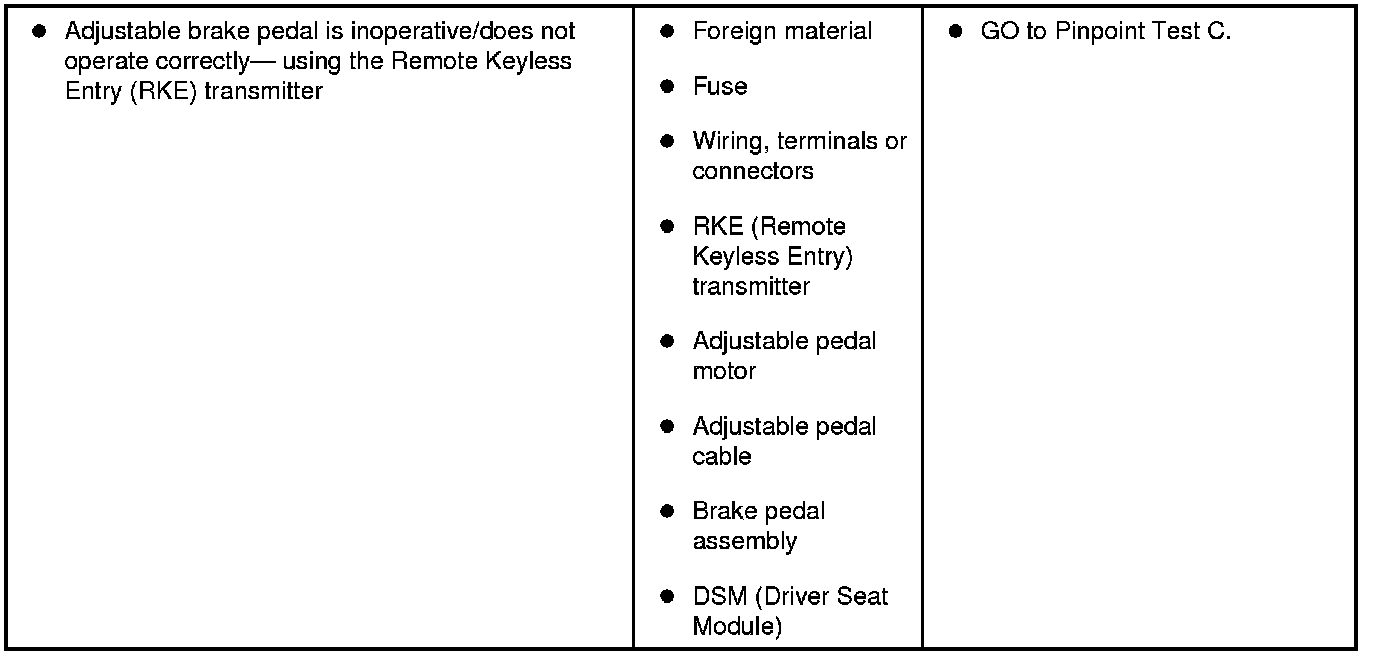

Symptom Chart - Adjustable Pedals With Memory Feature
