Rear Disc Brake

Brake Caliper





Removal and Installation

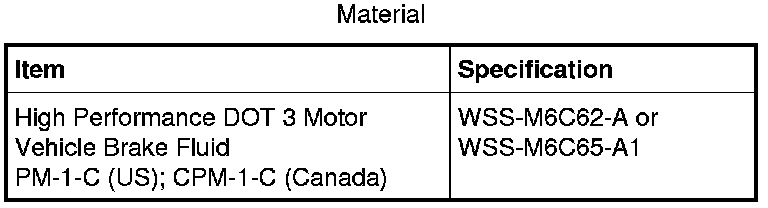

WARNING: Do not use any fluid other than clean brake fluid meeting manufacturer's specification. Additionally, do not use brake fluid that has been previously drained. Following these instructions will help prevent system contamination, brake component damage and the risk of serious personal injury.

WARNING: Carefully read cautionary information on product label. For EMERGENCY MEDICAL INFORMATION seek medical advice. In the USA or Canada on Ford/Motorcraft products call: 1-800-959-3673. For additional information, consult the product Material Safety Data Sheet (MSDS) if available. Failure to follow these instructions may result in serious personal injury.

NOTICE: Do not spill brake fluid on painted or plastic surfaces or damage to the surface may occur. If brake fluid is spilled onto a painted or plastic surface, immediately wash the surface with water.

All calipers

1. Release the parking brake cable tension.

2. Disconnect the parking brake cable from the subframe bracket and the caliper.
- Position the parking brake cable aside.


LH calipers with flow bolt brake hose attachment

3. Remove the brake caliper flow bolt and the brake caliper.
- Discard the 2 copper washers.

- To install, tighten the bolt to 30 Nm (22 lb-ft).


Calipers with threaded fitting brake hose attachment

4. Remove the brake flexible hose. For additional information, refer to Brake Flexible Hose .

All calipers

5. WARNING: Always install new brake shoes or pads at both ends of an axle to reduce the possibility of brakes pulling vehicle to one side. Failure to follow this instruction may result in uneven braking and serious personal injury.

NOTICE: When the brake pads are separated from the brake caliper, new brake pads must be installed to prevent brake noise and shudder. The brake pads are one-time-use only.

Remove and discard the brake pads. For additional information, refer to Brake Pads Rear Disc Brake.

6. NOTICE: During installation, make sure that the brake flexible hose does not become twisted or damage to hose may occur.

NOTE: If equipped, verify correct installation of the brake flexible hose protective sleeve and tie strap.
To install, reverse the removal procedure.
- Bleed the caliper. For additional information, refer to Component Bleeding in Brakes and Traction Control.
