Spoiler: Service and Repair

Spoiler - Rear









Removal

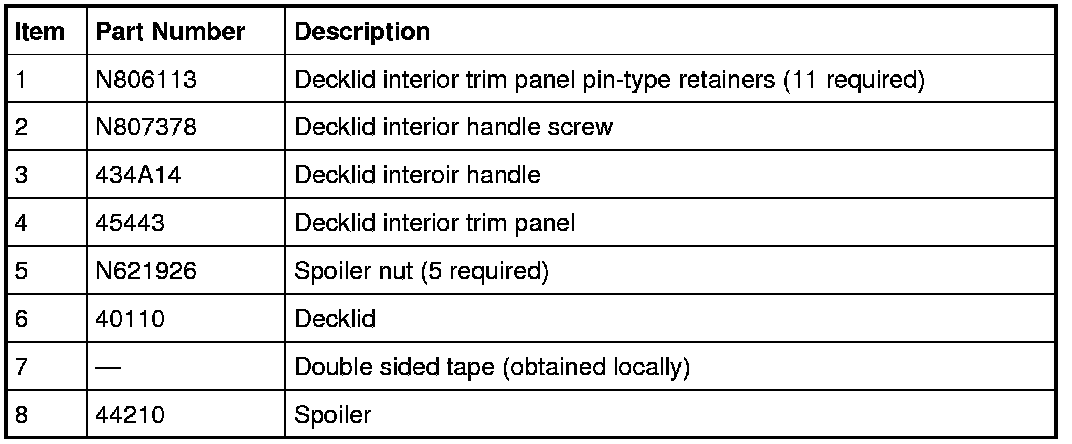

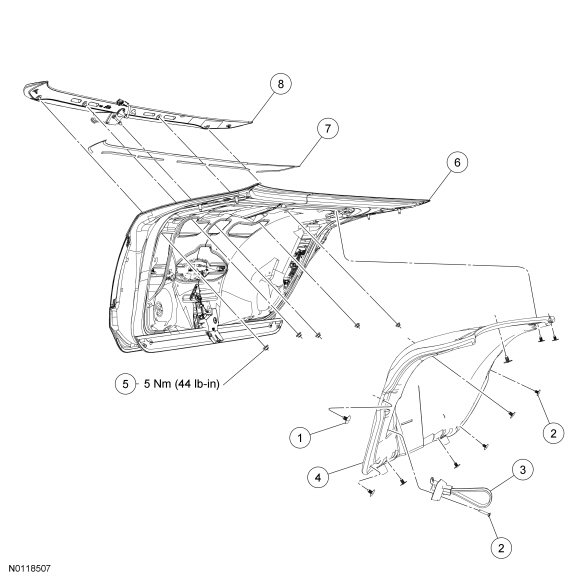

1. Remove the 11 push pins and the decklid interior trim cover..

2. If equipped, disconnect the rear view camera electrical connector and disconnect the 2 pin type wire harness retainers from the rear decklid.

3. Remove the 5 rear spoiler nuts.





4. NOTE: The rear spoiler is held on by double-sided tape.
Using a non-metal fishing line or equivalent, cut the double-sided tape.






Installation

1. Clean the rear spoiler mounting surfaces.

2. Apply double-sided tape to the rear spoiler as shown.









3. Install the rear spoiler.

4. Press the spoiler into place and apply 13.6 kg (30 lbs) of pressure along the entire length of the spoiler for 30 seconds in order to secure the adhesive.

5. Install the 5 rear spoiler nuts.
- Tighten to 5 Nm (44 lb-in).






6. If equipped, connect the rear view camera electrical connector and connect the 2 pin type wire harness retainers to the rear decklid.

7. Install the decklid interior trim cover and install the11 push pin retainers.
