Body and Frame: Service and Repair

Side Impact Reinforcement







WARNING:
Never install used or reconditioned parts (as specified below) from pre-owned, salvaged or damaged vehicles. The use of such parts could lead to serious injury.
Never use non-Ford parts or accessories for completing repairs.
Ford Motor Company does not approve or recognize body and structural repair procedures, tools, parts or anything but new genuine Ford equipment. Ford cannot attest to the safety, quality, durability or legality of non-Ford parts or accessories. Use of such parts could lead to serious personal injury as they may contain damage which is not visible.
Ford does not approve use of the following:

- Salvaged or used parts
- Major body clips or assemblies from salvage vehicles
- Aftermarket structural or body components
- Salvaged or reconditioned wheels
- Used supplemental restraint system (SRS) components
- air bags
- restraint system modules
- safety belts, buckles or retractors
- crash sensors

Returning a vehicle to pre-accident condition can only be assured if repair procedures are carried out by skilled technicians using new genuine Ford parts and Ford-approved methods. Structural component repair procedures approved by Ford, using genuine Ford parts, have been validated by Ford Motor Company engineers.
Ford Motor Company does not endorse, cannot attest to, and makes no representations regarding structural repairs (frames, rails, aprons and body panels) carried out using non-genuine Ford Motor Company parts or non-Ford-approved methods. In particular, Ford makes no representations that the vehicle will meet any crash safety or anti-corrosion performance requirement. Such parts and methods have not been tested by Ford, and may not meet Ford's requirements for safety, performance, strength, quality, durability and corrosion protection. Ford Motor Company bears no responsibility or liability of any kind if repairs are performed using alternative structural component repair procedures and/or parts.

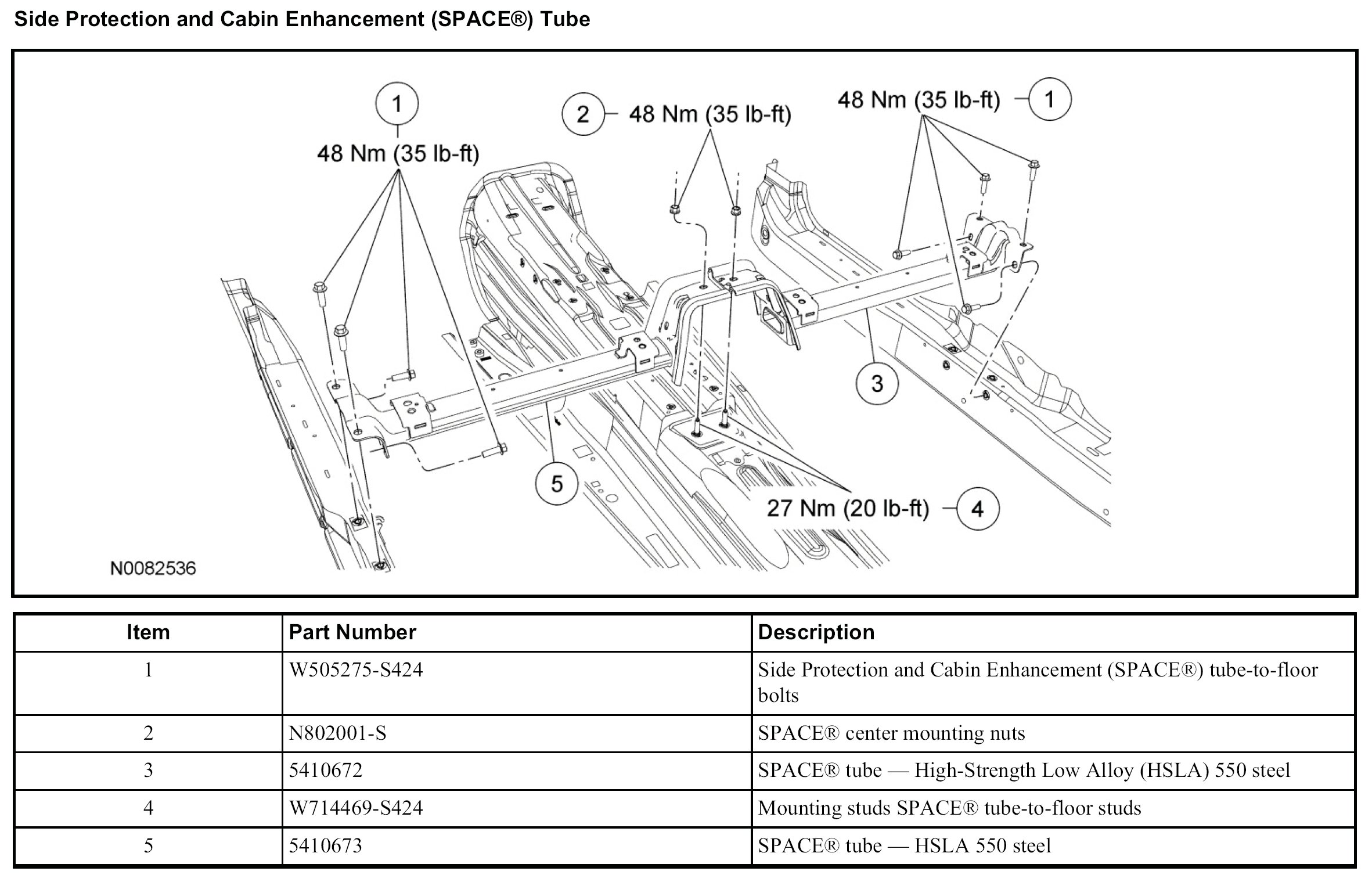

1. NOTE: The Side Protection and Cabin Enhancement (SPACE(R)) tube is serviced as an assembly only.

Remove the front seats.
2. Remove the center console.
3. Remove the lower B-pillar trim panel and scuff plate(s).
4. Remove the rear seat cushion assembly.
- Release the 2 locking tabs at the front of the seat cushion and remove the seat.

5. Remove the rear carpet.
- Remove the 2 pushpins and remove the carpet.

6. Remove and discard the 4 SPACE(R) tube-to-floor bolts from the affected side.
- Remove the center mounting nuts and the console mounting bracket.

Installation

NOTE: Center mounting stud torque needs to be rechecked after removing the nuts. Studs need to maintain torque value of 27 Nm (20 lb-ft).

1. Position the SPACE(R) tube and install new tube-to-floor bolts.
- Install the console mount bracket and center mounting nuts.
- Tighten all fasteners to 48 Nm (35 lb-ft).

2. Install the rear carpet.
3. Install the lower B-pillar trim panel and scuff plate(s).
4. Install the rear seat cushion.
5. Install the center console.
6. Install the front seats.
