Part 1
Seating
Pinpoint Test AY: DTC B272B
Refer to Wiring Diagram Set 119, Climate Controlled Seats for schematic and connector information. Diagrams By Number
Normal Operation
The Dual Climate Controlled Seat Module (DCSM) monitors the temperature sensor. If the temperature exceeds the specified limits, the DTC will be set.
- DTC B272B (Passenger Back Over-Temp Detected)- In the cooling mode, if the passenger seat backrest Thermo-Electric Device (TED) temperature exceeds 70°C (158°F) for more than 34 seconds, the TED (Thermo-Electric Device) is disconnected or the duct is blocked, the DCSM (Dual Climate Controlled Seat Module) will shut down the passenger seat system and set this DTC.
- DTC B272B (Passenger Back Over-Temp Detected)- In the heating mode, if the passenger seat backrest TED (Thermo-Electric Device) temperature exceeds 85°C (185°F) for more than 34 seconds, the TED (Thermo-Electric Device) is disconnected or the duct is blocked, the DCSM (Dual Climate Controlled Seat Module) will shut down the passenger seat system and set this DTC.
This pinpoint test is intended to diagnose the following:
- Wiring, terminals or connectors
- Restricted backrest TED (Thermo-Electric Device) filter
- Crushed or restricted climate controlled seat manifold
- Backrest TED (Thermo-Electric Device) assembly
- Dual Climate Controlled Seat Module (DCSM)
PINPOINT TEST AY : DTC B272B
NOTICE: When taking measurements at Dual Climate Controlled Seat Module (DCSM) harness connectors, do not insert the electrical probes into the female connector pins. Inserting the probes into connector pins can cause intermittent or open electrical connections after reassembly resulting in Diagnostic Trouble Codes (DTCs) and system failure. Touching the tip of these connector pins is recommended instead.
NOTE: The air bag warning indicator illuminates when the correct Restraints Control Module (RCM) fuse is removed and the ignition is ON.
NOTE: The Supplemental Restraint System (SRS) must be fully operational and free of faults before releasing the vehicle to the customer.
AY1 CHECK THE DCSM (Dual Climate Controlled Seat Module) FOR ON-DEMAND DTCs
- Start the vehicle and set the passenger seat to HIGH heat.
- Enter the following diagnostic mode on the scan tool: Self Test- DCSM (Dual Climate Controlled Seat Module).
Was DTC B272B retrieved on-demand during the self-test?
Yes
GO to AY2.
No
GO to AY5.
AY2 CHECK THE PASSENGER SEAT BACKREST TED (Thermo-Electric Device) THERMISTOR CIRCUITS FOR A SHORT TO GROUND
- Ignition OFF.
- Depower the SRS (Supplemental Restraint System). Refer to Supplemental Restraint System (SRS) Depowering and Repowering in the General Procedures portion of Restraints and Safety Systems &/or Air Bag Systems.
- Disconnect: Passenger Seat Side Air Bag C339.
- Disconnect: Passenger Seat Safety Belt Buckle Pretensioner C3066.
- Disconnect: DCSM (Dual Climate Controlled Seat Module) C3265B.
- Disconnect: Passenger Seat Backrest TED (Thermo-Electric Device) C3039.
- WARNING: Make sure no one is in the vehicle and there is nothing blocking or placed in front of any air bag module when the battery is connected. Failure to follow these instructions may result in serious personal injury in the event of an accidental deployment.
Connect the battery ground cable.
- Measure the resistance between:
- DCSM (Dual Climate Controlled Seat Module) C3265B-4, circuit VHS36 (YE/BU), harness side and ground.
- DCSM (Dual Climate Controlled Seat Module) C3265B-5, circuit RHS20 (GN/BU), harness side and ground.
Are the resistances greater than 10,000 ohms?
Yes
GO to AY3.
No
REPAIR the circuit(s). CLEAR the DTCs. REPEAT the self-test.
DISCONNECT the battery ground cable. CONNECT passenger seat side air bag module C339.
CONNECT passenger seat safety belt buckle pretensioner C3066.
REPOWER the SRS (Supplemental Restraint System). REFER to Restraints and Safety Systems &/or Air Bag Systems.
AY3 CHECK THE PASSENGER SEAT BACKREST TED (Thermo-Electric Device) THERMISTOR AND WIRING
- Connect: Passenger Seat Backrest TED (Thermo-Electric Device) C3039.

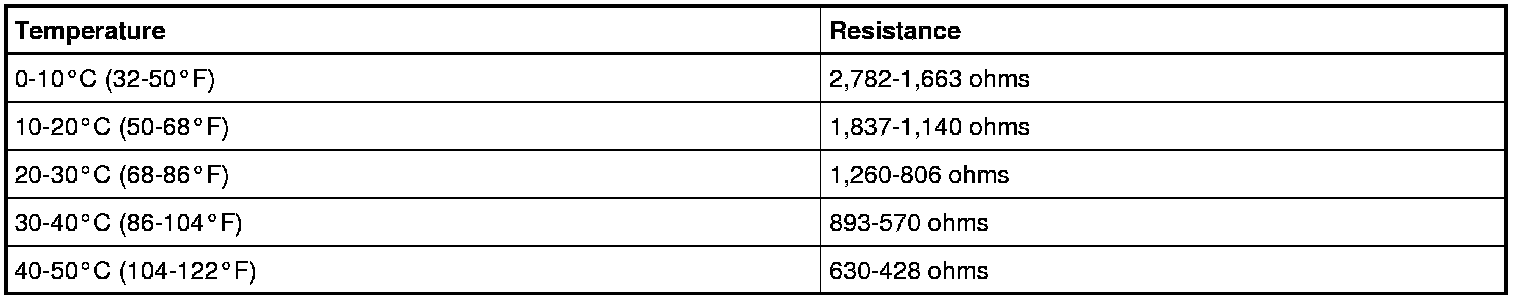

- Measure the resistance between DCSM (Dual Climate Controlled Seat Module) C3265B-4, circuit VHS36 (YE/BU), harness side and DCSM (Dual Climate Controlled Seat Module) C3265B-5, circuit RHS20 (GN/BU), harness side. Note the ambient temperature and refer to the following table.
Is the resistance within the limits indicated?
Yes
GO to AY18.
No
GO to AY4.
AY4 CHECK THE PASSENGER SEAT BACKREST TED (Thermo-Electric Device) THERMISTOR
- Disconnect: Passenger Seat Backrest TED (Thermo-Electric Device) C3039.
- Measure the resistance between passenger seat backrest TED (Thermo-Electric Device) C3039 pin 5 and pin 8, component side. Note the ambient temperature and refer to the following table.
Is the resistance within the limits indicated?
Yes
REPAIR circuit VHS36 (YE/BU) or RHS20 (GN/BU) for an open or high resistance. CLEAR the DTCs. REPEAT the self-test.
DISCONNECT the battery ground cable. CONNECT passenger seat side air bag module C339.
CONNECT passenger seat safety belt buckle pretensioner C3066.
REPOWER the SRS (Supplemental Restraint System). REFER to Restraints and Safety Systems &/or Air Bag Systems.
No
INSTALL a new passenger seat backrest TED (Thermo-Electric Device). REFER to Seat Backrest Thermo-Electric Device . CLEAR the DTCs. REPEAT the self-test.
DISCONNECT the battery ground cable. CONNECT passenger seat side air bag module C339.
CONNECT passenger seat safety belt buckle pretensioner C3066.
REPOWER the SRS (Supplemental Restraint System). REFER to Restraints and Safety Systems &/or Air Bag Systems.
AY5 CONFIRM THE FAULT WHILE MONITORING THE DCSM (Dual Climate Controlled Seat Module) SEAT BACK THERMAL ELECTRIC DEVICE TEMPERATURE (PBKTEMP) AND SEAT CUSHION THERMAL ELECTRIC DEVICE TEMPERATURE (PCSHTEMP) PIDs
- Set the passenger seat to OFF.
- Enter the following diagnostic mode on the scan tool: Clear DTCs - DCSM (Dual Climate Controlled Seat Module).
- Enter the following diagnostic mode on the scan tool: DataLogger - DCSM (Dual Climate Controlled Seat Module).
- Monitor the DCSM (Dual Climate Controlled Seat Module) PIDs PBKTEMP and PCSHTEMP.
- NOTE: A crushed seat backrest foam pad or a crushed climate controlled seat manifold may be the cause of the fault making it necessary to occupy the seat to recreate and identify the fault.
Attempt to recreate the fault. Start the vehicle and set the passenger seat to HIGH heat for at least 15 minutes while occupying the seat.
Do the PIDs increase incrementally (gradually) and stay within 15°C (27°F) of each other?
Yes
Fault not present at this time. Fault may have been set due to a past failure, incorrect use of the climate controlled seat system by repeated switching between heat and cool modes or due to excessive passenger compartment temperature. CLEAR the DTCs. REPEAT the self-test.
No
If the PBKTEMP PID increases incrementally and is greater than 15°C (27°F) of the PCSHTEMP PID, GO to AY6.
If the PBKTEMP PID increases quickly (temperature "jumps" and does not increase incrementally) and is greater than 15°C (27°F) of the PCSHTEMP PID, GO to AY16.
AY6 COMPARE OPERATION OF THE DRIVER AND PASSENGER SEATS
- With the engine running, set both front seats to HIGH cool.
- Note the airflow exhausting from the passenger seat backrest TED (Thermo-Electric Device) and compare it to the airflow exhausting from the driver seat backrest TED (Thermo-Electric Device).
- Carry out a wiggle test of the wire harnesses between the DCSM (Dual Climate Controlled Seat Module) and the passenger seat backrest TED (Thermo-Electric Device) while monitoring blower operation of the TED (Thermo-Electric Device). The blower should operate consistently and not change speeds
Is the airflow exhausting from the passenger seat backrest TED (Thermo-Electric Device) comparable to the airflow exhausting from the driver seat backrest TED (Thermo-Electric Device) with no change in operation when carrying out the wiggle test?
Yes
GO to AY7.
No
If the airflow exhausting from the passenger seat backrest TED (Thermo-Electric Device) is not comparable to the airflow exhausting from the driver seat backrest TED (Thermo-Electric Device), GO to AY8.
If the passenger seat backrest TED (Thermo-Electric Device) blower operation changed while carrying out the wiggle test, IDENTIFY and REPAIR the wiring fault. CLEAR the DTCs. REPEAT the self-test.
AY7 COMPARE OPERATION OF THE DRIVER AND PASSENGER SEATS WHILE OCCUPIED
- Note the airflow exhausting from the passenger seat backrest TED (Thermo-Electric Device) with the passenger seat occupied and compare it to the airflow exhausting from the driver seat backrest TED (Thermo-Electric Device) with the driver seat occupied.
Is the airflow exhausting from the passenger seat backrest TED (Thermo-Electric Device) comparable to the airflow exhausting from the driver seat backrest TED (Thermo-Electric Device)?
Yes
GO to AY16.
No
INSTALL a new passenger seat backrest foam pad and/or climate controlled seat manifold. CLEAR the DTCs. REPEAT the self-test.
AY8 CHECK THE PASSENGER SEAT BACKREST BLOWER FOR AN OBSTRUCTION OR RESTRICTED FILTER
- Ignition OFF.
- Inspect the blower of the passenger seat backrest TED (Thermo-Electric Device) assembly for an obstruction or for a restricted filter.
Is the blower obstructed or the filter restricted?
Yes
REMOVE the obstruction or INSTALL a new filter. CLEAR the DTCs. REPEAT the self-test.
No
GO to AY9.
AY9 CHECK THE PASSENGER SEAT BACKREST BLOWER SPEED CONTROL CIRCUIT FOR AN OPEN
- Depower the SRS (Supplemental Restraint System). Refer to Supplemental Restraint System (SRS) Depowering and Repowering in the General Procedures portion of Restraints and Safety Systems &/or Air Bag Systems.
- Disconnect: Passenger Seat Side Air Bag C339.
- Disconnect: Passenger Seat Safety Belt Buckle Pretensioner C3066.
- Disconnect: DCSM (Dual Climate Controlled Seat Module) C3265C.
- Disconnect: Passenger Seat Backrest TED (Thermo-Electric Device) C3039.
- WARNING: Make sure no one is in the vehicle and there is nothing blocking or placed in front of any air bag module when the battery is connected. Failure to follow these instructions may result in serious personal injury in the event of an accidental deployment.
Connect the battery ground cable.
- Measure the resistance between DCSM (Dual Climate Controlled Seat Module) C3265C-4, circuit VHS21 (BU/WH), harness side and passenger seat backrest TED (Thermo-Electric Device) C3039-7, circuit VHS16 (BU/GN), harness side.
Is the resistance less than 5 ohms?
Yes
GO to AY10.
No
REPAIR the circuit. CLEAR the DTCs. REPEAT the self-test.
DISCONNECT the battery ground cable. CONNECT passenger seat side air bag module C339.
CONNECT passenger seat safety belt buckle pretensioner C3066.
REPOWER the SRS (Supplemental Restraint System). REFER to Restraints and Safety Systems &/or Air Bag Systems.
AY10 CHECK THE PASSENGER SEAT BACKREST BLOWER CIRCUIT FOR A SHORT TO VOLTAGE
- Ignition ON.
- Measure the voltage between DCSM (Dual Climate Controlled Seat Module) C3265C-7, circuit RHS08 (VT/WH), harness side and ground.
Is any voltage present?
Yes
REPAIR the circuit. CLEAR the DTCs. REPEAT the self-test.
DISCONNECT the battery ground cable. CONNECT passenger seat side air bag module C339.
CONNECT passenger seat safety belt buckle pretensioner C3066.
REPOWER the SRS (Supplemental Restraint System). REFER to Restraints and Safety Systems &/or Air Bag Systems.
No
GO to AY11.
AY11 CHECK THE PASSENGER SEAT BACKREST BLOWER CIRCUIT FOR A SHORT TO GROUND
- Ignition OFF.
- Measure the resistance between DCSM (Dual Climate Controlled Seat Module) C3265C-8, circuit CHS08 (BN/YE), harness side and ground.
Is the resistance greater than 10,000 ohms?
Yes
GO to AY12.
No
REPAIR the circuit. CLEAR the DTCs. REPEAT the self-test.
DISCONNECT the battery ground cable. CONNECT passenger seat side air bag module C339.
CONNECT passenger seat safety belt buckle pretensioner C3066.
REPOWER the SRS (Supplemental Restraint System). REFER to Restraints and Safety Systems &/or Air Bag Systems.
