Seat Wire Harness Routing

Seat Wire Harness Routing

1. For correct front passenger seat cushion wire harness routing with Occupant Classification System (OCS) weight sensor bolts, refer to the following views.

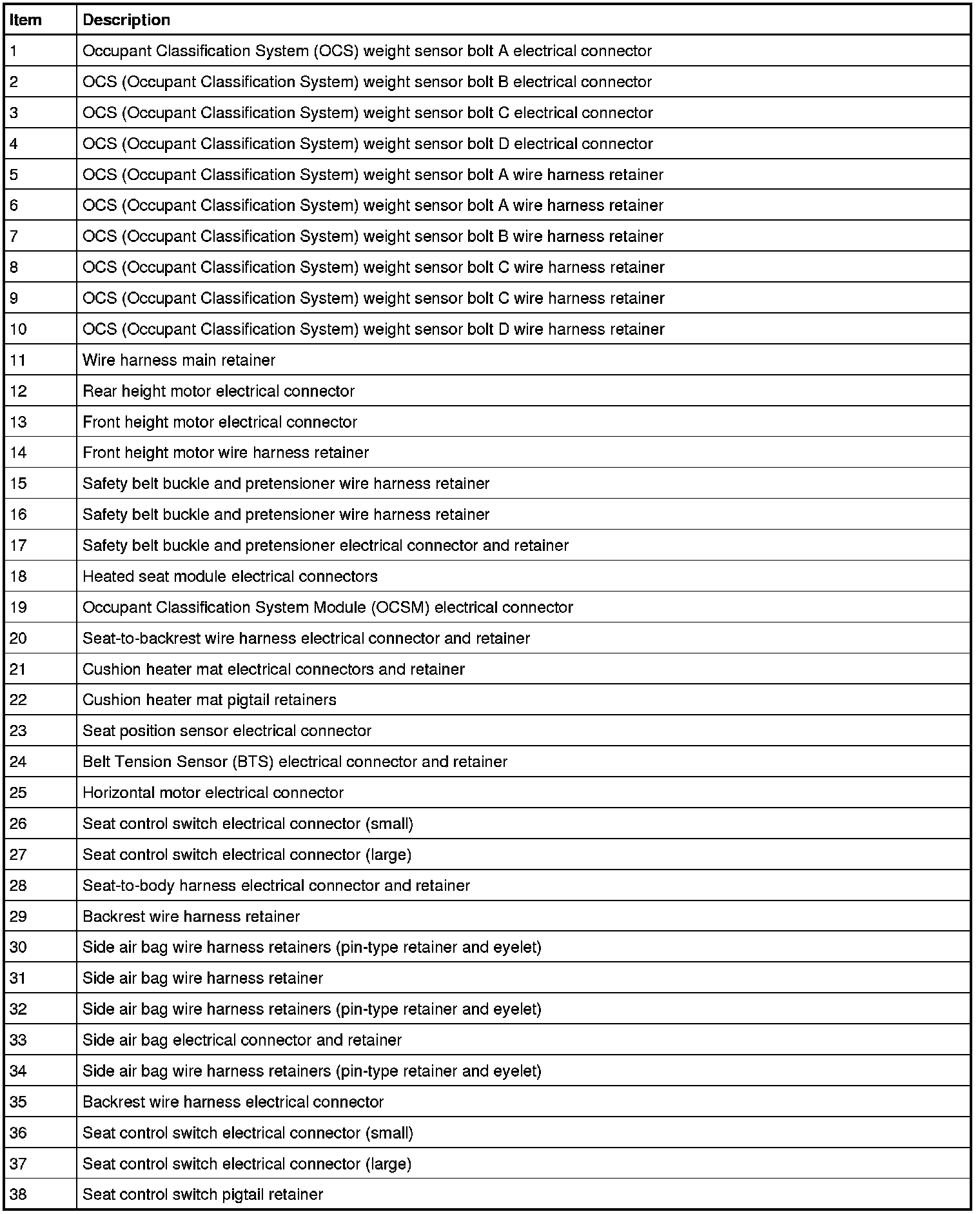

- Match the numbers in the wire harness view to the numbers in the retainer and connector location views and attach accordingly.

- Wire harness retainers and electrical connectors are called out in assembly order.


2. NOTE: Illustration shows the OCS (Occupant Classification System) weight sensor bolts in their installed position with the seat in the vehicle (arrow indicates front).
Verify the correct passenger seat OCS (Occupant Classification System) weight sensor bolt electrical connector positions using the illustration.

- For correct identification and placement of the 4 OCS (Occupant Classification System) weight sensor bolt electrical connectors, use the wire colors identified in Wiring Diagram Set 46. Connecting the incorrect connector to a sensor will cause DTCs to set and will result in an unsuccessful OCS (Occupant Classification System) system reset.






Passenger Seat With Weight Sensor Bolt Occupant Classification System (OCS) and Climate Control

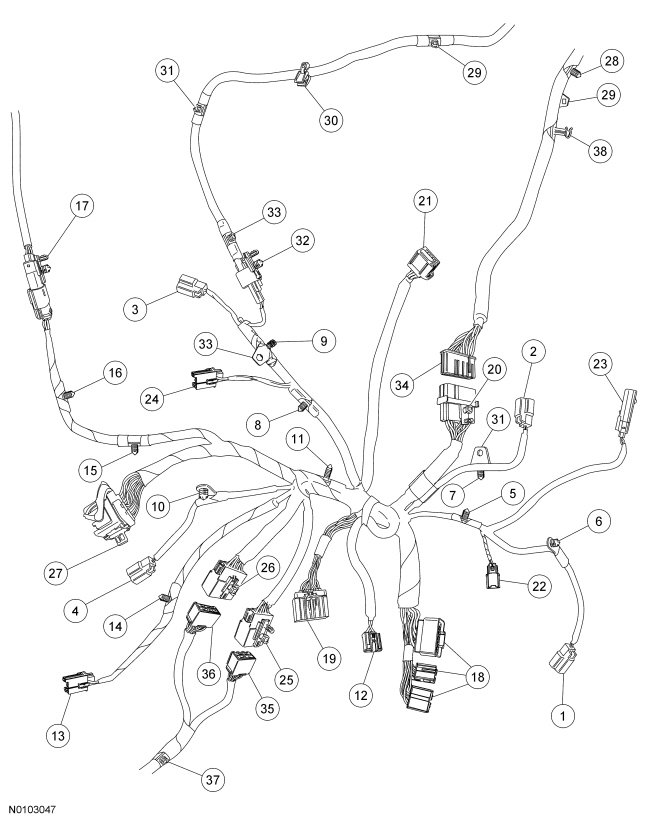

Wire Harness View

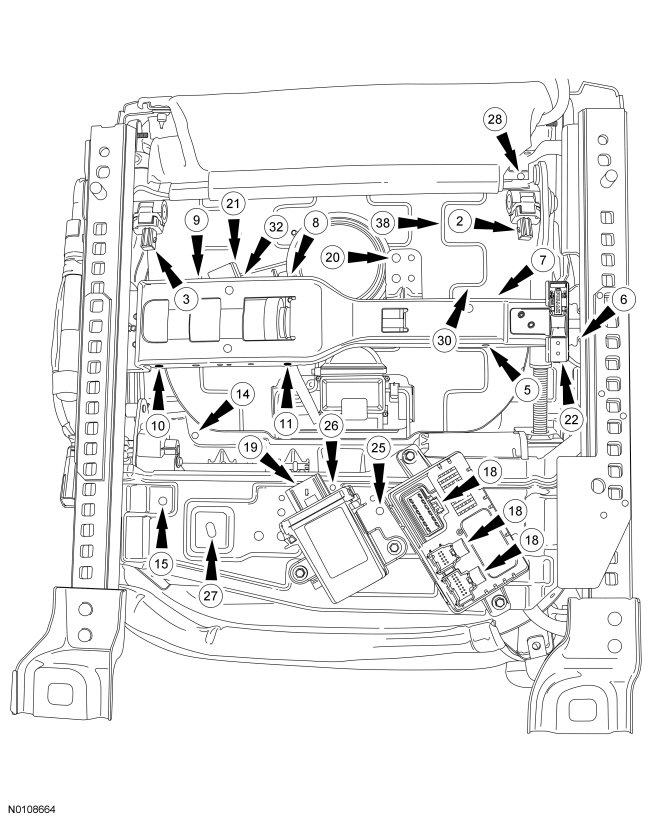

Wire Harness Retainer and Connector Location View, Underneath

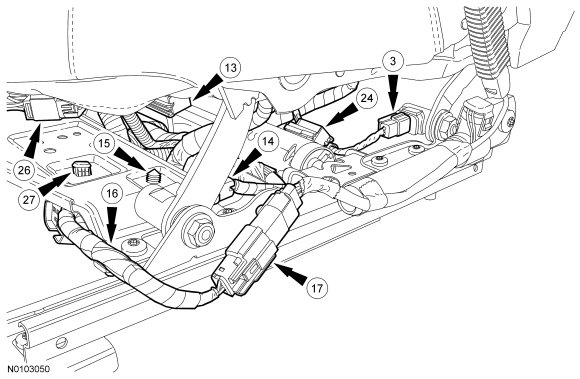

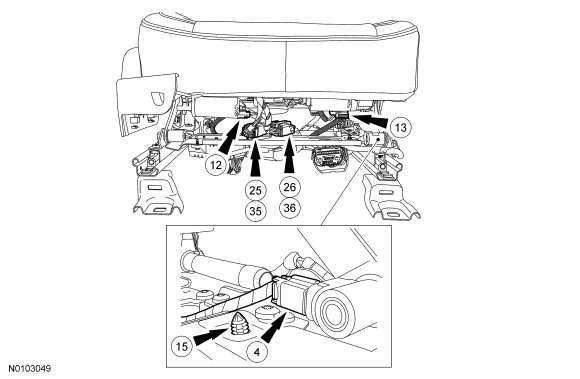

Wire Harness Retainer and Connector Location View, Front of Seat

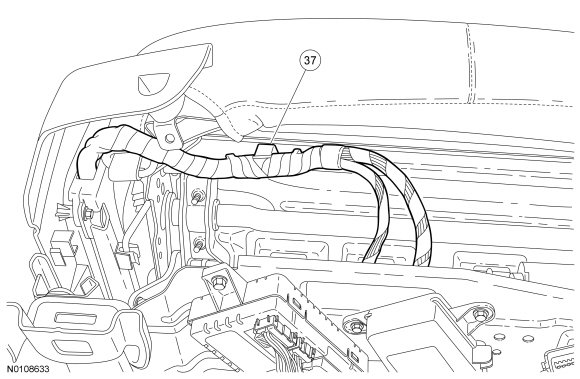

Wire Harness Retainer and Connector Location View, Inboard Side

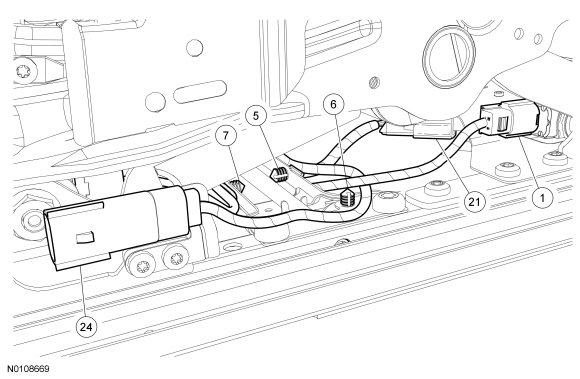

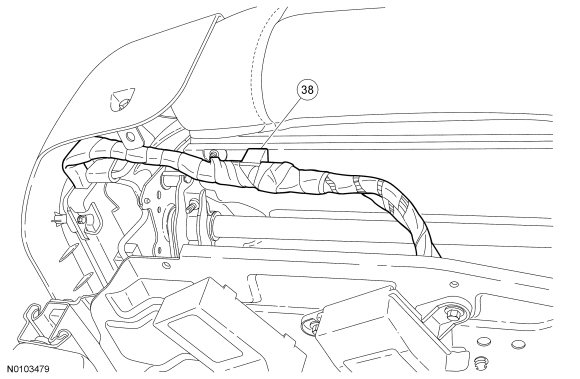

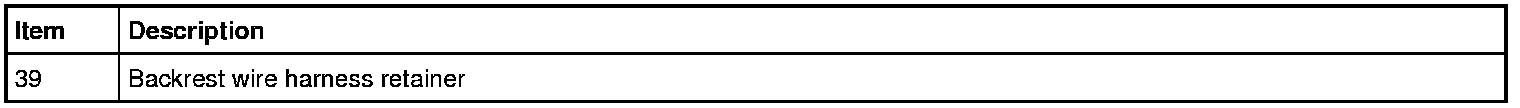

Wire Harness Retainer and Connector Location View, Outboard Side





Wire Harness Retainer and Connector Location View, Front of Seat Underneath

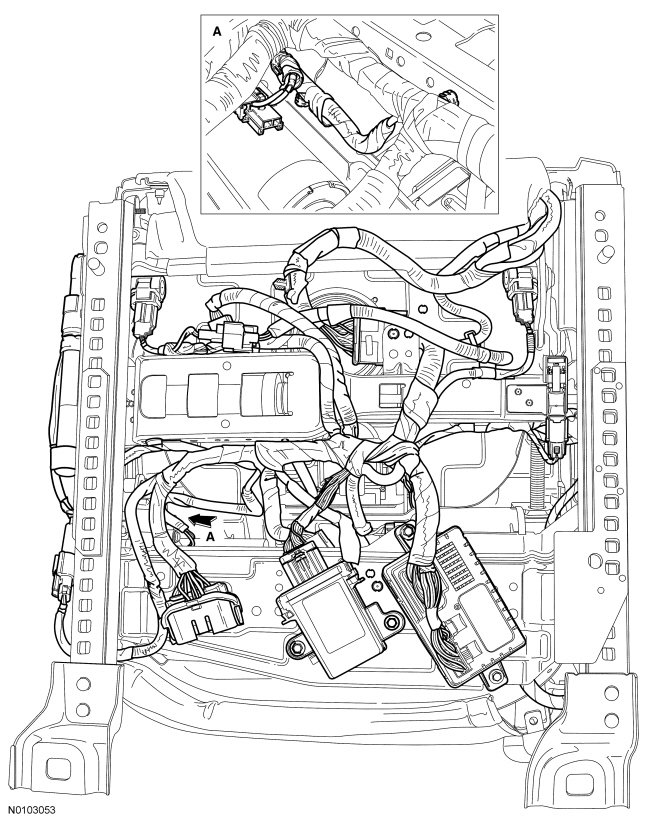

Wire Harness Installed View





1. Make sure the passenger seat cushion wire harness is correctly routed and attached.

Passenger Seat With Weight Sensor Bolt Occupant Classification System (OCS) and Heat

Wire Harness View

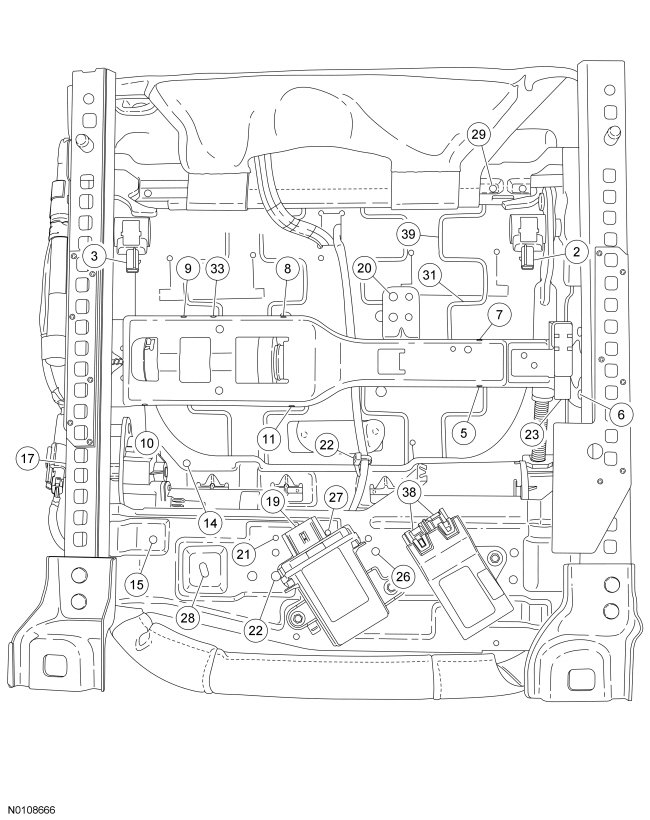

Wire Harness Retainer and Connector Location View, Underneath

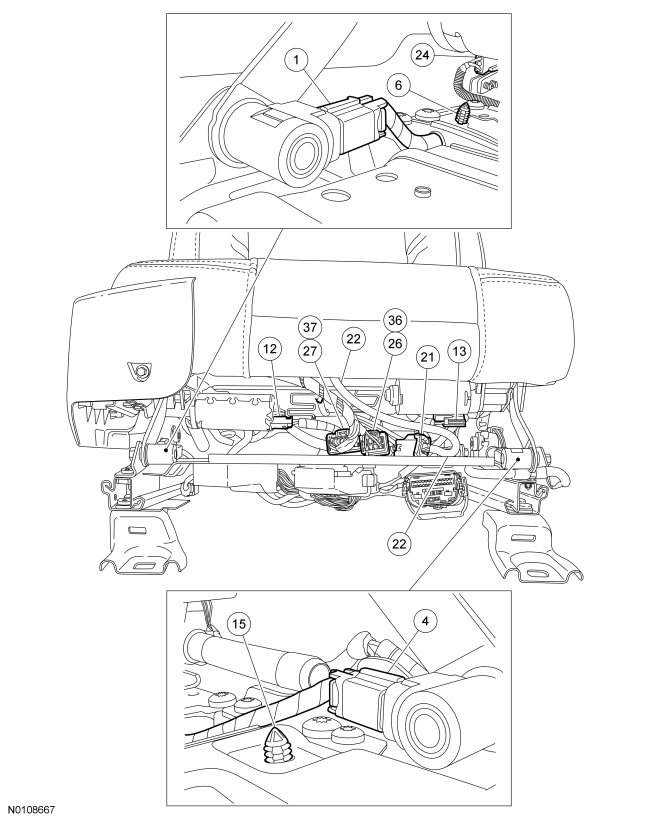

Retainer and Connector Location View, Front of Seat

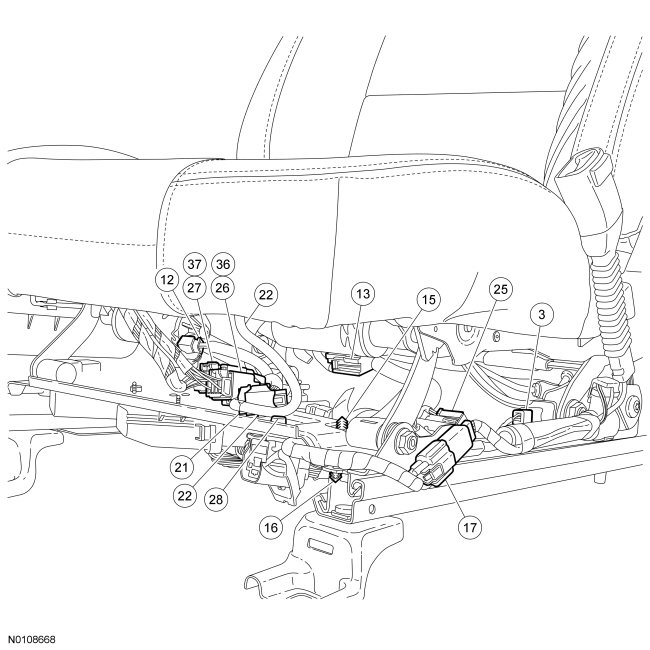

Retainer and Connector Location View, Inboard Side

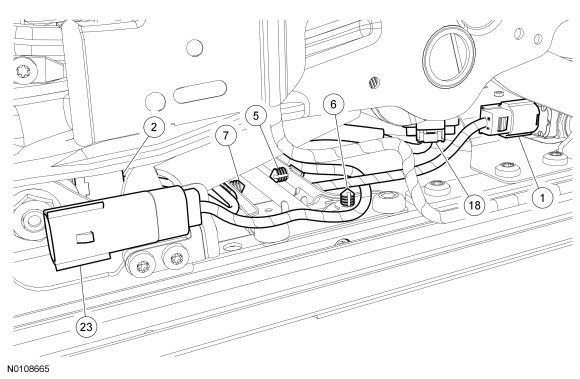

Retainer and Connector Location View, Outboard Side





Retainer and Connector Location View, Front of Seat Underneath

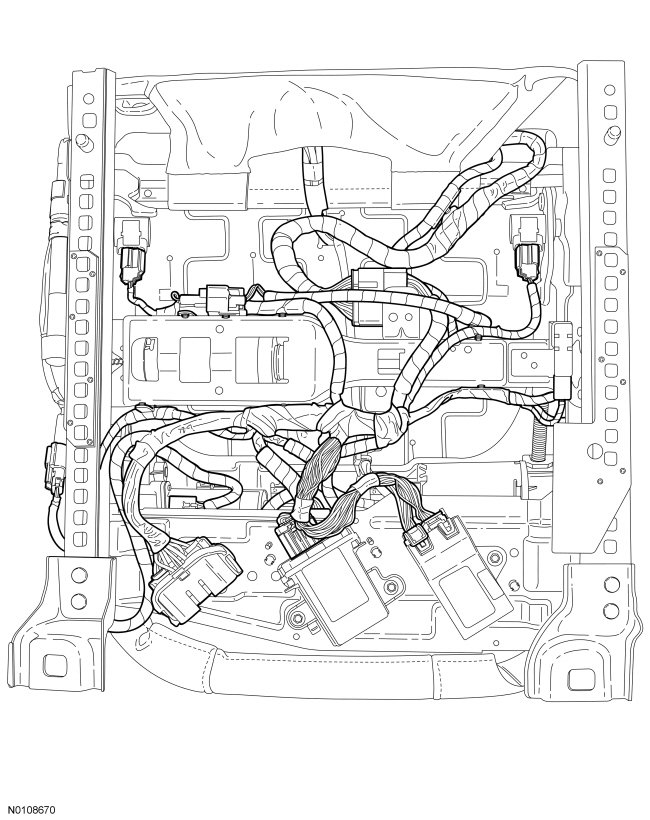

Wire Harness Installed View





1. Make sure the passenger seat cushion wire harness is correctly routed and attached.
