Seat Bolster - Rear

Seat Bolster - Rear

Removal and Installation

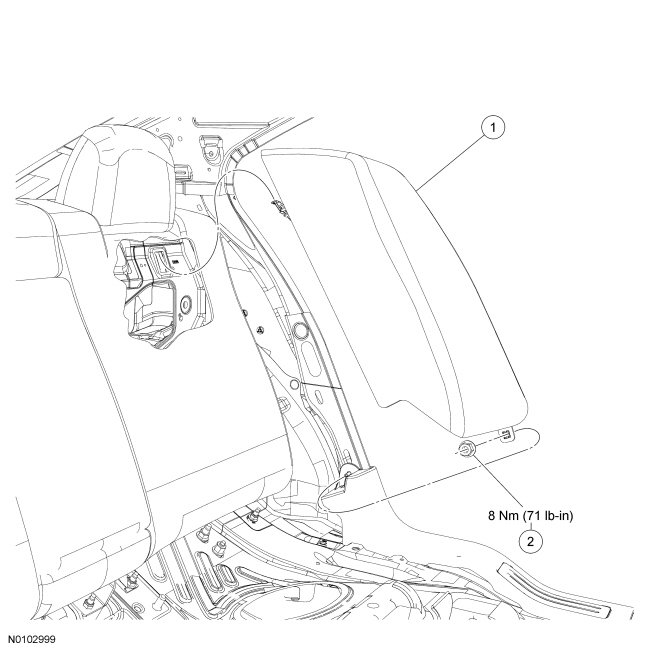

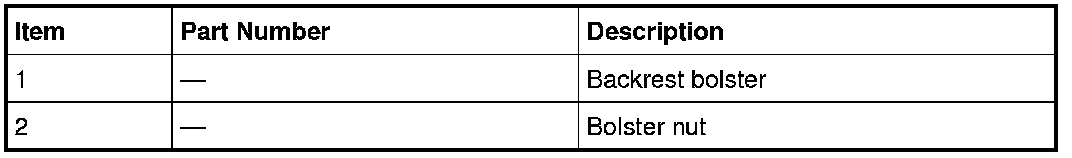

NOTE: LH shown, RH similar.









Bolsters having been previously removed

1. Remove the nut from the lower retainer stud.
- To install, tighten to 8 Nm (71 lb-in).


All bolsters

2. Pull the rear door scuff plate up at the front and separate from the B-pillar trim panel.

3. At the same time, separate the seat bolster at the bottom and rear door scuff plate at the rear from the stud. Remove the scuff plate.

4. Slide the seat bolster down and remove.

5. To install, reverse the removal procedure.
- When installing the seat bolster, install a M6 x 1.0 nut on the lower retainer stud.
- To install, tighten to 8 Nm (71 lb-in).
