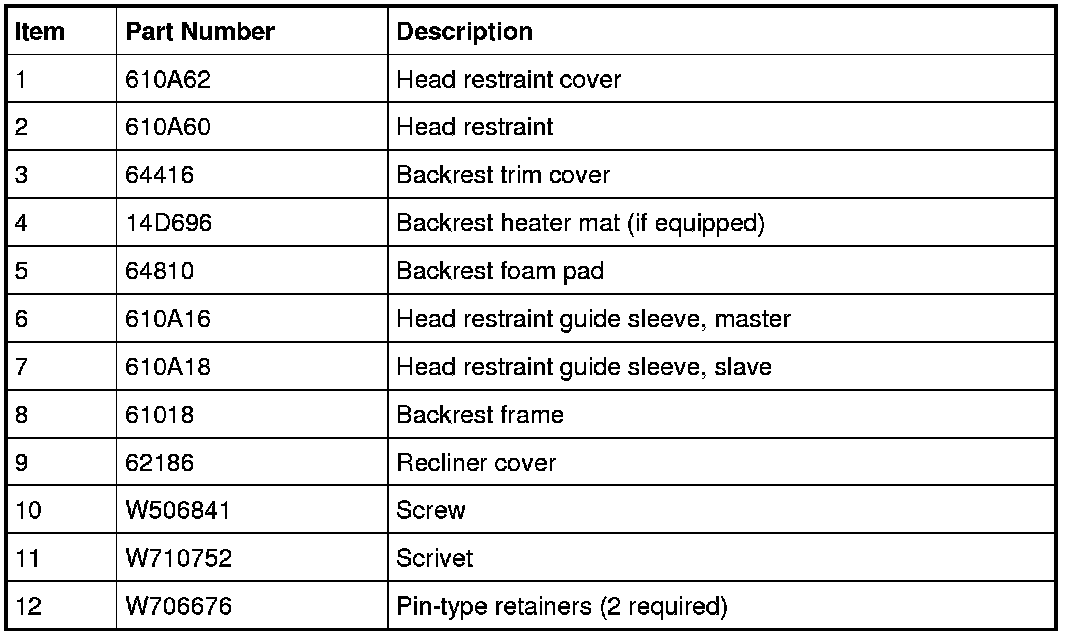

Seat Backrest - Trim Parts

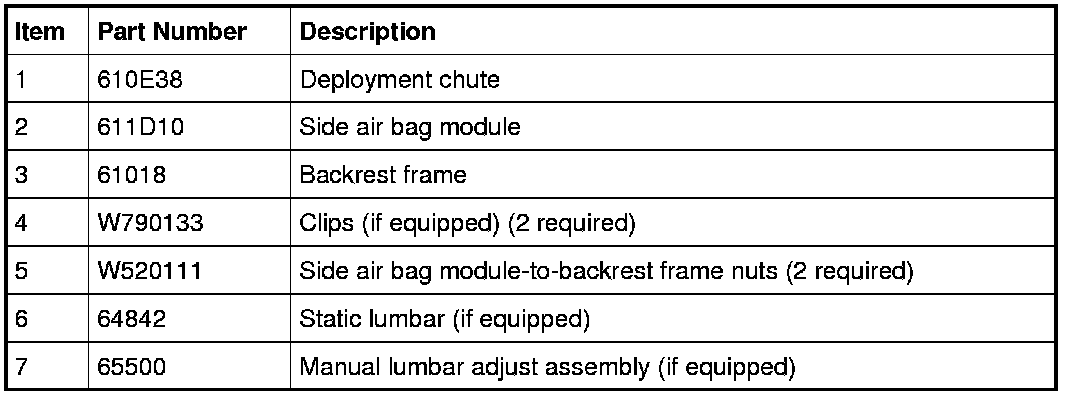

Seat Backrest - Frame Parts With Manual Lumbar and Static Lumbar

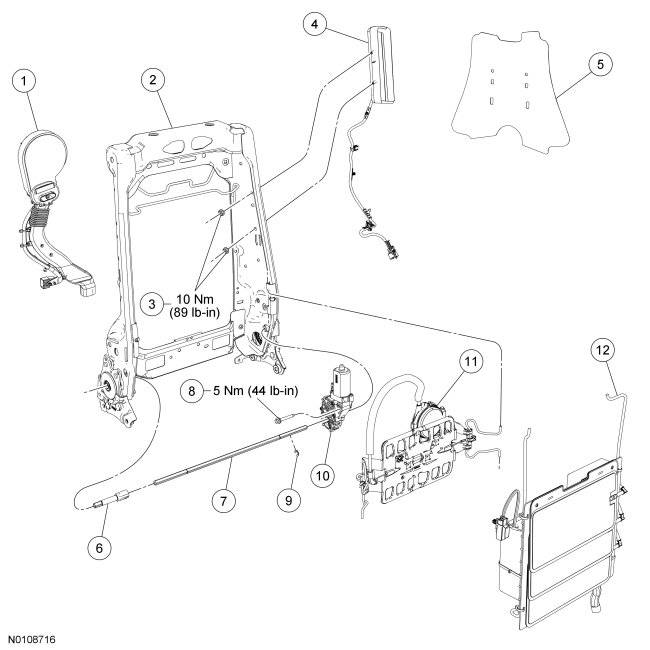

Seat Backrest - Frame Parts With Power Recliner, Power Lumbar, Power Lumbar With Massage and Climate Controlled Seat System

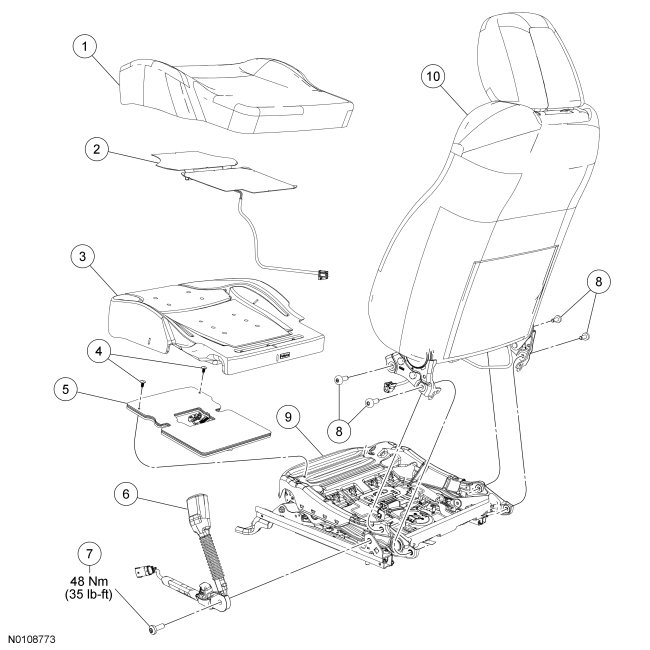

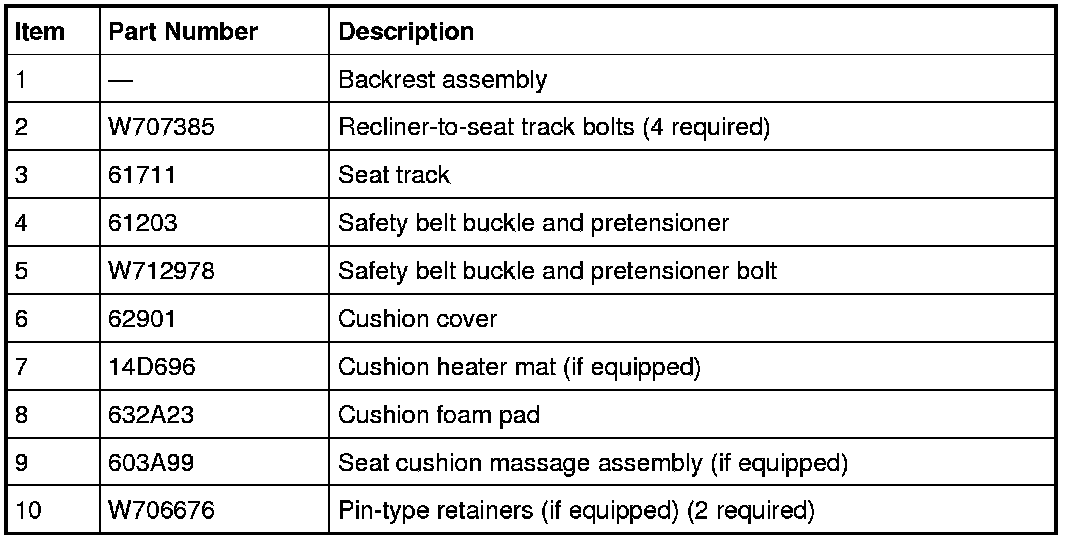

Seat Cushion - With Massage and Heat

NOTE: Refer to Seat Backrest - Front for recliner-to-seat track bolt tightening sequence and torque specification.

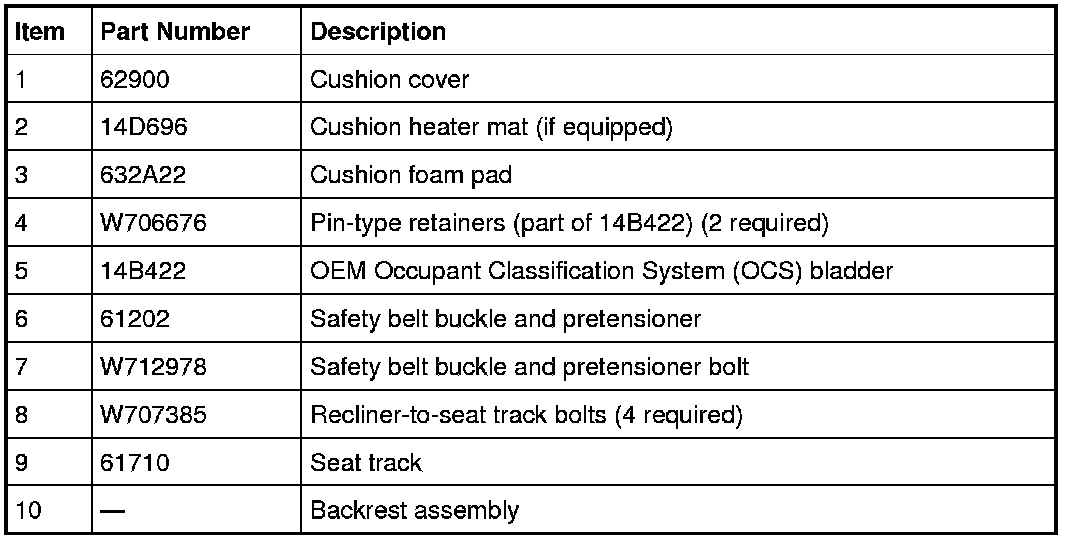

Passenger Seat Cushion With an OEM Occupant Classification System (OCS) Bladder System and Heat

NOTE: Refer to Seat Backrest - Front for recliner-to-seat track bolt tightening sequence and torque specification.









WARNING: Always carry or place a live air bag module with the air bag and deployment door/trim cover/tear seam pointed away from the body. Do not set a live air bag module down with the deployment door/trim cover/tear seam face down. Failure to follow these instructions may result in serious personal injury in the event of an accidental deployment.

WARNING: Never probe the electrical connectors on air bag, Safety Canopy(R) or side air curtain modules. Failure to follow this instruction may result in the accidental deployment of these modules, which increases the risk of serious personal injury or death.

WARNING: Front seat backrest trim covers installed on seats equipped with seat side air bags cannot be repaired. A new trim cover must be installed. Cleaning is permissible. Failure to follow these instructions may result in the seat side air bag module deploying incorrectly and increase the risk of serious personal injury or death in a crash.

NOTE: If a side air bag deployment took place, a new seat backrest foam pad, backrest trim cover, deployment chute and side air bag module and nuts must be installed. The seat backrest frame should be replaced if necessary.



1. Remove the seat backrest. For additional information, refer to Seat Backrest- Front .

2. Remove the 2 head restraint guides sleeves. For additional information, refer to Head Restraint Guide Sleeve- Front Head Restraint Guide Sleeve - Front.

3. NOTE: Note wire harness and hose routing for installation.

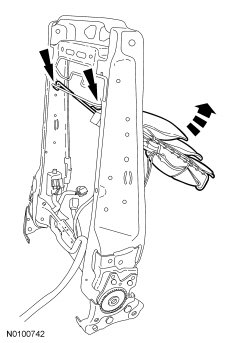

Detach the backrest cover lower J-clips and route the wire harness(es), manual lumbar cable (if equipped) and air hoses (if equipped) out of the hole(s) in the backrest cover.






4. On each side, separate the backrest cover clip and hook-and-loop strips.





5. NOTICE: Use care when separating the backrest cover from the hook-and-loop strip, or the hook-and-loop strip can be torn from the backrest foam pad.

Separate the hook-and-loop strips, invert the backrest cover up and remove the 3 first row hog rings.






6. Separate the hook-and-loop strips, invert the backrest cover up and remove the 3 second row hog rings.





7. From the rear of the backrest, detach the backrest cover J-clip attached to the backrest frame wire.





8. Invert the backrest cover up, separate the hook-and-loop strips and remove the backrest cover.

9. If equipped, detach the backrest Thermo-Electric Device (TED) from the backrest foam pad wire.





10. If equipped, disconnect the backrest heater mat electrical connector and separate the pin-type retainer.

11. Remove 2 pin-type retainers and the backrest frame assembly from the backrest foam pad.





12. If equipped, remove the backrest TED (Thermo-Electric Device).

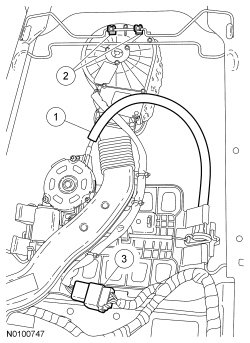

1. Disconnect the electrical connector and separate the pin-type retainer.

2. Detach the TED (Thermo-Electric Device) from the backrest frame wire.

3. Remove the TED (Thermo-Electric Device) from between the power lumbar and cable.






13. Separate the side air bag module wire harness retainers from the backrest frame.





14. Remove the nuts and the side air bag module with wire harness.

15. If necessary, remove the side air bag module from the deployment chute.

16. If equipped, remove the power lumbar.
- Disconnect the motor and detach the retaining clips.






17. If equipped, remove the manual lumbar.
- Detach the cable and manual lumbar retainers.






18. If equipped, remove the static lumbar in the following sequence.
1. Squeeze the retainers together at the bottom and separate from the backrest frame.

2. Remove and discard the clips at the top.


19. If equipped, disconnect the power lumbar with massage electrical connectors, detach the pin-type retainers and lower retainers.





20. If equipped, rotate the assembly up, detach the upper retainers and remove the power lumbar with massage.





Seats with power recliner

21. NOTICE: Do Not rotate the inboard and outboard recliners separately from each other. Doing so will cause the recliners to become out of synchronization.

Remove the E-clip on the recliner shaft and the recliner motor bolt.






22. Remove the power recliner motor.
1. Slide the recliner shaft assembly out of the recliner and remove the short recliner shaft.

2. Slide the long recliner shaft out of the recliner motor.

3. Disconnect and remove the power recliner motor.






All seats

23. NOTE: Note wire harness routing for installation.

If equipped, remove the backrest wire harness.


Assembly

1. NOTE: Wire harness may differ due to option content.

If equipped, position the backrest wire harness and attach the retainers.






2. If equipped, install the recliner motor in the following sequence.
1. Slide the long recliner shaft into the recliner motor and recliner.

2. Connect the recliner motor.

3. Slide the short recliner shaft onto the long recliner shaft.

4. Slide the recliner shaft assembly into the recliner on the other side.

5. Position the recliner motor and install the bolt.
- Tighten to 5 Nm (44 lb-in).

6. Install the E-clip on the recliner shaft recession, near the recliner motor.


3. If equipped, engage both power lumbar with massage wires and rotate the assembly down.





4. If equipped, install the power lumbar with massage lower retainers, connect the electrical connectors and attach the pin-type retainers.

5. If equipped, position the static lumbar and install the retainers at the bottom.

6. Position the static lumbar in front of the backrest frame wire and install 2 new retainers.
- After installation, make sure the retainers are holding the static lumbar tightly against the backrest frame wire or squeaks can occur.






7. If equipped, attach the manual lumbar retaining clips and cable retainer.

8. If equipped, attach the power lumbar retaining clips and connect the electrical connector.

9. WARNING: Before installing the seat side air bag module/deployment chute assembly:
- Inspect the side air bag module and mounting surfaces for any damage or foreign material.
- Remove any foreign material from the mounting surfaces of the deployment chute, the seat backrest frame mounting bracket and the air bag module cavity in the seat backrest foam pad.
- Install new parts if damaged.
Failure to follow these instructions may result in the seat side air bag deploying incorrectly, which increases the risk of serious personal injury or death in a crash.

NOTE: Passenger side shown, driver side similar.
Position the side air bag module into the deployment chute.
- Route the side air bag module wire harness through the deployment chute.

- Position the 2 side air bag module studs and locator pin through the deployment chute holes.






10. NOTE: The side air bag modules are keyed left and right. If the side air bag module locator pin does not align to the backrest frame hole, the wrong side air bag module is being installed.

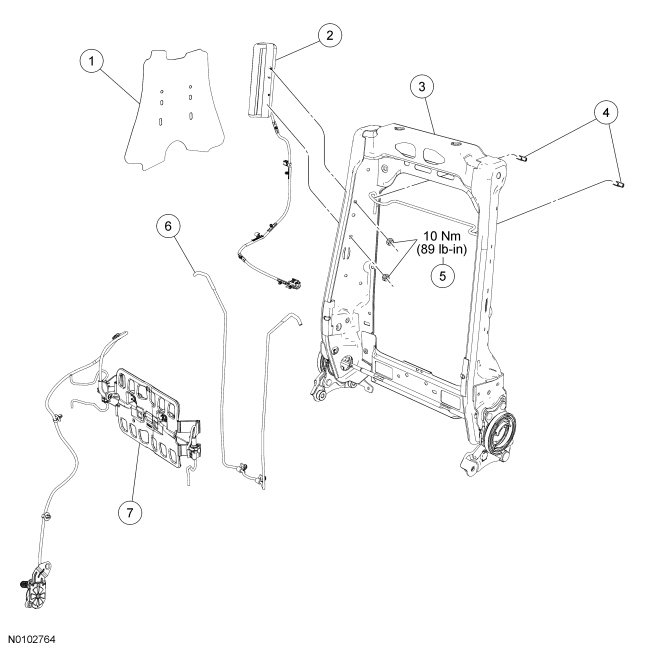

Position the 2 side air bag module studs and locator pin through the backrest frame and install the 2 nuts.

- Tighten to 10 Nm (89 lb-in).






11. Route and attach the side air bag module wire harness to the backrest frame.





12. If equipped, install the backrest TED (Thermo-Electric Device).
1. Position the TED (Thermo-Electric Device) between the power lumbar and cable.

2. Attach the TED (Thermo-Electric Device) upper retainers to the backrest frame wire.

3. Connect the electrical connector and attach the pin-type retainer.






13. WARNING: Inspect the seat side air bag module cavity in the seat backrest foam pad for any foreign material. If any foreign material is found, remove it. Failure to follow these instructions may result in the seat side air bag module deploying incorrectly and increases the risk of serious personal injury or death in a crash.

Position the backrest frame assembly into the backrest foam pad. Install 2 pin-type retainers.


14. If equipped, connect the backrest heater mat electrical connector and attach the pin-type retainer.

15. If equipped, attach the backrest TED (Thermo-Electric Device) to the backrest foam pad wire.

16. WARNING: If the seat side air bag module deployment chute is not correctly positioned, the seat side air bag may not deploy correctly. Failure to follow this instruction may result in the seat side air bag deploying incorrectly, which increases the risk of serious personal injury or death in a crash.

NOTE: The seat side air bag module must have a clear exit path from the front of the deployment chute. Both deployment chute front edges must be positioned to lay flat when positioned between the backrest foam pad and backrest frame.

NOTE: Illustration shown looking through the side of the backrest foam pad and at the side air bag module deployment chute.

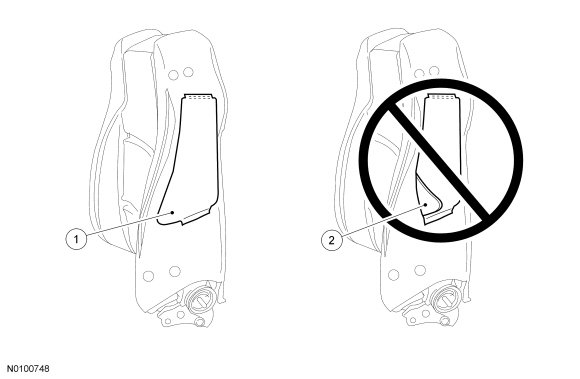

Check the position of the deployment chute.
1. Position both deployment chute front edges to lay flat, from top to bottom, between the backrest foam pad and backrest frame.

2. Do not allow the deployment chute front edges to fold over, at any point, between the backrest foam pad and backrest frame.






17. With the backrest cover inside out, position it to the backrest foam pad and frame assembly.
- Align the head restraint holes in the backrest cover to the holes in the backrest foam pad and frame.


18. Roll the backrest cover down, attach the hook-and-loop strips and the J-clip at the rear to the backrest frame wire.

19. Roll the backrest cover down, attach the hook-and-loop strips and install the 3 second row hog rings.

20. Roll the backrest cover down, attach the hook-and-loop strips and install the 3 first row hog rings.

21. Roll the backrest cover down and attach the hook-and-loop strips.

22. Route the wire harness(es) and air hoses (if equipped) through the hole(s) in the backrest cover and attach the lower J-clips.
- Make sure the manual lumbar cable is routed out from the outboard side of the backrest before engaging the lower J-clips (if equipped).


23. On each side, wrap the backrest cover around the recliner and attach the hook-and-loop strips and clip.

24. Install the 2 head restraint guides sleeves. For additional information, refer to Head Restraint Guide Sleeve- Front Head Restraint Guide Sleeve - Front.

25. Install the seat backrest. For additional information, refer to Seat Backrest- Front .
