Taurus AWD V6-3.5L Turbo
>>
Repair and Diagnosis
>>
Body and Frame
>>
Seats
>>
Seat Temperature Element
>>
Diagrams
>>
Connector Views
>>

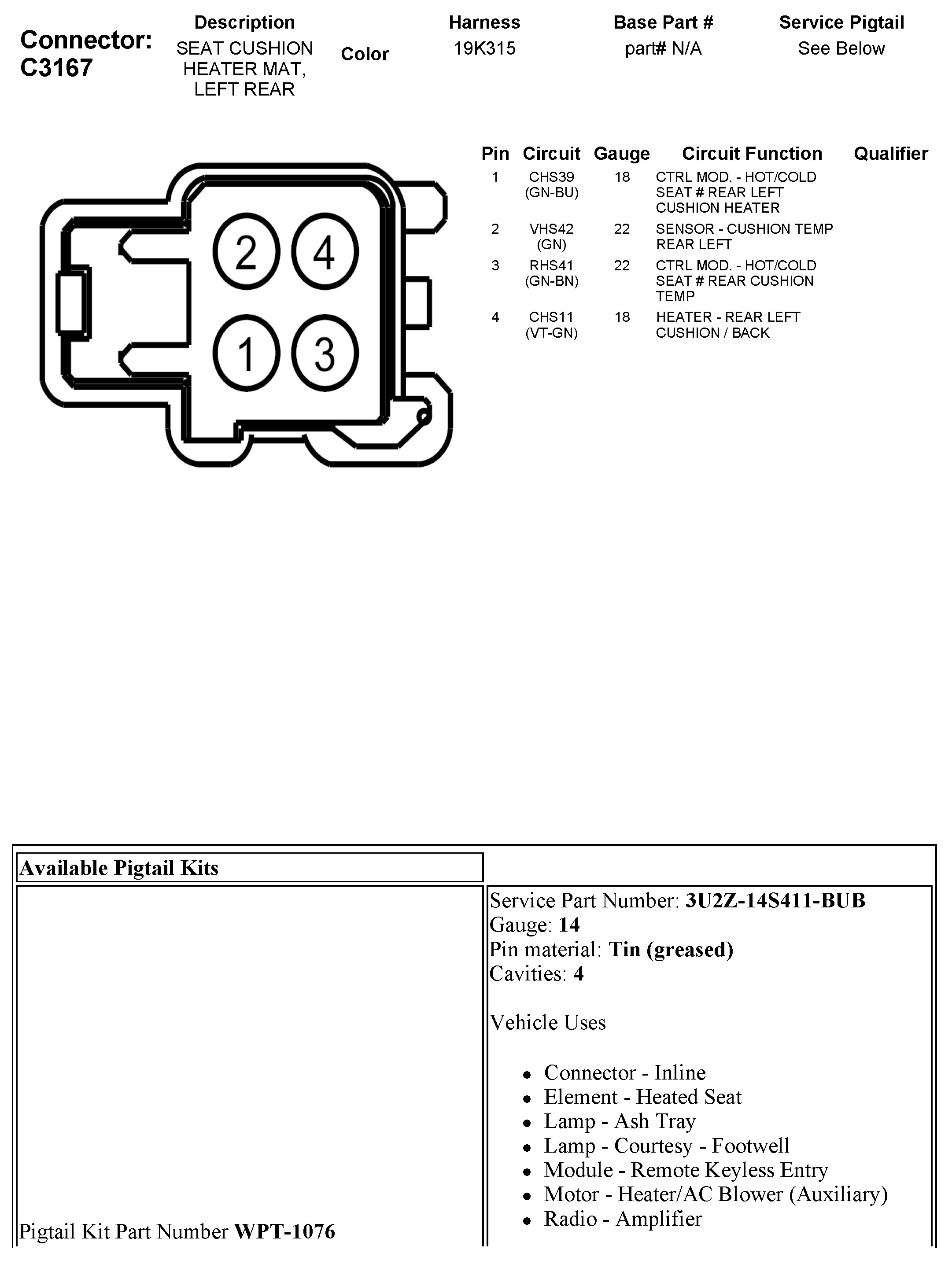

C3167 Seat Cushion Heater MAT, Left Rear
C3167 Seat Cushion Heater MAT, Left Rear
