FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Ford
>>
2012
>>
Taurus AWD V6-3.5L Turbo
>>
Repair and Diagnosis
>>
Body and Frame
>>
Locks
>>
Power Locks
>>
Power Door Lock Actuator
>>
Diagrams
>>

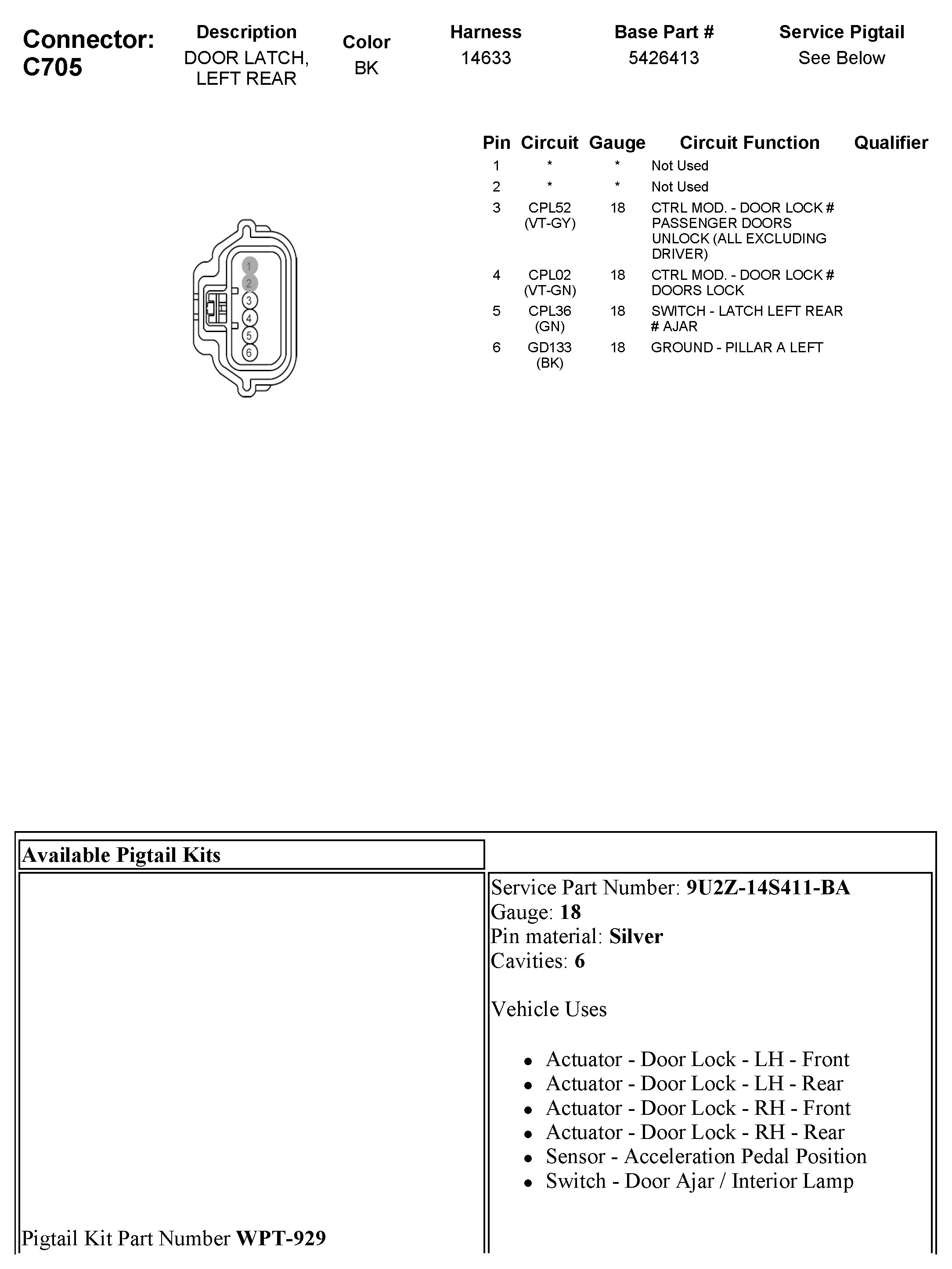

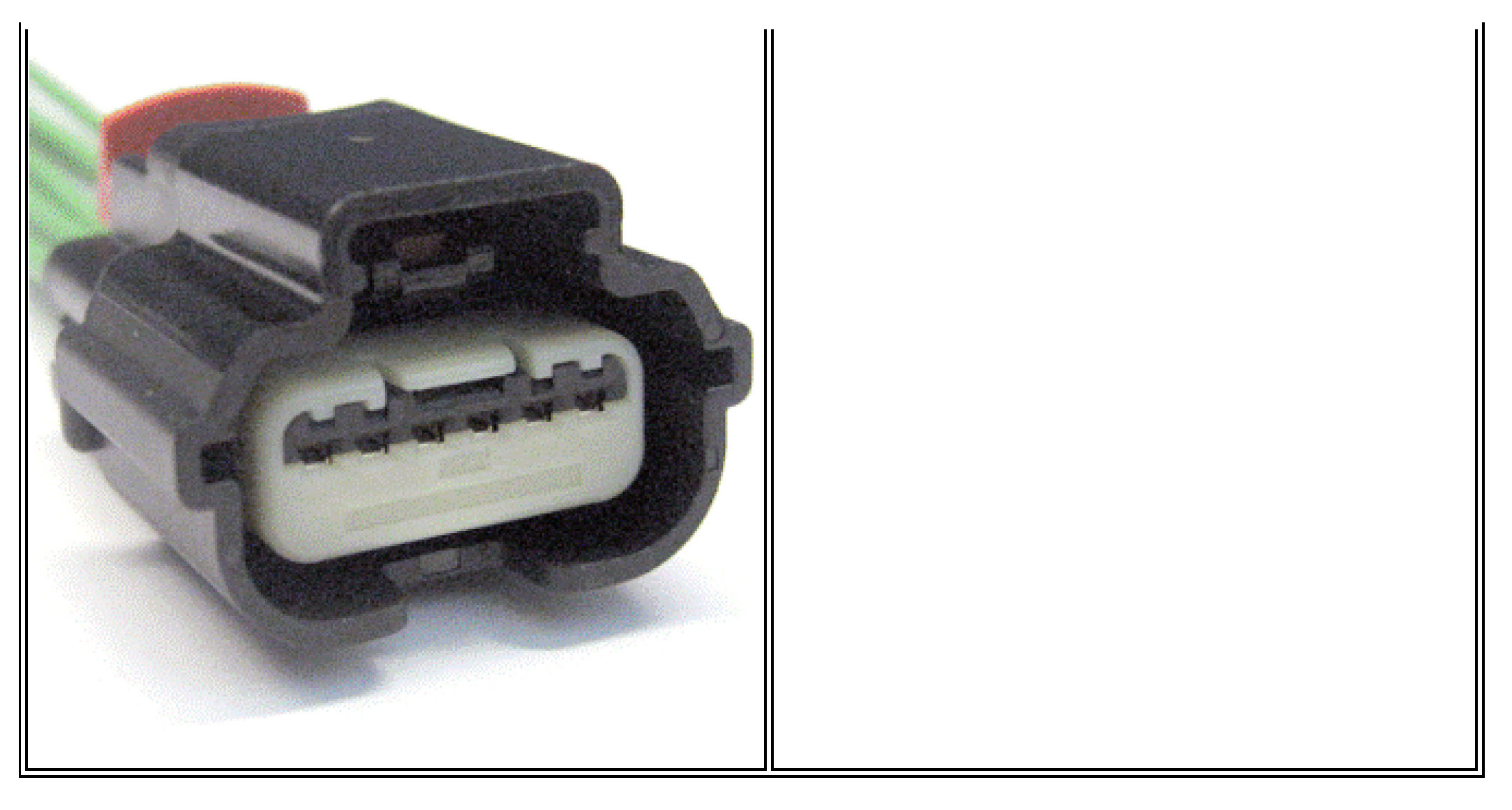

C705 Door Latch, Left Rear
C705 Door Latch, Left Rear
