Glove Compartment Lock Cylinder: Service and Repair

Glove Compartment Lock Cylinder










1. Open the glove compartment.

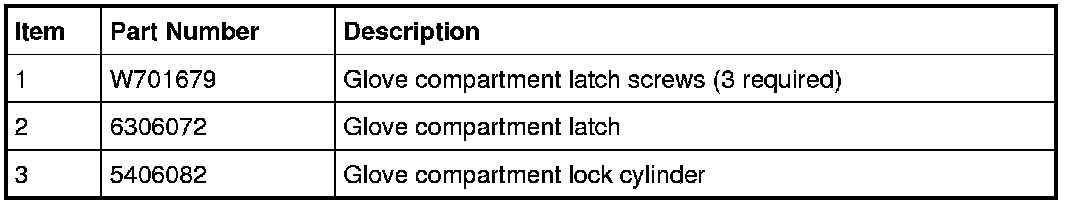

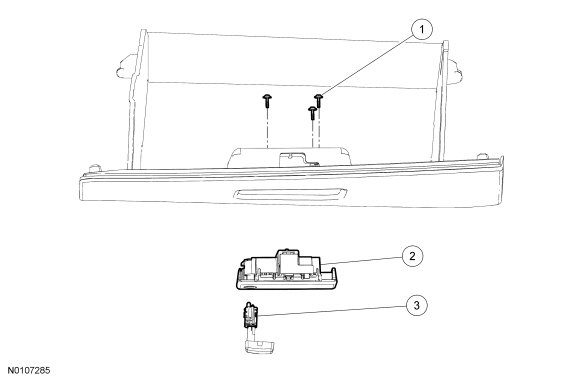

2. Remove the 3 glove compartment latch screws.

3. With a firm, quick motion, pull on the glove compartment latch handle to remove the latch from the glove compartment.

4. Insert a key into the glove compartment lock cylinder and place in the unlock position.

5. Using a suitable tool (such as a small flat-bladed screwdriver), press in on the glove compartment lock cylinder tumbler.





6. Pull out on the key and lock cylinder to remove the lock cylinder from the latch.

7. To install, reverse the removal procedure.
