Instrument Panel - Exploded View




Instrument Panel - Exploded View

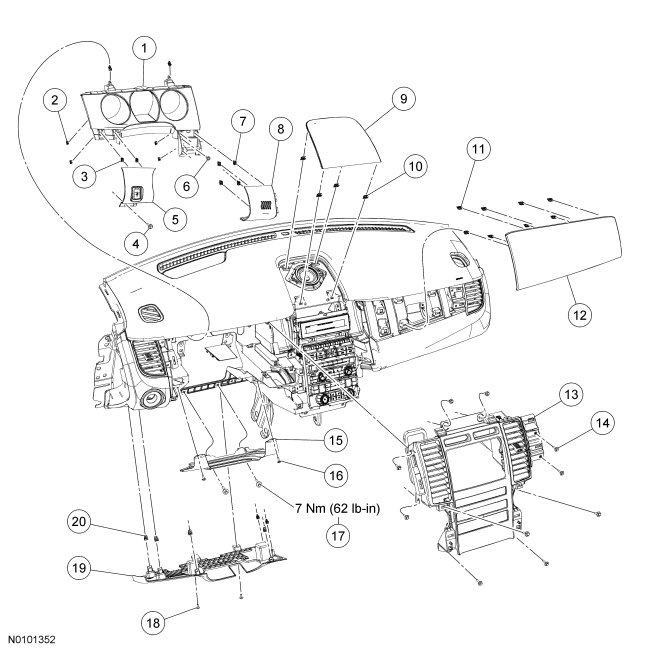

Instrument Panel Trim Panel and Fasteners

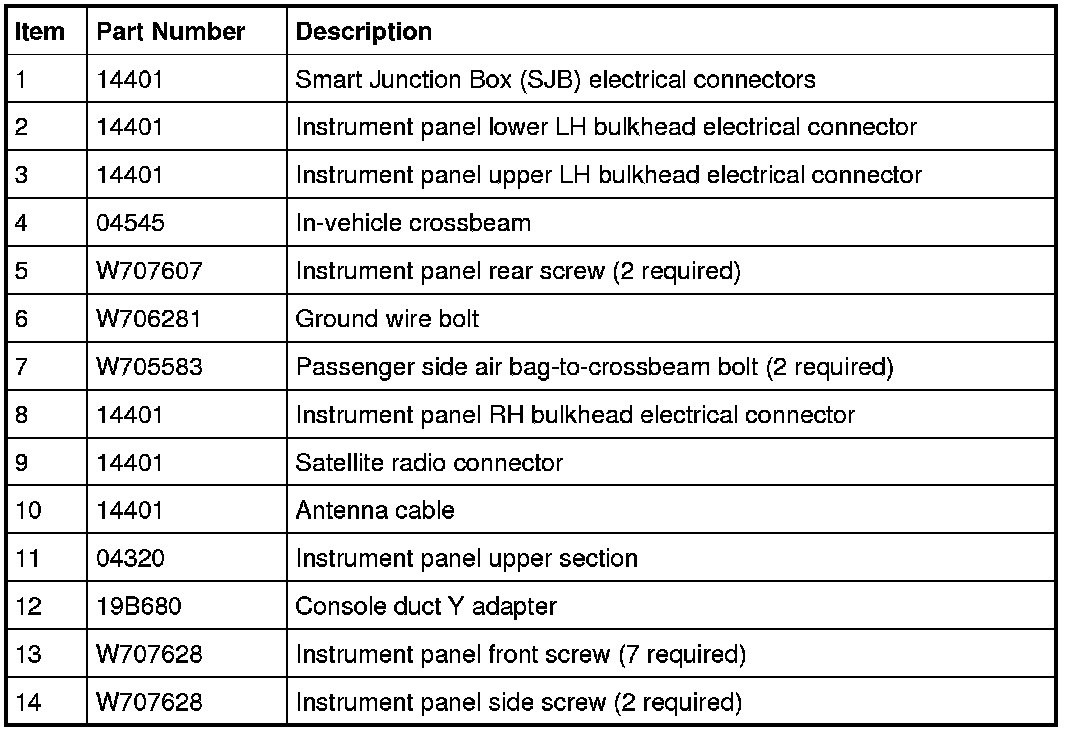

Instrument Panel Finish and Trim Panels

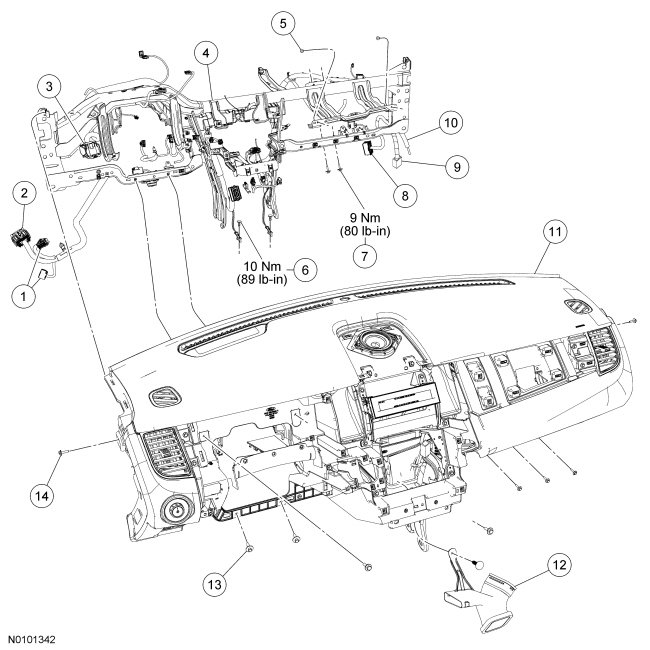

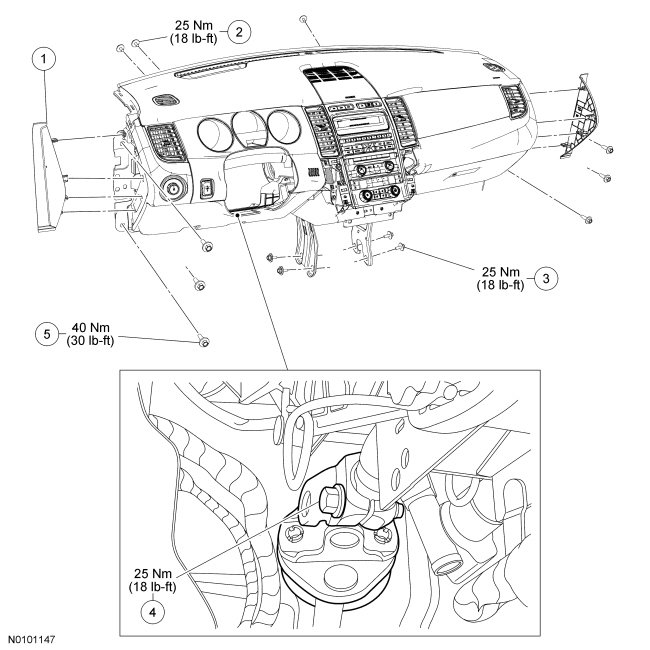

Instrument Panel Upper Section

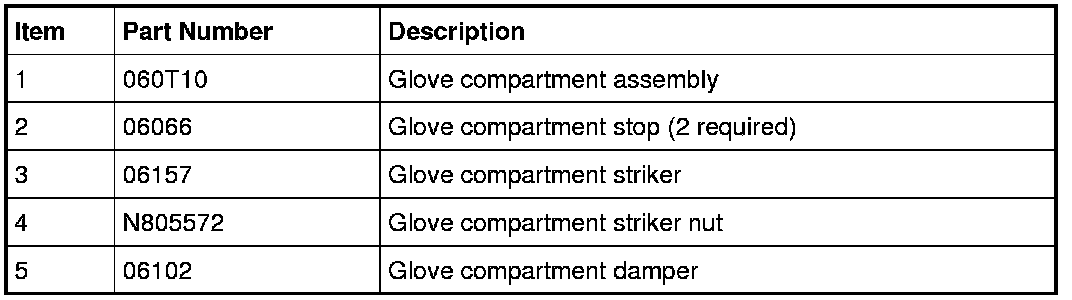

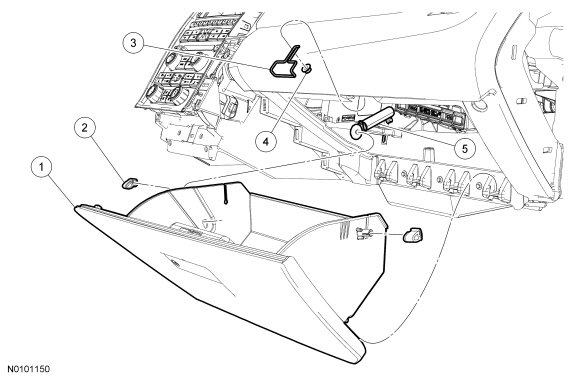

Glove Compartment
