Radiator Grille

Radiator Grille

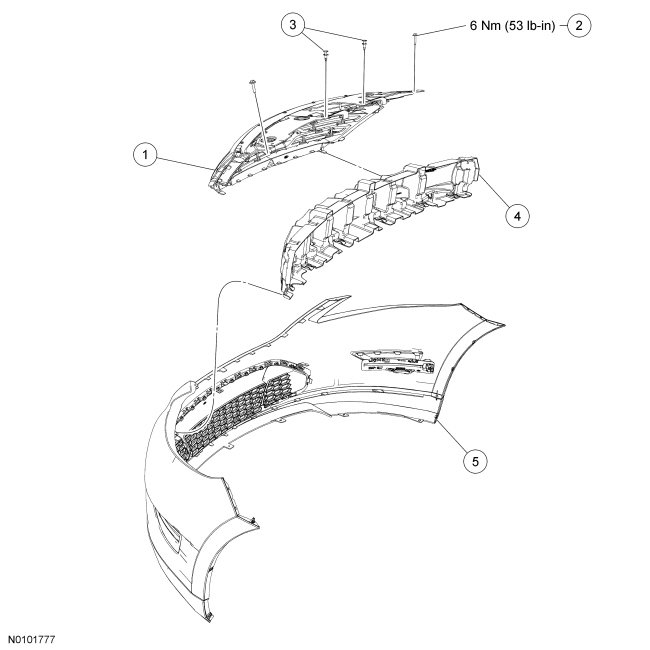

Removal and Installation

1. Remove the front bumper cover.

2. Release the push-clip retainers and remove the bumper cover reinforcement.

3. Release the retaining clips on the bumper cover and remove the radiator grille.

4. To install, reverse the removal procedure.
