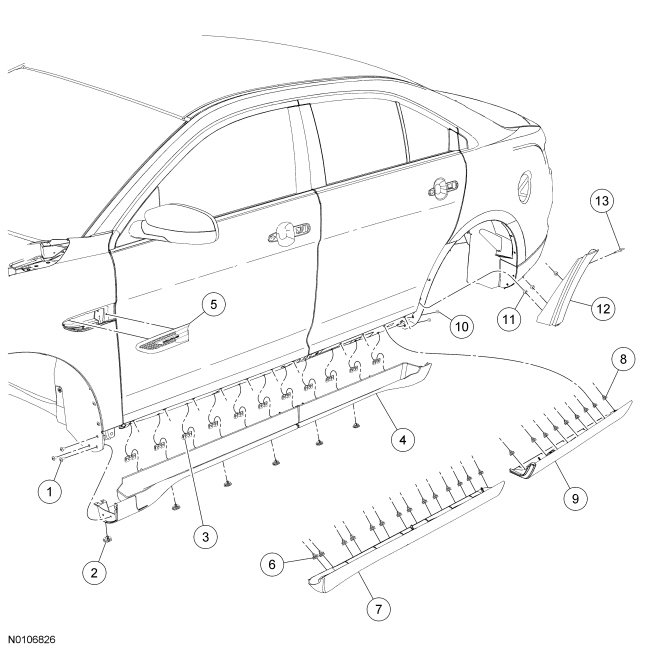

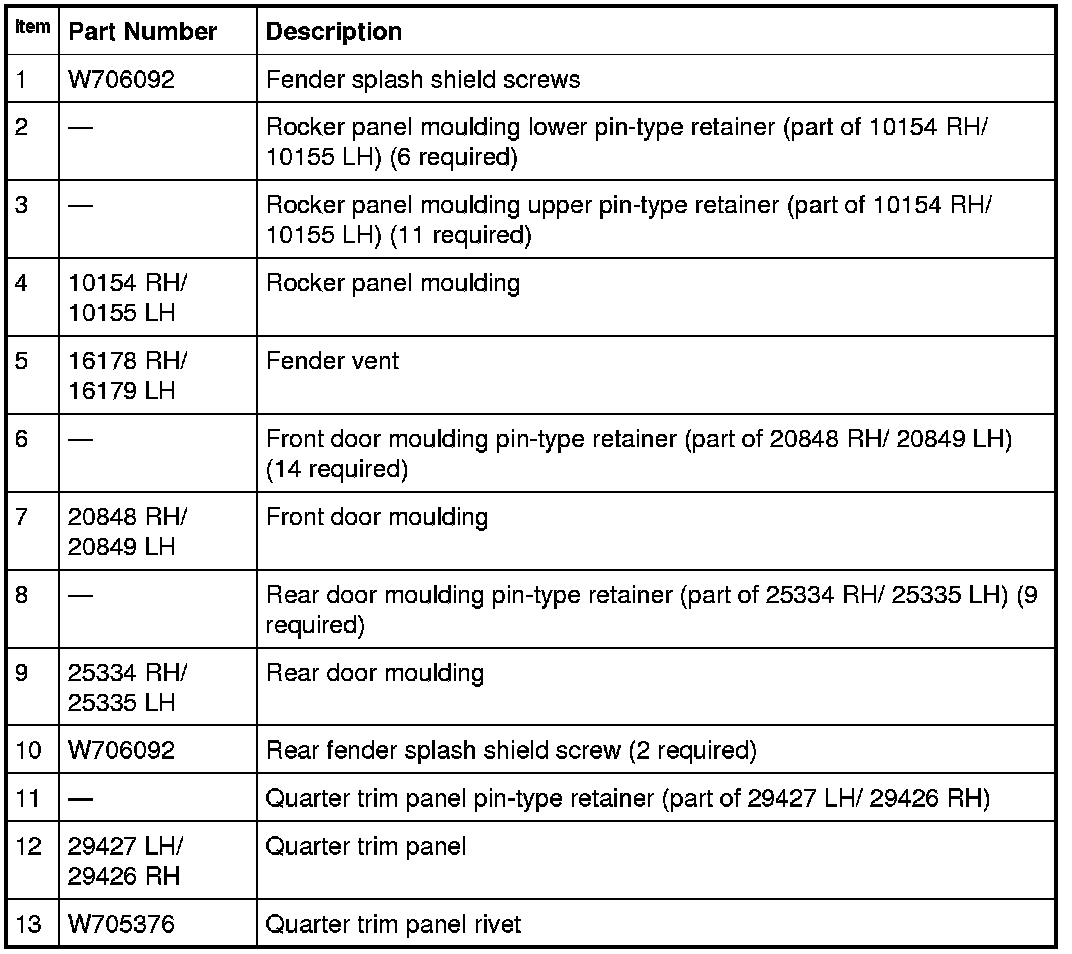

Exterior Trim - Exploded View
Exterior Trim - Exploded View
Exterior Trim - Exploded View

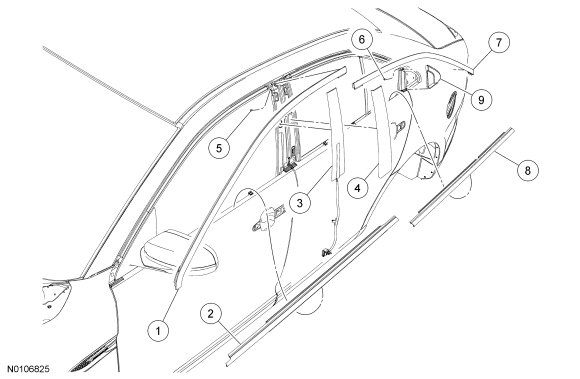

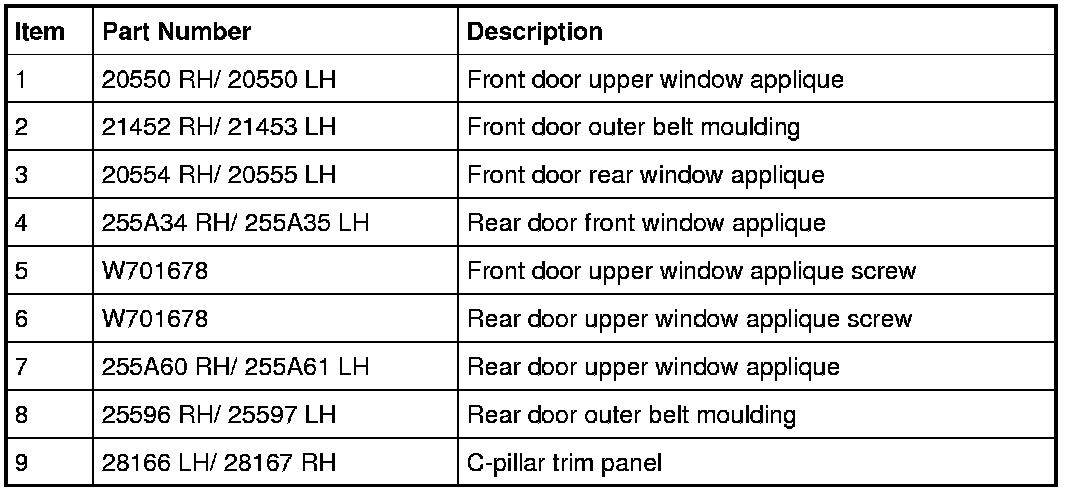

Upper Trim
Lower Trim
