Trunk / Liftgate: Service and Repair

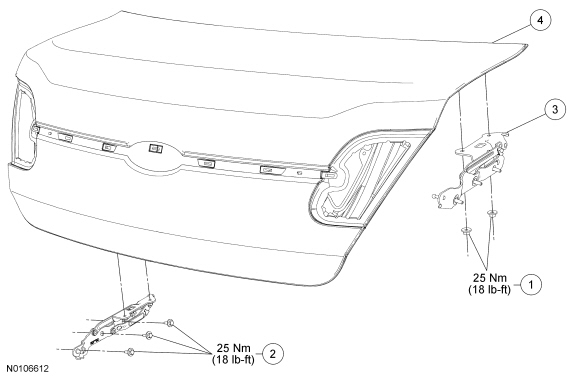

Luggage Compartment Lid









Removal and Installation

1. Open the luggage compartment lid.

2. Disconnect the electrical connectors.

3. With the help of an assistant, remove the hinge-to-luggage compartment lid nuts.
- To install, tighten to 25 Nm (18 lb-ft).


4. With the help of an assistant, remove the luggage compartment lid.

5. To install, reverse the removal procedure.
