Starting System

Starting System

DTC Charts

NOTE: Refer to Description and Operation, Intelligent Access with Push Button Start in Antitheft and Alarm Systems, to review the procedures for achieving the various ignition states (ignition OFF, ignition in ACCESSORY, ignition ON, ignition START) on vehicles with this feature.

PCM DTC Chart

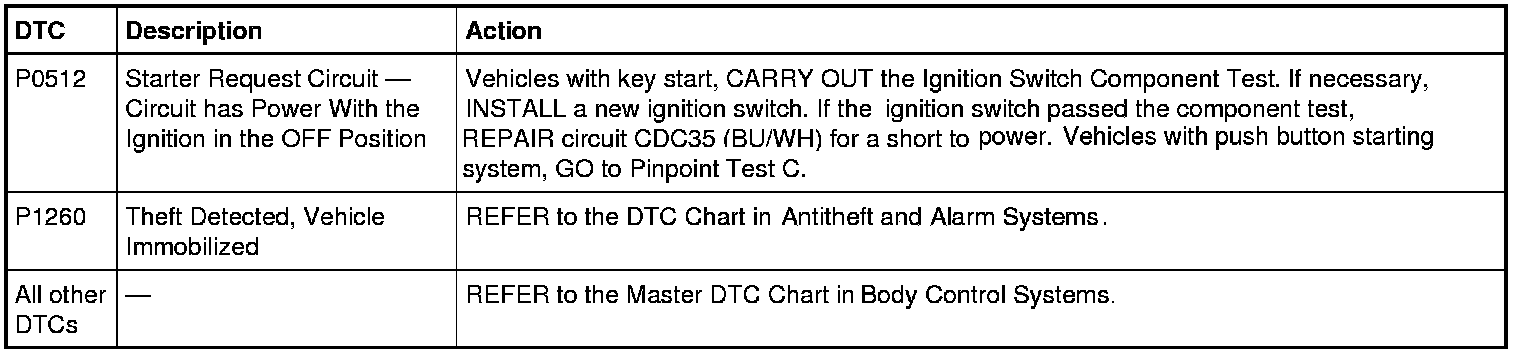

Remote Function Actuator (RFA) Module DTC Chart (Vehicles With a Push-Button Start System)

NOTE: This module utilizes a 5-character DTC followed by a 2-character failure type code. The failure type code provides information about specific fault conditions such as opens or shorts to ground. CMDTCs (Continuous Memory Diagnostic Trouble Codes) have an additional 2-character DTC status code suffix to assist in determining DTC history.
