Door Trim Panel

Door Trim Panel

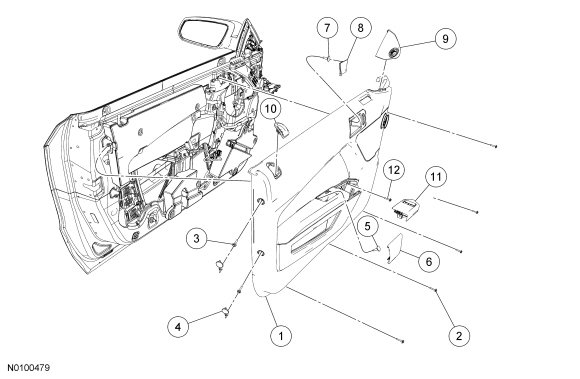

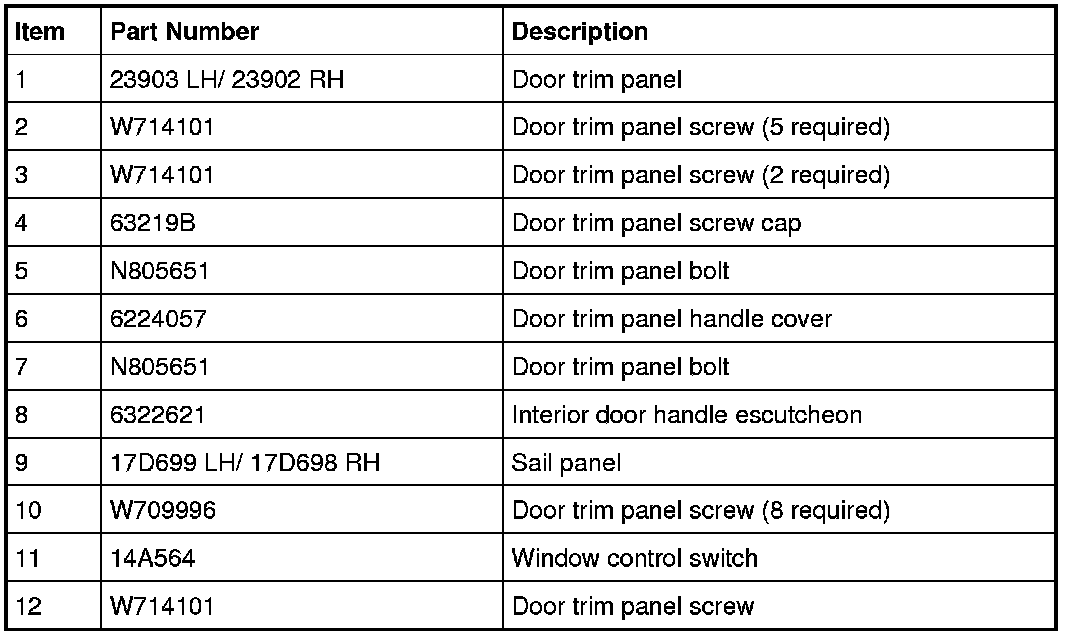

Removal and Installation

1. Remove the sail panel.
- If equipped, disconnect the exterior mirror control switch electrical connector.


2. Remove the interior door handle escutcheon and the door trim panel bolt.

3. Remove the door trim panel handle cover and the door trim panel bolt.

4. Remove the window control switch and disconnect the electrical connector.

5. Remove the 8 door trim panel screws and remove the door trim panel.
- Disconnect the interior door handle actuating cable.

- Disconnect the power door lock.

- If equipped, disconnect the subwoofer electrical connector.

- If equipped, disconnect the ambient light electrical connector.


6. To install, reverse the removal procedure.
