Automatic Transaxle/Transmission - 6R80
>>
Diagnostic Routines
>>
Engagement Concerns 201 - 209
>>
209, Delayed Forward and Delayed Reverse
209, Delayed Forward and Delayed Reverse
Diagnostic Routines

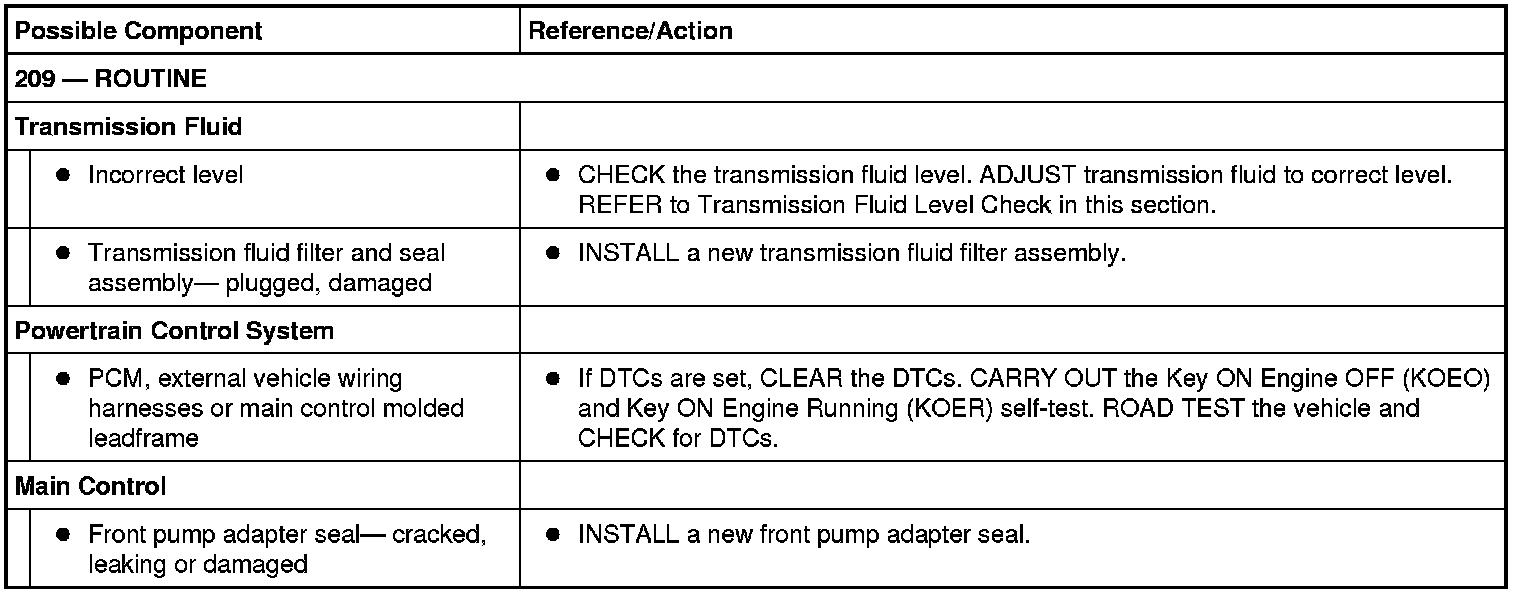

Engagement Concerns: Delayed Forward and Delayed Reverse
