Transmission Connector Layouts




Transmission Connector Layouts

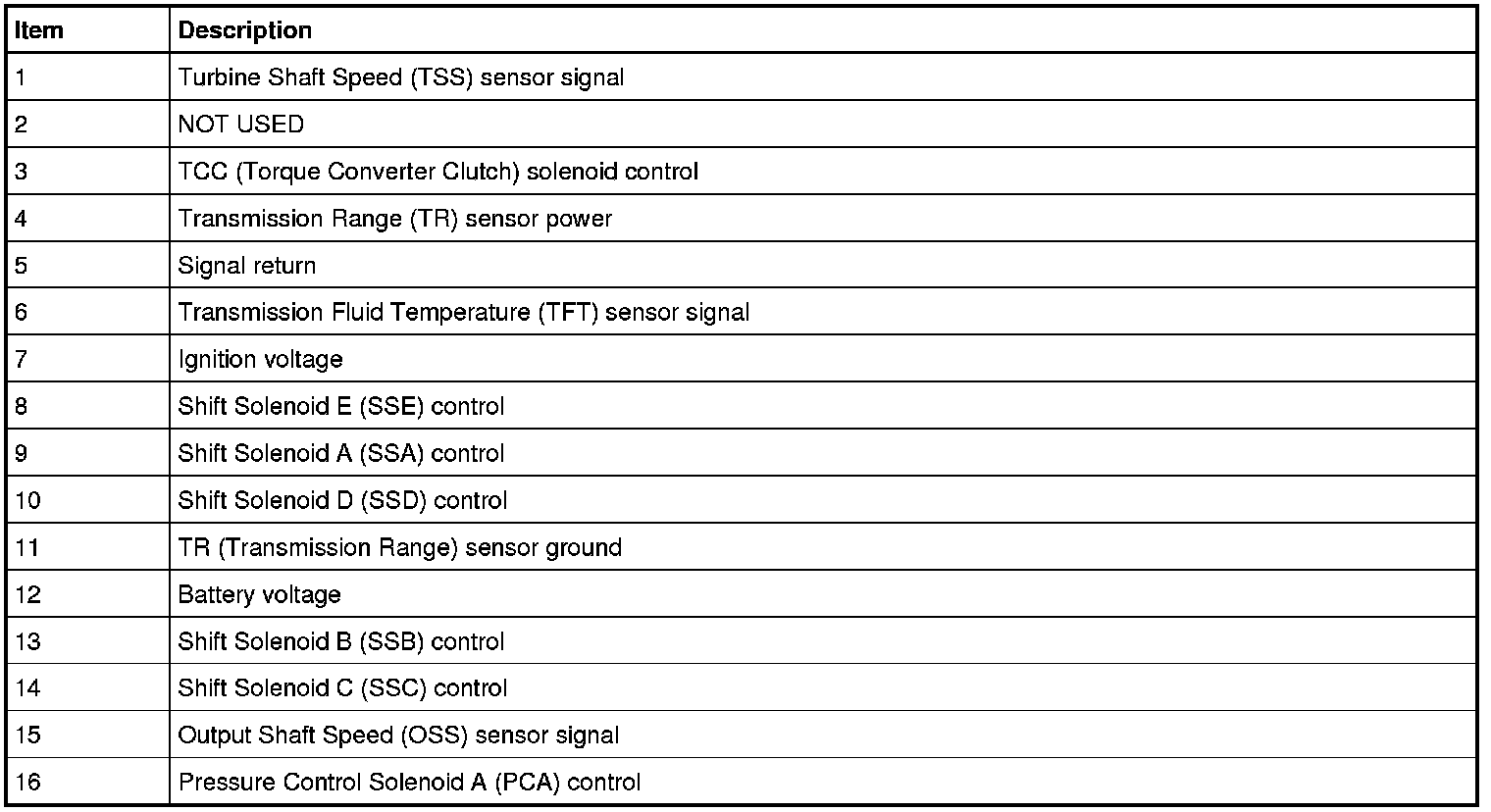

Transmission Vehicle Harness - C1575

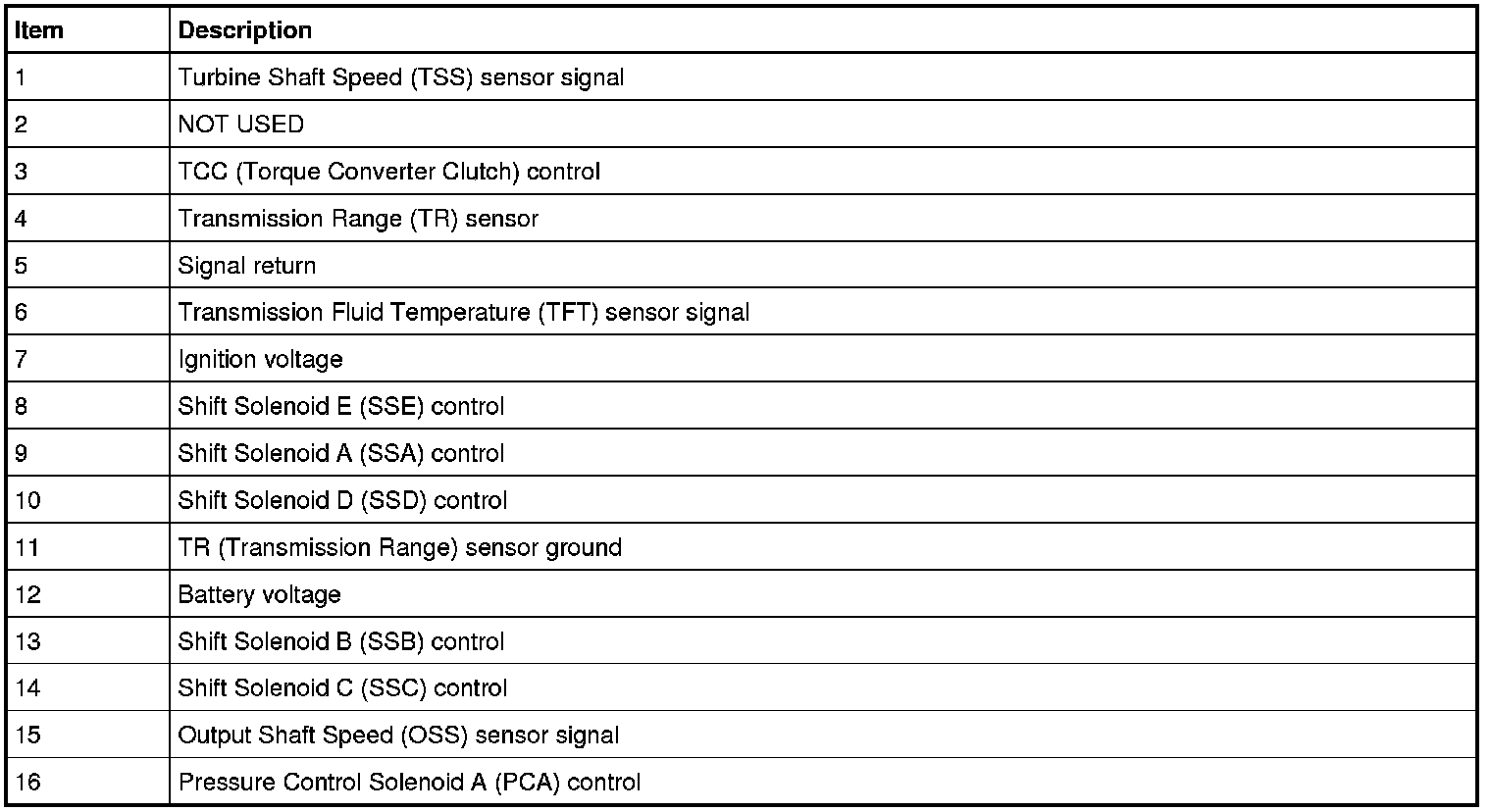

Transmission Leadframe Connector

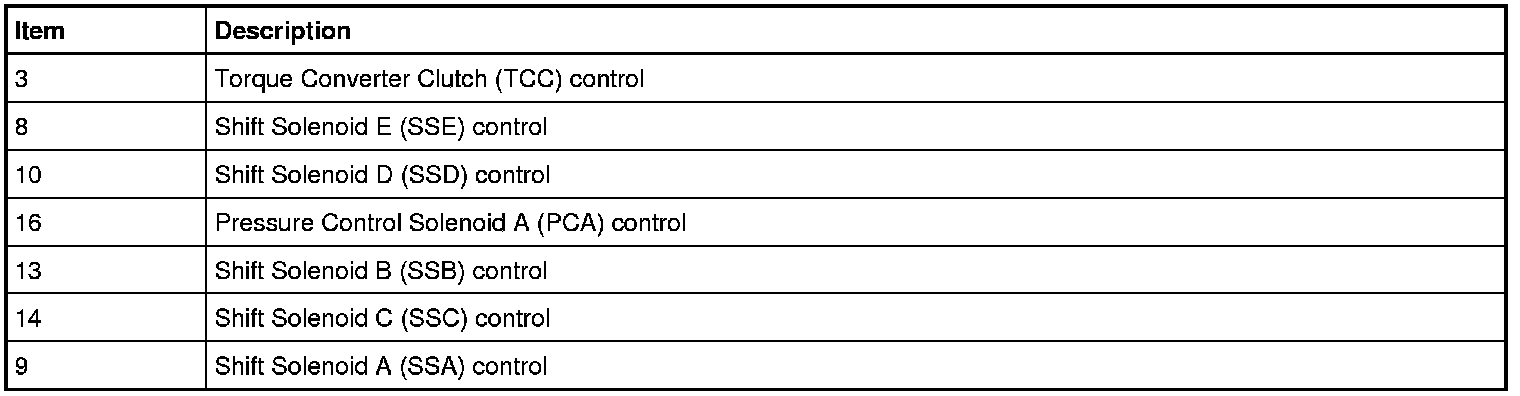

Molded Leadframe

NOTE: When measuring continuity through the molded leadframe, the common power feed to the solenoids listed in the following chart is terminal 7 at the molded leadframe connector.
